Papan Power Expansion Controller Tegangan Tinggi Untuk Printer 3D

Elektronik > Aksesoris Konsol > Papan Power Expansion Controller Tegangan Tinggi Untuk Printer 3D

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:pairuitry.idLihat semua produk Gaming & Konsol oleh pairuitry.id

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Papan Power Expansion Controller Tegangan Tinggi Untuk Printer 3D

Description:

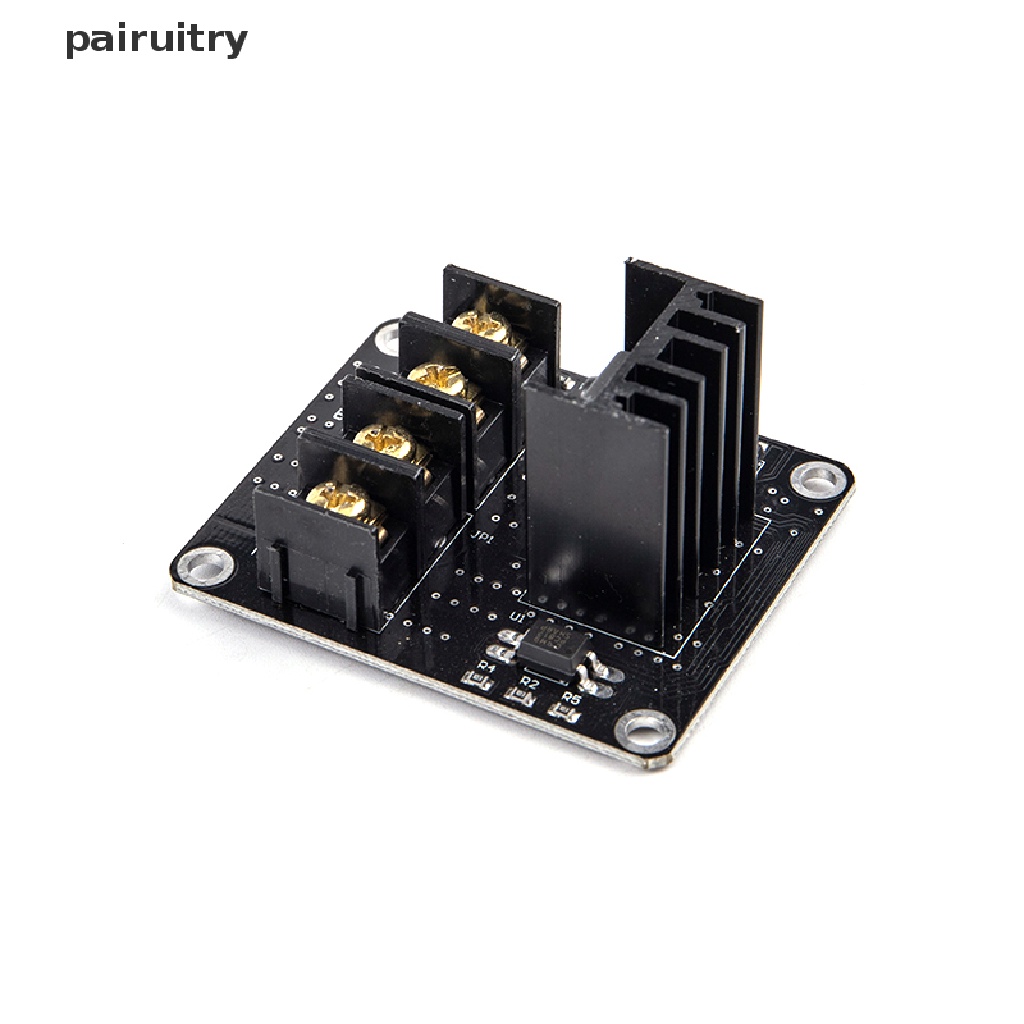

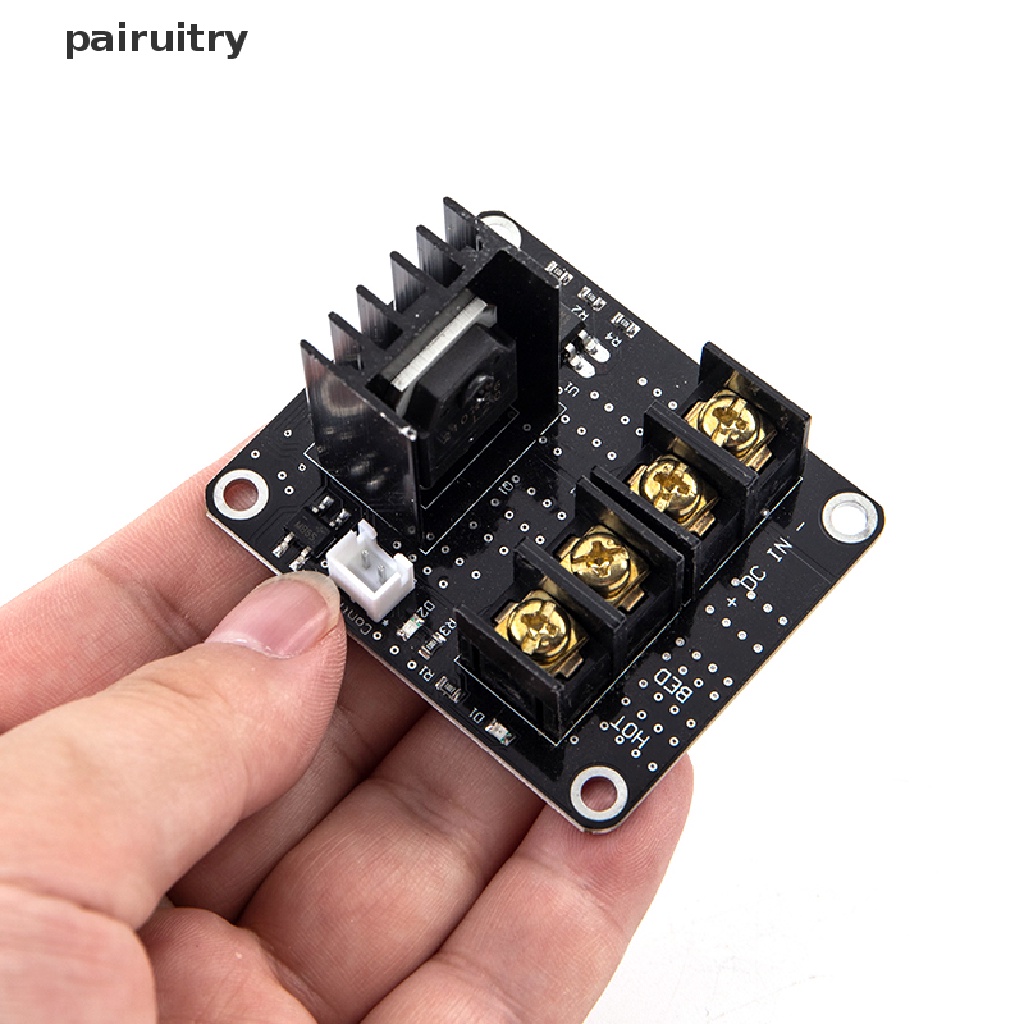

Heated bed power module

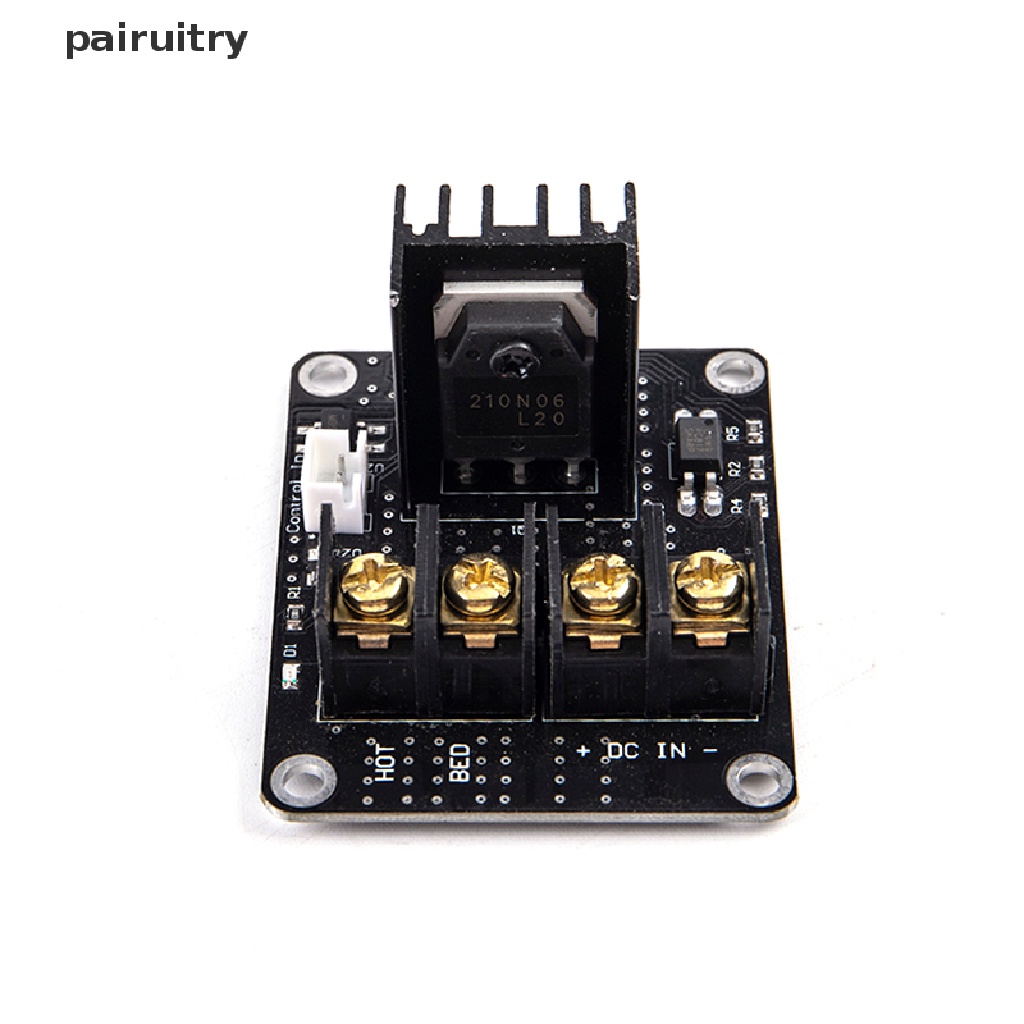

Based on powerful MOSFET HA210NO6

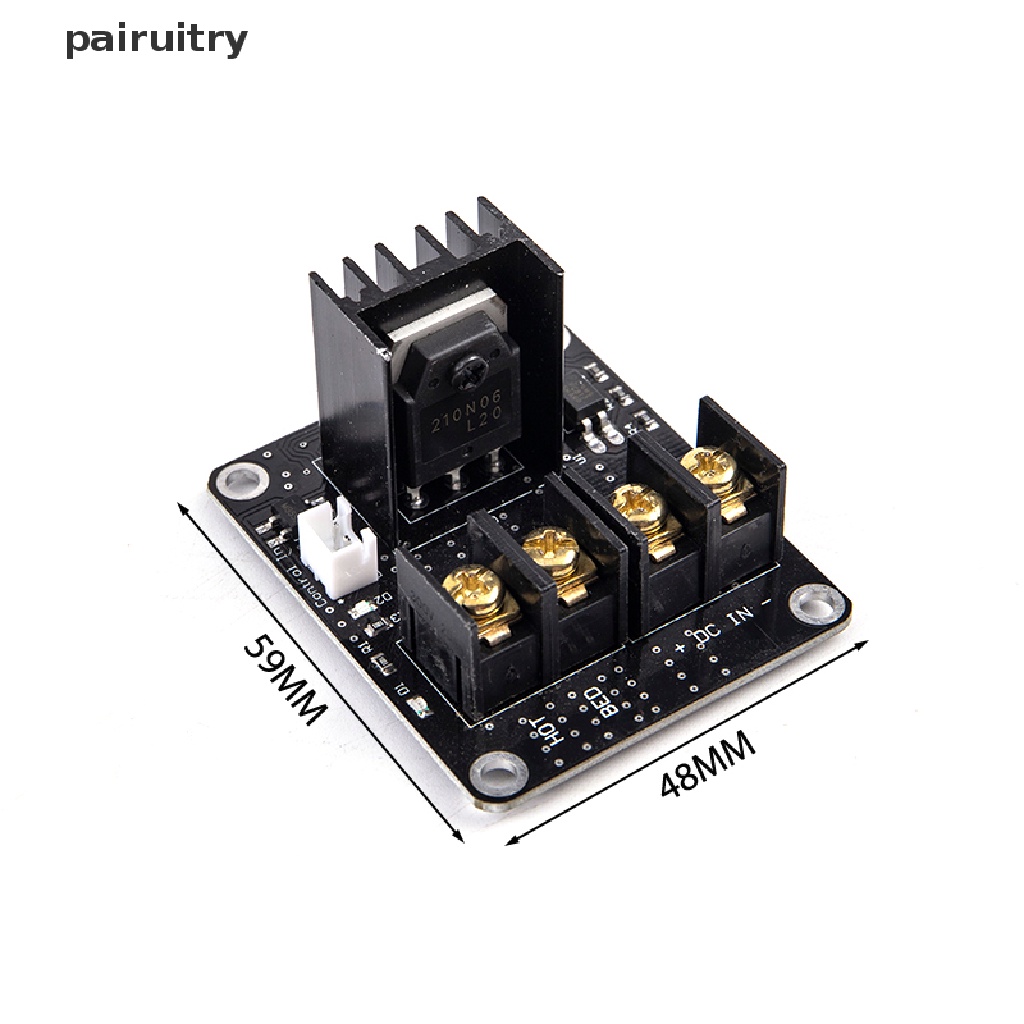

Size: 59*48mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 54*43mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-24V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=2, the current must not exceed 2 while the process working
Package Includes:
1 x Heated Bed Power Module
1 x Connection cable for input signal
