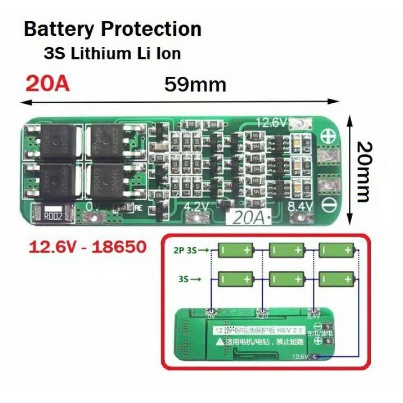

Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries) Product Size: 64mmx20mmx3.4mm Material:Metal Charging voltage: 12.6V Maximum output current: 20A Maximum output power / charging power: 252W
Precautions: 1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip. 2.After connection,it need to first charge activation, then will have the output.
***UNTUK DIPERHATIKAN : - jangan mencampur baterai yang BEDA MERK, BEDA KAPASITAS dan BEDA KONDISI (baterai baru dan bekas di dalam 1 BMS) - jika menggunakan BATERAI BEKAS, kemungkinan bisa mengakibatkan BMS malfungsi. - disarankan menggunakan baterai yang berkualitas - non garansi / membeli = setuju
