Papan Modul Pengisi Daya Cepat QC 3.0 2.0 usb DIY Untuk Ponsel

Detail Papan Modul Pengisi Daya Cepat QC 3.0 2.0 usb DIY Untuk Ponsel

Specification:
Brand new
Size: approx. 34*17*9.5mm (not including 1mm of USB female seat protrusion)
Input voltage range: 6V-32V DC
Output voltage: default 5V, automatic adjustment between 3~12V after fast charge is triggered.
Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.)
Output voltage wired compensation
Conversion efficiency: 90%~97%
Support agreement: BC1.2, QC2.0, QC3.0, MTK PE1.1/PE2.0, Apple, Samsung AFC, Huawei FCP, Spreadtrum SFCP.

Feature:
Supports multiple fast charging protocols.
Input overvoltage, overcurrent, undervoltage protection.
Output overcurrent, short circuit protection.
Module over temperature protection.
Fine workmanship and good performance.
Long service life.
Used to solar cell phone charging, car charging retrofit, driving recorder power supply, home power conversion etc.

Package included:
1 x Charging Module

Note:
Please allow 1-3mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

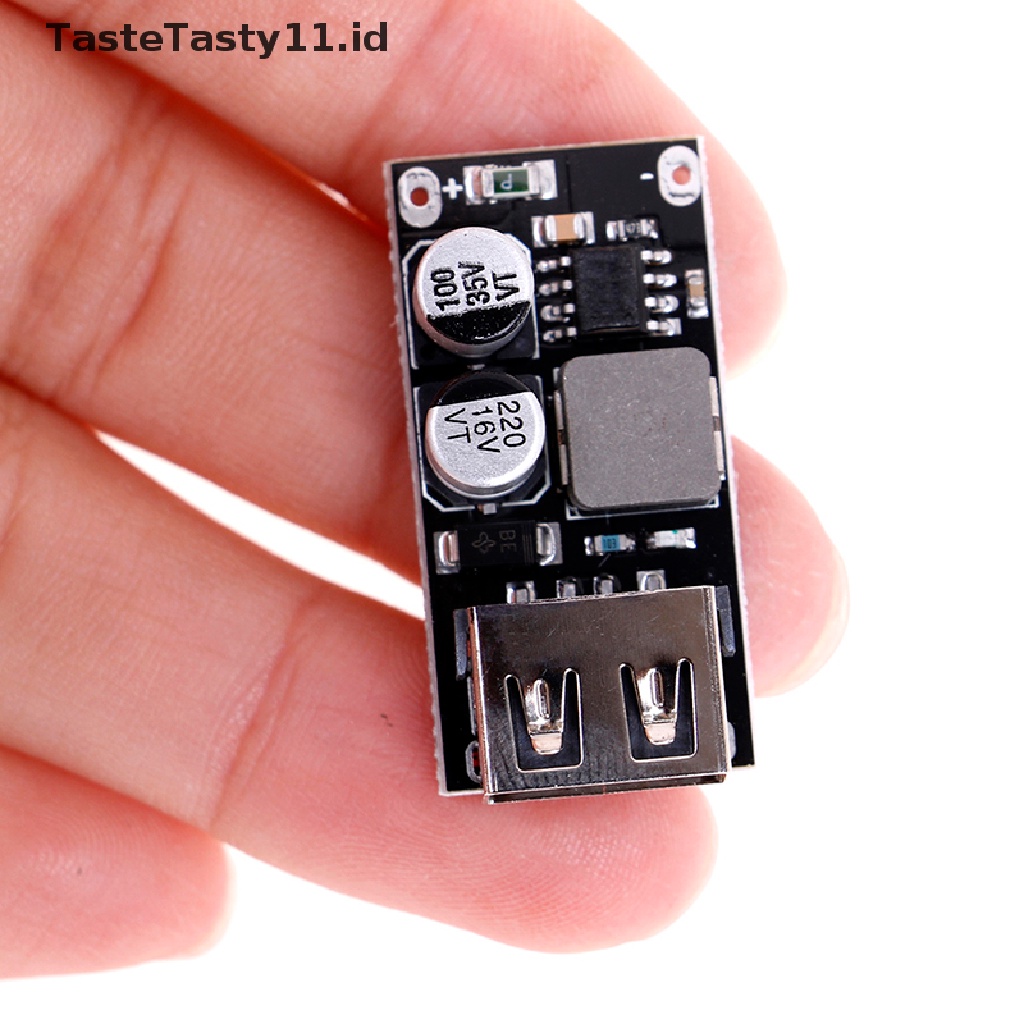

Gambar produk
