Detail Papan Modul Pengembangan Sistem Stm32F103Rbt6 Arm Stm32 Minimum Cortex-M3 M76
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickDescriptions:
STM32 F103 RBT6 function
■ Core: ARM 32-bit Cortex ™ -M3 CPU
- The maximum operating frequency of 72MHz, up 1.25DMips / MHz (Dhrystone at zero wait cycle memory access
2.1)
- Single-cycle multiply and hardware divide
■ Memory
- From 64K or 128K bytes of Flash program memory
- Up to 20K bytes of SRAM
■ clock, reset and power management
- 2.0 to 3.6 V power supply and I / O pins
- Power on / off reset (POR / PDR), programmable voltage monitoring
Device (PVD)
- 4 ~ 16MHz crystal oscillator
- Built by the factory tuned 8MHz RC oscillator
- Embedded with calibrated 40kHz RC oscillator
- To generate the CPU clock PLL
- 32kHz RTC oscillator with calibration function
■ Low power consumption
- Sleep, shutdown and standby mode
- VBAT supply for RTC and backup registers
■ 2 12-bit ADC, 1μs conversion time (up to 16
Input channels)
- Conversion range: 0 to 3.6V
- Dual sample and hold function
- Temperature Sensor
■ DMA:
- 7-channel DMA controller
- Supported peripherals: timers, ADC, SPI, I2C and
USART
■ Up to 80 fast I / O ports
- 26/37/51/80 an I / O port, all I / O ports can be mapped to
16 external interrupts; almost all the ports can tolerate 5V signal
■ debug mode
- Serial wire debug (SWD) and JTAG interfaces
■ Up to 7 timers
- Three 16-bit timers, each timer has up to four for
Input capture / output compare / PWM or pulse counting channel
And incremental encoder input
- 1 x 16 with dead-band control and emergency brake for motors
Advanced control timer PWM control
- 2 watchdog timers (independent and window type)
- System timer: 24-type counter is decremented
■ Up to 9 communication interfaces
- Up to two I2C interface (supports SMBus / PMBus)
- Up to three USART interface (supports ISO7816 interface,
LIN, IrDA interface and modem control)
- Up to two SPI interfaces (18M bit / sec)
- CAN interface (2.0B Active)
- USB 2.0 full speed interface
■ CRC calculating unit 96 the unique code chip
Package Included:

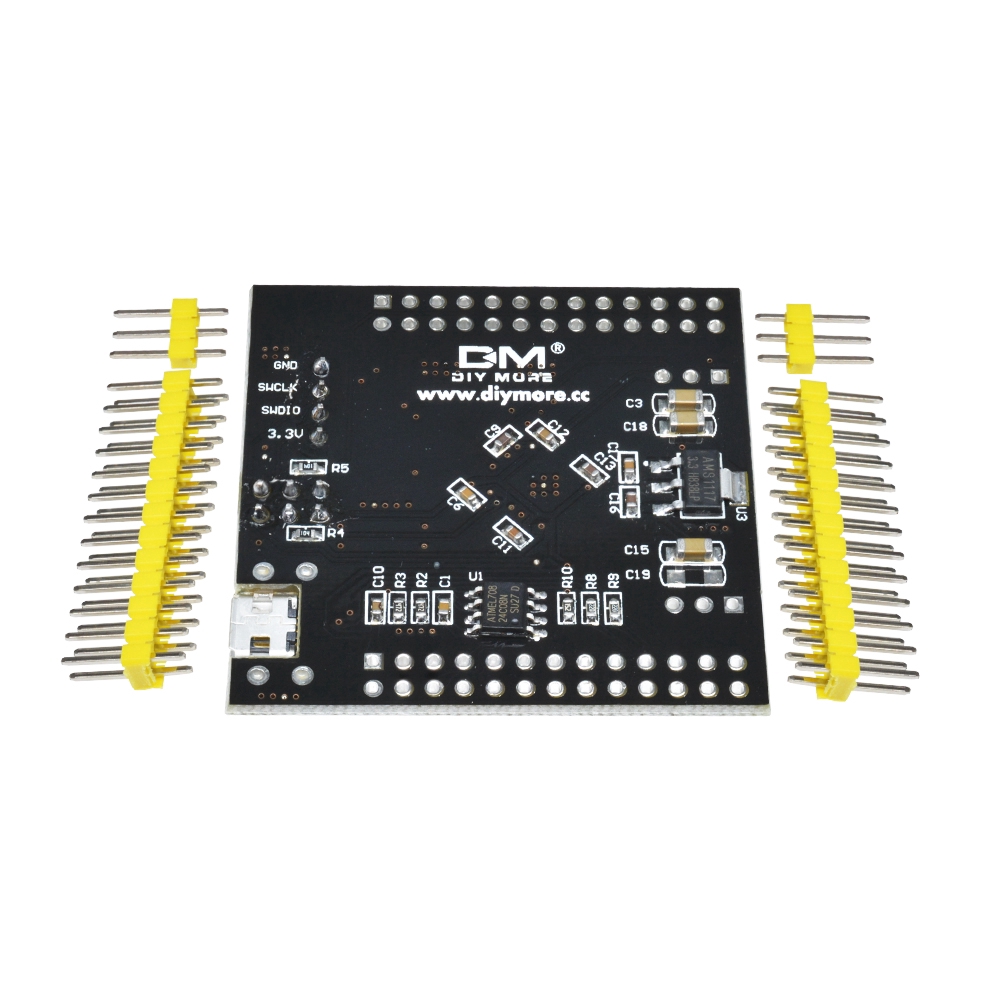

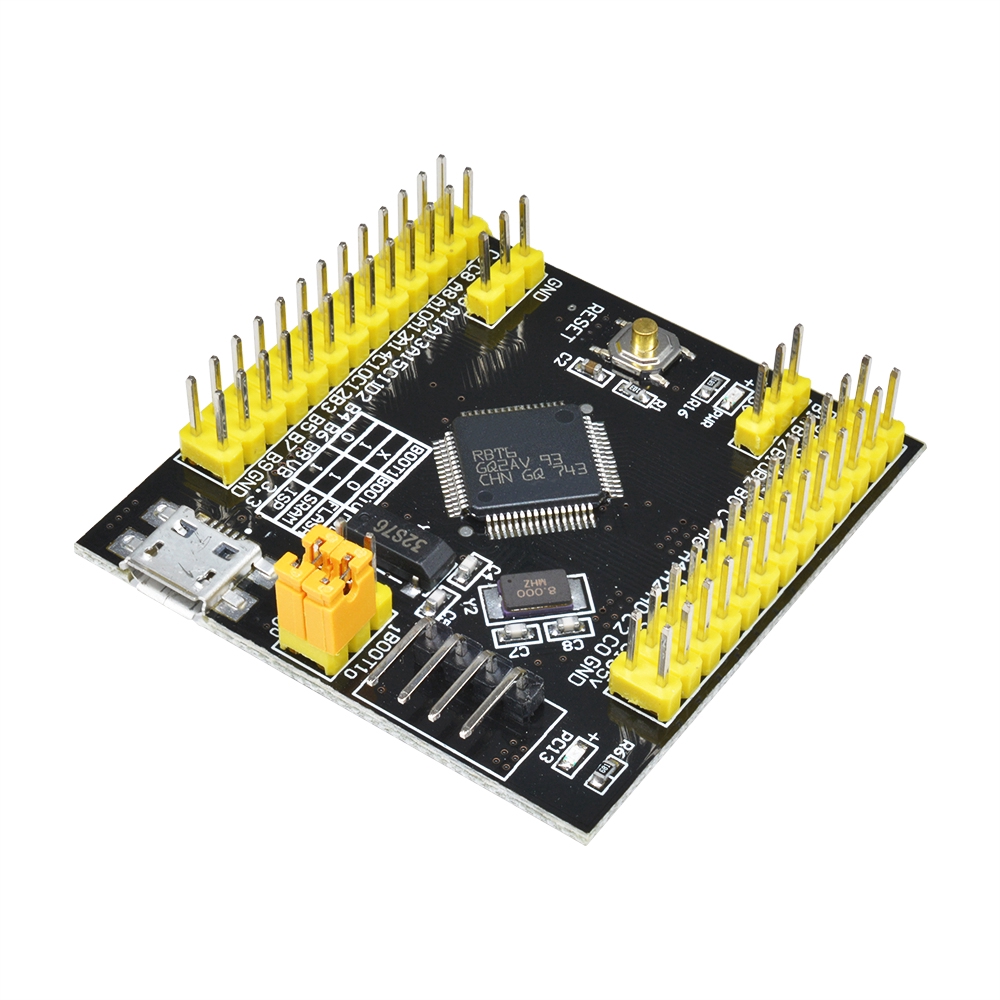

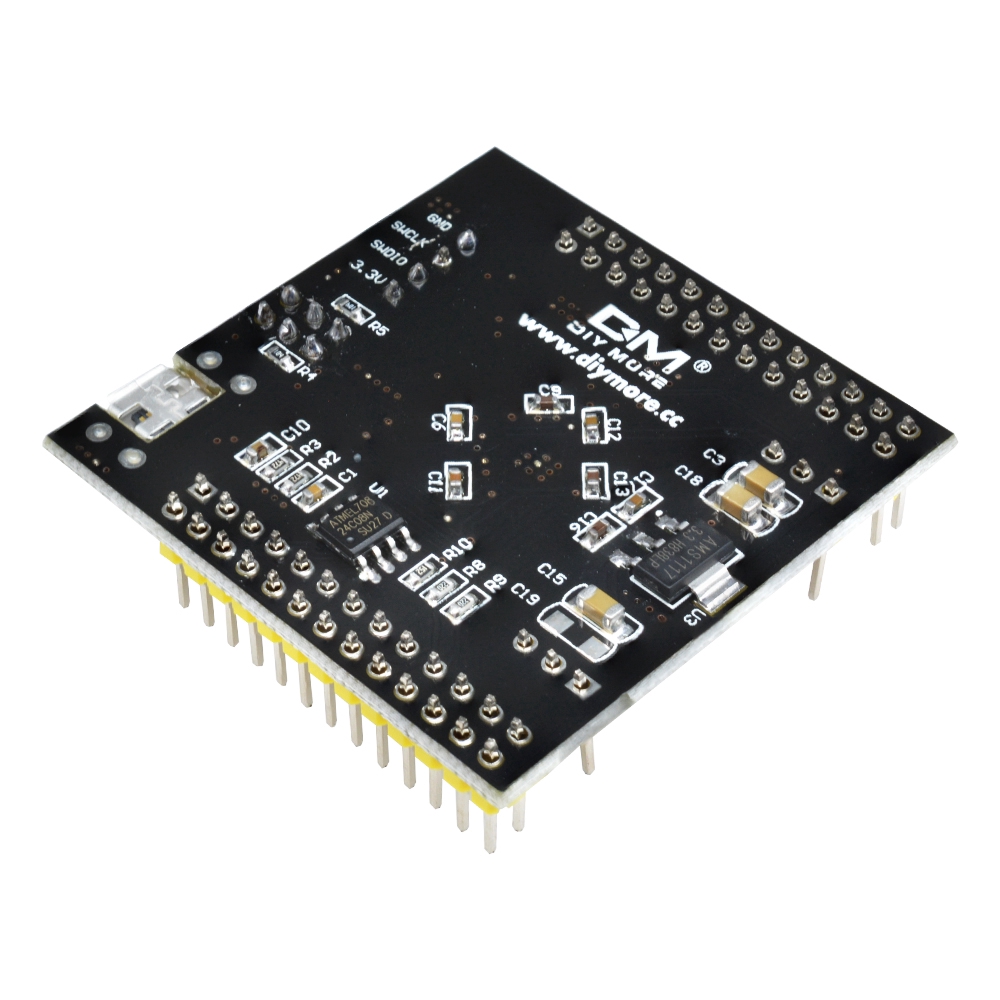

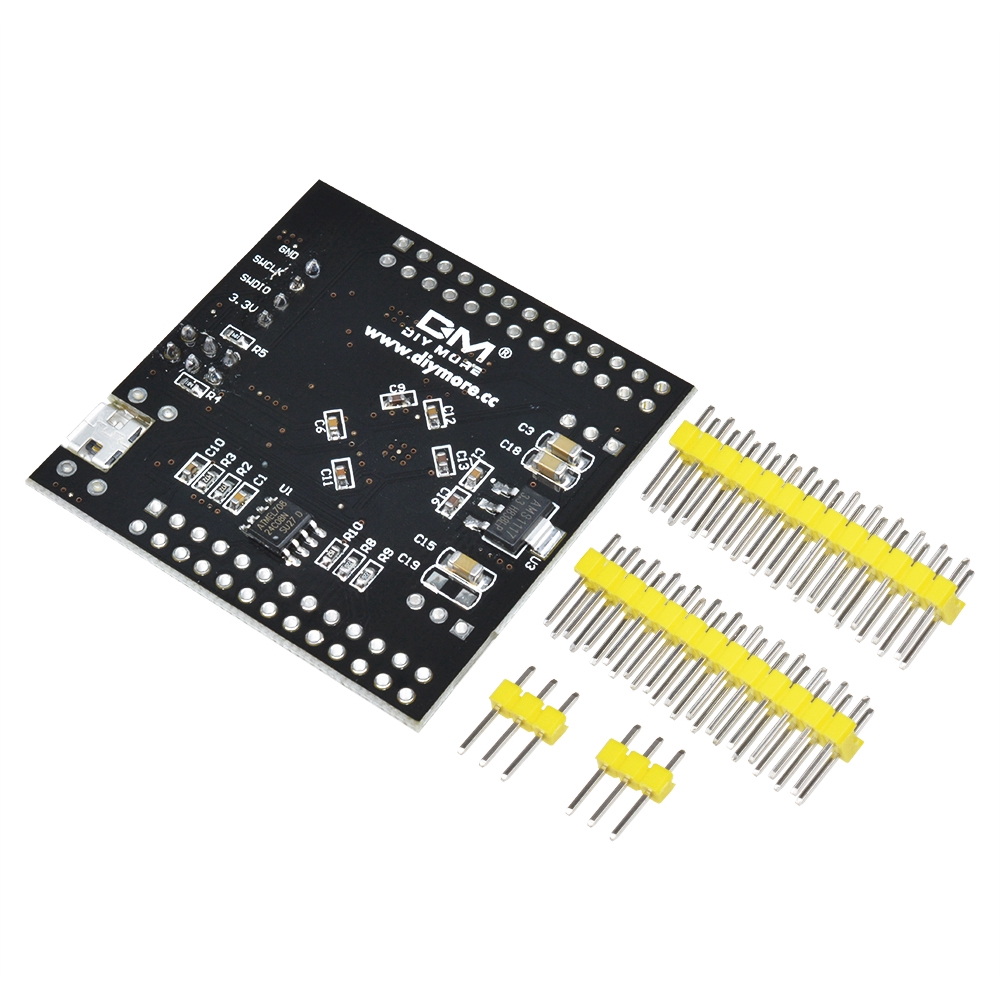

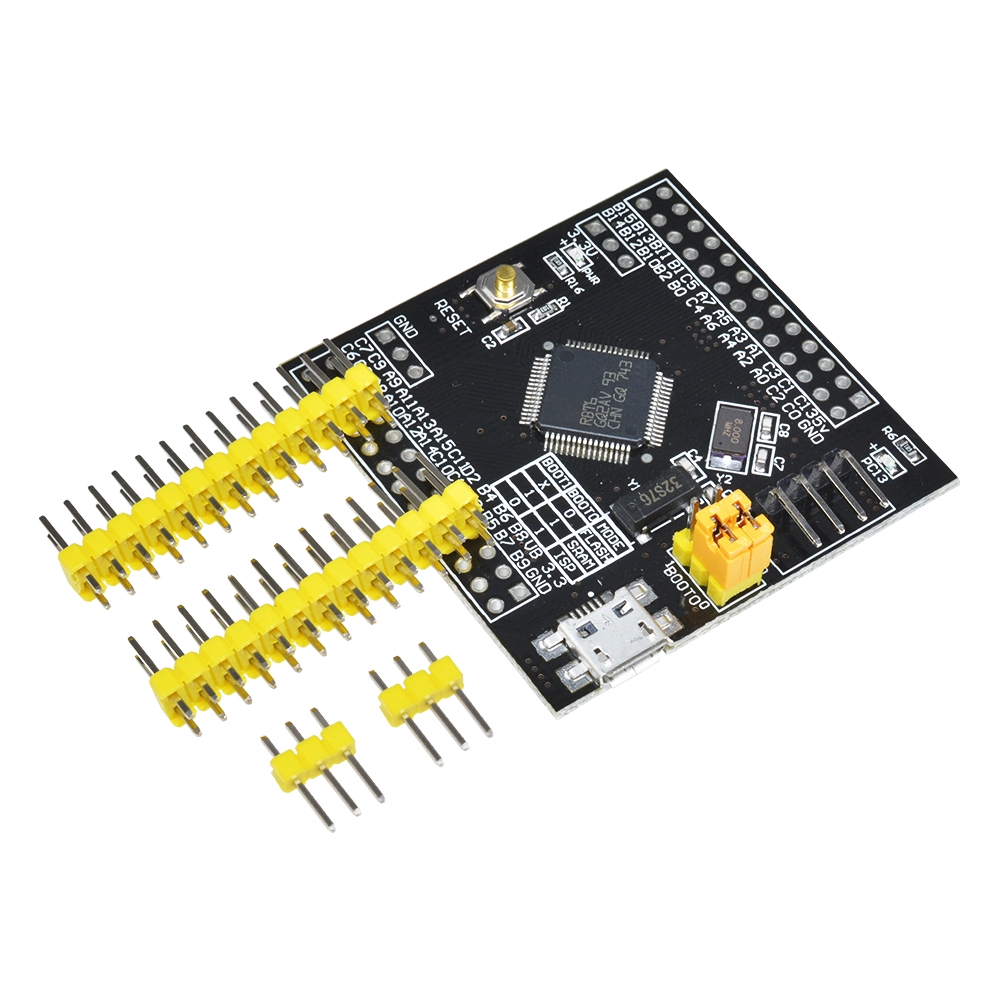

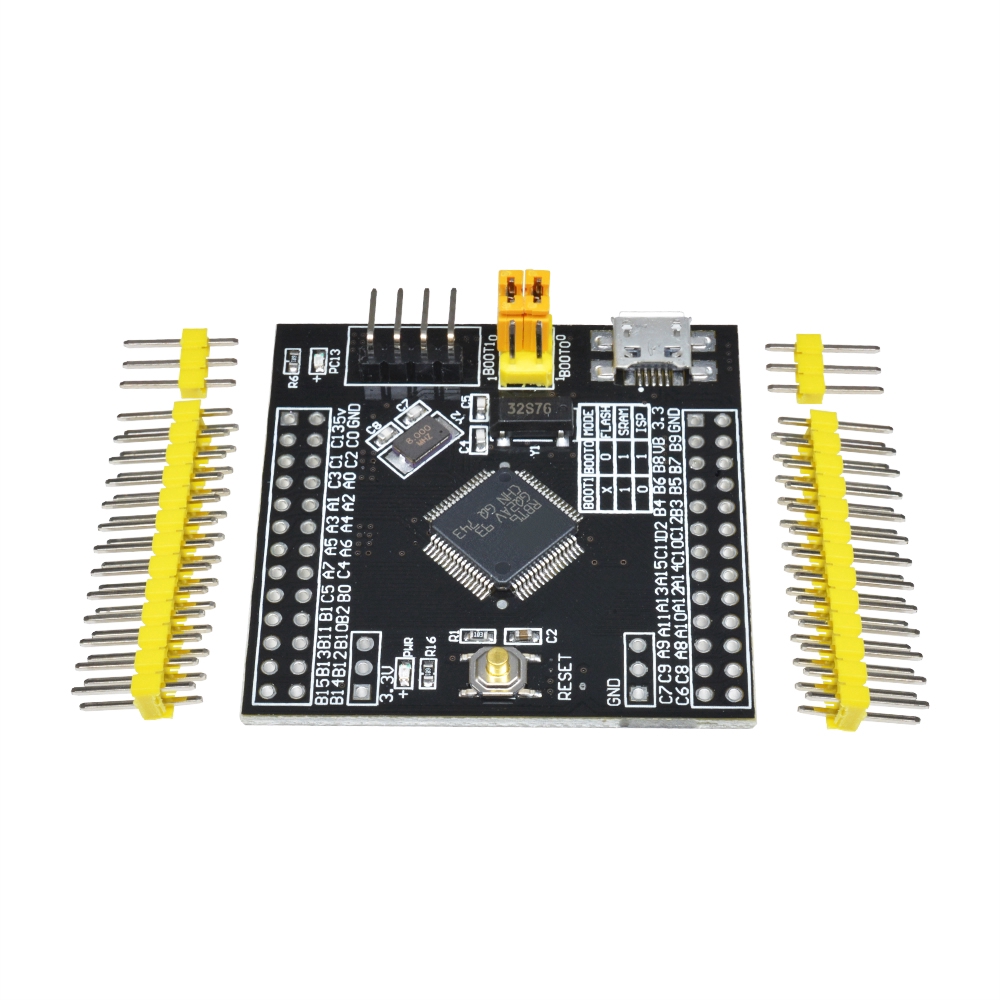

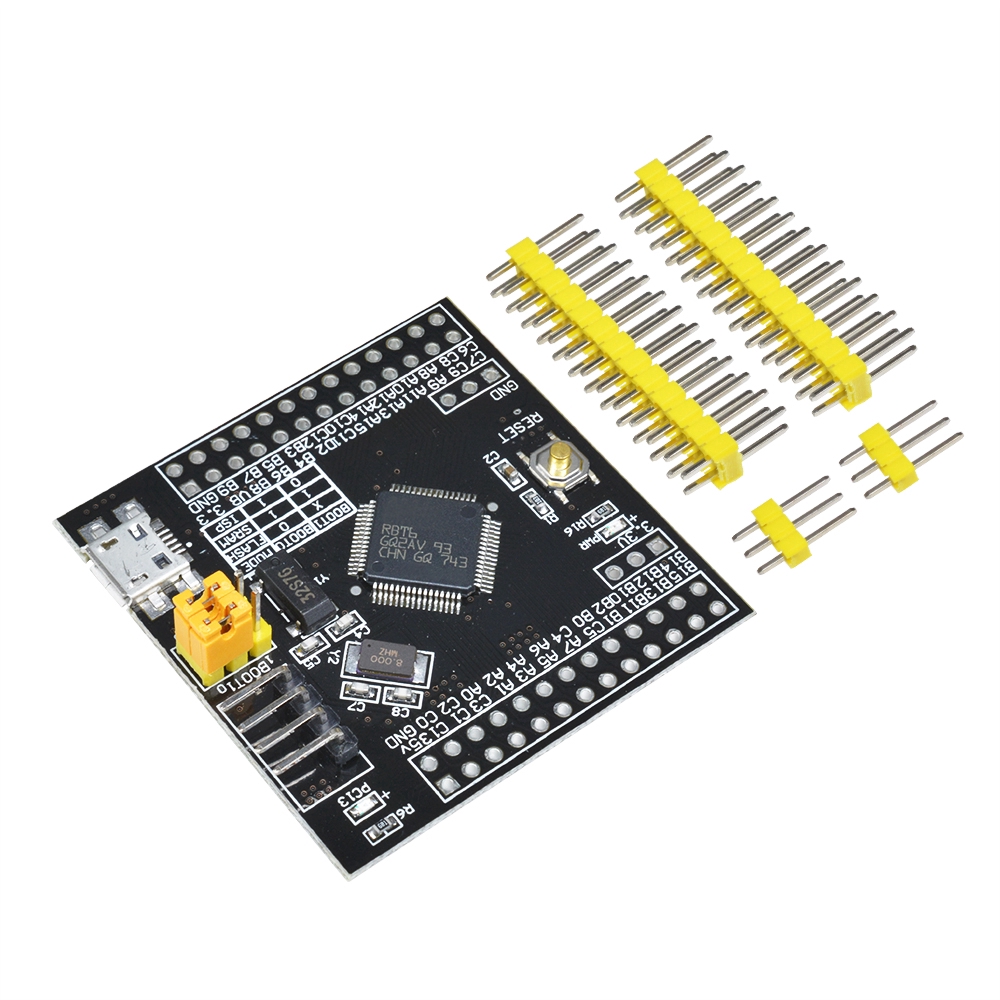

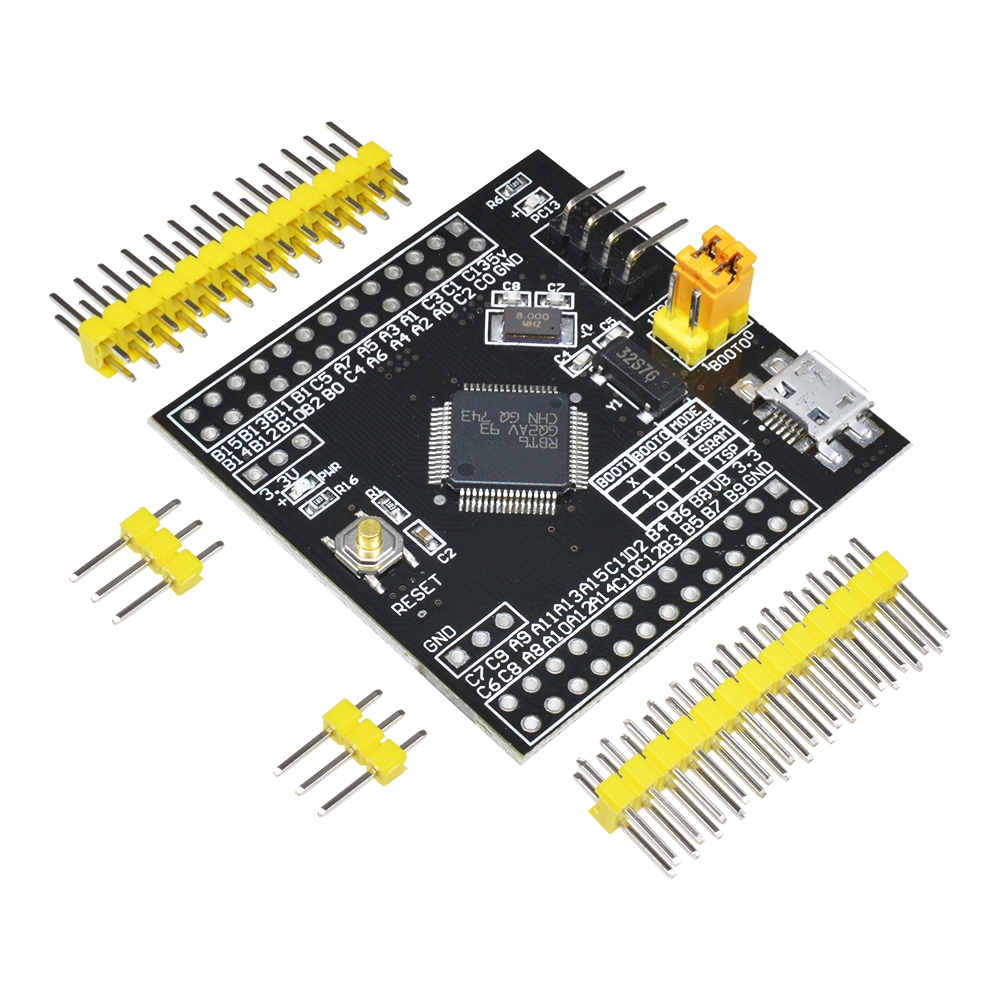

1 x STM32F103RBT6 ARM STM32 Minimum System Development Board Cortex-m3 M7
