Papan Driver Sensor Pengendali Motor Brushless PWM BLDC

Detail Papan Driver Sensor Pengendali Motor Brushless PWM BLDC

Features:
1.U V W 3-phase line output connected to brushless motor

2. 5V GND The motherboard comes with 5V (current does not exceed 200MA)

3. VCC GND main power supply (external DC power supply)

4. SC speed pulse signal output (only the interface is reserved, not for technical support)

5. DIR forward and reverse control keep the low level effective (can be connected to the ground external switch)

6. BRAKE brake control keeps low level active (can be connected to the ground with an external switch)

6.0-5V PWM speed control signal dual input terminal (on-board potentiometer speed control can also be switched by jumper to connect an external 0-5V analog quantity PWM duty cycle signal input speed control)

Full-chip technology, stable performance, and user-friendly design, all interfaces use terminal blocks, standard heat sink, on-board speed potentiometer, and can be used when the hand is powered on, saving time and worry



Specifications:
Color:As picture
Quantity:1PC
Product name: zs-x11f
Working voltage: 6.5-50V
Drive current: rated 16A plus air-cooled heat dissipation 30A
Maximum power: 350W
Overcurrent protection: Yes
Locked-rotor protection: Yes (after locked-rotor, the current will automatically drop and run at intervals)
Over-temperature protection: Yes (over-temperature power is halved)
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Product size: length 63MM*width 45MM*height 31MM
Package Include:1PC Three Phase Brushless Motor Controller PWM Without Hall Sensor Driver Board

Note:
1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.

Precautions:

1. Reverse connection of the positive and negative poles of the power supply on the motherboard will cause permanent damage to some of the chips on the board (even if it does not work for 1 second)

2. There is sampling over-current protection at the output of the motor during normal operation. Because the power and current of the module are very large, please do not artificially short-circuit the module when the module is not working normally. Once the short-circuit, the circuit may be burnt and the tube may burst, the first wiring test machine Please use small current and low voltage test, after ok, then apply high current and high voltage. Because it is a bare board module, please pay attention to the insulation of the wiring head. It is strictly forbidden that strong voltage touches the board parts.

3. Do not connect to the motor that is obviously inconsistent with the drive module voltage, current, or power.

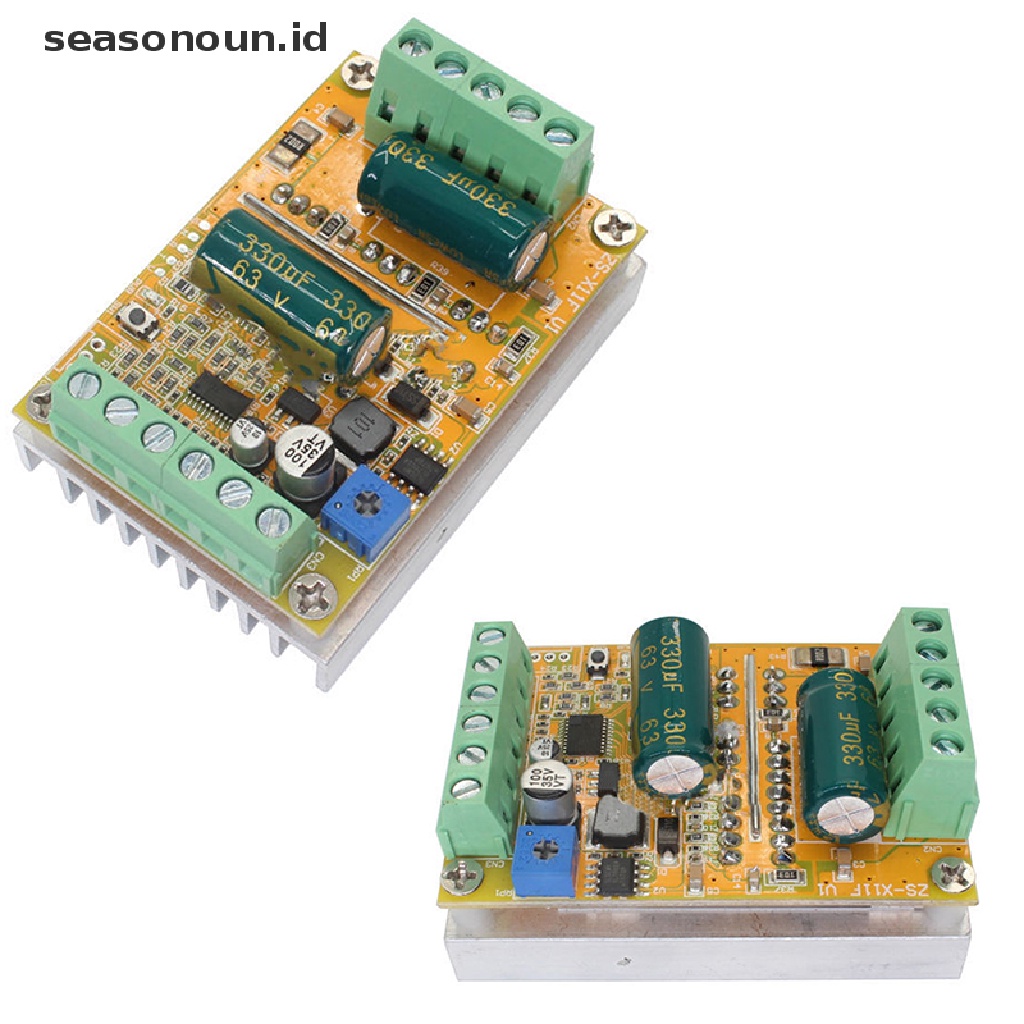

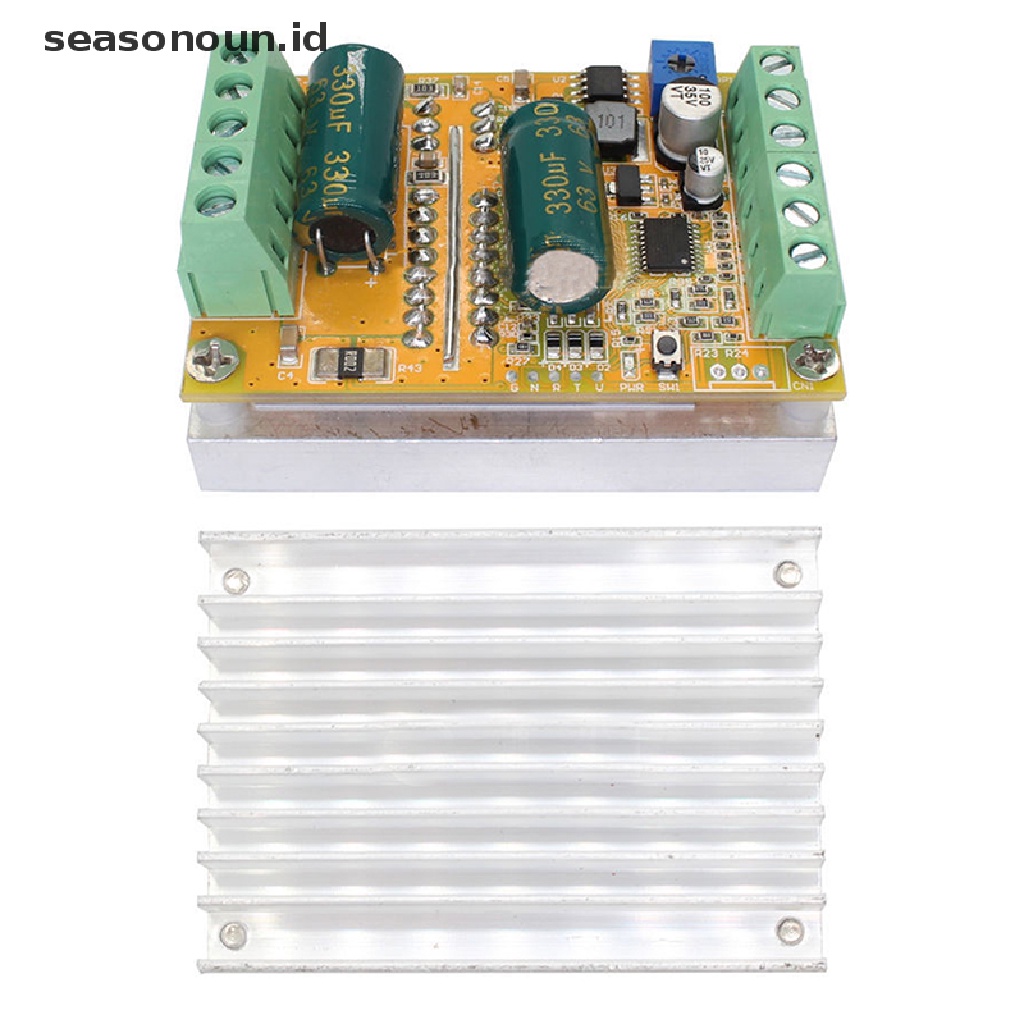

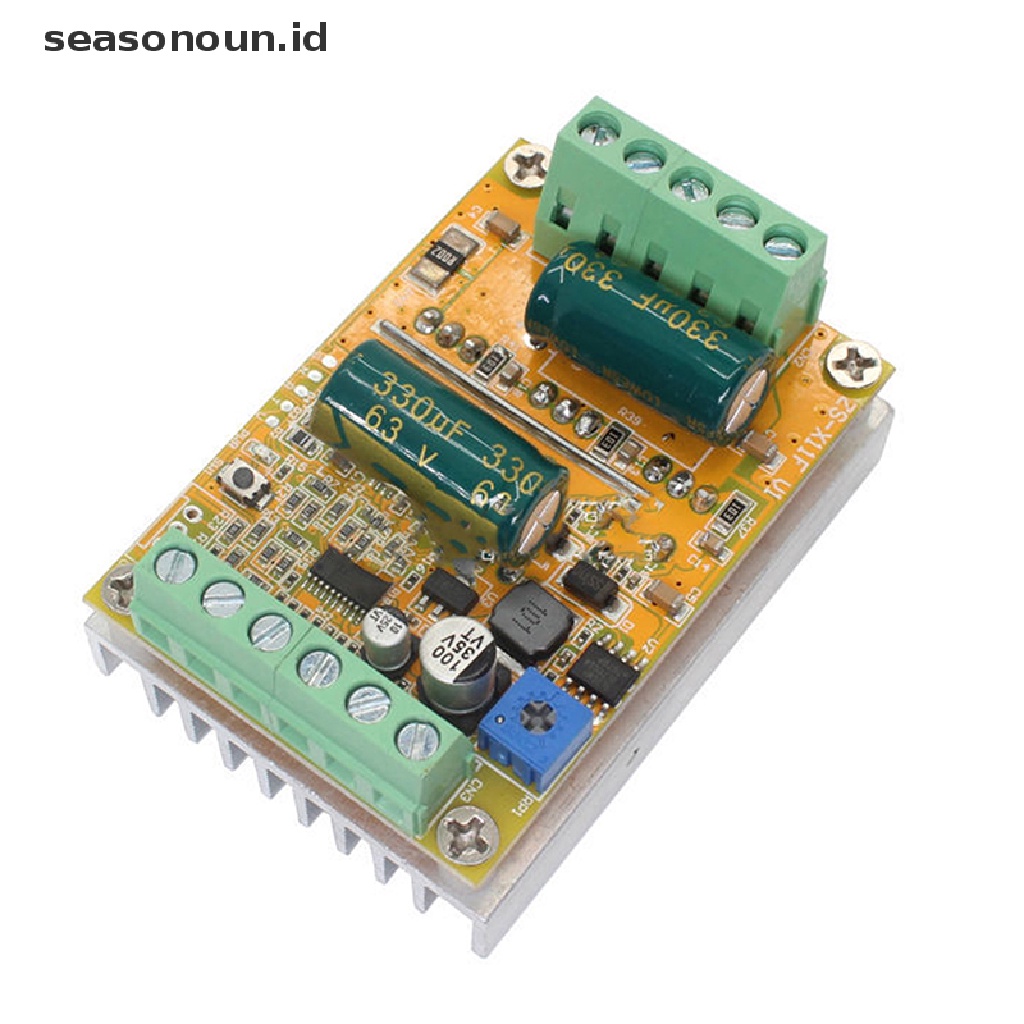

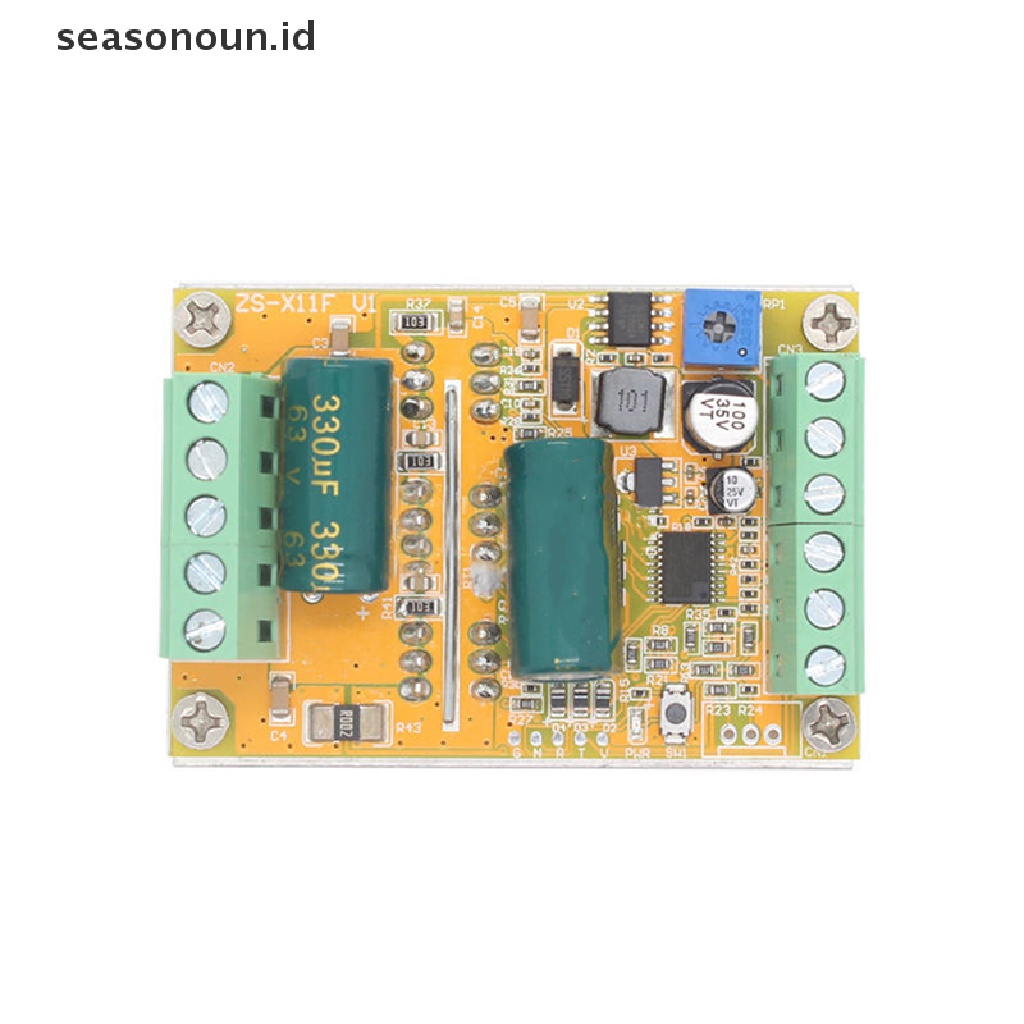

Gambar produk
