Papan Driver Motor Stepper Peredam Panas Untuk Printer 3d TMC2208 V1.2

Komputer & Aksesoris > Printer & Scanner > 3D Printer > Papan Driver Motor Stepper Peredam Panas Untuk Printer 3d TMC2208 V1.2

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:justenjoyingg.idLihat semua produk Komputer & Aksesoris oleh justenjoyingg.id

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

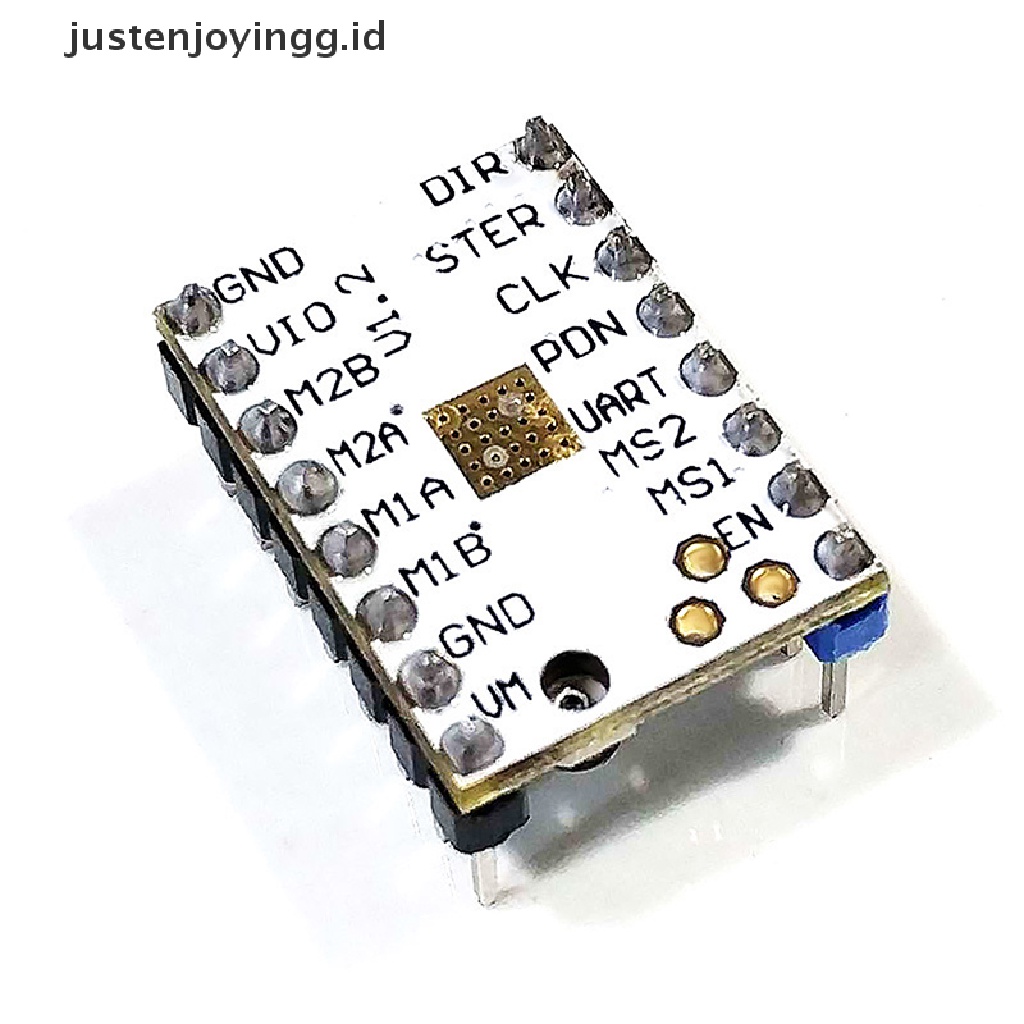

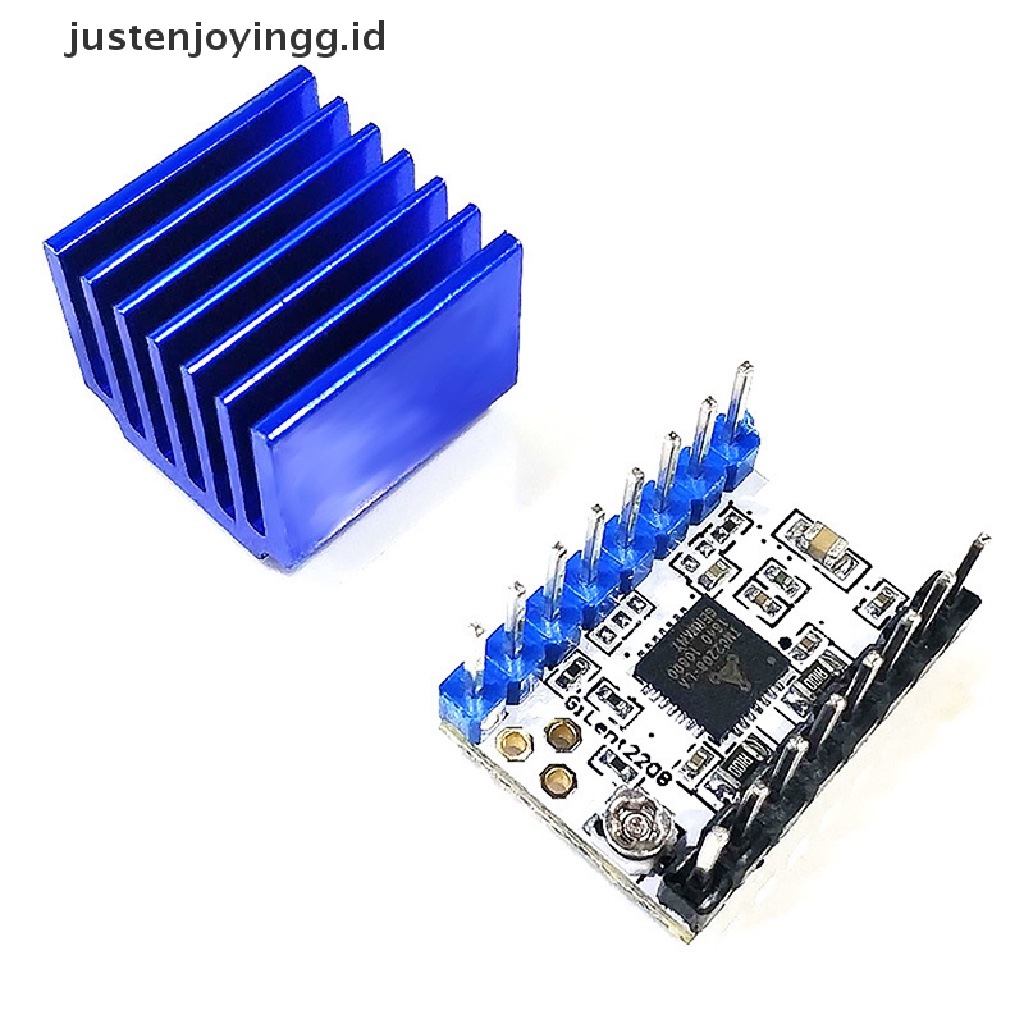

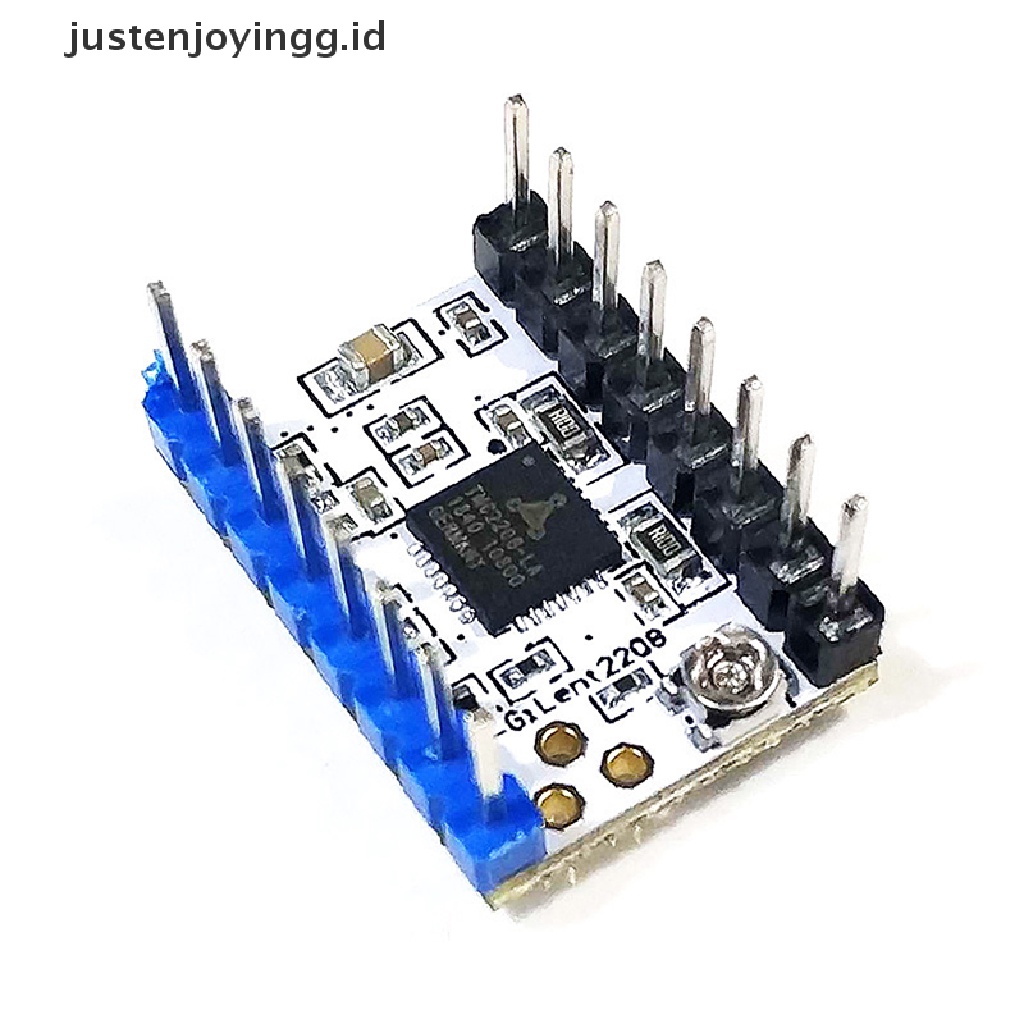

Detail Papan Driver Motor Stepper Peredam Panas Untuk Printer 3d TMC2208 V1.2

TMC2208 is an ultra-quiet two-phase stepper motor drive chip, continuous drive current 1.4A, peak current 2A, voltage range 4.75V-36V, 256 subdivision.
The flexible microPlyer interpolation unit provides up to 256 subdivisions, allowing perfect sinusoidal control even in systems with limited pulse frequencies; these are also designed because stealthChop2 ultra-quiet technology is widely used in 3D printing.
Compatible with existing 3D printer electronics, eliminating the expensive costs of redesign. It can replace the original TMC2100 A4988 DRV8825 LV8729, lower heat, especially for 3D printing market.
With this adapter you can test your SilentStepStick or flash the TMC2208 SilentStepStick with an USB-to-serial converter.
Setting Method: With the TMC2208 Configurator you can change the settings and program the OTP (One-Time-Programmable) memory of a Trinamic TMC2208 via the UART interface.

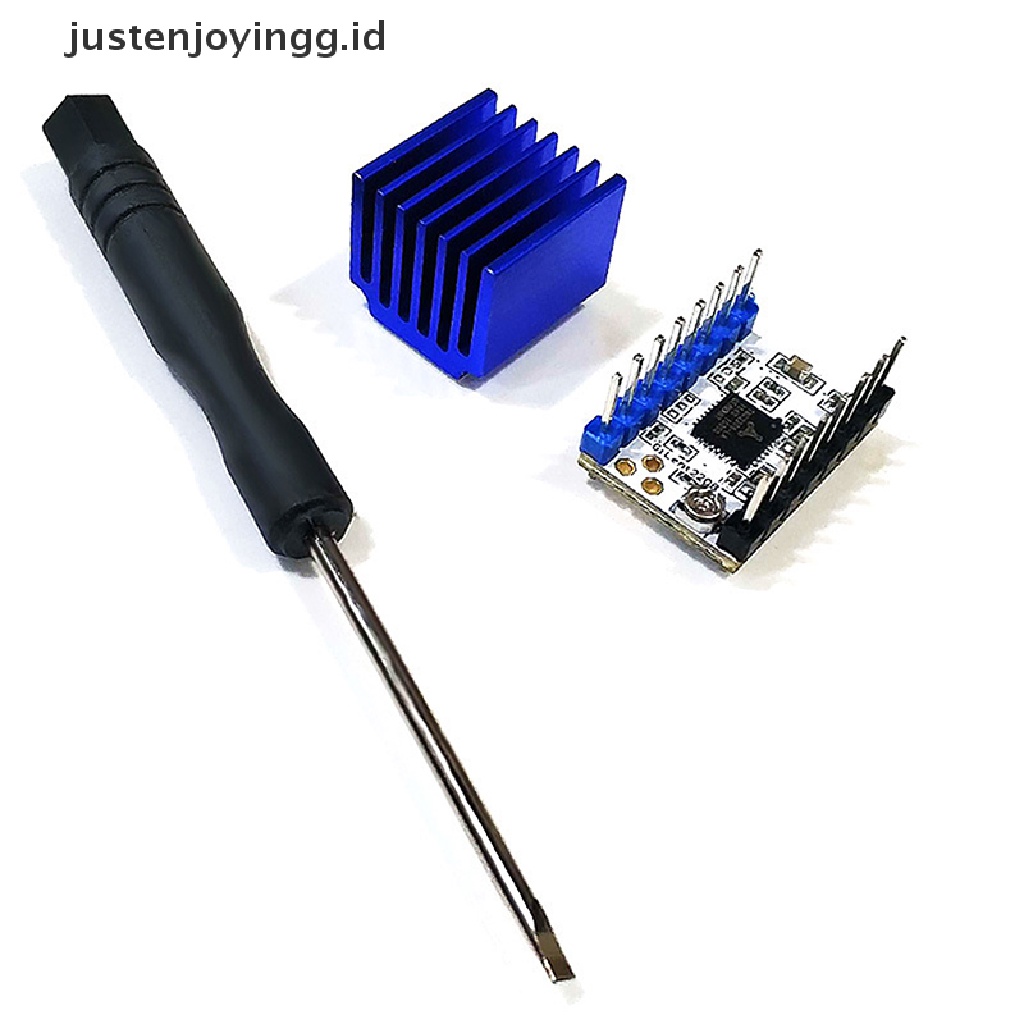

Package include:1*TMC2208 V1.2 Stepper
1*Heatsink
1*Screwdriver
