Detail Papan Driver Inverter Multifungsi Untuk Lampu Belakang LED
✿✿ risingstarsss.id ✿✿Specification:
100% Brand New
Size : 120mm(L)×30mm(W)
Input Voltage: 6V-20V
Supported: 15inch-24inch panel
Supporting 12 kinds of Definition with 7pcs cables
Support LED Port :
-5+2-5: single 12pin
-3+4-3: double or single 10pin
-4+2-4: double or single 10pin
+3-9:12pin
-2+2-2: 6pin,
-1+1:2pin
-2+2-2:1.0 6PIN
-2+2-2:0.5 6pin
2PIN:BH2.0
BH 3.5 double or single BH 3.5
Notice:
The connection of leds must pay attention to the interface definition of only the positive and negative points, the positive input power supply.Don't pick up or wrong,Does not USE 3 Lamp for a group, 9V step-down program light bar, which is unconventional LED!

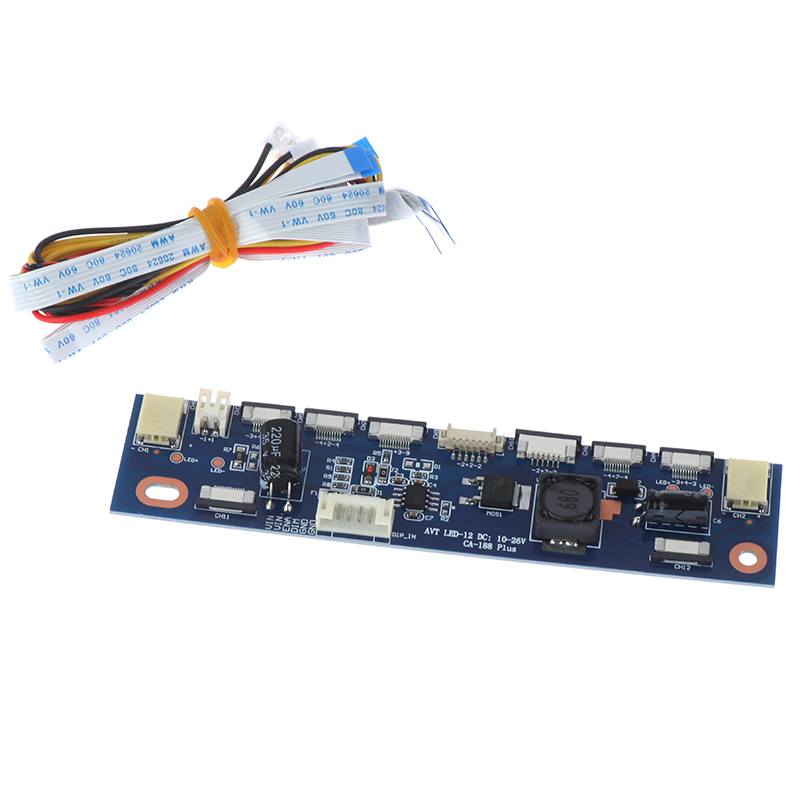

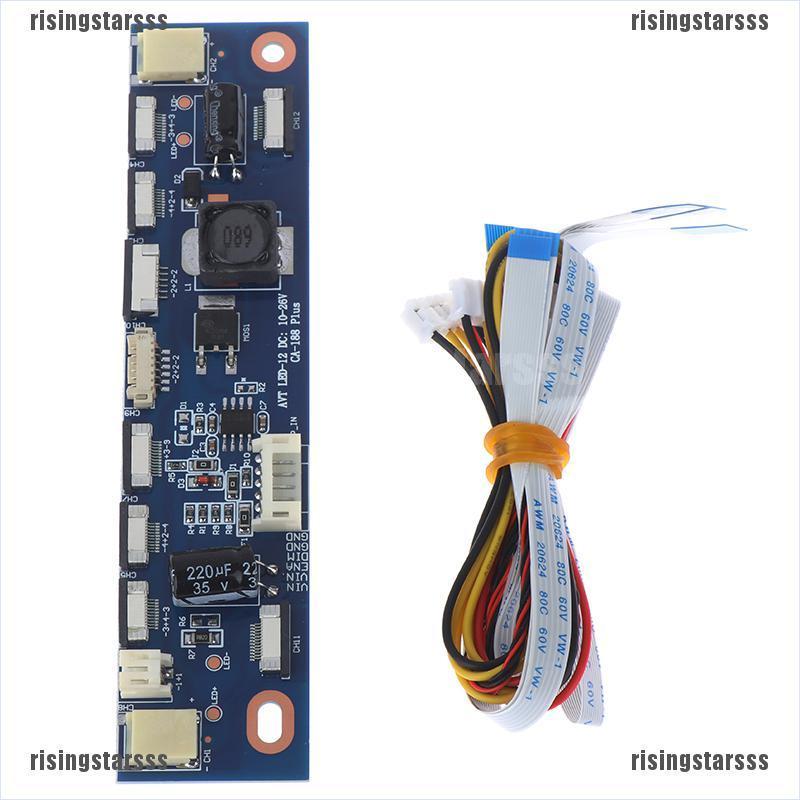

Package include:
constant current board *1pcs

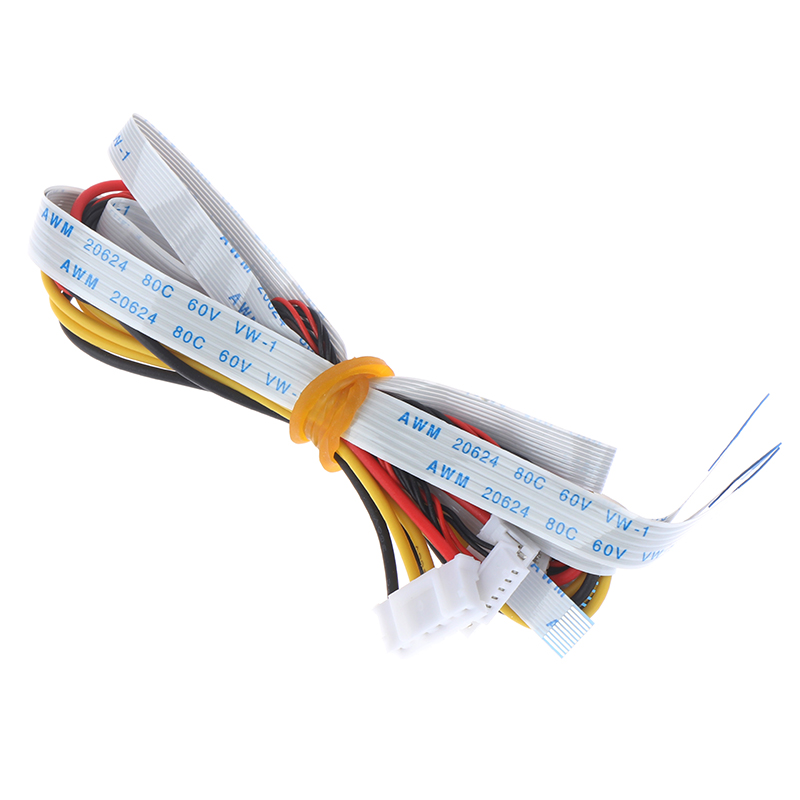

cables *7pcs
