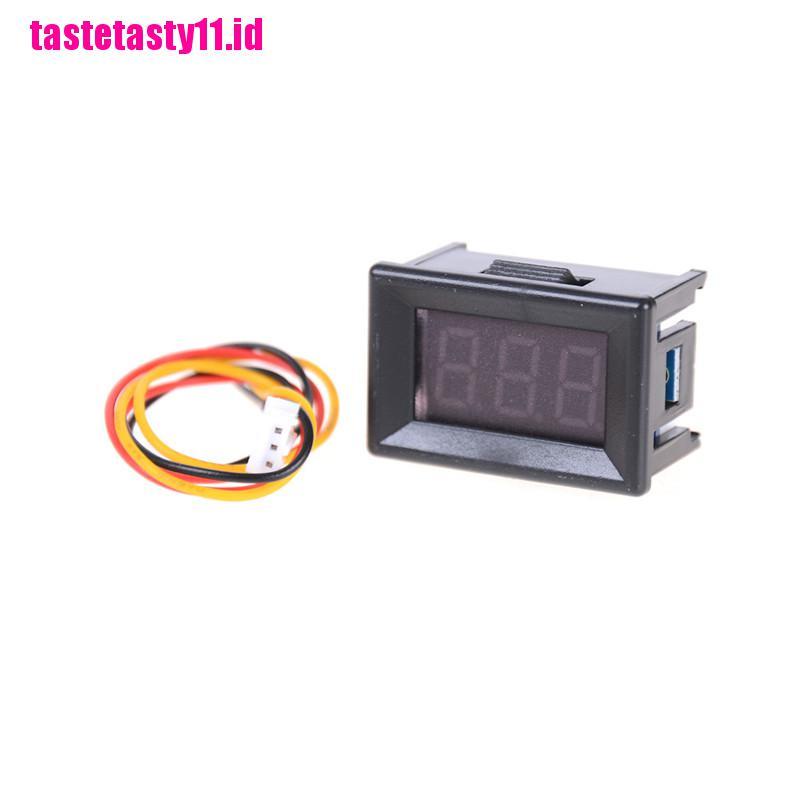

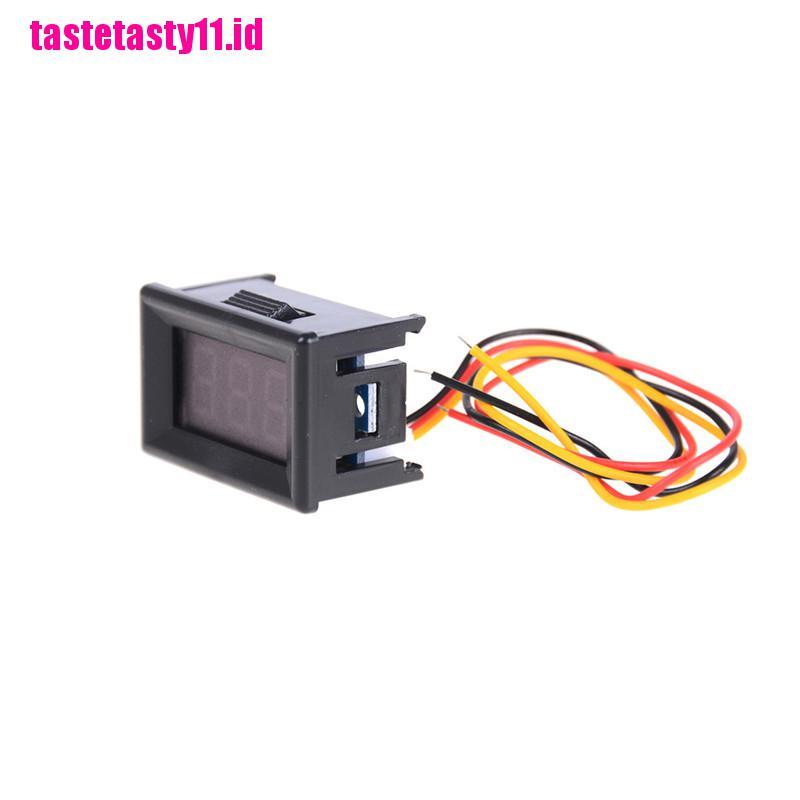

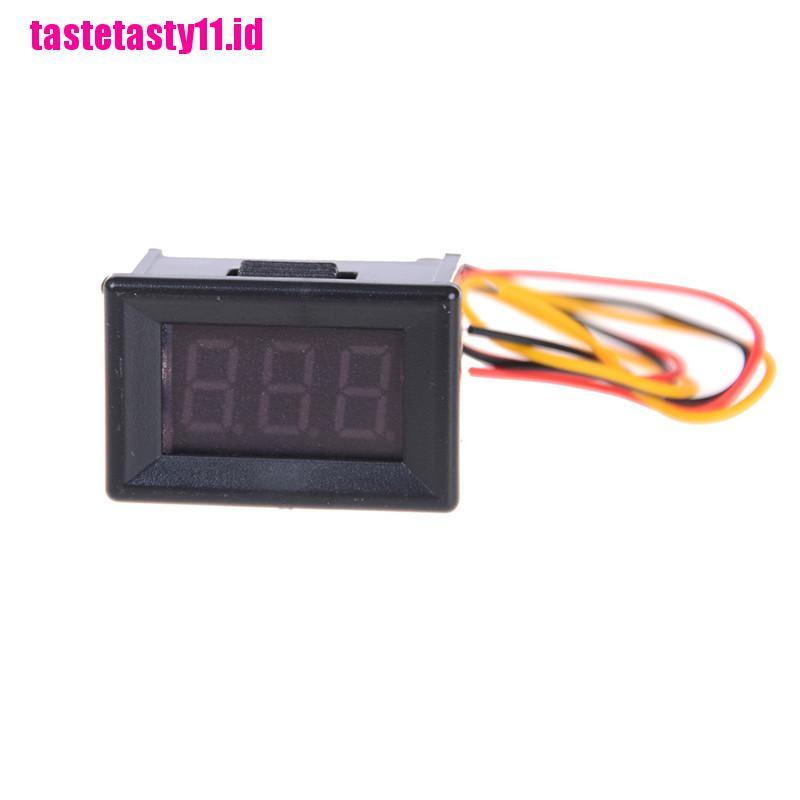

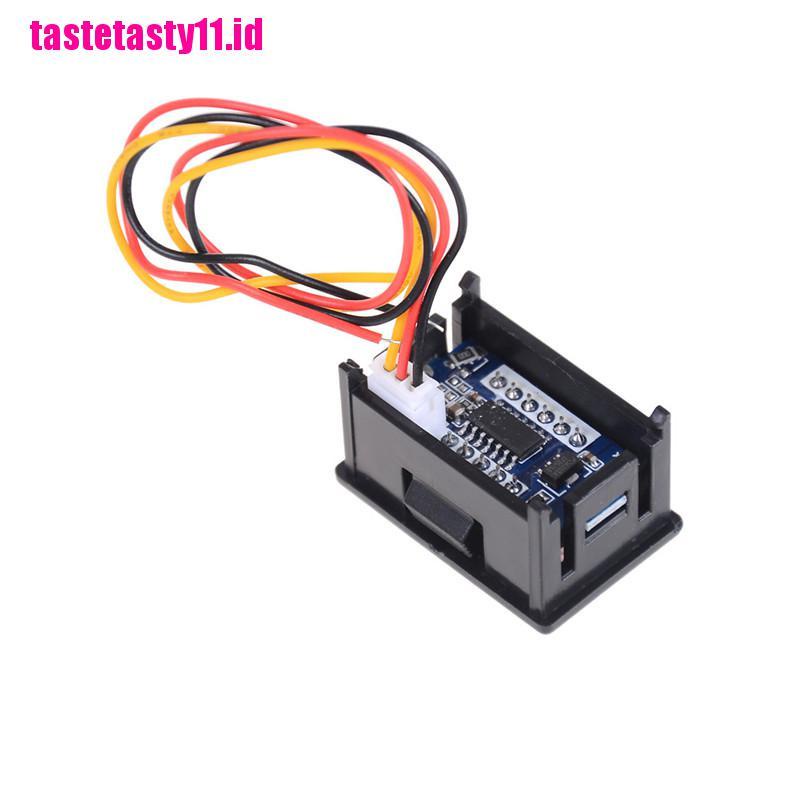

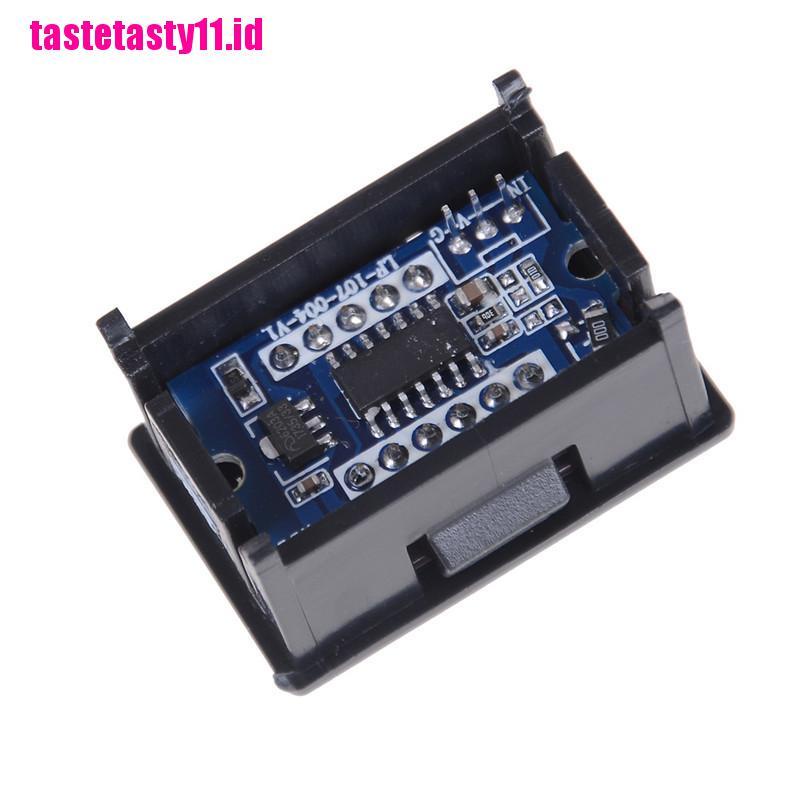

Panel Voltmeter Digital LED Mini DC 0-100V

Detail Panel Voltmeter Digital LED Mini DC 0-100V

Feature description

1. The voltmeter connection is simple. Two lines are routinely used, the red connection is positive, the black connection is negative, and the reverse connection protection is inside.

2, conventional external power supply is not needed, it can be measured directly by measuring voltage, and the voltage range is three lines 0-100V.

3, wide voltage operation, red minimum measurement voltage0V, maximum safety pressure can reach 100V, more than 100V may be damaged.

4. When measuring the voltage below 10V, the two digit is displayed after the decimal point. When measuring the voltage above 10V, a digit is displayed after the decimal point.



Measurement range: three line DC0-100V

Power supply range: no need for individual power supply, the voltage <40V is higher than 40V.
Test accuracy: accuracy is adjustable, with adjustable voltage resistance.
Input impedance: >50K Omega
Working current: <30mA
Refresh speed: about 100mS once
Display specification: three bit 0.36LED digital tube (red)

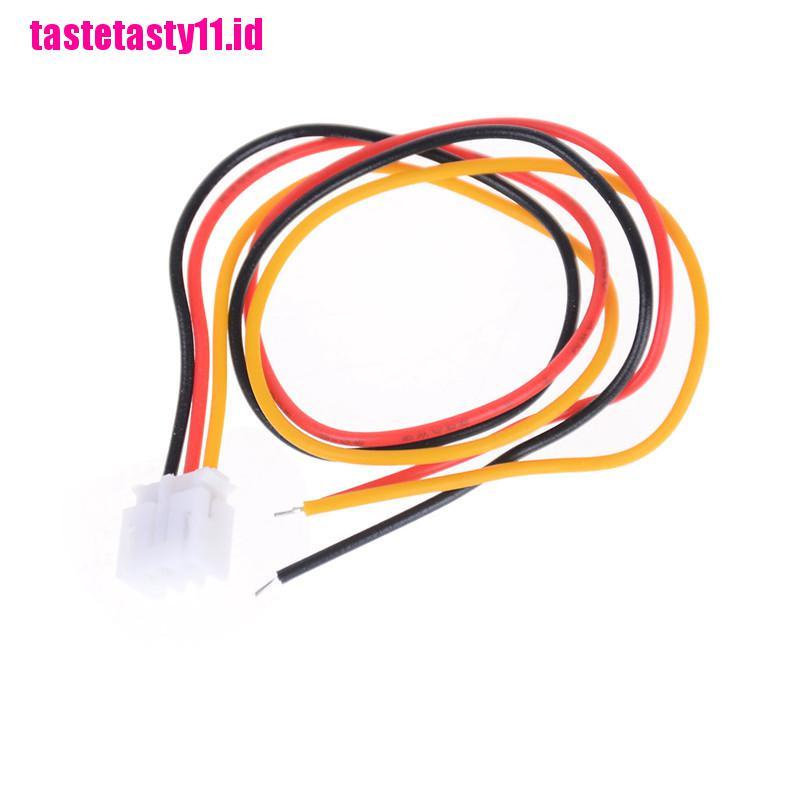

Lead length: default 20cm
Shape size: 35 x 23 x 20 mm
Install slot size: 32 x 21 mm
Net weight: 10g
Working temperature: -10 ~ +65 C
Working humidity: 10 to 80%
Working pressure: 80 ~ 106kPa
Package Included:
1PC* 3 wires DC 0-100V Voltmeter
