Detail Panasonic Signal Relay Module TQ2-5V ATQ209 10 Pin 1A MADE IN JAPAN

Panasonic Signal Relay Module TQ2-5V ATQ209 10 Pin 1A MADE IN JAPAN
Description:
Voltage:5V
Coil Current:31.1mA
Coil Power Cont:140mW
Coil Resistance:144.6ohm
Coil Type:DC Monostable
Coil Voltage VDC Nom:4.5V
Contact Configuration:DPDT
Contact Current Max:1A
Contact Voltage AC Nom:125V
Contact Voltage DC Nom:30V
External Depth:14mm
External Height:5mm
External Width:9mm
Relay Mounting:Through Hole
SVHC:To Be Advised

Gambar produk

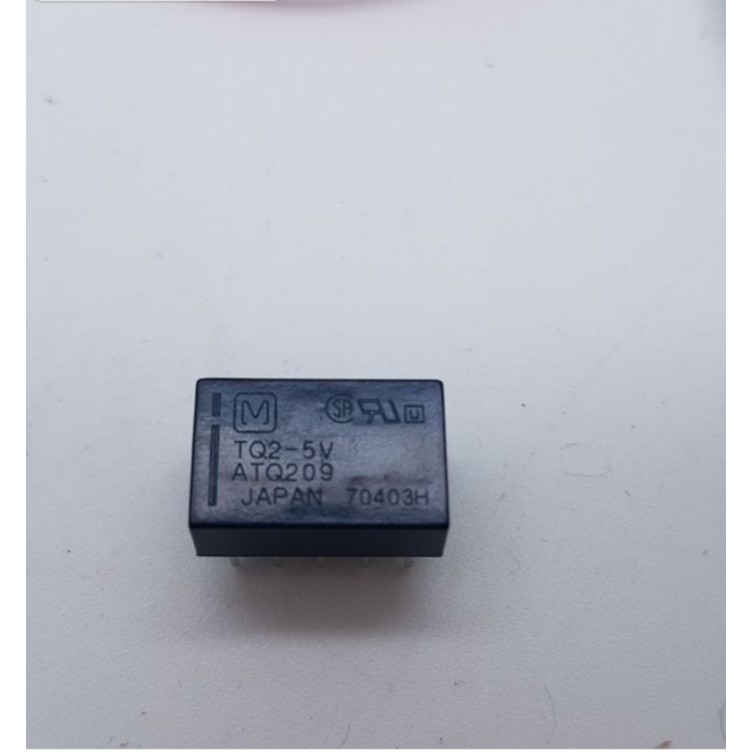

Panasonic Signal Relay Module TQ2-5V ATQ209 10 Pin 1A MADE IN JAPAN
