PAM8302 Adafruit 2.5W Class D Single Channel Audio Amplifier Board

Detail PAM8302 Adafruit 2.5W Class D Single Channel Audio Amplifier Board

PAM8302 Adafruit 2.5W Class D Single Channel Audio Amplifier Board

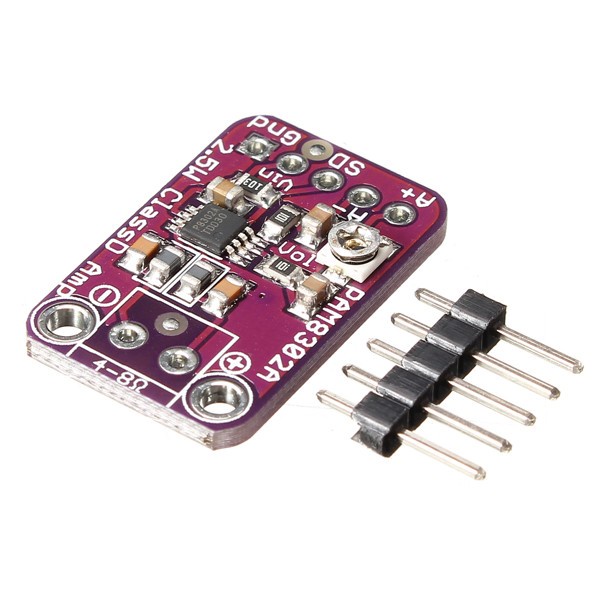

This super small mono amplifier is able to deliver up to 2.5 Watts into 4-8 ohm
impedance speakers. Inside the miniature chip is a class D controller,able to
run from 2.0V-5.5VDC. It has built in thermal and over-current protection, but
we could barely tell it got hot. There's even a volume trim pot so you can
adjust the volume on the board down from the default 24dB gain. The A+ and A-
inputs of the amplifier go through 1.0uF capacitors, so they are fully
'differential' - if you don't have differential outputs, simply tie the Audio-
pin to ground. The output is "Bridge Tied" - that means the output pins connect
directly to the speaker pins,no connection to ground. The output is a high
frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil
- the high frequencies are not heard. Speaker is not included, use any 4 ohm or
greater impedance speaker.




1.Output Power: 2.5W at 4, 10% THD, 1.5W at 8, 10% THD, with ` Supply

2.50dB PSRR at 1KHz

3.Filterless design, with ferrite bead + capacitors on output.

4.Fixed 24dB gain, onboard trim potentiometer for adjusting input volume.

5.Thermal and short-circuit/over-current protection

6.Low current draw: 4mA quiescent and 1uA in shutdown mode
