Paket Sensor Suhu MAX6675 K-type Thermocouple Temperature / Temperatur MAX 6675
Deskripsi singkat
Elektronik > Elektronik Lainnya > Paket Sensor Suhu MAX6675 K-type Thermocouple Temperature / Temperatur MAX 6675
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Paket Sensor Suhu MAX6675 K-type Thermocouple Temperature / Temperatur MAX 6675
MAXIM MAX6675 is an American company with a cold junction compensation, linearity correction, thermocouple break detection ADC Serial K-type thermocouple, its temperature resolution capability is 0. 25 Degree, cold junction compensation range - 20 ~ + 80 Degree, wide operating voltage range 3. 0 ~ 5. 5VOperating voltage: 3. 0 ~ 5. 5V
Internal integrated cold junction compensation circuit;
With a simple three serial interface;
Temperature signal can be converted into 12-bit digital
Temperature resolution of: 0. 25 Degree;
Cold junction compensation range: - 20 ~ + 80 Degree,
Embedded thermocouple break detection circuitry.
Using SPI 3 wire communication
K-type temperature probe
Type K temperature range 0-800 degrees

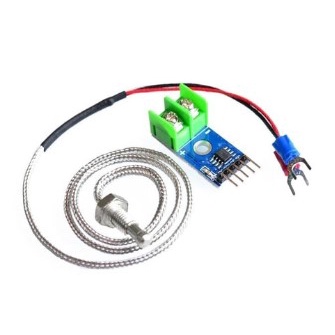

Gambar produk
