Paket Modul Kamera 4 Sisi Quad + 4 Pc Cam Dpn, Smpg. Kiri Kanan & Blkg

Detail Paket Modul Kamera 4 Sisi Quad + 4 Pc Cam Dpn, Smpg. Kiri Kanan & Blkg

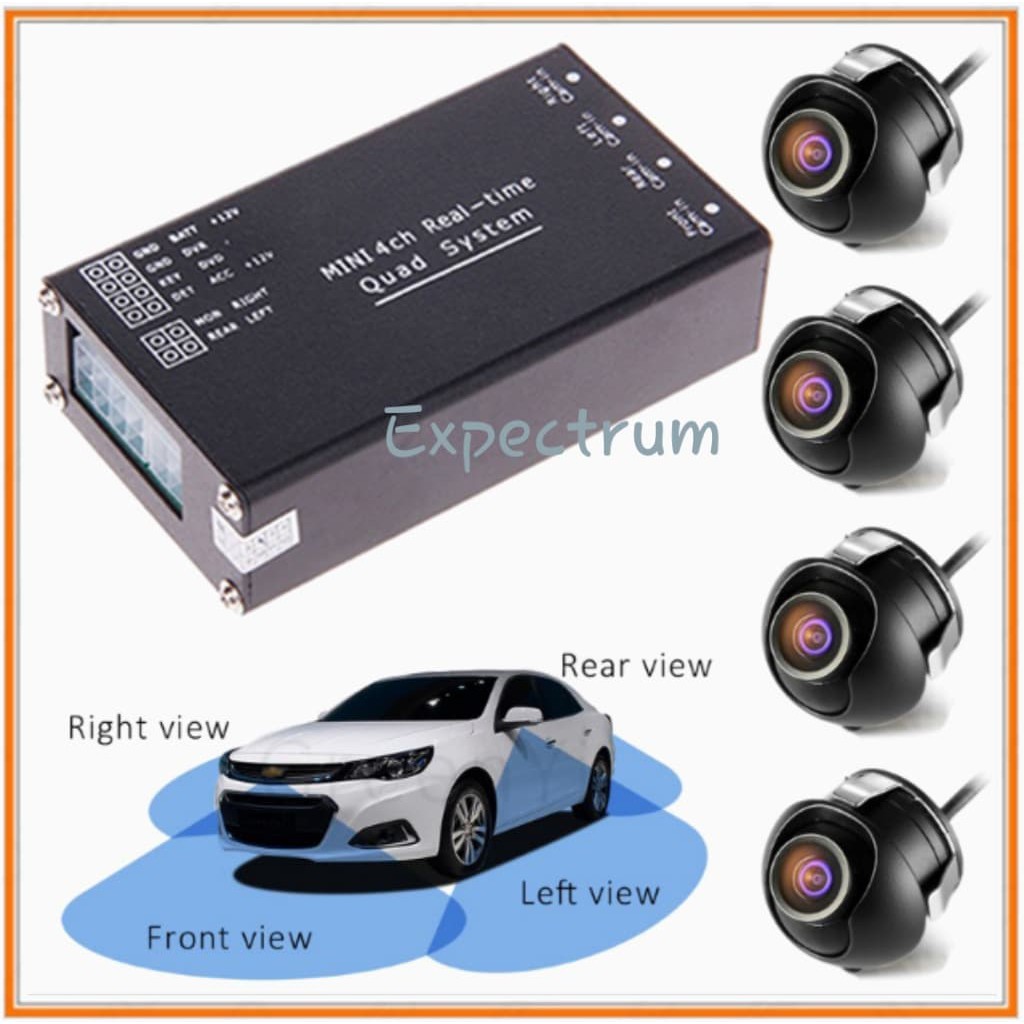

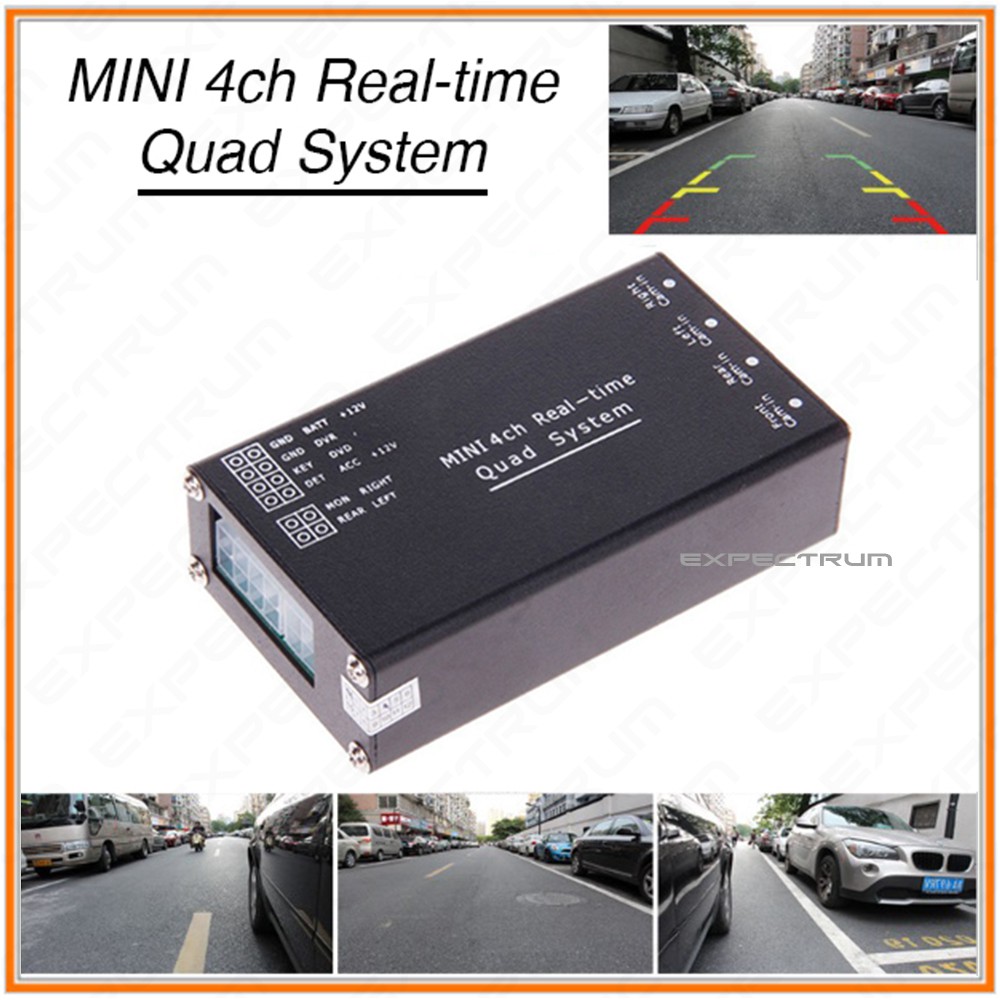

MINI 4 ch Real-Time, QUAD SYSTEM.

Modul Kamera 4 sisi utk kamera depan, samping kiri kanan dan belakang.

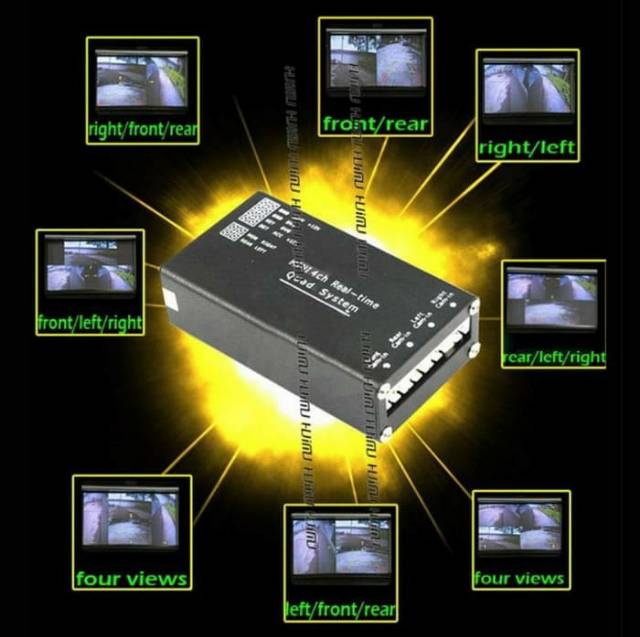

Bisa tampilkan 1,2,3,4 kamera dlm 1 layar tv dari tombol mode dan biasa on terus ketika mbl jalan.

TERMASUK 4 PC KAMERA

Untuk kamera Depan dan Belakang bisa di ganti di sesuaikan dgn kondisi mbl kamu.

Production Description:

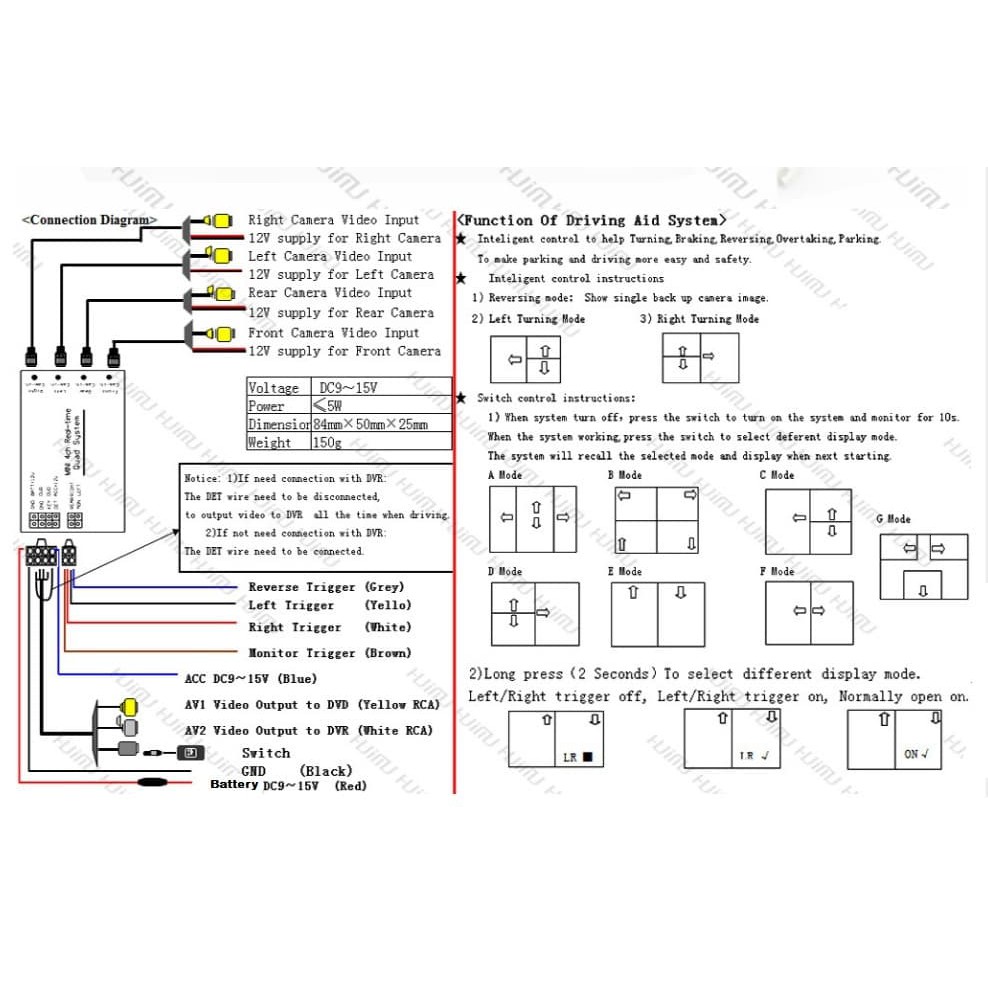

Video output: Two videos output, one for car monitor, the other for car DVR.
Front view camera power: supplied by control box system.
Rear view camera power: supplied by control box system, or could be supplied by reverse lamp power.
Left/Right side view camera power: supplied by control box system

Functions:
power on self-test


When ACC on, the system will self-checking. if there is rear right left trigger signal from parking system ,
then turn off all cameras., if the rear left right any trigger condition , it will be automatically into the trigger function of the corresponding display

A. when your pull the reverse gear, the system will activate the monitor and rear view camera till the reverse gear back, then switches to front view camera video for 10 seconds then shut off.
B. When left turn trigger on, it will show left camera immediately for 1.5 Seconds delayed then trigger off.
C, When right turn trigger on, it will show right camera immediately with 1.5 Seconds delayed then turn off.
D, When the double flash lamp and reverse, The parking trigger priority in any case



Trigger priority:
Back View Right View Left View Front View

Tampilan gambar tidak bird view yg bird view ada estalase nya sendiri.

Berikut Link Video Setelah Pemasangan
https://www.youtube.com/watch?v=GU1vf9Y_bGQ

Garansi 1 bln

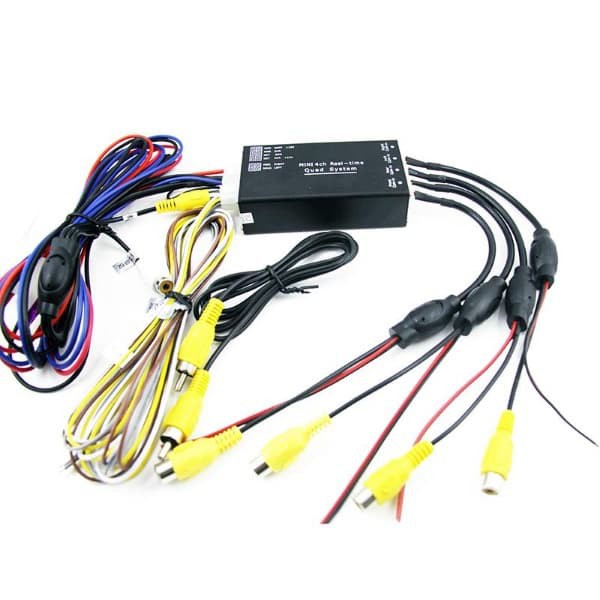

Gambar produk
