PAKET MikroTik Basebox 5 & mANT30 MTAD-5G-30D3

Detail PAKET MikroTik Basebox 5 & mANT30 MTAD-5G-30D3

Deskripsi : PAKET MikroTik Basebox 5 & mANT30 MTAD-5G-30D3

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

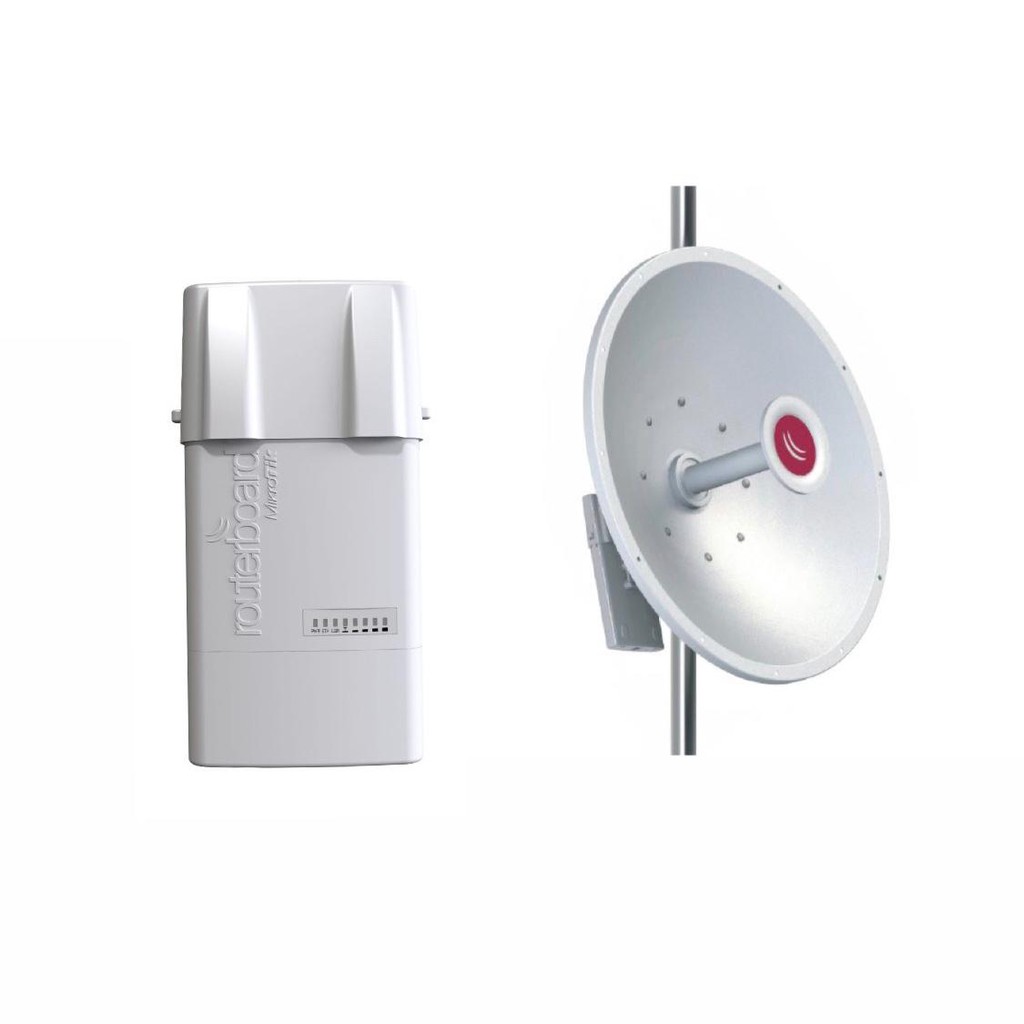

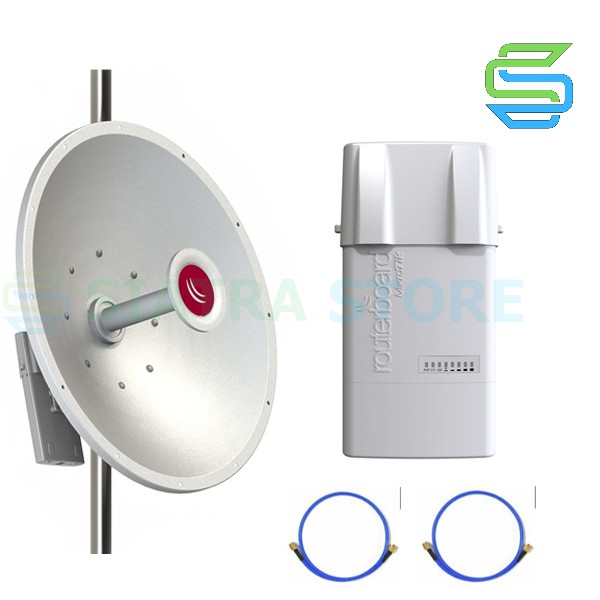

ISI PAKET :
1. 1X - Mikrotik RB912UAG-5HPnD-OUT BaseBox 5 Level 4
2. 1X - Mikrotik MTAD-5G-30D3 mANT30 Antenna Dish 5Ghz 30dBi
3. 2X - Pigtail RP-SMA to RP-SMA ( Paket dari Antenna )



BaseBox 5 Specifications:
• CPU speed: 600MHz
• TX power: 30dBm
• RAM: 64MB
• LAN ports: 1
• Gigabit: Yes
• miniPCIe: 1
• Integrated wireless: Yes
• Wireless standards: 802.11a/n
• Supported frequency: 4900-5920Mhz
• 2x RP-SMA connectors
This device can be upgraded to the newest 802.11ac standard by purchasing the R11e-5HacD miniPCIe card
• USB: Yes
• Power jack: Yes
• 802.3af support: No
• PoE: 8-30V DC
• Voltage monitor: Yes
• Temperature sensor: Yes
• Dimensions: 246x135x50mm
• Operating system: RouterOS
• RouterOS license: Level4

The MikroTik MTAD-5G-30-series is a carrier-class 30dBi antenna, designed to seamlessly with MikroTik Basebox for a backhaul Point to Point link. Installing the BaseBox onto the antenna requires no special tools, you simply snap it into place with the mounts provided and voila! a powerful long-range Point to Point link is at your fingertips.

This dish can be adjusted to a slanted polarization at 45deg. The instructions can be found here.

Slant Features:

• Reduce RF interference in signal congested areas
• Reduce the impact on local microwave devices
• Unify the channel output if link deployed over a body of water

Electrical Specifications

• Frequency Range: 4.7-5.875 GHz
• Gain: 30dBi typically
• Dual Polarization: Vertical and Horizontal
• 3dB Beamwidth: +/-2.5 deg
• Standards: Complies with EN 302 326 DN1, DN2, DN3, DN5
• VSWR: ≤ 1.4 type, ≤ 1.8 max
• Port to Port Is
