PAKET LENGKAP BOOTLOADER ATMEGA328P-PU PLUS USB ASP ISP AVR

Detail PAKET LENGKAP BOOTLOADER ATMEGA328P-PU PLUS USB ASP ISP AVR

KIT-0049
========


Deskripsi:


Paket bundling ini kita buat untuk agan yang ingin membuat microcontroller
dengan atmega328p atau ingin buat burn bootloader sendiri, di paket ini sudah di
lengkapi dengan SYSMIN untuk ATMEGA8, ATMEGA328, Crystal 16MHz yang biasa di
pakai untuk microcontroller seperti arduino, ada IC ATMEGA328P dan USB ASP ISP
AVR jadi lengkap deh untuk jadi microcontroller.


Yuk di order sebelum kehabisan :))


Spesifikasi SYSMIN:
- Tegangan Input : 5 V
- Kristal : 8Mhz
- ukuran PCB Board : 7.4cm * 3.4cm
- Tebal Module : 1.66mm

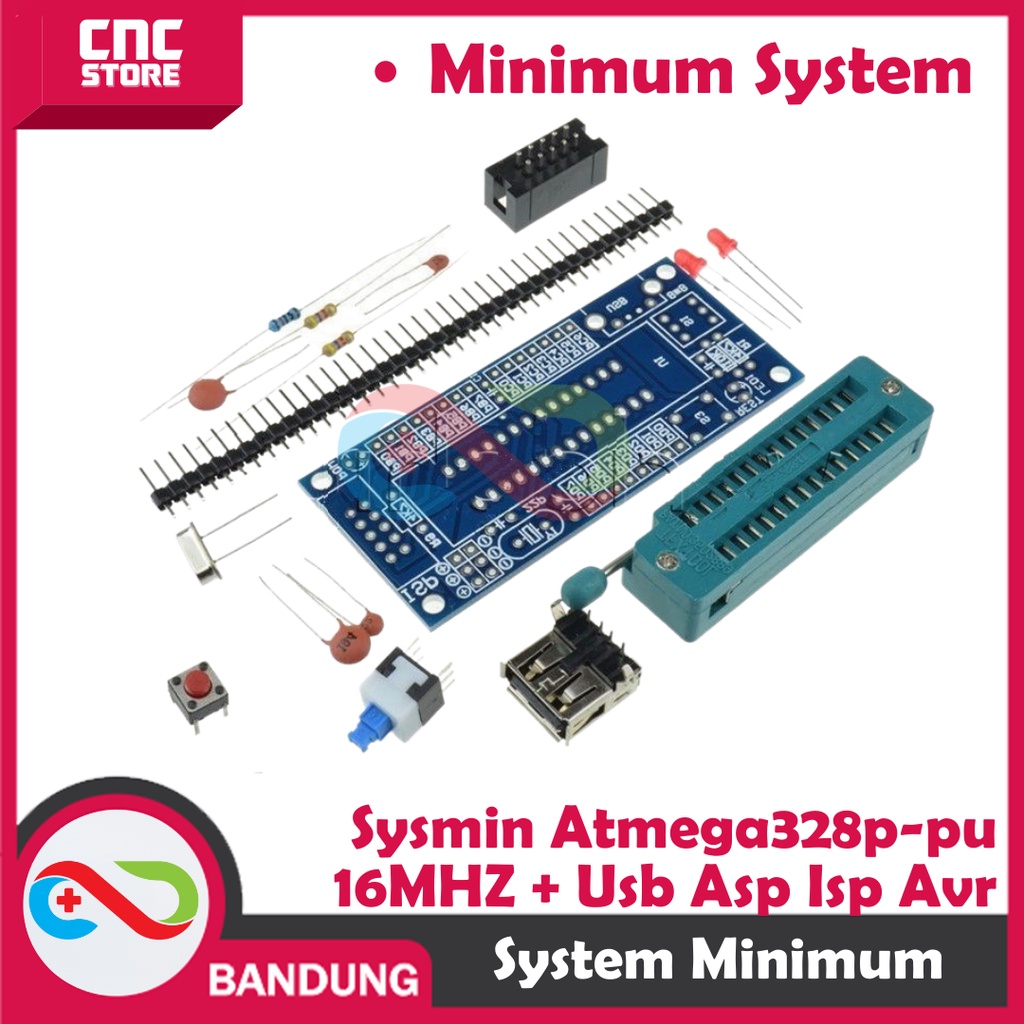

Untuk Kelengkapan modul nya:
- PCB Board : 1 pcs
- 28 Pin Locking seat : 1 pcs
- USB Female : 1 pcs
- DC3-10 Horns seat : 1 pcs
- 8*8 self locking switch : 1 pcs
- 40P pin : 1 pcs
- 8Mhz kristal : 1 pcs
- 22P ceramic capacitors : 2 pcs
- 104 ceramic capacitors : 2 pcs
- 3MM Led Red : 2 pcs
- 6 * 6 Buttons : 1 pcs
- 4.7 K resistors : 2 pcs
- 10 K resistors : 1 pcs


Spesifikasi ATMEGA328
- High Performance, Low Power AVR 8-Bit Microcontroller
- Advanced RISC Architecture
- 131 Powerful Instructions Most Single Clock Cycle Execution
- 32 x 8 General Purpose Working Registers
- Fully Static Operation
- Up to 20 MIPS Throughput at 20 MHz
- On-chip 2-cycle Multiplier
- High Endurance Non-volatile Memory Segments
- K Bytes of In-System Self-Programmable Flash program memory
- K Bytes EEPROM
- Bytes Internal SRAM


Peripheral Features:
- Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
- One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture
Mode
- Real Time Counter with Separate Oscillator
- Six PWM Channels
- 8-channel 10-bit ADC in TQFP and QFN/MLF package Temperature Measurement
- 6-channel 10-bit ADC in PDIP Package


NOTE: JIKA INGIN DI SOLDERKAN BISA PESAN JASA SOLDER 4 PCS YAH (UNTUK 1PCS
SYSMIN)

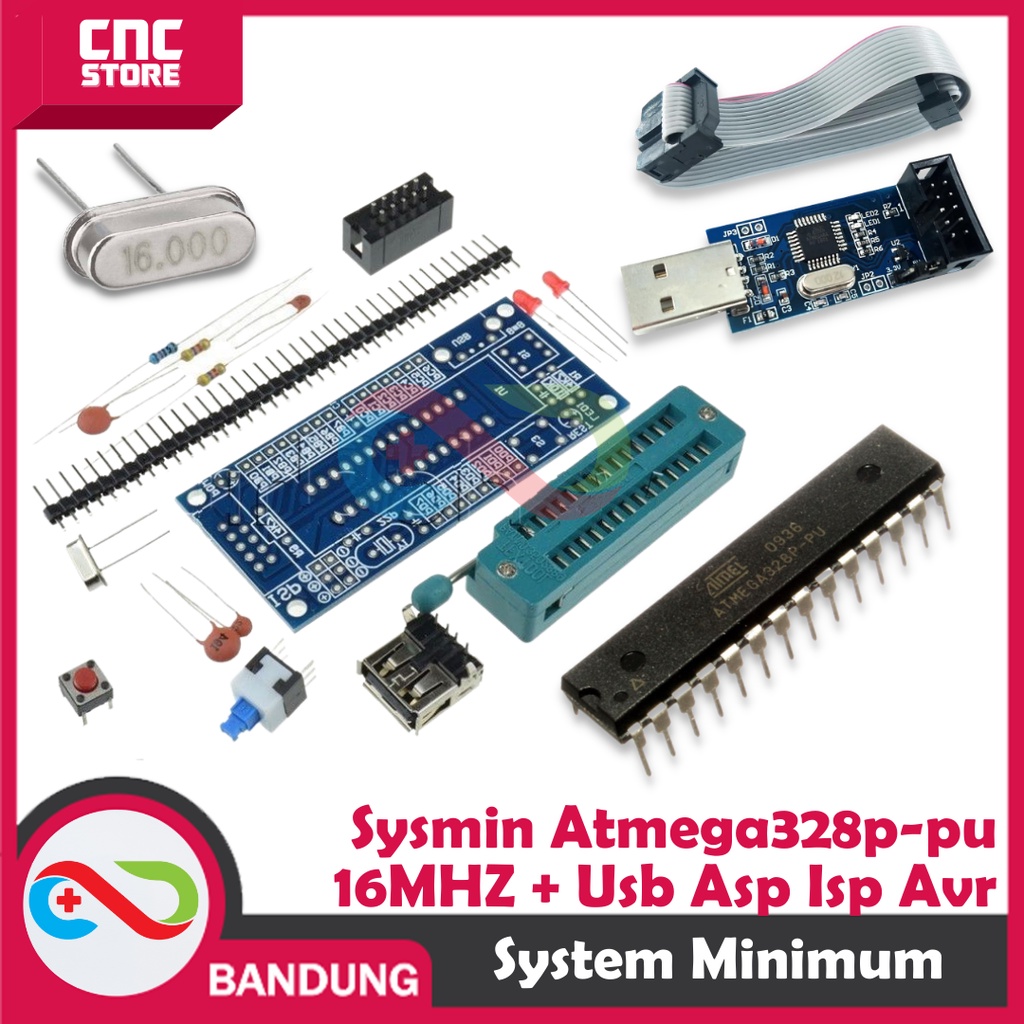

Paket :
- 1 x AVR ISP MINIMUM SYSTEM DEVELOPMENT BOARD FOR ATMEGA8 ATMEGA328

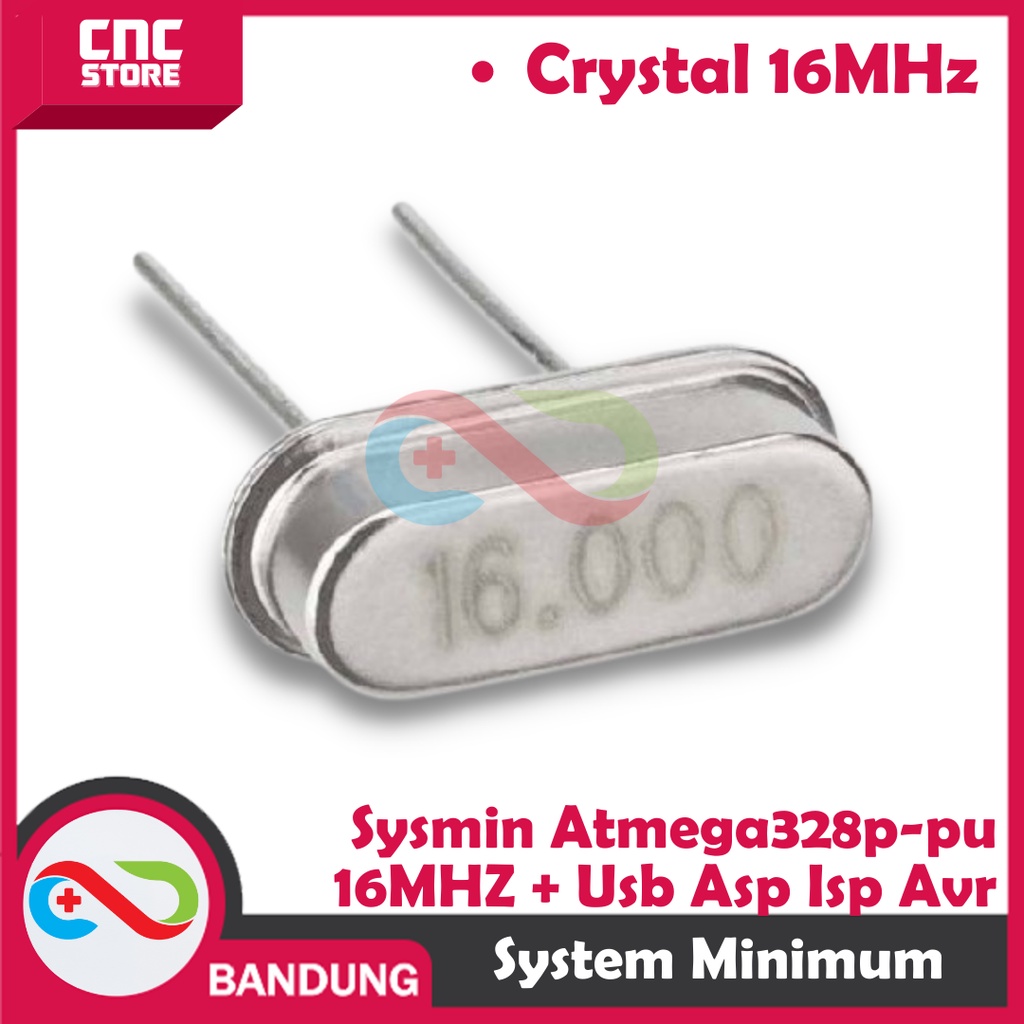

- 1 x XTAL CRYSTAL 16MHz

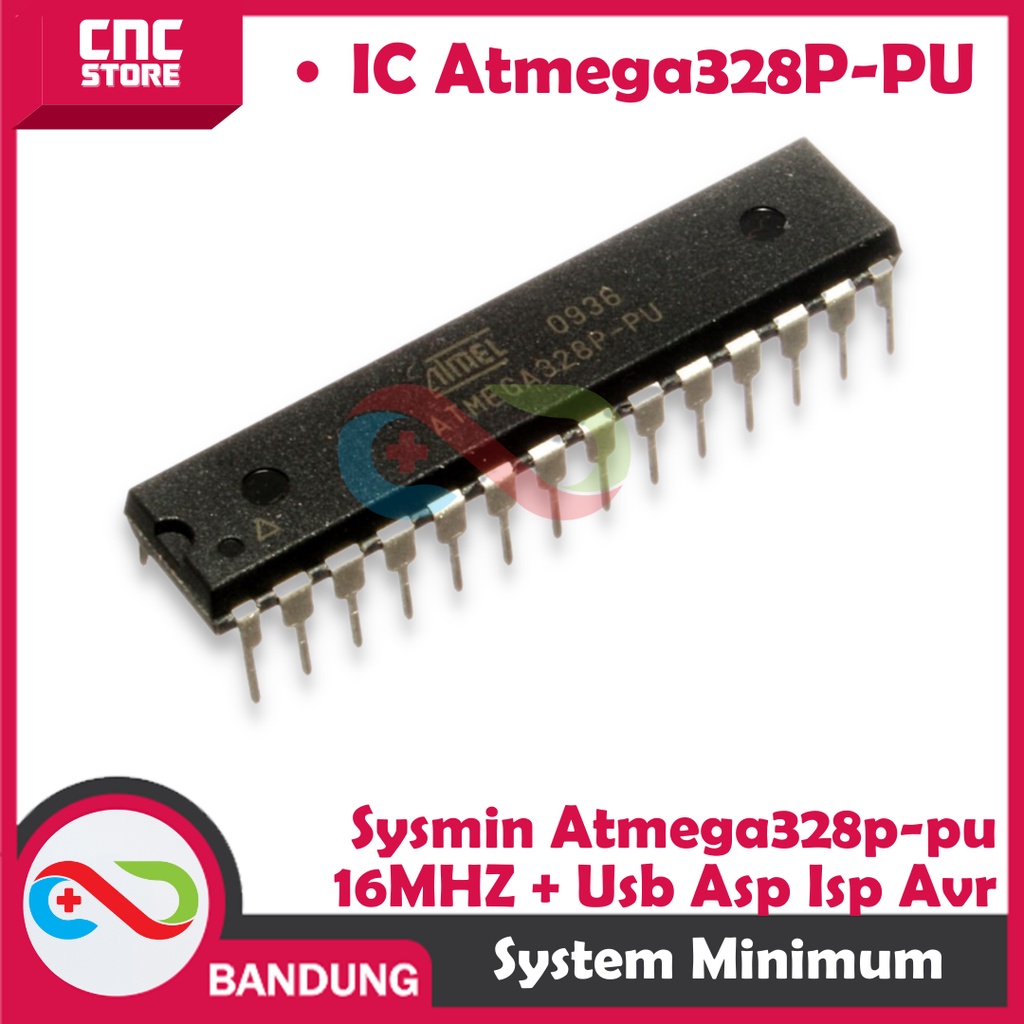

- 1 x ATMEGA328P DIP-28

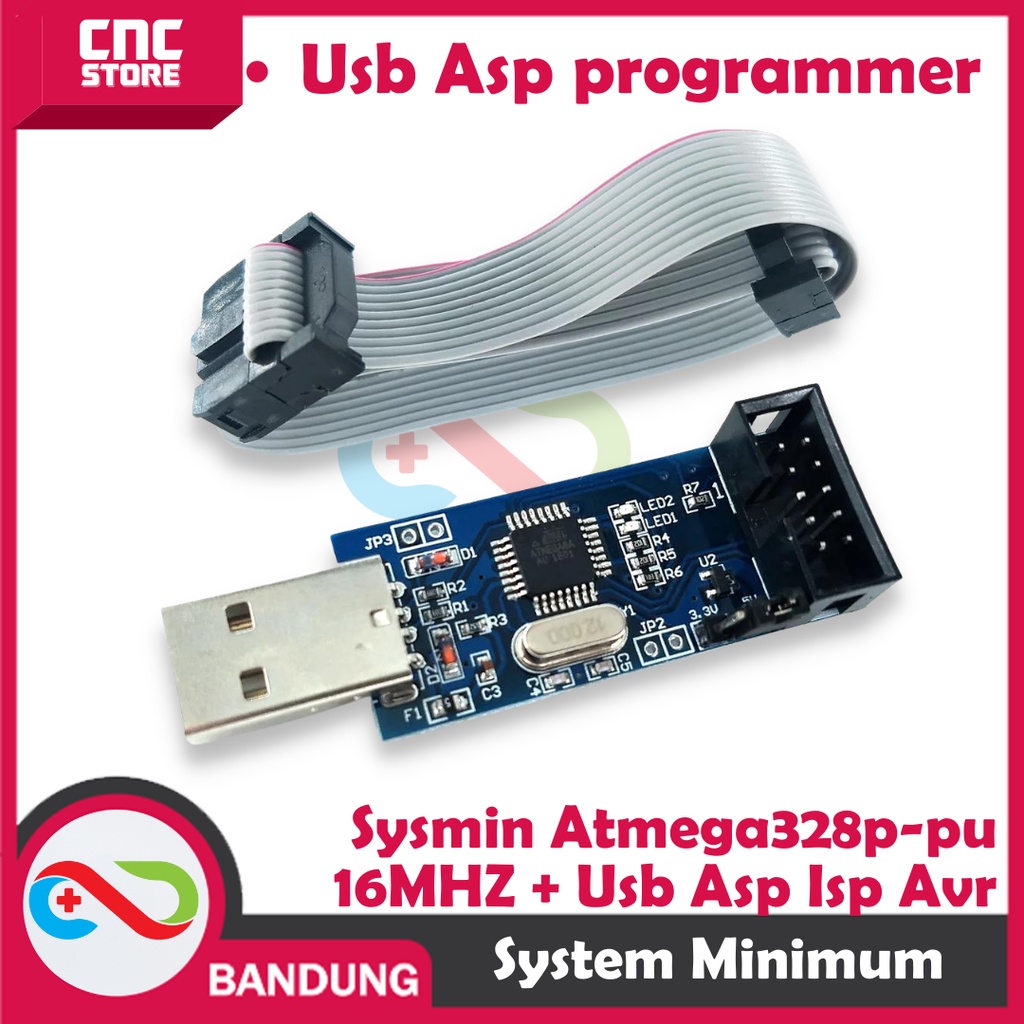

- 1 x USB ASP AVR

Gambar produk
