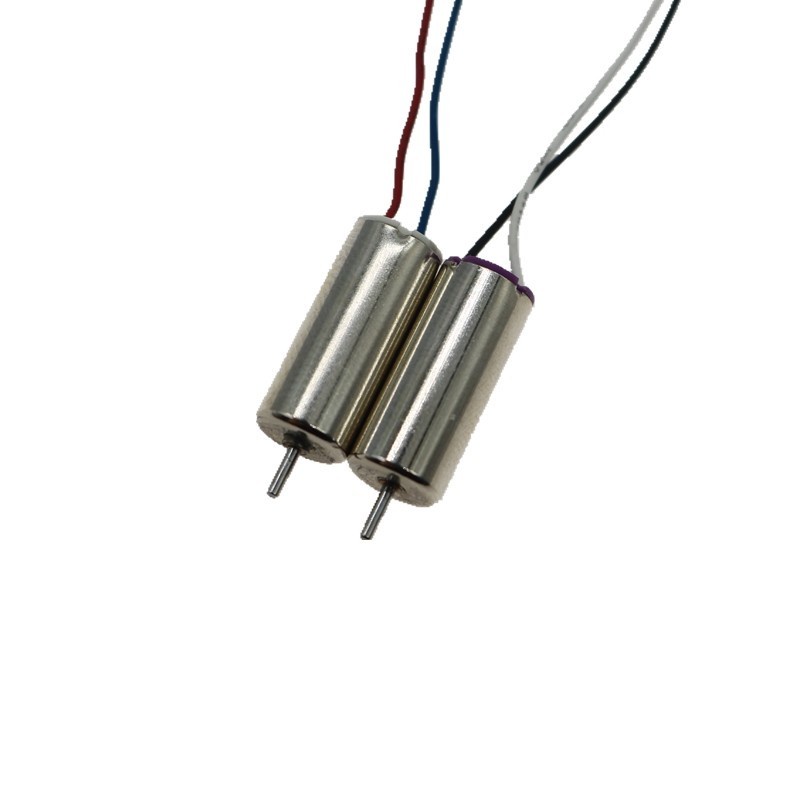

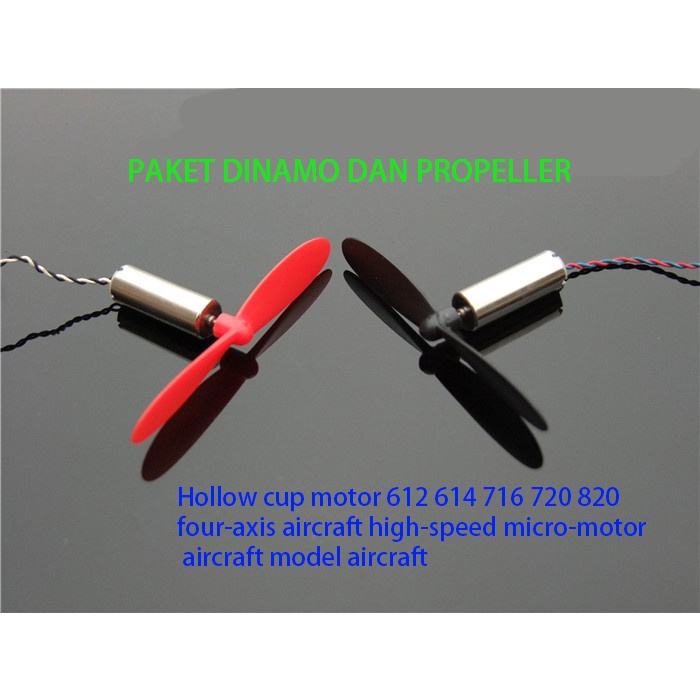

Paket Dinamo Motor Hollow cup Propeller four-axis aircraft high-speed (8300)

Detail Paket Dinamo Motor Hollow cup Propeller four-axis aircraft high-speed (8300)

Paket ! Dinamo Motor Propeller four-axis aircraft high-speed (8300)

Dinamo Motor model Airplane 610 614 615 716 720 816 dan 820 (8110)

NB: HARGA PER PCS

Terdiri dari beberapa macam sbb :

1) Dinamo Motor , 610, 612 , 614, 615 , 716, 720 , 816 dan 820

Yg didapat adalah : 1 Set Propeller dan Dinamo Motor

Spesifikasi sbb :

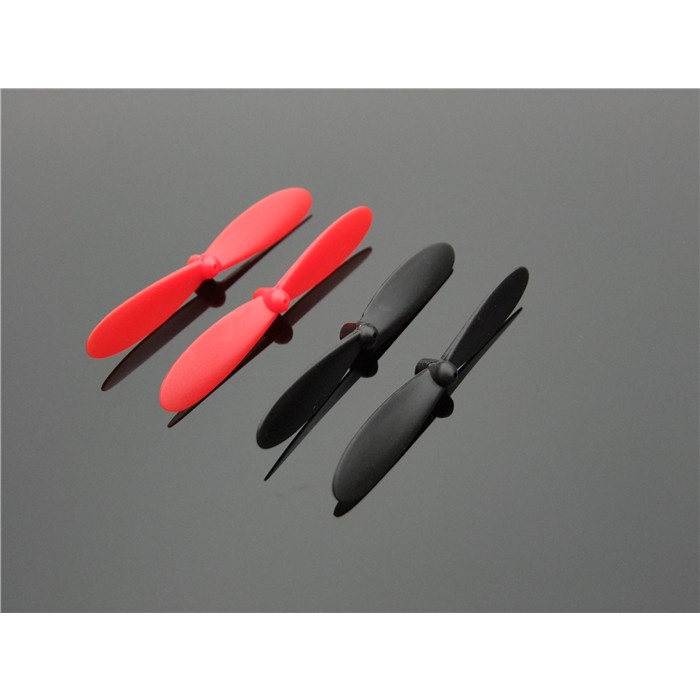

1)Propeller 0.8mm (Hitam) : Dinamo Motor 610, 612, 614, 615 , 716 serta 816
Propeller 1mm ( Hitam dan Merah ) : Dinamo Motor 720 dan 820
Warna Propeller 1 mm : Hitam dan Merah ( harap di tulis di Note )
Warna Propeller 0.8 mm : Hitam ( harap di tulis di Note )


2) Dinamo Motor 612 model airplane 1-4,5V 25000RPM
Applicable voltage: 1-4.5V
Speed: 3V 9500RPM (6V 25000rpm)
Shaft diameter: 0.8mm
Shaft length: 3.2MM
Size: 6x12 mm

3) Dinamo Motor 614 coreless DC 3.7V
Rated voltage: 3.7V
No-load speed: about 40,000 revolutions per minute
Dimensions:
panjang dinamo : 14,7 mm
diameter dinamo : 5,7 mm
Diameter shaft : 0,5 mm
Panjang shaft : 2,9 mm

4) Dinamo Motor 615 high speed quadcopter
[Rated voltage]: 3.7v
[Motor parameters]: The speed is about 43000 rpm, and the current is 0.19A
Dimensi sbb :
Motor diameter]: 6mm
[Motor length]: 15mm
[Motor shaft diameter]: 0.8mm
[Outgoing shaft length]: about 4mm

5) Dinamo Motor 716 model airplane HIGH SPEED
Voltage: 3,7V
Size : 7 x 16,5mm
No load speed: around 45000rpm
Diameter Shaft : 0,8mm
Shaft length : About 4-5mm
No load current: 30-50ma

6) Dinamo Motor 720 model airplane Strong Torsi 55000 rpm 3,7V
Rated: 3.7V No-load current: 0.13-0.19A
Speed: 55000 rpm
Size :
Body dinamo : 7x20mm
Lenght shaft : 5mm
Diameter shaft : 1mm

7) Dinamo Motor 816 model airplane Strong Torsi
Size]: 8*15.9mm
[Voltage]: 3.7V, no-load current about 100ma, locked rotor 1000ma
[Shaft diameter]: 0.8mm
【Shaft Length】: 5mm
【Line Length】: 50mm

8) Dinamo Motor 820 model airplane Strong Torsi
Size]: 8.5 *20mm
Voltage : 3.7V
Speed : 50000rpm

9) Dinamo Motor 610 Size: 6x20mm
Voltage : 3.7V
Speed : 50000Rpm

Gambar produk
