PAKET!!! Dinamo Motor 997 LOW SPEED Table saw + Power supply + Dimmer

Detail PAKET!!! Dinamo Motor 997 LOW SPEED Table saw + Power supply + Dimmer

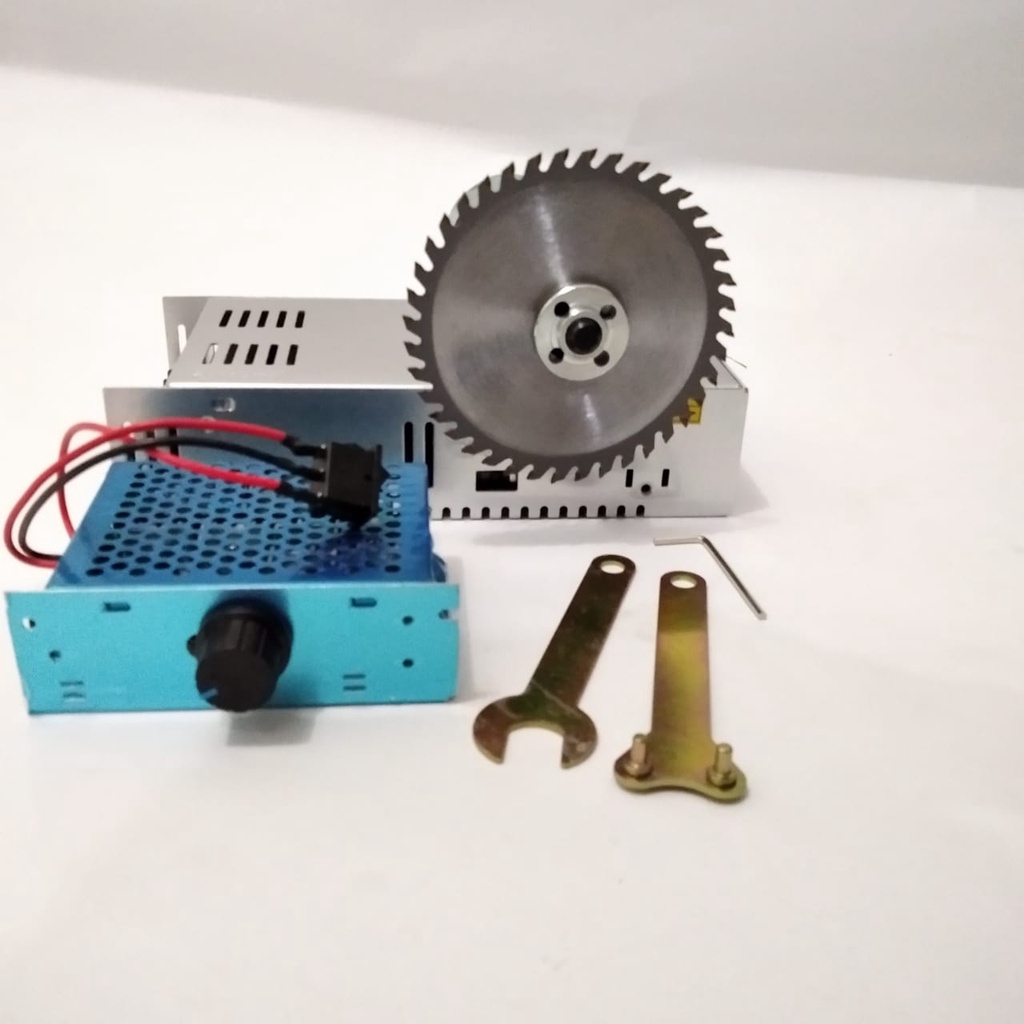

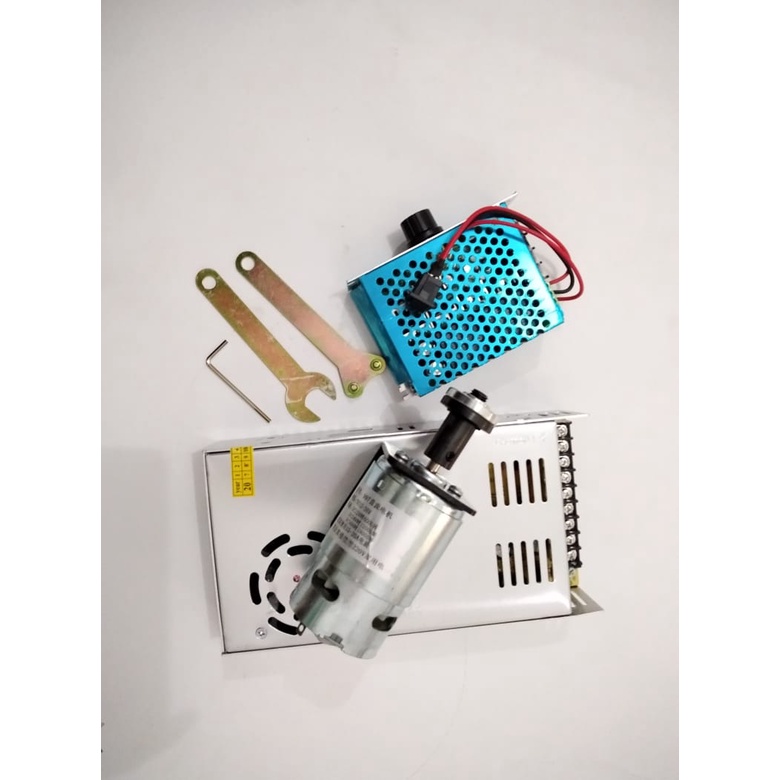

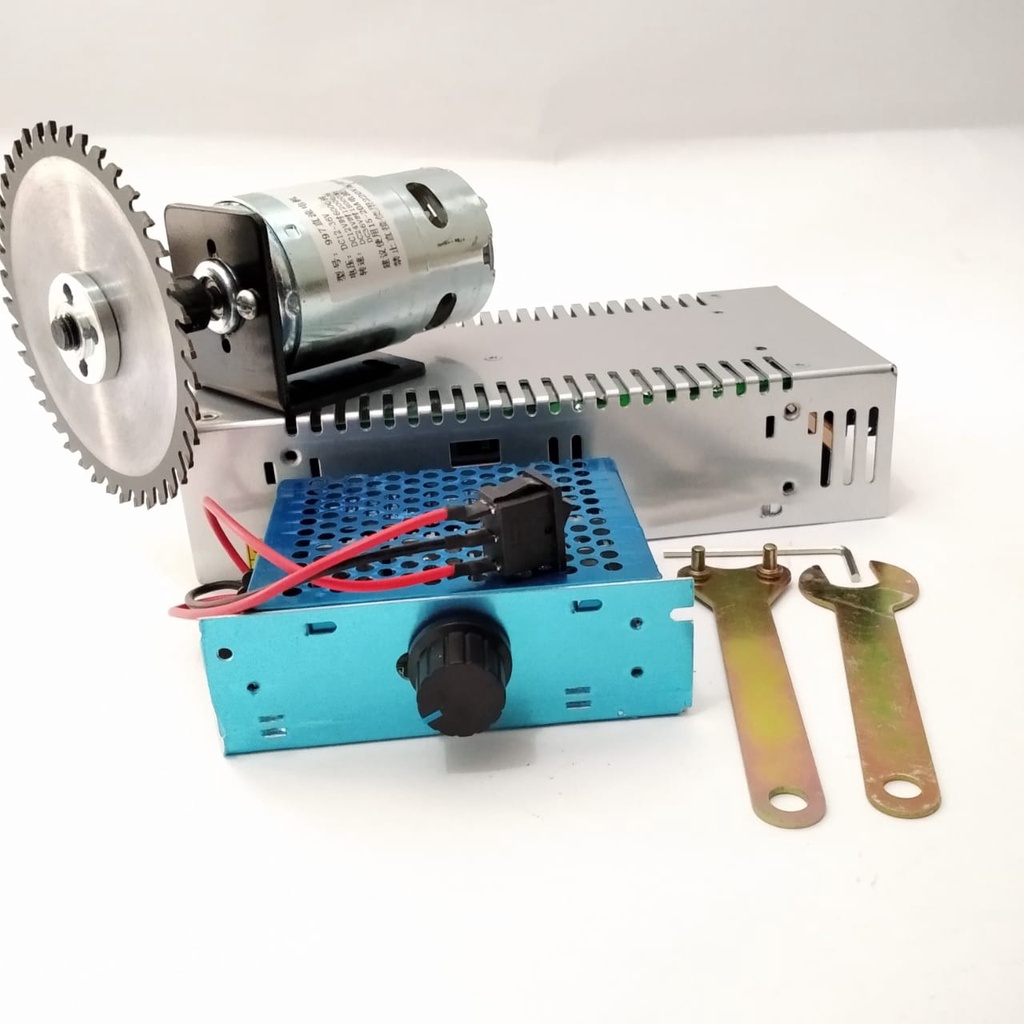

PAKET!!! Dinamo Motor 997 LOW SPEED Circular mini table saw dengan power supply dan dimmer

*Dinamo 997 LOW SPEED
LOW Speed Motor Silent Ball Bearing Motor 997 powerful DC motor, 12-36V high speed motor, silent ball bearing motor
Model: 997 DC motor
Voltage: DC12 - 36V
Model:997 LOW SPEED 6000~18000RPM, 13kgf.cm, 1.7A
Speed:DC12V 3000RPM
DC24V 6000 RPM
DC36V 9000 RPM
Torque: maximum 26kg /CM
15-20A current is recommended
Direction of rotation: support forward and reverse rotation
Wire: pure copper coil

**Bracket dc 997
Warna : hitam
Tebal : 3 mm
material : High Quality metal


***Circular saw
size : 4 inch
Ukuran: 4 inci
Jumlah gigi: 40 gigi
Diameter: 110 MM
Lubang dalam: 20MM (dengan paking 16MM)
Ketebalan: 1.5 MM

****Power Supply For Motor 895 (360watt 24V)
Daya : 360 watt
Input : 220V Arus : 15A
Output : 15Ampere .....Voltage 24V

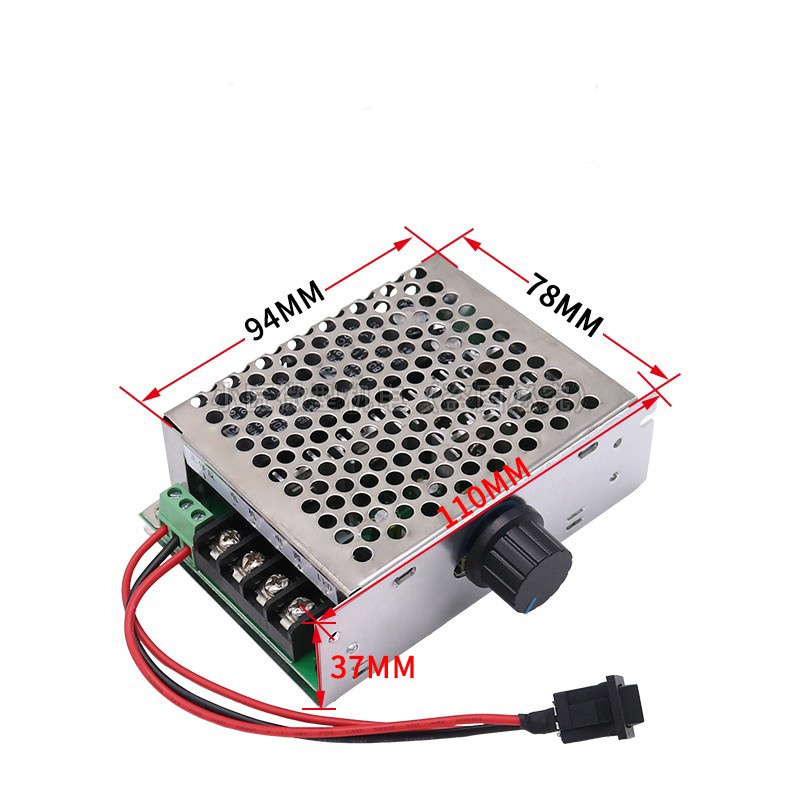

*****Dimmer 40A DC 12V24V48V PWM DC speed regulator Plus Box
Untuk Motor 895 dan 997
Input voltage: DC10-50V Output voltage: linear under load
Dimmer PWM 40A DC Brush Motor Speed Controller 12V 24V 36V 48V
Output limit current: 40A (use 20A for a long time, pay attention to keep the module smooth and
heat dissipation conditions)
Ultimate power: 2000W
Speed regulation type: current regulation speed regulation method: potentiometer (linear)
Speed regulation duty cycle range: 0-100% control frequency: 25KHZ
Wiring type: Barrier terminal, knob wire length: 20CM
Product net weight: 245 grams
Motherboard installation size: length * width 100MM*76MM*28MM potentiometer installation
opening: 7MM

Gambar produk
