Paket!!! Dinamo 895 + Power supply + Dimmer Forward-Reverse (7020)

Elektronik > Elektronik Lainnya > Paket!!! Dinamo 895 + Power supply + Dimmer Forward-Reverse (7020)
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Paket!!! Dinamo 895 + Power supply + Dimmer Forward-Reverse (7020)

Paket!!! Dinamo 895 + Power supply + Dimmer Forward-Reverse

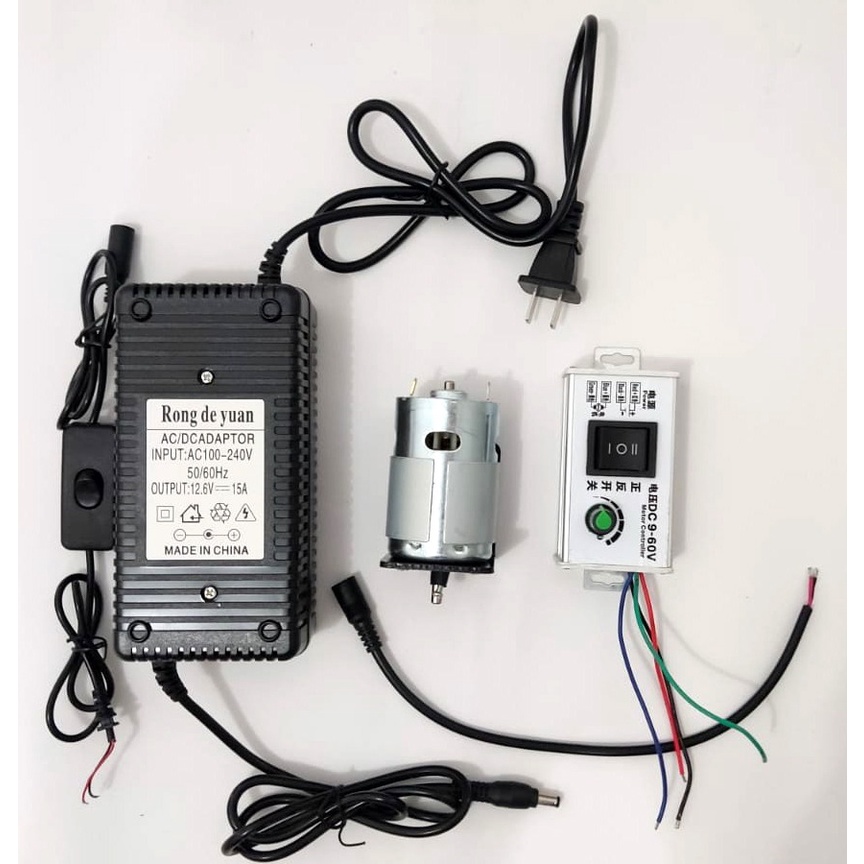

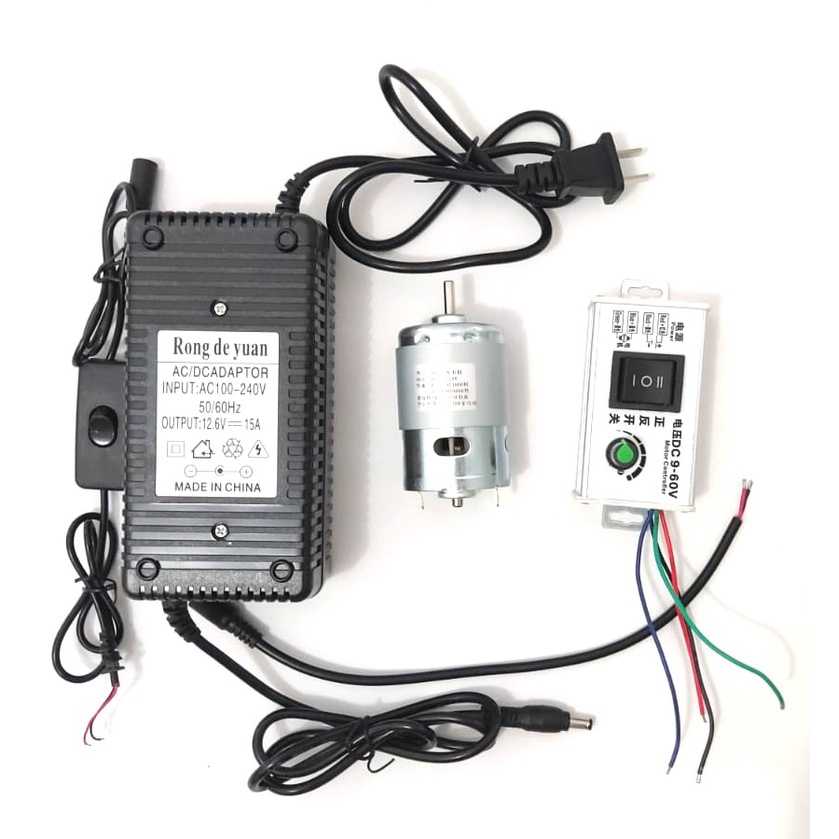

Paket terdiri dari dinamo 895, power supply dan dimmer forward-reverse

Berikut spesifikasi paket :

1.Dinamo 895

Motor 895 ROUND SHAFT Low Speed
RPM : 3000-6000 RPM
Torsi :0,98 N.M
Power : 360 watt
Maksimum arus : 16A
konektor : 2 pin
diameter as : 5 mm
panjang as : 17 mm
panjang bodi : 72 mmn
diameter body : 50 mm
Kipas pendingin : ada
Lobang baut : M4 dan M5
Ball bearing
Brush
Suara tidak bising, low noise

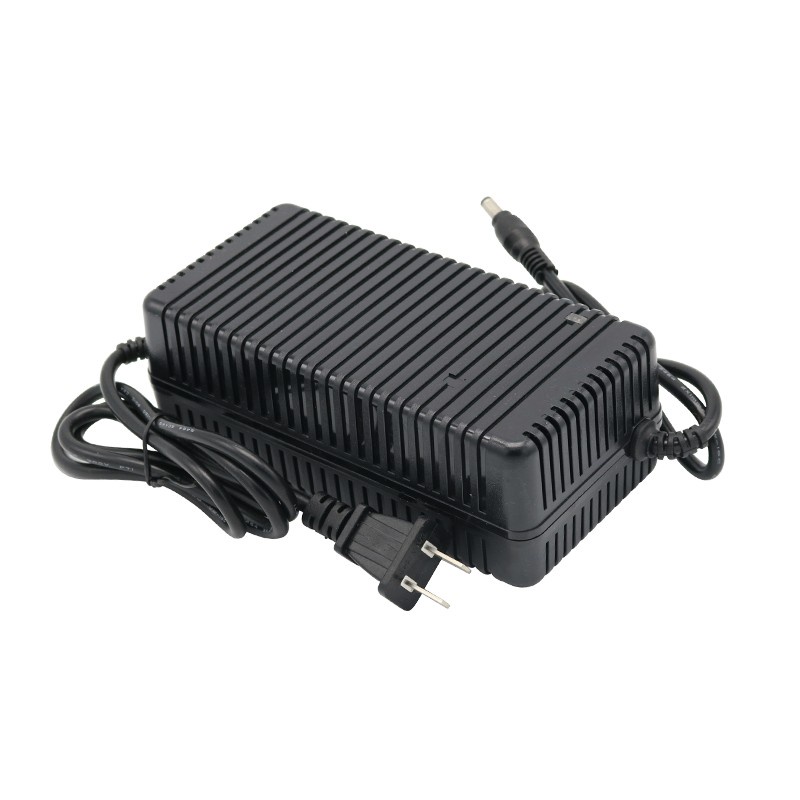

2. Power supply For : Motor 895

Input :220V
Output : 12V 15A
Female Kabel DC FEMALE 5.5x2.1 power supply Line 12V/24V
Ukuran Power Supply : 16,5 x 8 x 5,6 cm

3. Bracket
Bracket untuk dinamo tipe 895
Material : Besi 3mm
Warna :hitam

4. Dimmer forward-reverse
Dimmer Speed regulation Forward and Reverse for 799 & 895 (8001)

Input Voltage : DC 9-60V
Output Voltage : Linear under load
Output current : 0-20A
Control Freq : 25 KHZ
Forward dan Reverse : support
Berat : 130gr
