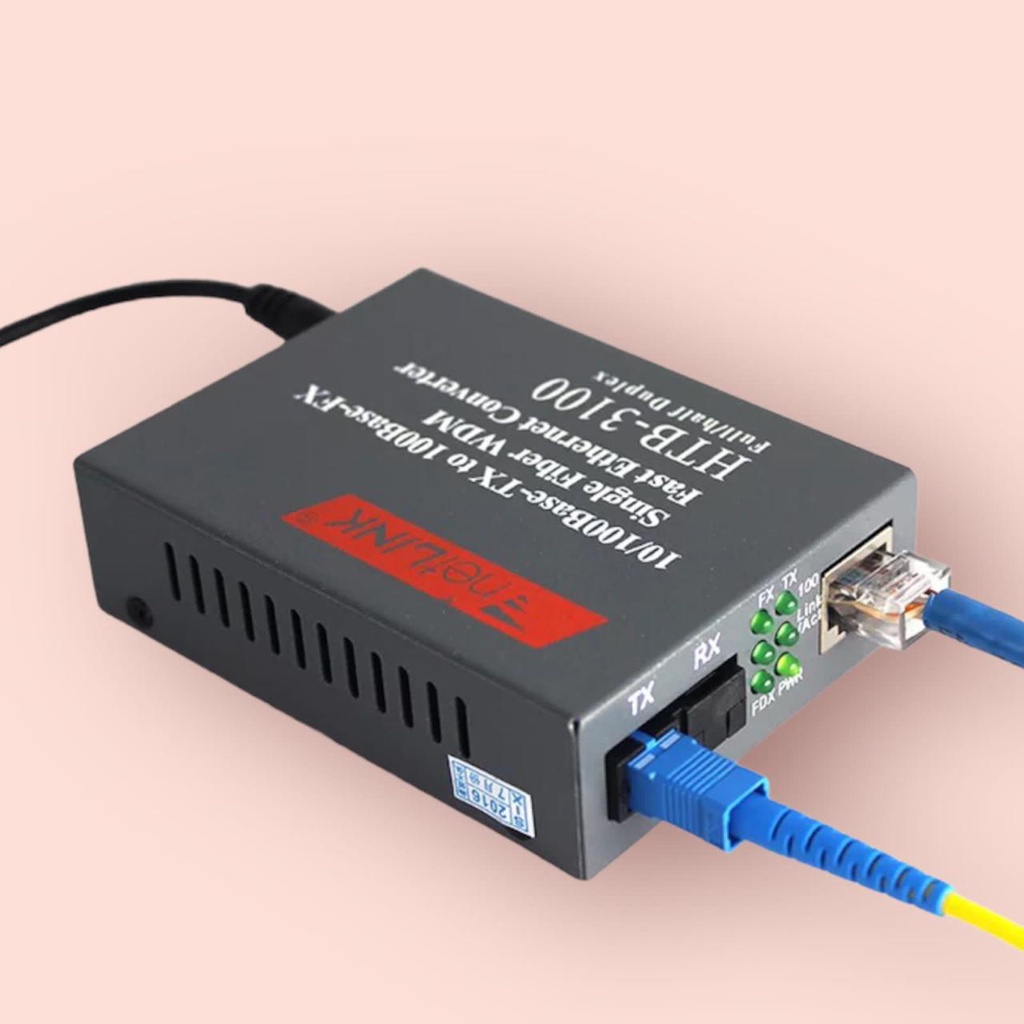

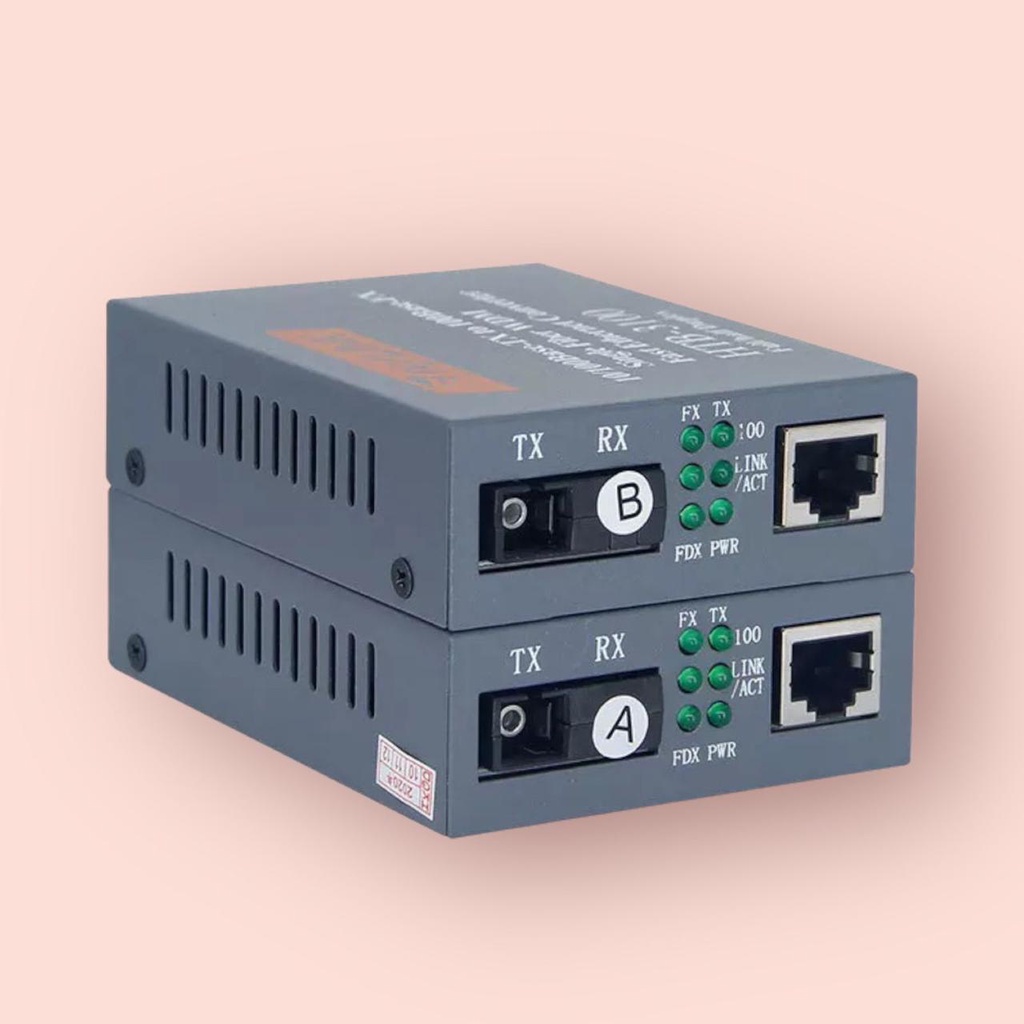

Pair HTB-3100AB Optical Fiber Media Converter Fiber Transceiver Single Fiber Converter SC 10/100M Singlemode ASLI BERKUALITAS

Detail Pair HTB-3100AB Optical Fiber Media Converter Fiber Transceiver Single Fiber Converter SC 10/100M Singlemode ASLI BERKUALITAS

Video perkenalan produk Pair HTB-3100AB Optical Fiber Media Converter Fiber Transceiver Single Fiber Converter SC 10/100M Singlemode ASLI BERKUALITAS. Sumber: Shopee.

Feature :

With new ic core chipset , The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.

UTP port supports MDI / MDI-X auto crossover

Supporting flow control

Supporting 1552 Byte packet

Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

the fo plug is flat.

Specification

Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX

MAC address table: 1K

Connector:

UTP: RJ-45 10/100Mbps;

Fiber: SC 100Mbps

Cable:

UTP: Cat. 5 UTP (the max distance up to 100m)

Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

Flow Control

Full Duplex: IEEE802.3x

Half Duplex: Backpressure

LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

Power: AC 110V - 220V to DC 5V; DC48V to DC 5V

Ambient temperature0 ～ 50℃

Storage temperature-20 ～ +70℃

Humidity: 5% ～ 90%

Dimensions:

Internal power: 30×110×140mm

External power: 26×70×93mm

Product Compatibility 8 pin he can a usb to lan cable , so that it can work,with 2A adapter

no poe function it can to 200m, not net link s

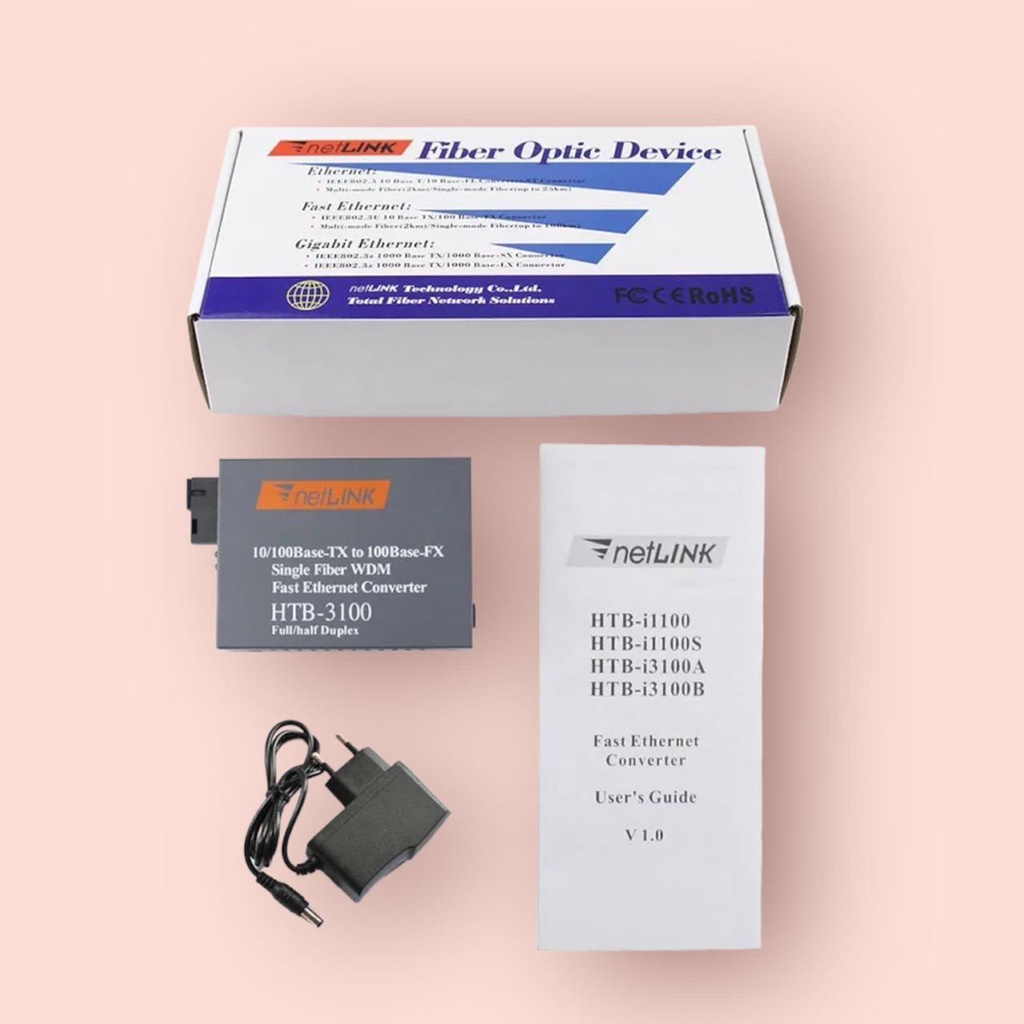

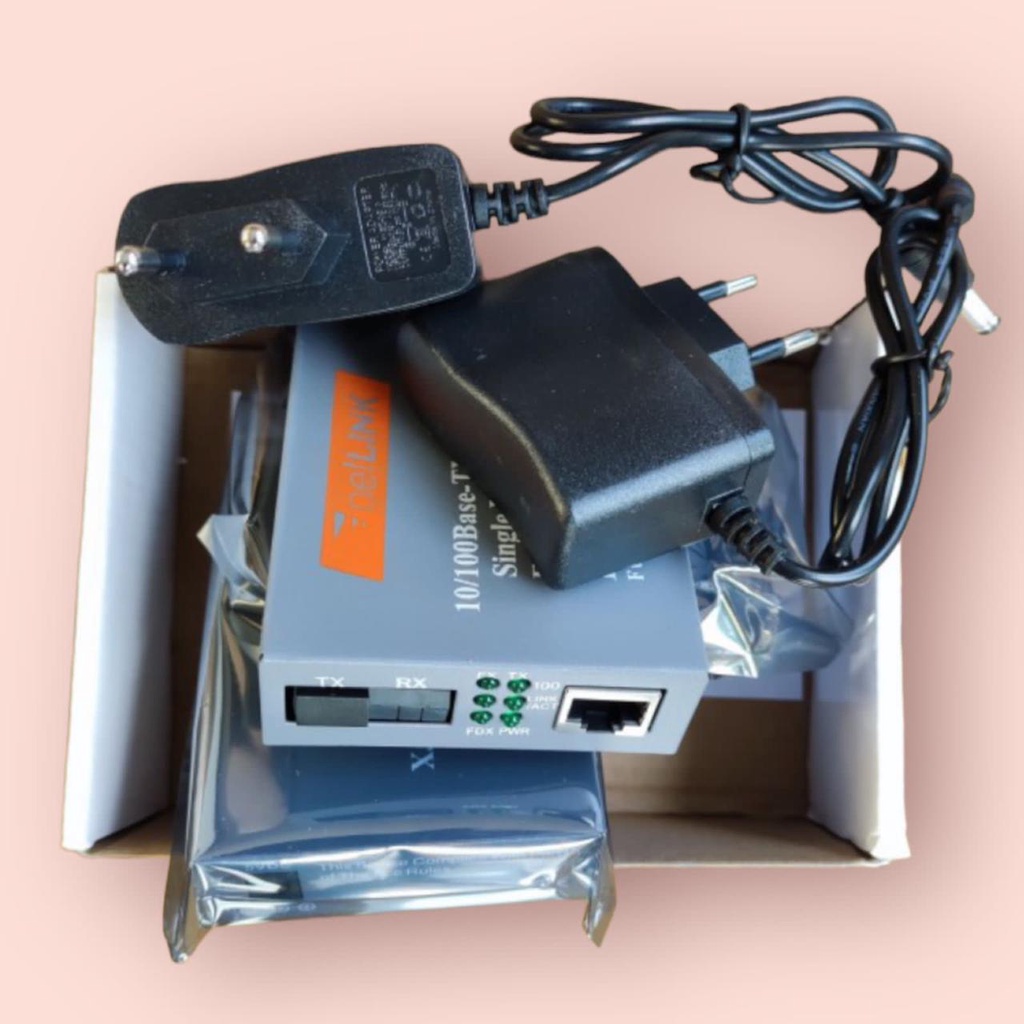

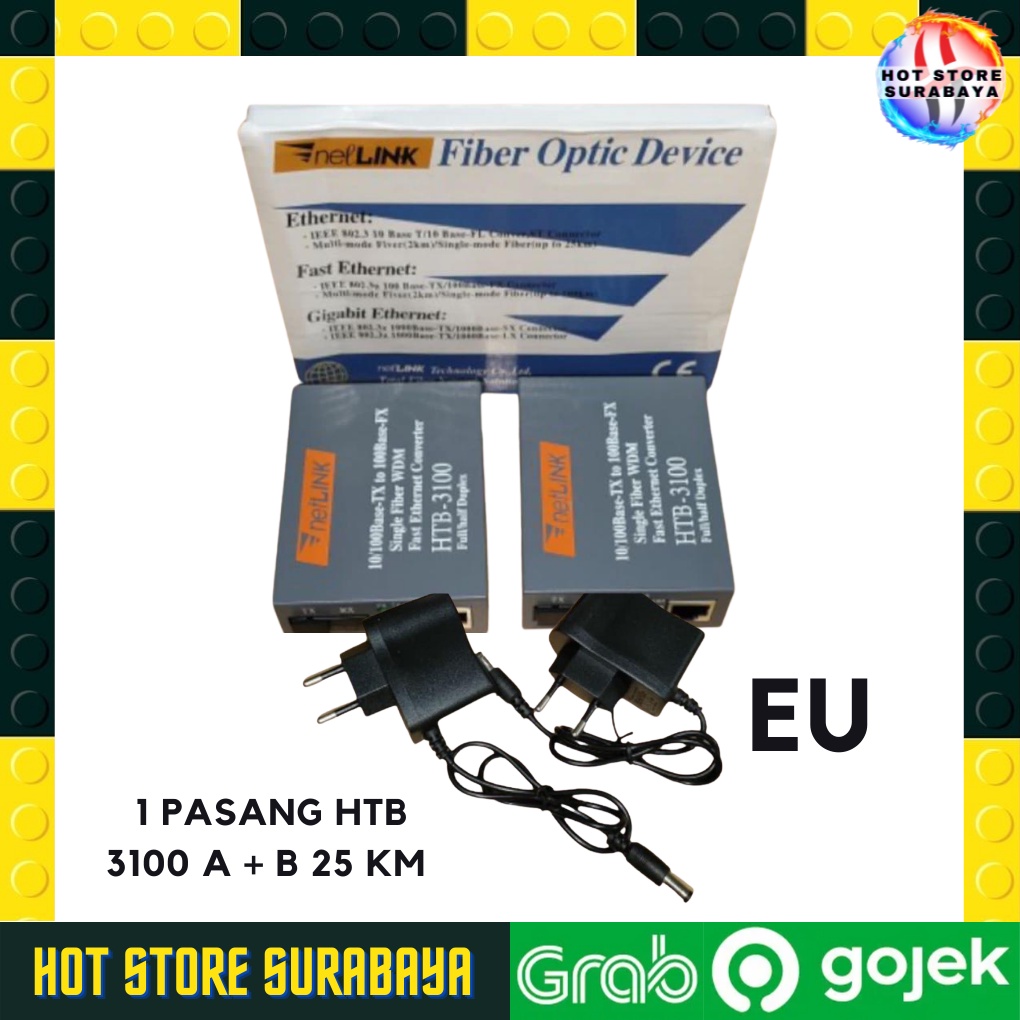

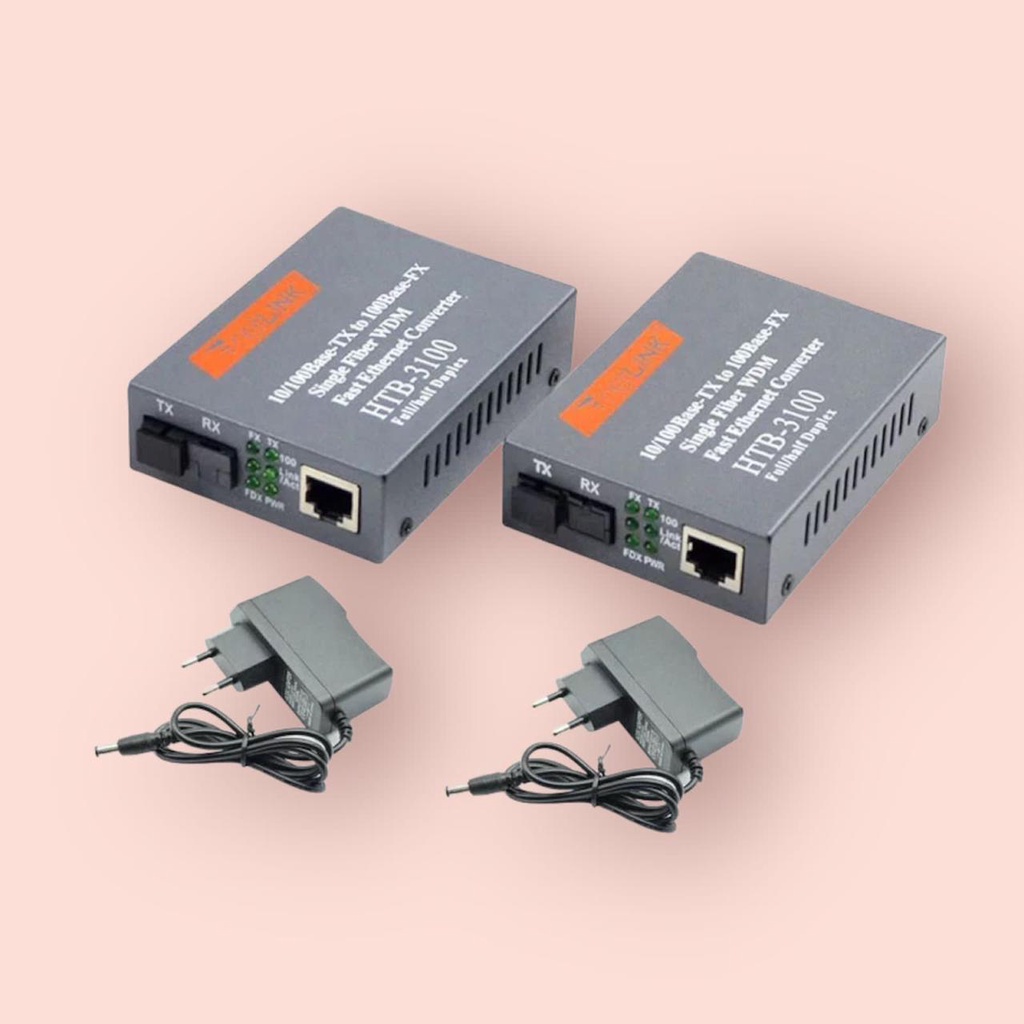

Pacakge: 1 pair HTB-3100AB , 2 Pcs EU adapter

Gambar produk
