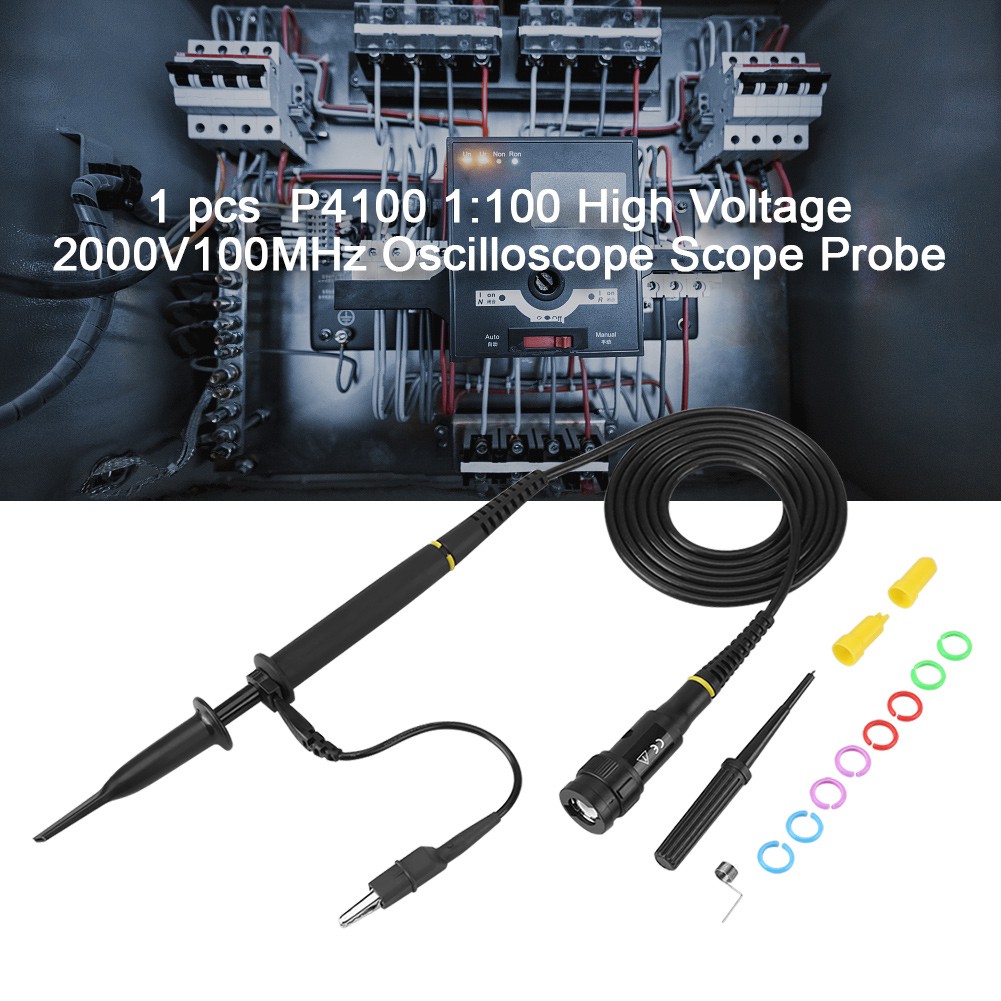

P4100 Oscilloscope Probe 100X High Voltage 2KV Clip 100Mhz Bandwidth

Detail P4100 Oscilloscope Probe 100X High Voltage 2KV Clip 100Mhz Bandwidth

Features:
Ergonomic design make it more comfortable to use.
Integral injection molding, flexible to
use, can fit more testing occasion.
High voltage, the maximum input voltage can be up to 2kV.
Come with marking circles in different colors help to identify different channels.
There is a adjustment tool that can adjust compensation capacitance to match oscilloscope.

Specifications:
Model: P4100
Attenuation: 100X

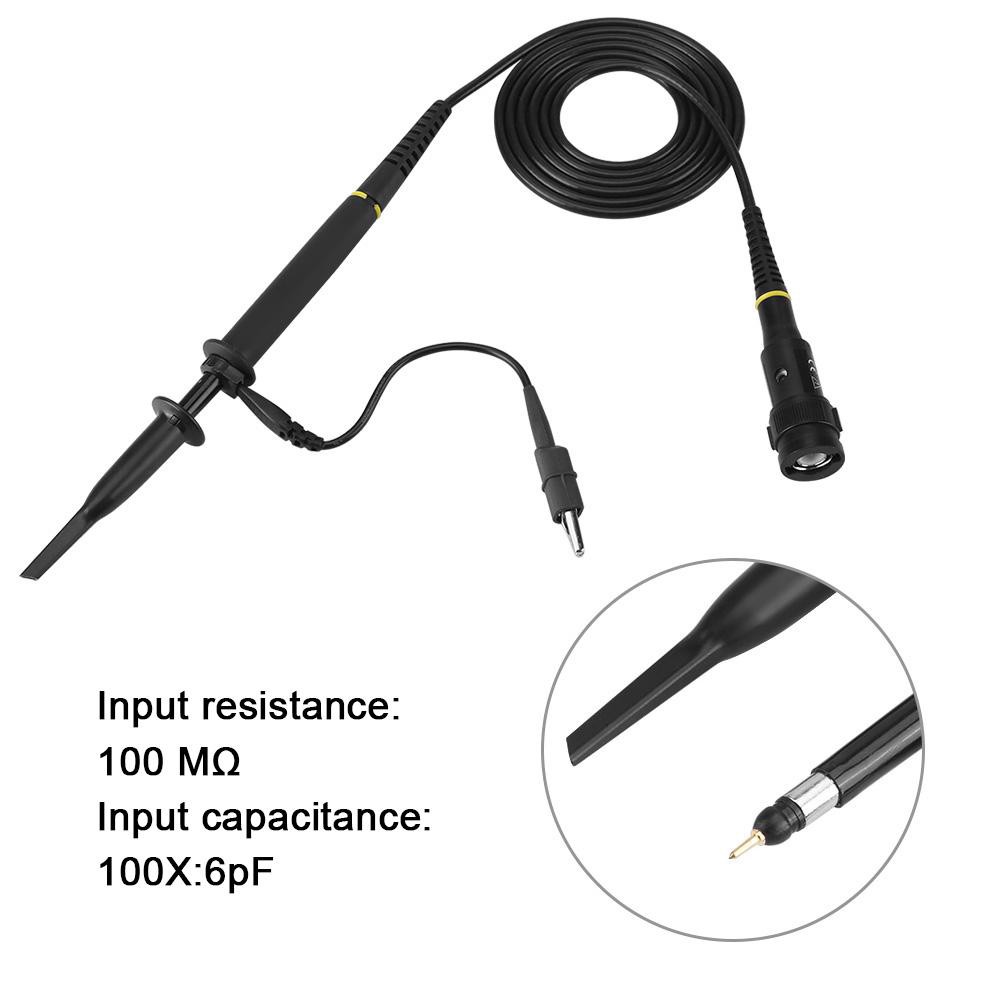

Input Resistance: 100MΩ
Input Capacitance: 6pF(100X)
Compensation Range: 10pF~35pF
System Bandwidth:DC-100MHz(100X)
Input Voltage: <2KVDC+AC Vp-p(100X)
Connector Type: BNC
Operating Temperature: -15°C~+75°C
Humidity: ≤85%(RH)

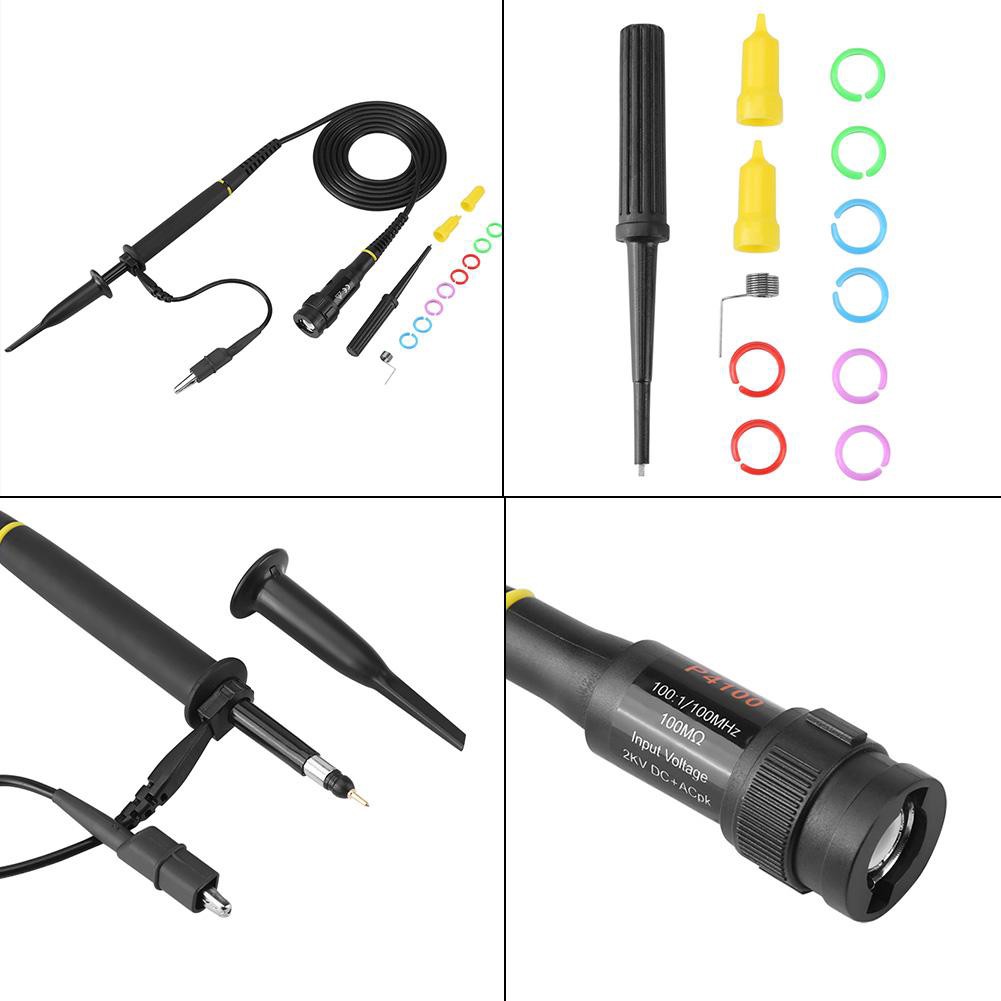

Package Includes:
1 x Probe
2 x Caps
8 x Colored Circles
1 x Adjustment Tool
1 x Spring
