OV7670 - Camera Module - Arduino - Raspberry-Pi Compatible
Applications:
- High sensitivity for low-light operation;
- Low operating voltage for embedded application;
- Standard SCCB interface compatible with I2C interface;
- Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr(4:2:2)output format;
- Support VGA, CIF and from CIF to 40 x 30 format;
- Vario Pixel method for sub-sampling;
- Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
- Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming;
- ISP includes noise reduction and defect correction;
- Support image scaling; Lens shading correction;
- Flicker 50/60Hz auto detection;
- Color saturation level auto adjust;
- Edge enhancement level auto adjust;
- De-noise level auto adjust

Specification:
- Photosensitive Array: 640 x 480;
- IO Voltage: 2.5V to 3.0V;
- Operating Power: 60mW/15fpsVGAYUV;
- Sleeping Mode: 20 uA;
- Operating Temperature: -30 to 70 deg C.;
- Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit);
- Lens Size: 1/6";
- Vision Angle: 25 degree;
- Max. Frame Rate: 30fps VGA;
- Sensitivity: 1.3V / (Lux-sec);
- Signal to Noise Ratio: 46 dB;
- DynamicRange: 52 dB;
- Browse Mode: By row;
- Electronic Exposure: 1 to 510 row;
- Pixel Coverage: 3.6um x 3.6um;
- Duck Current: 12 mV/s at 6'C

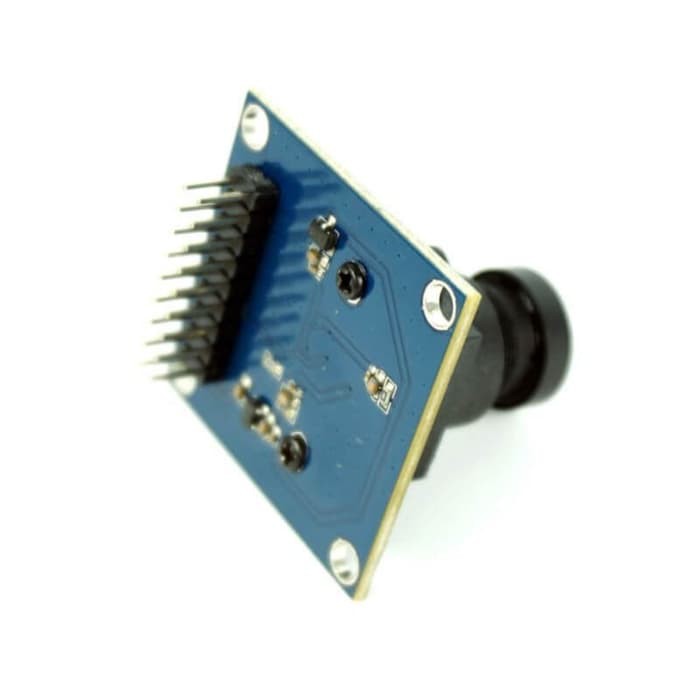

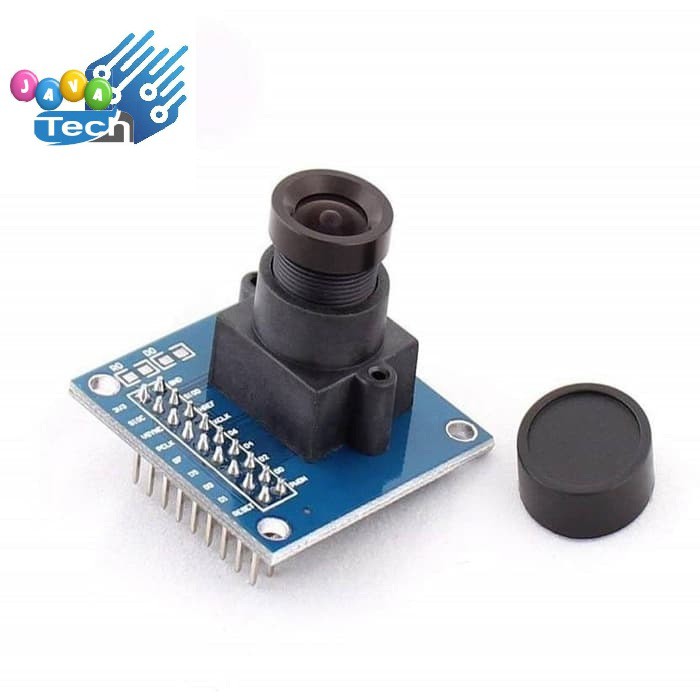

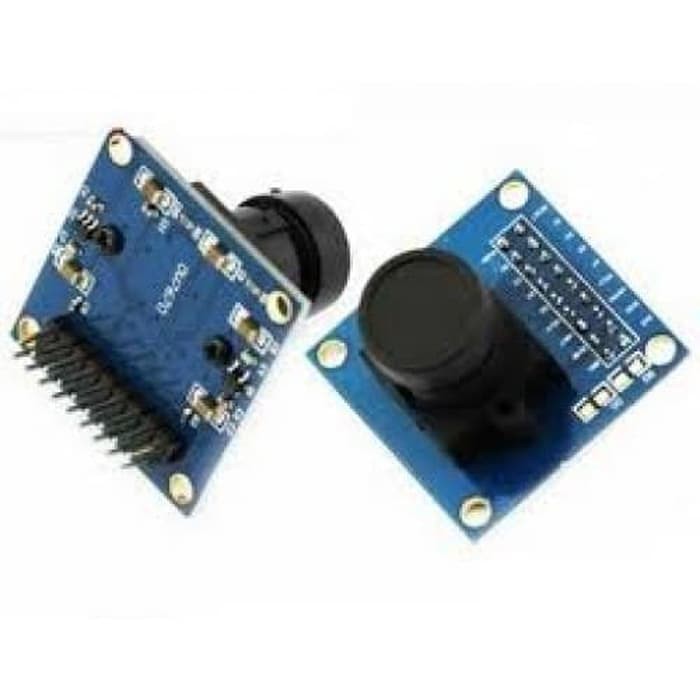

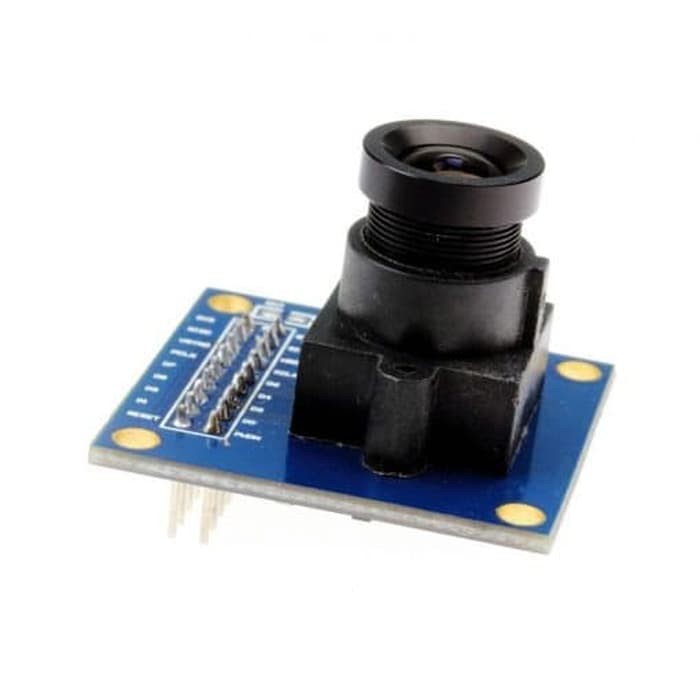

Gambar produk
