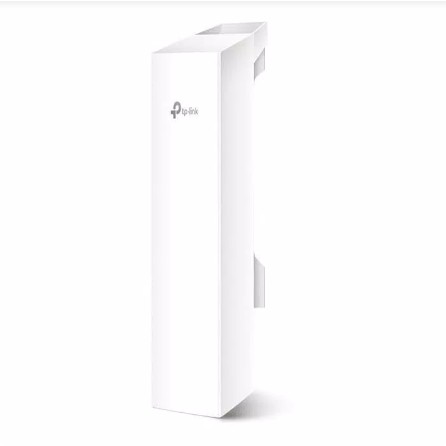

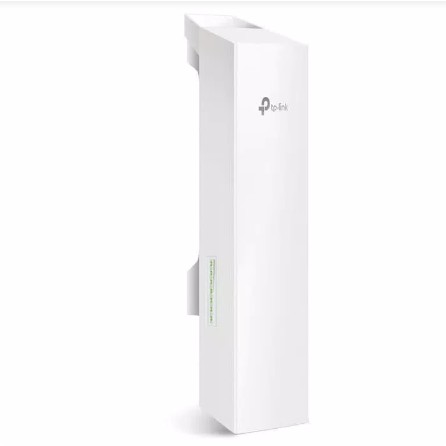

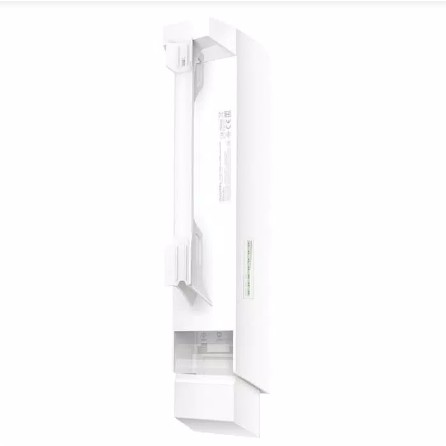

Outdoor Wireless TP-Link CPE220 2.4GHz 300Mbps 12dBi
Merek: TP-Link | Lihat selengkapnya produk Komputer & Aksesoris dari TP-LinkDeskripsi singkat
Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > Outdoor Wireless TP-Link CPE220 2.4GHz 300Mbps 12dBi
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Outdoor Wireless TP-Link CPE220 2.4GHz 300Mbps 12dBi
Deskripsi Outdoor Wireless TP-Link CPE220 2.4GHz 300Mbps 12dBiDeskripsi TPLink CPE220 2.4GHz 300Mbps 12dBi Outdoor
- Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 30dBm/1000mw
- System-level optimizations for more than 13km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
- Processor : Qualcomm Atheros 560MHz CPU, MIPS 74Kc
- Memory : 64MB DDR2 RAM, 8MB Flash

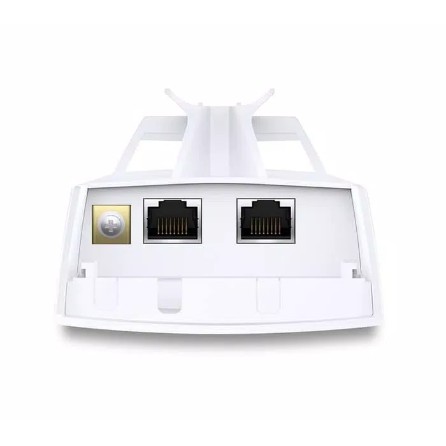

- Interface : 1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in), 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 Grounding Terminal, 1 Reset Button
- Power Supply : Passive Power over Ethernet via LAN0 (+4, 5pins; -7, 8pins), Voltage range: 16-27VDC
- Power Consumption : 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
- Antenna Type : Built-in 12dBi 2x2 Dual-polarized Directional Antenna, Beam Width: 60 (H-Plane) / 30 (E-Plane), Note: For more details, please refer to datasheet
- Protection : 15KV ESD Protection, 6KV Lightning Protection
- Enclosure : Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
- Wireless Standards : IEEE 802.11b/g/n (with Pharos MAXtream disabled)
- Proprietary Protocol : TDMA Mode (with Pharos MAXtream enabled)
- Wireless Speeds : Up to 300Mbps (40MHz, Dynamic), Up to 144.4Mbps (20MHz, Dynamic), Up to 72.2Mbps (10MHz, Dynamic), Up to 36.1Mbps (5MHz, Dynamic)
- Outdoor Wireless CPE, 24V 1A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
