OTDR Optical Time Domain Reflectometer Join Witt JW3302F

Komputer & Aksesoris > Komputer & Aksesoris Lainnya > OTDR Optical Time Domain Reflectometer Join Witt JW3302F
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail OTDR Optical Time Domain Reflectometer Join Witt JW3302F

Deskripsi OTDR Joinwit JW3302F Optical Time Domain Reflectometer Joinwit 3302F
OTDR Joinwit JW3302 F Optical Time Domain Reflectometer Joinwit 3302F

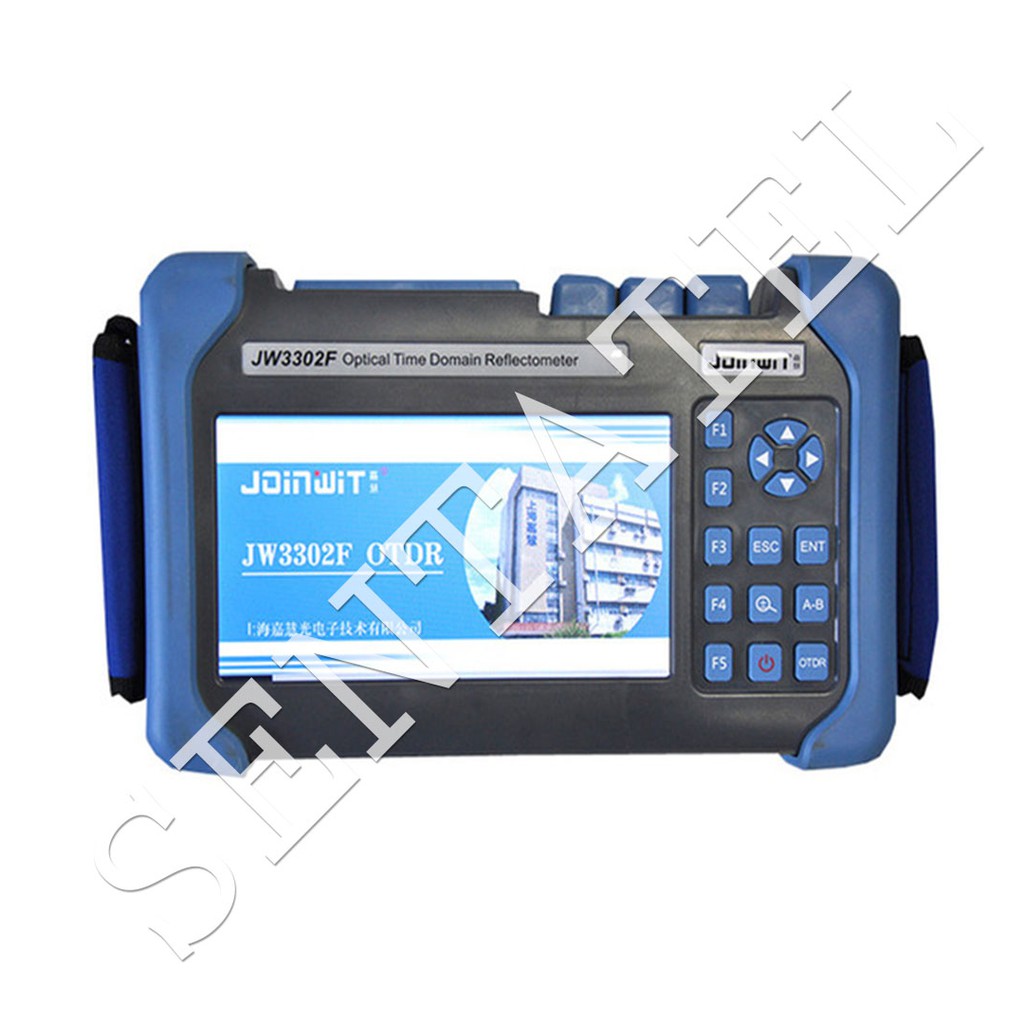

Handheld Joinwit JW3302F Fiber Optic Optical Time Domain Reflectometer

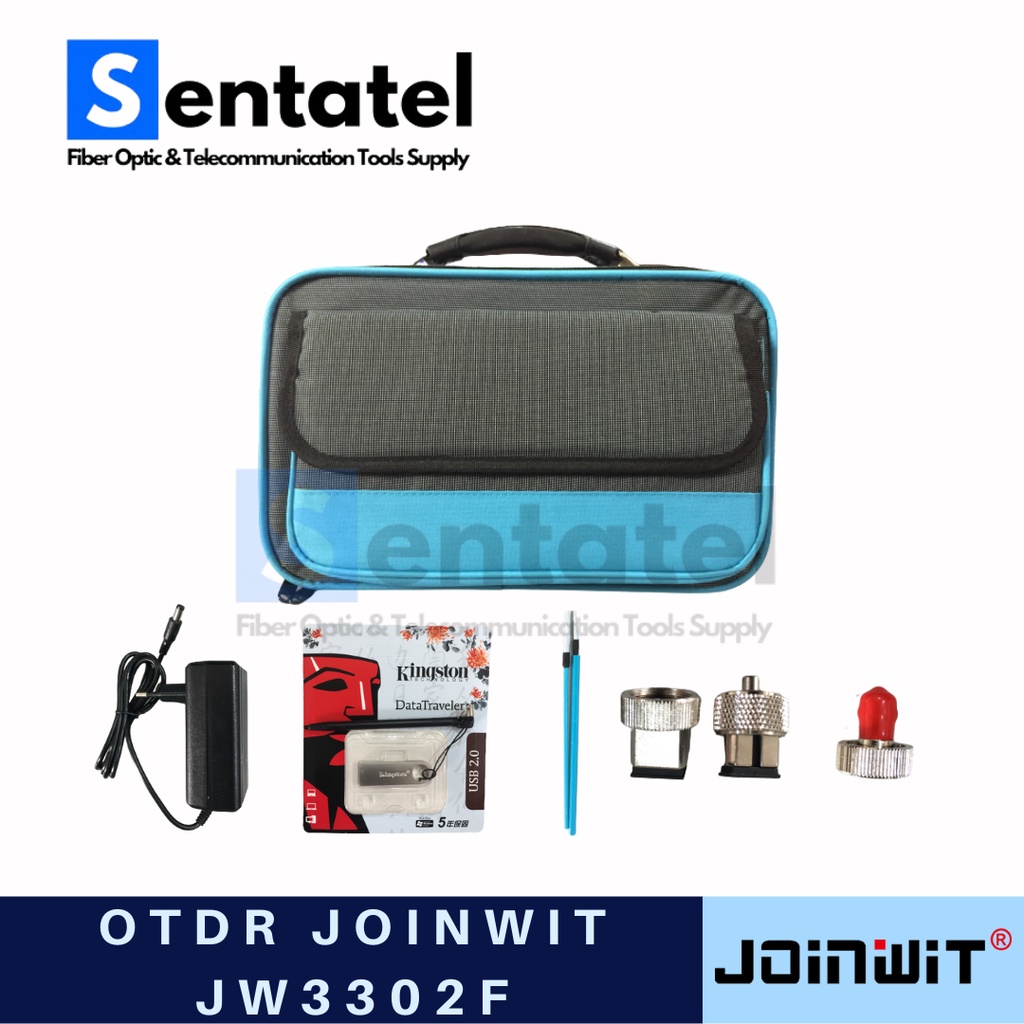

Kelengkapan : OTDR Joinwit 3302F
Micro SD, DRIVER, Kabel data, Charger / Adaptor, Warranty book, Tas

Dimension
253×168×73.6mm1.5kg (battery included)
Display 7 inch TFT-LCD with LED backlight (touch screen function is optional)
Interface 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Power Supply 10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery
7.4V(dc)/4.4Ah lithium battery (with air traffic certification)

Operating time: 12 hours, Telcordia GR-196-CORE
Charging time: <4 hours (power off)

Power Saving
Backlight off: Disable/1 to 99 minutes

Auto shutdown: Disable/1 to 99 minutes

Data Storage Internal memory: 4GB (about 40,000 groups of curves)
Environmental Conditions Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)Proof: IP65 (IEC60529)
