Original Yihua YH 850 Blower Solder Uap SMD Hot Air Smartphone Repair

Detail Original Yihua YH 850 Blower Solder Uap SMD Hot Air Smartphone Repair

Harga 1 unit

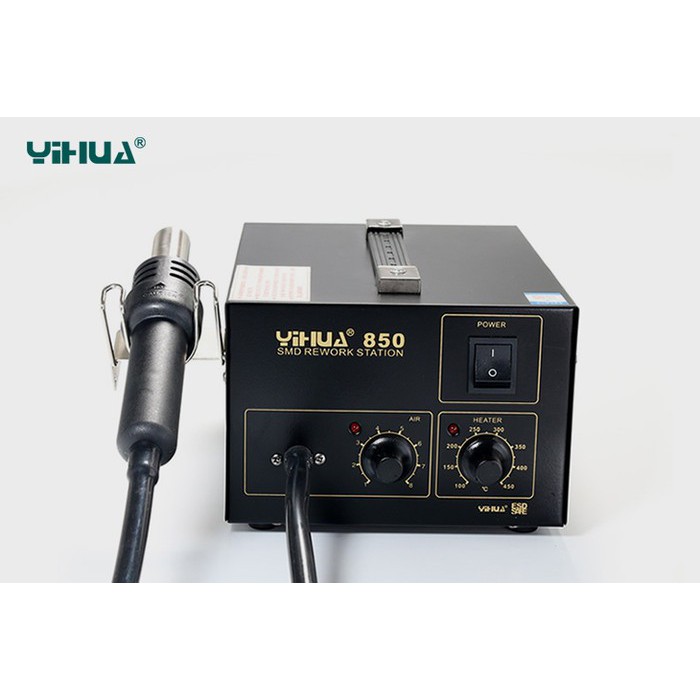

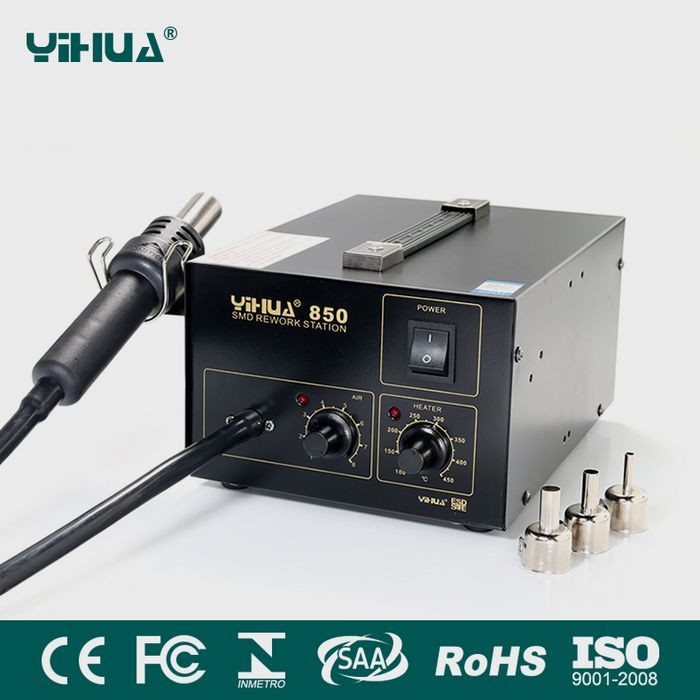

YH-850 Diaphragm pump hot air desoldering station

Product Features

1.Fine-control diaphragm pump is employed for powerful airflows; the smaller the nozzle of the gun, the stronger the airflow.

(a) Nozzles with diameters smaller than 5 mm and normal-sized nozzle (8 mm, 10 mm, 12mm) are suitable for use, we do not recommend use with larger nozzles. Since the pressure of the air pump is large, the smaller the nozzle the stronger the force, and even small nozzles are able to blow out the hot air from the handle.

(b) Characteristics of the diaphragm pump type airflow: large pressure and small volume (the maximum volume is 24 or 28 L/min)

(c) Applicable range:

The smaller the gun nozzle installed in the machine, the bigger the pressure and stronger the force, suitable for desoldering of single small soldering spots.

2.a cutting-edge ceramic-framed heating core for extremely stable and reliable performance!

3.The air gun handle wire employs a high-temperature silicone wire (undamaged when 300o soldering tip contacts silicone wire for 30 seconds)


Performance Parameters of the Machine

Rated Voltage
AC 220V10% 50Hz

Total Power
550W

working condition
040 relative humidity 80

Operating Environment
2080 relative humidity 80

Dimensions
255*188*125mm

Weight
3.3KG

Temperature Range 100 sd 450
air supply mode Pump air supply
Air Flow 24L/min(Max)
Temperature stability 15 static state
Heating element Ceramic skeleton heater

standard configuration
Desoldering station 1
Manual : 1
Air gun handle 1 Nozzle:35mm 8mm 10mm
IC extractor 1 Holder 1

Gambar produk
