Original YIHUA 1502 POWER SUPPLY 15V 2A 2 AMPER Plus USB Output

Perlengkapan Rumah > Perkakas > Perkakas Lainnya > Original YIHUA 1502 POWER SUPPLY 15V 2A 2 AMPER Plus USB Output
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Original YIHUA 1502 POWER SUPPLY 15V 2A 2 AMPER Plus USB Output

Harga 1 Pcs

Original YIHUA
1502 Plus USB

Parameters
Rated voltage AC220V±10% 50Hz
Power of complete machine 30W
Operating environment 0~40ºC relative humidity<80%
Storage temperature -20~80ºC relative humidity<80%
Performance parameters
Output voltage Adjustable continuously within 0~15V
Output current Adjustable continuously within 0~2A
(current limitation adjustment when above 0.2A)
Output power 30W
Source effect ≤1mV
Load effect ≤0.33%
Ripple noise ≤3mVrms(5Hz ~ 1MHz)/≤3mArms
Display accuracy 0.1V/0.1A/1mA
Protection mode Over-current, short circuit, over-temperature protection

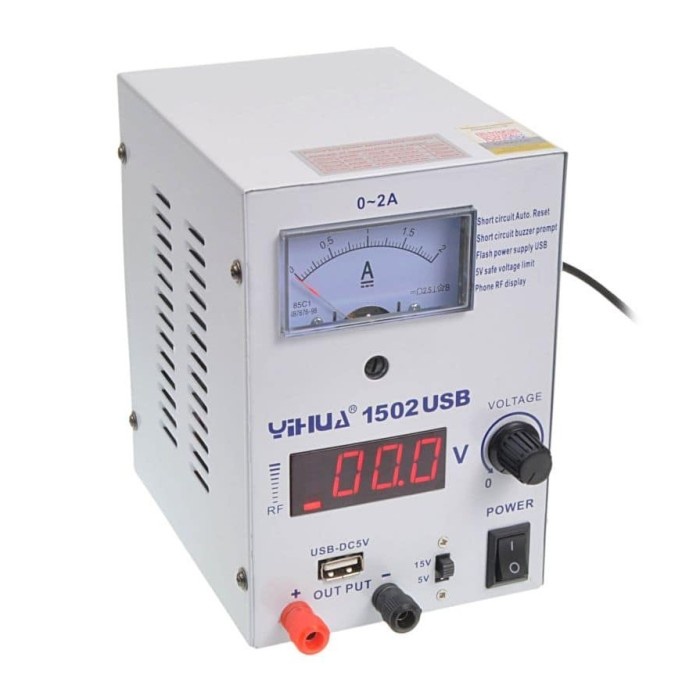

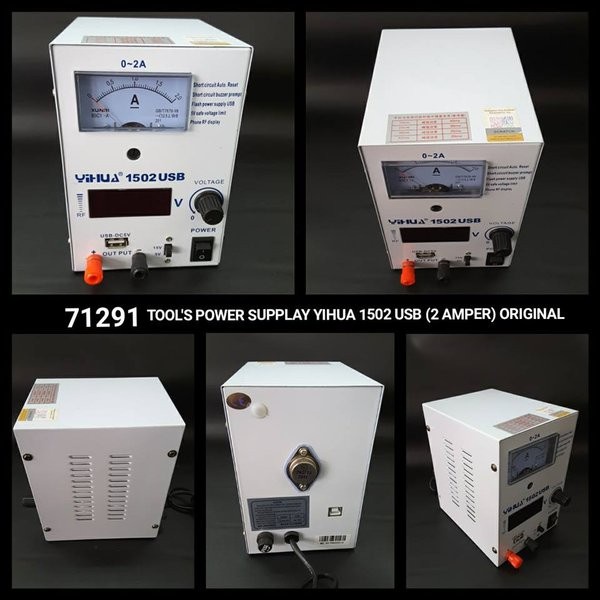

Gambar produk
