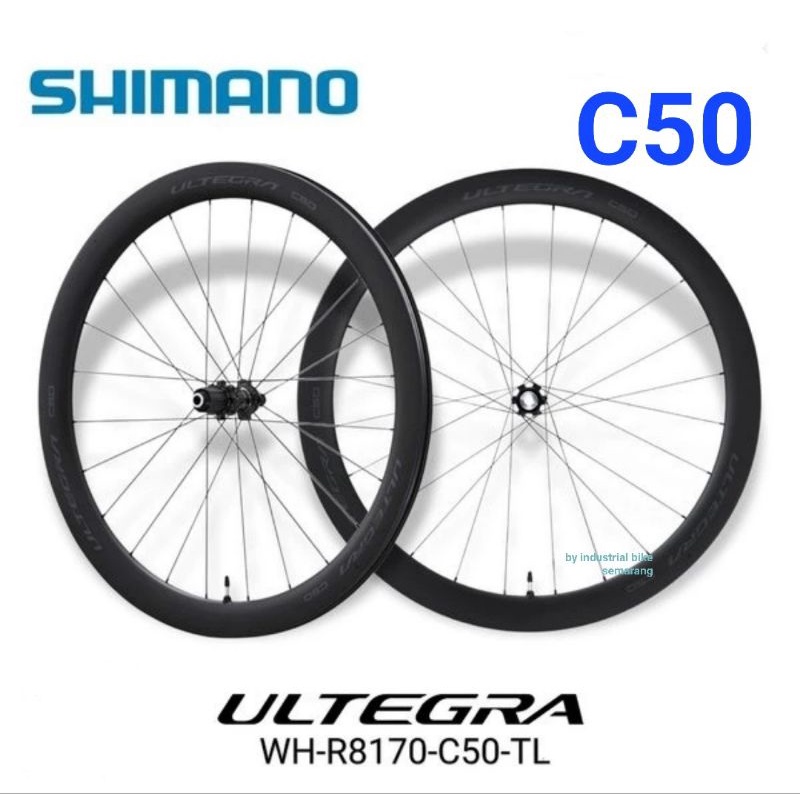

Original Wheelset Shimano Ultegra Carbon R8170 C50 Disc Brake 11sp 12sp 700c Roadbike Balap Road Bike Discbrake

Detail Original Wheelset Shimano Ultegra Carbon R8170 C50 Disc Brake 11sp 12sp 700c Roadbike Balap Road Bike Discbrake

Discover more Shimano
ultegra_r8100
SHIMANO ULTEGRA C50 Tubeless Disc Brake Wheel Front
WH-R8170-C50-TL-F
Balancing aerodynamics, weight, and affordability, the new ULTEGRA R8170 C50 wheelset is sure to inspire action on your group ride with its all-new tubeless carbon rim and updated, 11 and 12-speed compatible hub.

Summiting climbs, carving descents, or cruising the flats, the new C50 is the jack of all trades among the new ULTEGRA R8170 wheel lineup. The tubeless, carbon rim features a 21 mm internal width that pairs nicely with wider, modern tires while the HYPERGLIDE cassette body is compatible with 11 and 12-speed cassettes.

Close
FEATURES
50 mm height full carbon rim

Internal rim width: 21 mm

Shared rim profile with R9200 DURA-ACE wheels

Improved aerodynamics

PRODUCT SPECIFICATIONS
MODEL NO :
WH-R8170-C50-TL-F
SERIES
ULTEGRA R8100 Series

Average weight
698

Spokes_Straight pull
✔

Brake type
CENTER LOCK disc brake

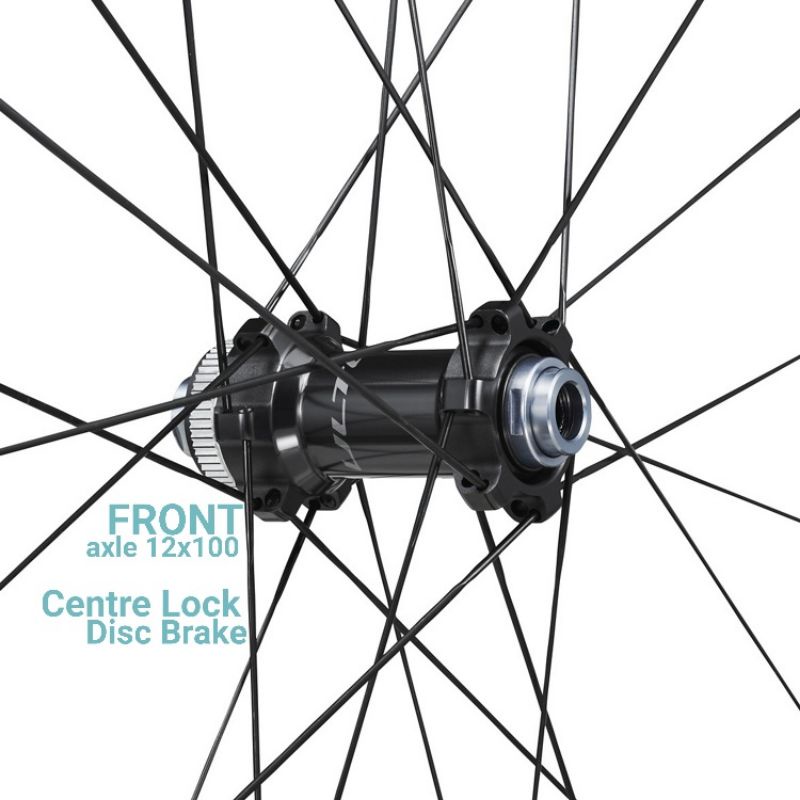

Axle fixing method
12 mm E-THRU

Internal grease sleeve
✔

O.L.D. (mm)
100

Thru axle (length x inner diameter ; mm)_100 x 12
✔

D2 rim
✔

Disc mount_140 mm Disc brake rotor compatible
✔

Disc mount_CENTER LOCK
✔
Front/Rear

Front
Reflector_AS
CATEYE RR-550-WUA SW

Reflector_DIN
CATEYE RR-317-WUA SW

Reflector_JIS/CPSC
CATEYE RR-550-WUW SW

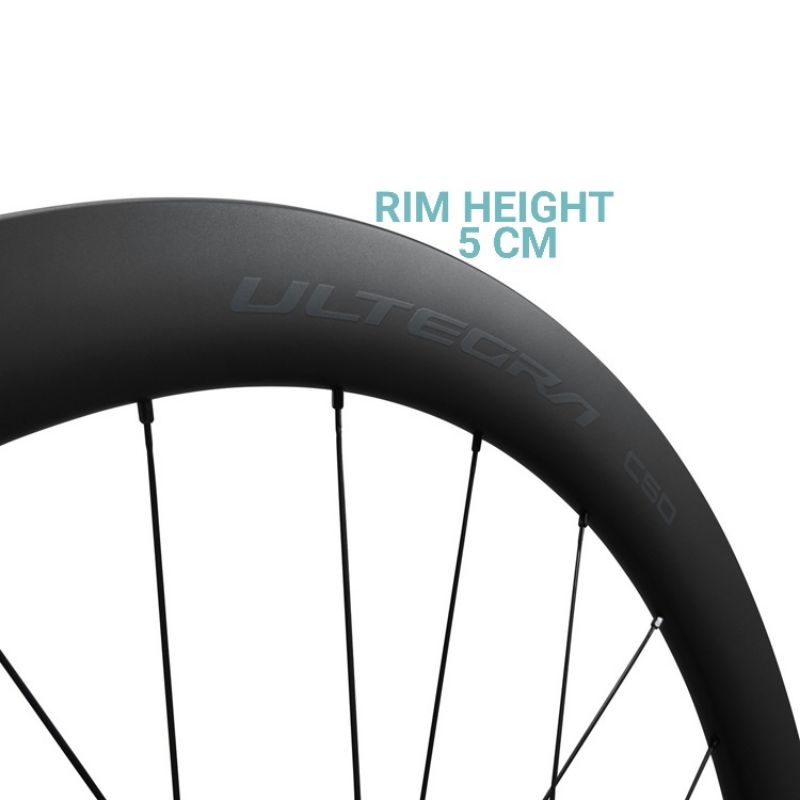

Rim_Height (mm)
50

Rim_Requires rim tape
✔

Seal_Hub
Contact

Spokes_Bladed
✔

Spokes_Butted
✔

Spokes_Number
24

Tire_Recommended size
25-622 - 32-622

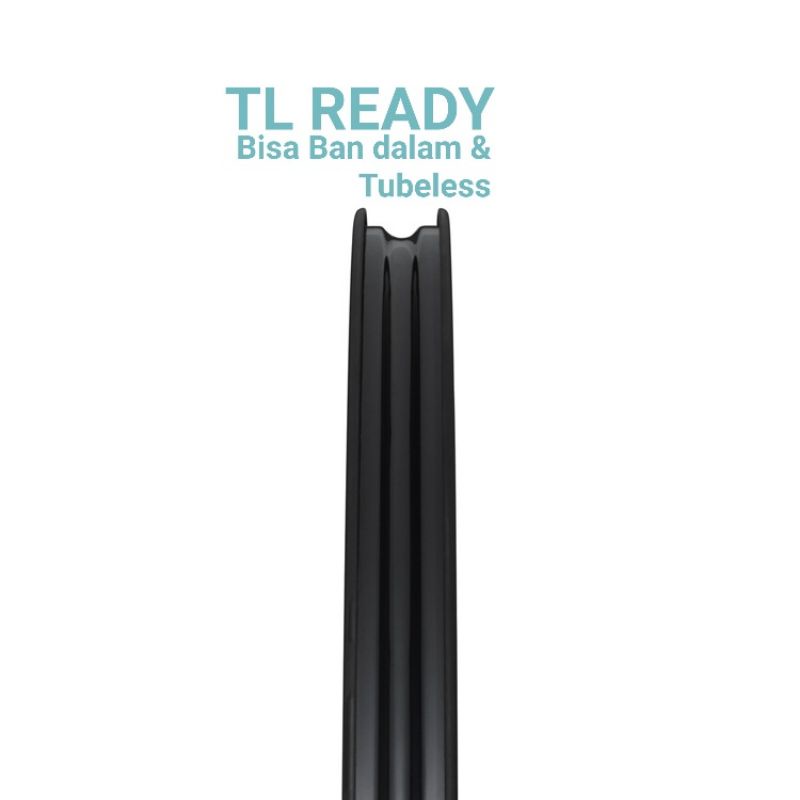

Tire_Type
Tubeless

Wheel Size
622 x 21C

Color_1 Hub shell
Series Color

Model name
WH-R8170-C50-TL

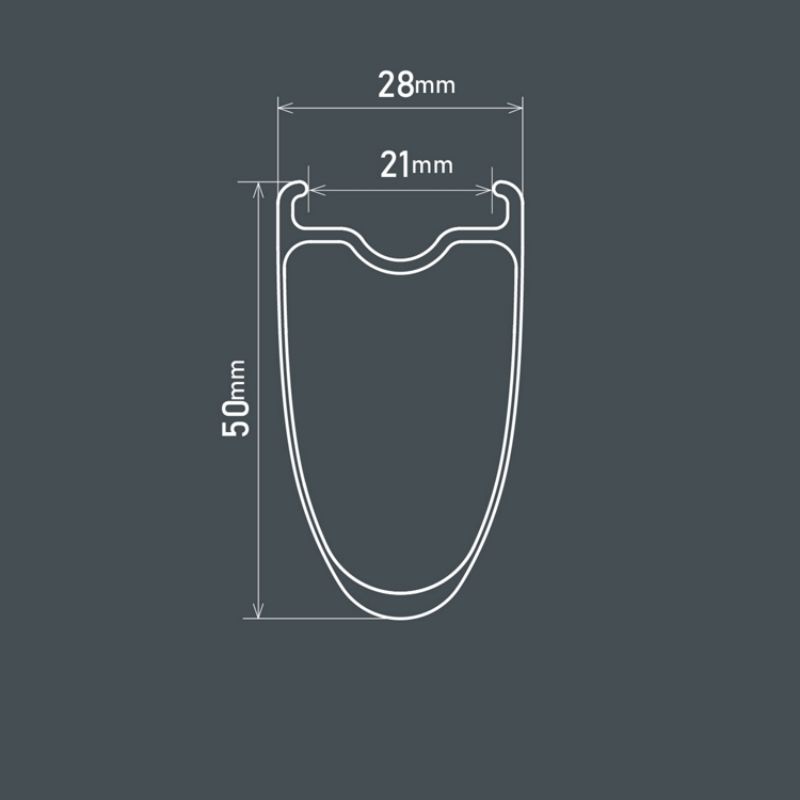

Rim_External width (mm)
28

Rim_Internal width (mm)
21

Spokes_Diameter (mm)
2.0-1.6-2.0

Specification
F
