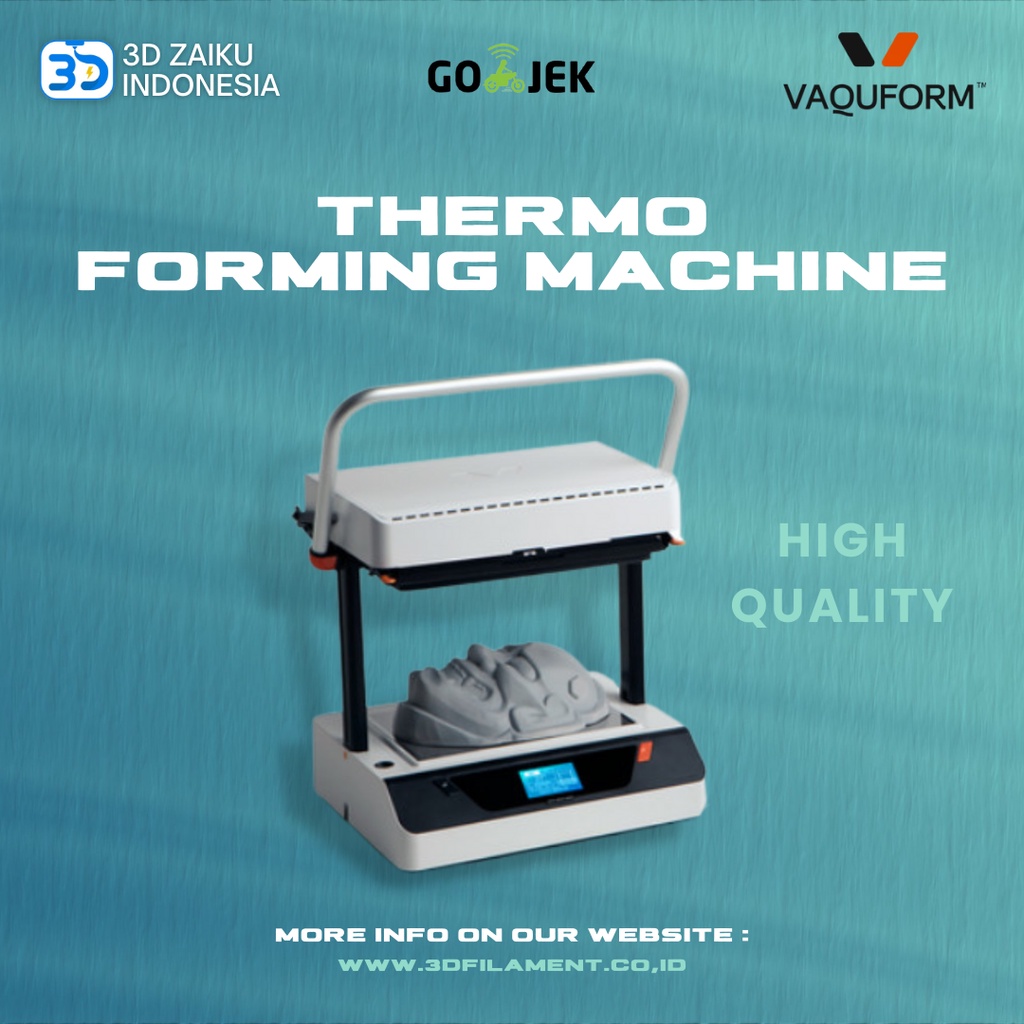

Original Vaquform DT2 Thermo Forming Desktop Machine for Prototyping

Detail Original Vaquform DT2 Thermo Forming Desktop Machine for Prototyping

3D Zaiku Indonesia

Original Vaquform DT2 Thermo Forming Desktop Machine for Prototyping

Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus 3D Machinery
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko



Features

Built-In Hybrid Vacuum: A patent-pending system that combines high airflow and vacuum, speed and power.
Easy To Use: The built-in process controls and ergonomic design make forming effortless.
Automatic Heating: Regulated by sensors, the industrial grade ceramic heaters ensure consistent and safe heating of plastic sheets.
Precise Controls: Customize the temperature (up to 1°) and vacuum power needed for each pull.
Demo Plastic Sheets: The Vaquform will come with demo sheets of plastic to help get you started.
Specifications

Sheet Size: 330 mm x 250 mm
Maximum Sheet Thickness: 3.0 mm
Minimum Sheet Thickness: 0.2 mm
Forming Area: 280 mm x 200 mm
Maximum Depth Draw: 200 mm
Overall Width: 400 mm
Overall Height: 405 mm
Overall Depth: 335 mm
Weight: 9 kg
Standard Input Voltage: 100 V - 240 V
Standard Frequency: 50, 60 Hz
Standard Wattage: 1.32 kW
Noise Level: 65 dB
Heater Temperature: Up to 280 deg Celsius

Ready Stock
