Original Vaquform DT2 Thermo Forming Desktop Machine for Prototyping

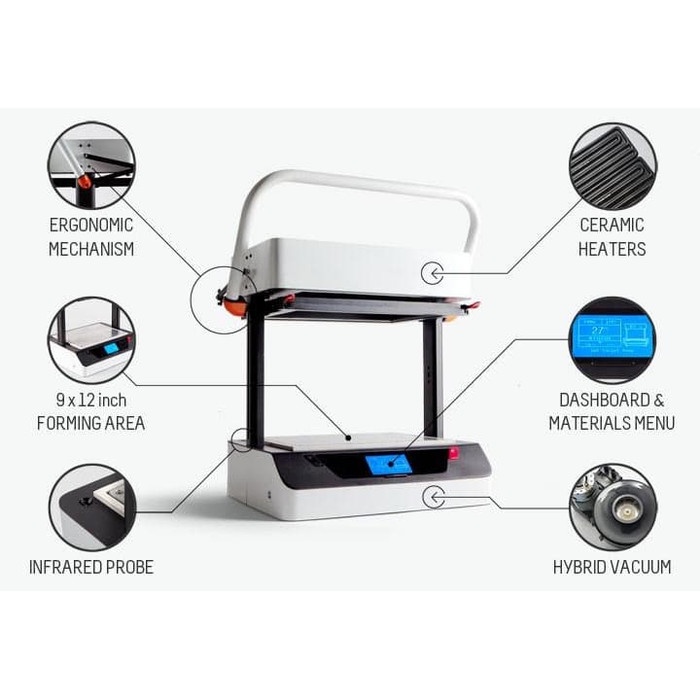

Features

Built-In Hybrid Vacuum: A patent-pending system that combines high airflow and vacuum, speed and power.
Easy To Use: The built-in process controls and ergonomic design make forming effortless.
Automatic Heating: Regulated by sensors, the industrial grade ceramic heaters ensure consistent and safe heating of plastic sheets.
Precise Controls: Customize the temperature (up to 1°) and vacuum power needed for each pull.
Demo Plastic Sheets: The Vaquform will come with demo sheets of plastic to help get you started.
Specifications

Sheet Size: 330 mm x 250 mm
Maximum Sheet Thickness: 3.0 mm
Minimum Sheet Thickness: 0.2 mm
Forming Area: 280 mm x 200 mm
Maximum Depth Draw: 200 mm
Overall Width: 400 mm
Overall Height: 405 mm
Overall Depth: 335 mm
Weight: 9 kg
Standard Input Voltage: 100 V - 240 V
Standard Frequency: 50, 60 Hz
Standard Wattage: 1.32 kW
Noise Level: 65 dB
Heater Temperature: Up to 280 deg Celsius
