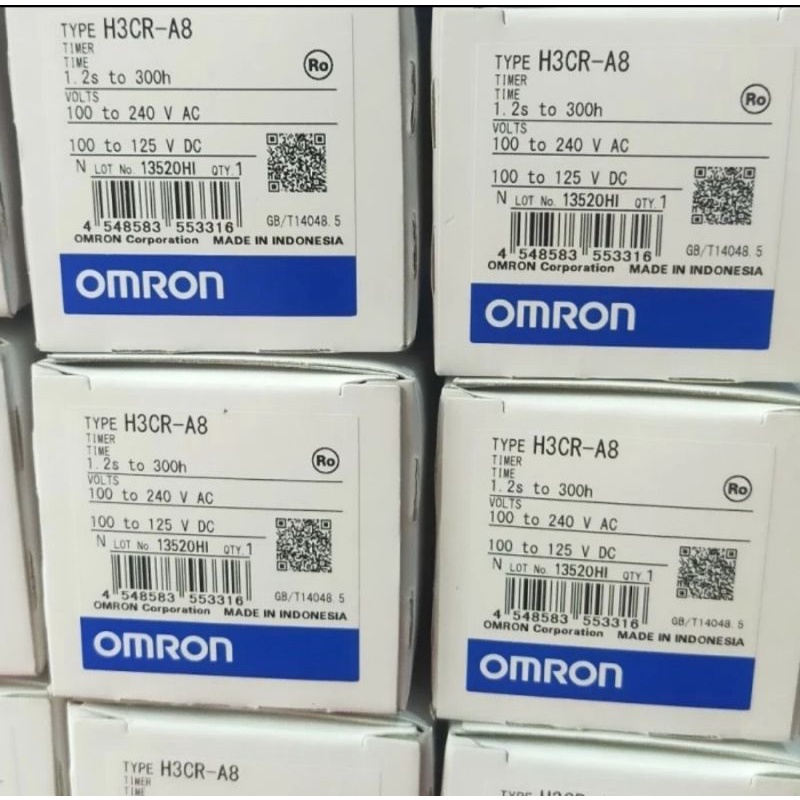

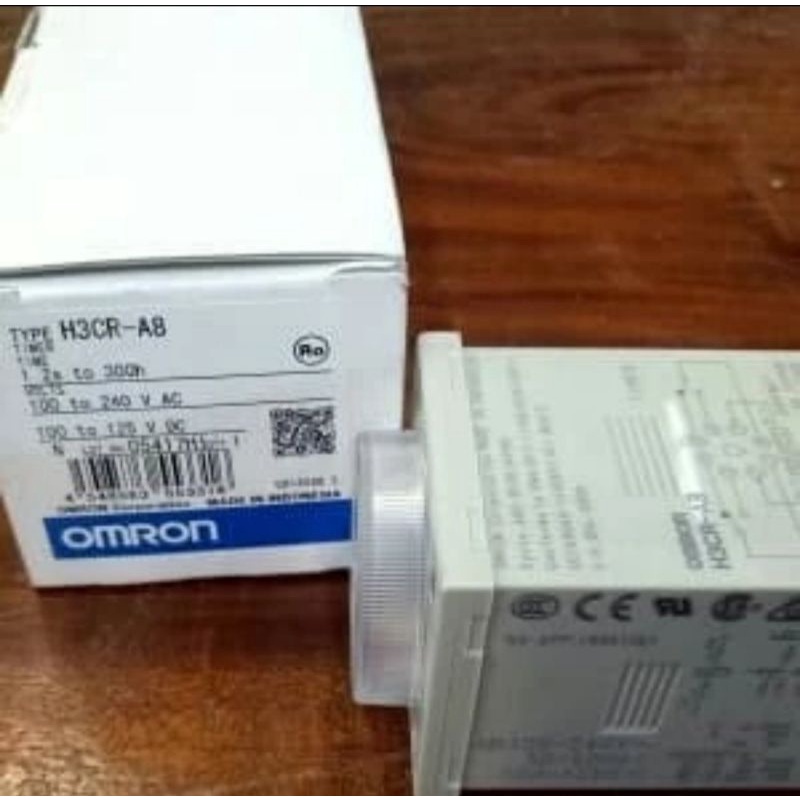

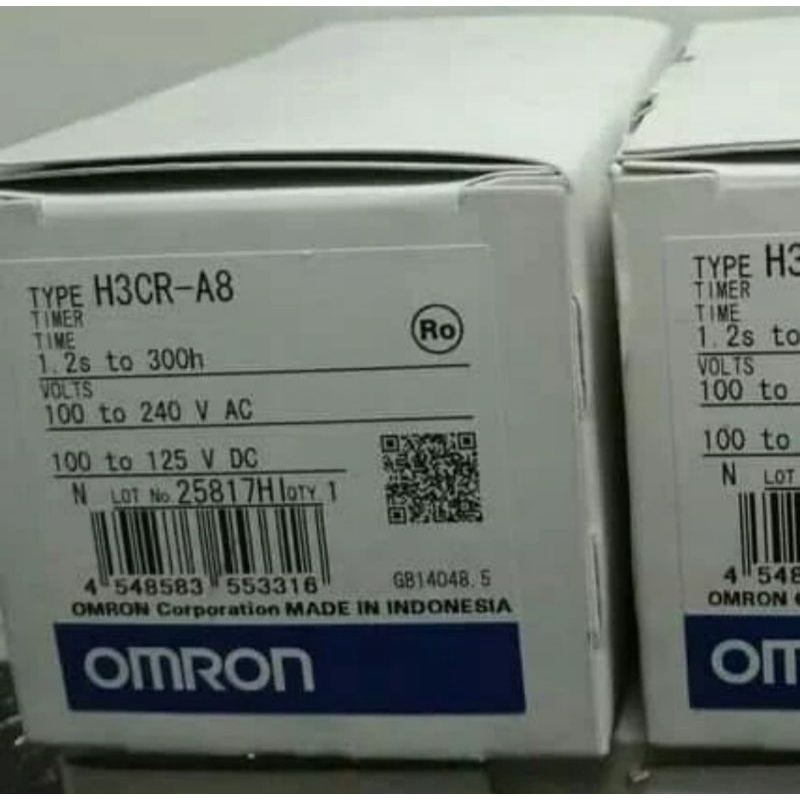

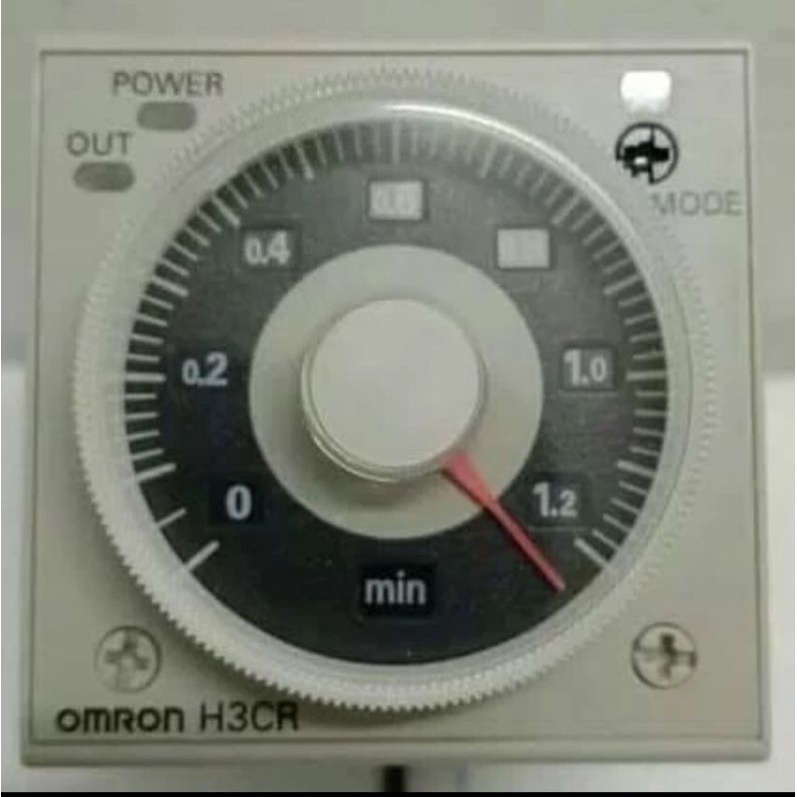

(Original) Timer OMRON H3CR-A8 220VAC

Merek: Omron | Lihat selengkapnya produk Elektronik dari Omron
Elektronik > Remot Kontrol > (Original) Timer OMRON H3CR-A8 220VAC
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Tunas ElectricLihat semua produk Elektronik oleh Tunas Electric
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail (Original) Timer OMRON H3CR-A8 220VAC

Timer OMRON Original (ASLI)
Made in Indonesia

Deskripsi:
Model number H3CR-A8
Supply voltage 100-240VAC
Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
Power consumption 1.6W max
Setting method Knob
Indication method LED
External dimensions 48x48x81.6 mm
Contact rating 5A@250Vac, 5A@28Vdc
Repeat accuracy 0.3%, 0.05 sec
Setting error 0.5%, 0.05 sec
Mounting Panel, din rail
Matched socket H3CR-A: PF113A, H3CR-A8/H3CR-A8E: PF083A
Matched mounting accessories FTRF03 Mounting buckle
Mechanical life 1x106
Electrical life 1x105
Operating temperature -10 to 50 C
Operating humidity 38-95% RH, non-condensing

DI JAMIN ORIGINAL!!!
