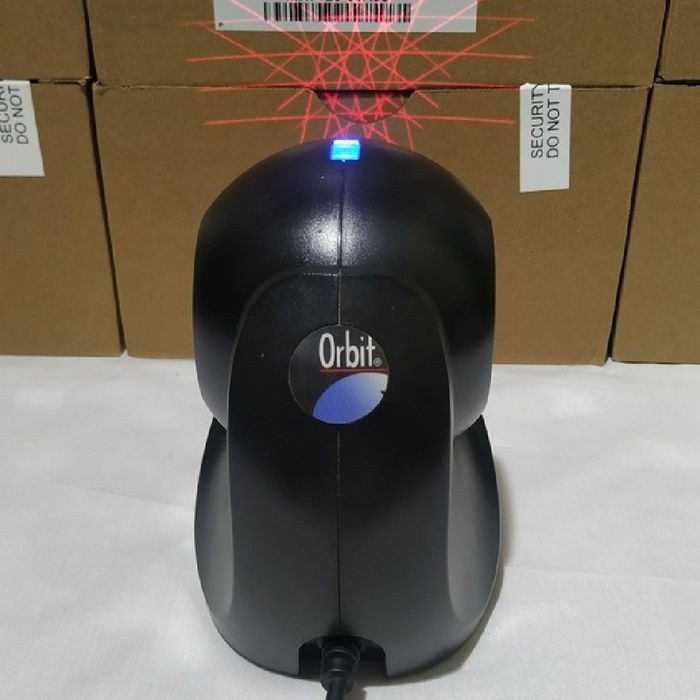

Original Scanner Honeywell Omnidirectional Orbit 7120 - Lebih dikenal Metrologic 7120 USB

Detail Original Scanner Honeywell Omnidirectional Orbit 7120 - Lebih dikenal Metrologic 7120 USB

Orbit 7120
Scanner Orbit Omnidirectional keluaran Honeywell merupakan best seller Scanner Omnidirectional,
Viral dengan brand Metrologic, sampai saat ini type ini masih di minati oleh retail retail yang membutuhkan mobilitas tinggi untuk kasirnya,

Berikut spesifikasinya :

MECHANICAL
Dimensions (L x W x H):105 mm x 102 mm x 150 mm
(4.1 in x 4.0 in x 5.9 in)
Weight: 400 g (14.1 oz)

ELECTRICAL
Input Voltage: 5 VDC ±0.25 V
Operating Power: 900 mW (180 mA @ 5 V)
Standby Power: 850 mW (170 mA @ 5 V)
Host System Interfaces: USB, RS-232, Keyboard
Wedge, IBM 468xx (RS485)

ENVIRONMENTAL
Operating Temperature: 0°C to 40°C
(32°F to 104°F)
Storage Temperature: -40°C to 60°C
(-40°F to 140°F)
Humidity: 5% to 95% relative humidity,
non-condensing
Drop: Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing: Sealed to resist airborne
particulate contaminants
Light Levels: 4842 Lux

SCAN PERFORMANCE
Scan Pattern: Omnidirectional: 5 fields of 4 parallel
lines; button-activated single line (7180)
Scan Speed: Omnidirectional: 1120 scan lines per
second; single line: 56 scan lines per second (7180)
Print Contrast: 35% minimum reflectance
difference
Pitch, Skew: 60°, 60°
Decode Capability: Reads standard 1D and GS1
DataBar symbologies

TYPICAL
PERFORMANCE* ORBIT 7120 ORBIT 7180
NARROW WIDTH Depth of Field Depth of Field
5.2 MIL 0 mm – 50 mm (0 in – 2.0 in) 0 mm – 50 mm (0 in – 2.0 in)
7.5 MIL 0 mm – 150 mm (0 in – 5.9 in) 0 mm – 150 mm (0 in – 5.9 in)
10 MIL 0 mm – 175 mm (0 in – 6.9 in) 0 mm – 220 mm (0 in – 8.7 in)
13 MIL 0 mm – 215 mm (0 in – 8.5 in) 0 mm – 275 mm (0 in – 10.8 in)
26 MIL 0 mm – 250 mm (0 in – 9.8 in) 0 mm – 300 mm (0 in – 11.8 in)
*Resolution: 5 mil (0.125 mm)
*Performance may be impacted by barcode quality and environmental condition

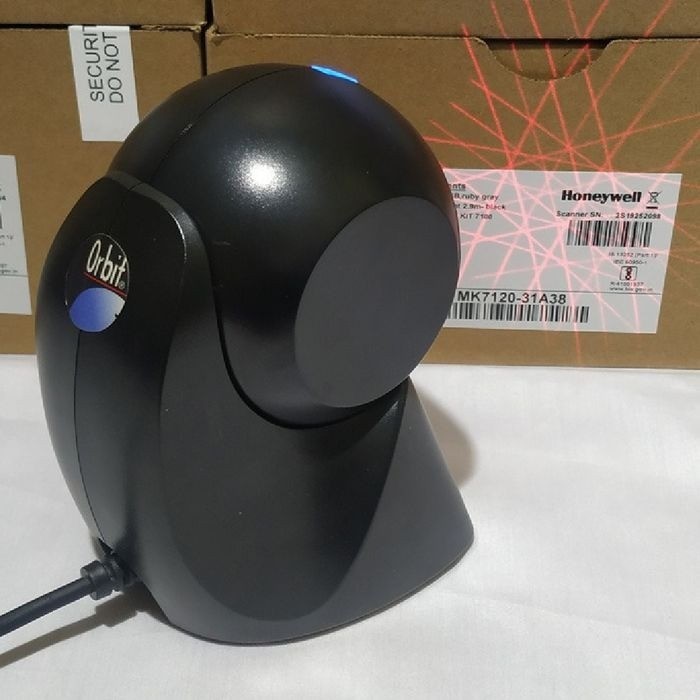

Gambar produk
