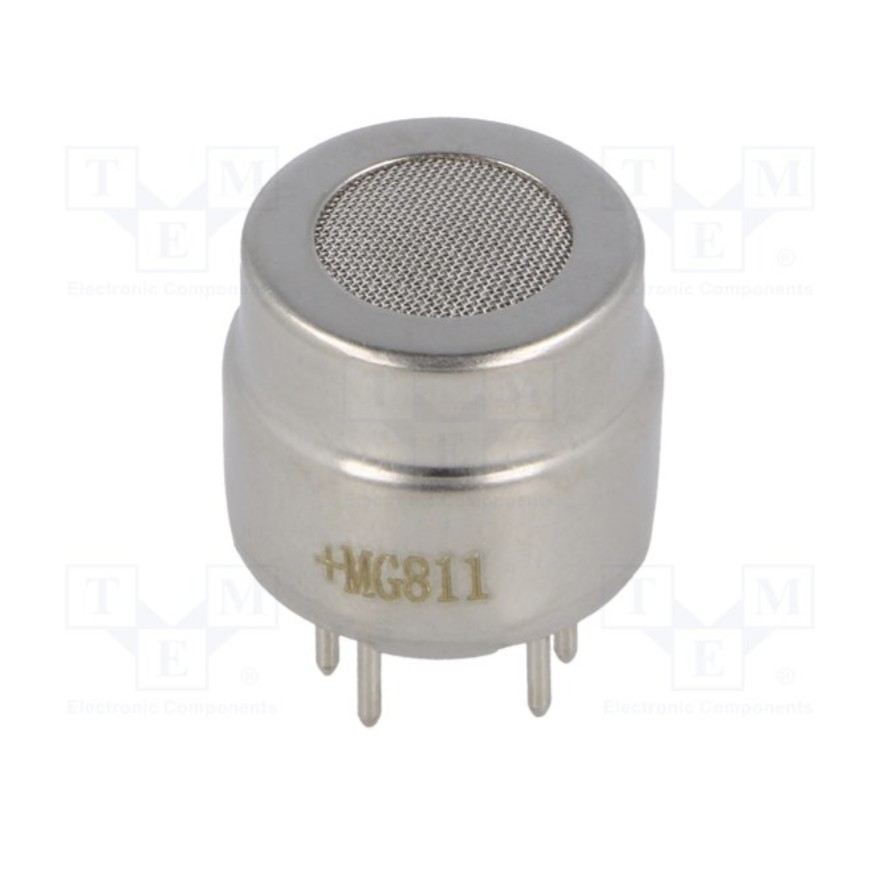

Original MG-811 MG811 MG 811 CO2 Carbon dioxide sensor Gas Detection

Detail Original MG-811 MG811 MG 811 CO2 Carbon dioxide sensor Gas Detection

MG811 type solid electrolyte gas sensor is made on the basis of the principle of solid electrolyte battery, under the condition of a certain temperature, when sensors placed in the atmosphere ,solid electrolyte battery electrode reaction.The electric potential difference between the sensor sensitive electrode and the participating electrode is consistent with the Nernst equation.The gas concentration is detected by measuring the voltage signal output at both ends of the sensor.

Specifications:
Model: MG811
Type: air sensitive
Material: metal
Physical properties of materials: solid electrolytes
Material crystal structure: Solid electrolyte
Manufacturing process: thick film
Output signal:Simulation model
Resolution: 10 PPM
Detection of gases: CO2
Detection concentration: 350--10000ppmCO2
Heating voltage (VH) :6.0 ± 0.01 VAc or DC
Load resistor (RL) : adjustable
Heat resistance (RH) : 35Ω±3Ω (room temperature)
Heating power consumption (PH) : about 1200mW
Temperature and humidity: 20℃±2℃, 65%±5%RH

Application
Air Quality Control
Ferment Process Control
Room Temperature CO2 concentration Detection
Datasheet cooking-hacks*com/skin/frontend/default/cooking/pdf/MG811Datasheet*pdf

Package Included:
1x CO2 Carbon Gas Sensor
