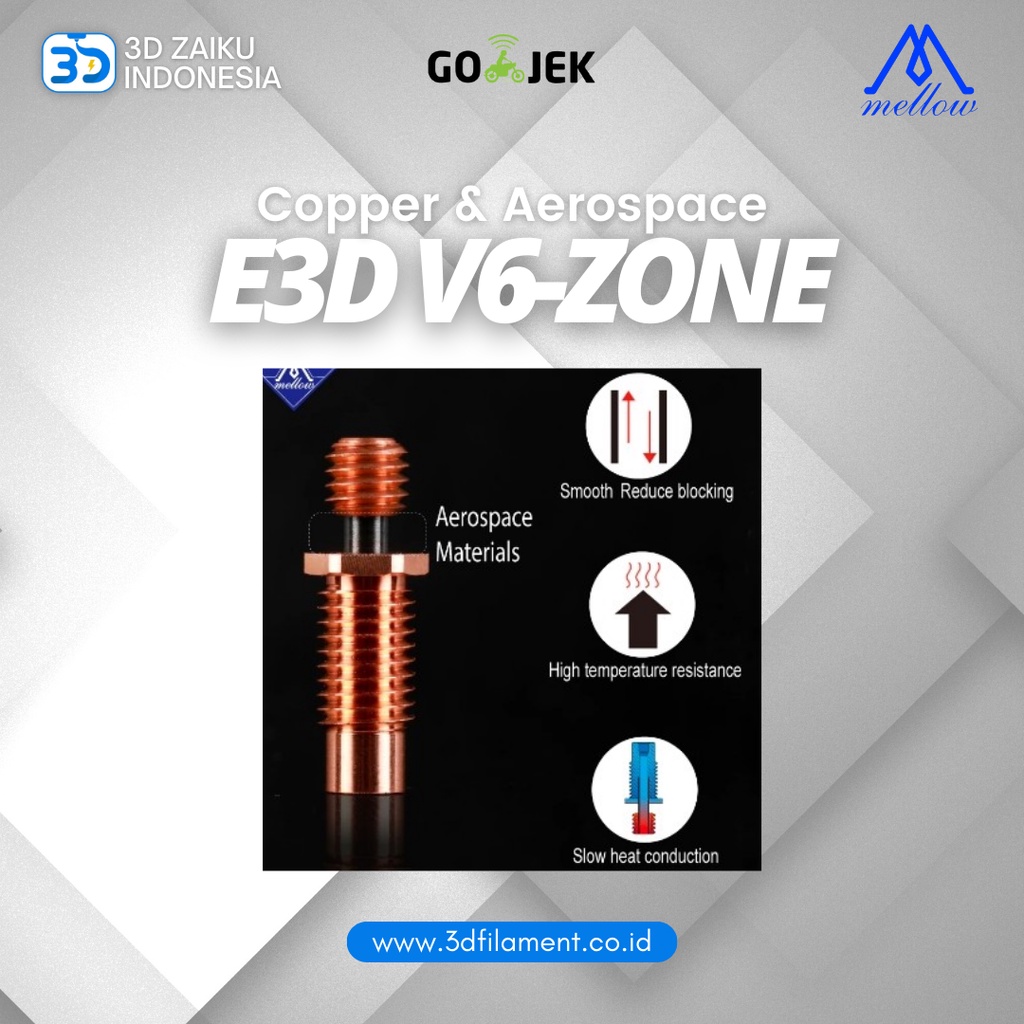

Original Mellow NF E3D V6-Zone Heat Break Copper & Aerospace Material

Detail Original Mellow NF E3D V6-Zone Heat Break Copper & Aerospace Material

3D Zaiku Indonesia

Original Mellow NF E3D V6-Zone Heat Break Copper & Aerospace Material


The use of aerospace materials is an idea developed by the NF team in 2016. The location of the throat requires poor thermal conductivity and non-stick properties for printing materials. We have tried many experiments and finally completed it in 2020-08-15. We named this product series Zone, and hope that 3D printing enthusiasts will try new products in new Zone and create unlimited possibilities.

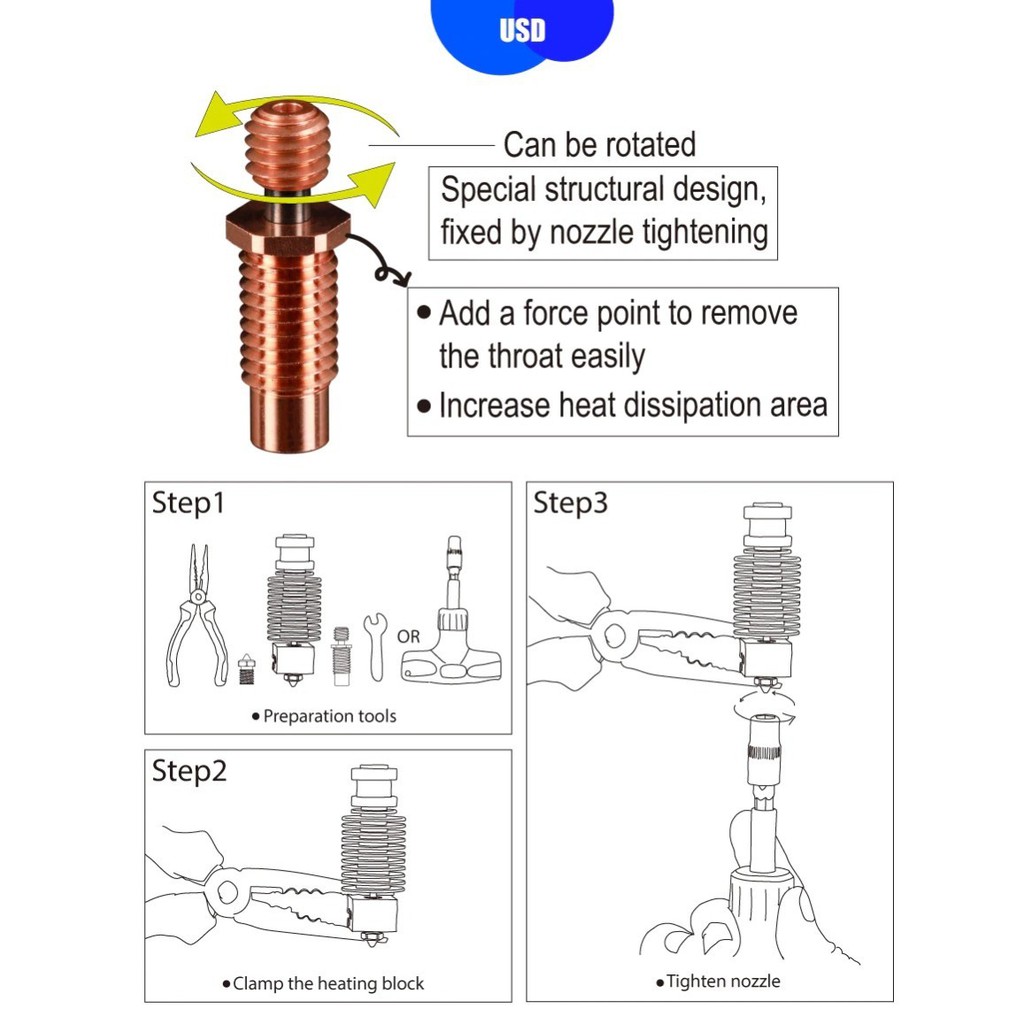

The M6 thread position uses a special design and needs to be pressed by the nozzle to prevent it from rotating.

Because the material is less sticky than metal, it reduces the blockage caused by the friction of the throat

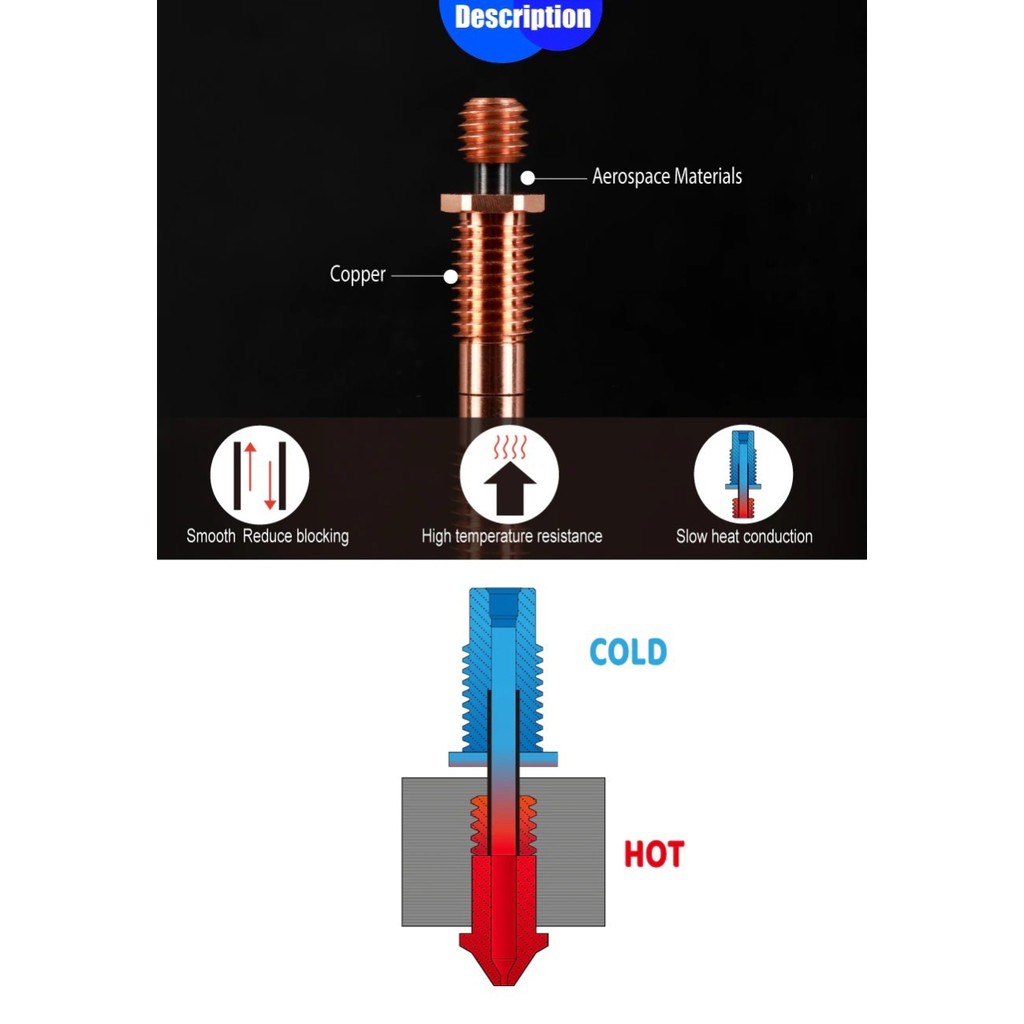

Combination of copper metal and aerospace materials to make a heat break is better than the original thermal barrier performance and improve print quality. The printing effect exceeds the bimetal heat break, making it easier to print PLA, ABS, PETG, PA, FLEX, etc.

Size : heat end screw M7, heating end M6, total length 22.4mm;
Use for : 1.75mm
Material :Copper & aerospace materials

Package:
1 * V6 Zone Heat Break

Ready Stock
