Original Duet PanelDue 5i Latest Version

Detail Original Duet PanelDue 5i Latest Version

3D Zaiku Indonesia

Original Duet PanelDue 5i Latest Version


3D Zaiku merupakan reseller resmi dari Duet 3D
Garansi pembelian 1 tahun untuk part mainboard dari Duet 3D

Barang Ready Stok

Ukuran 5 Inch

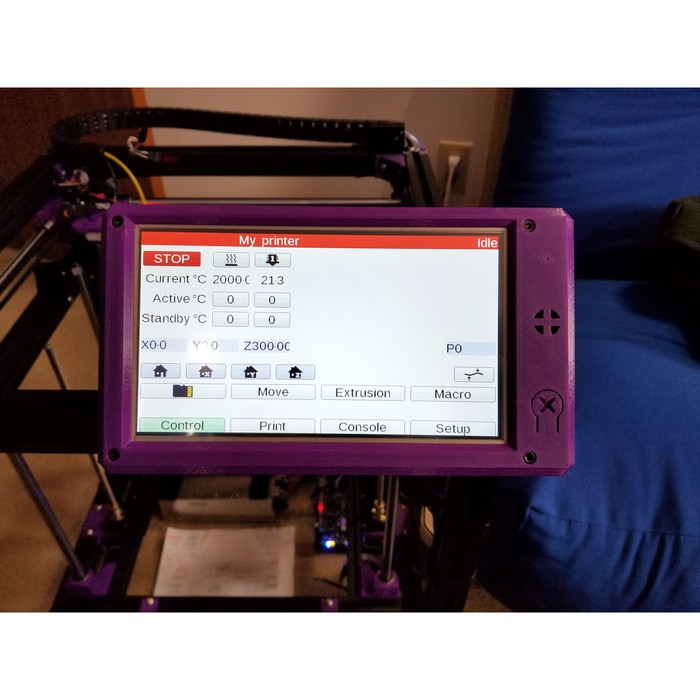

The PanelDue 5i and 7i are colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch or 7 inch TFT LCD panel from a leading manufacturer, with the PanelDue controller by David Crocker integrated on the LCD's PCB. Features:-

Resolution of 800×480 pixels on a 5 inch or 7 inch LCD.
5V power from host 3D printer controller.
2-wire async serial interface with 3.3V signal level (5V tolerant input).
Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable. A 300mm long ribbon cable (maximum recommended length) is supplied.
4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)
The control board without a screen or with a separate 4.3 inch 480×272 pixel LCD are available from this PanelDue product listing.

Gambar produk
