Original Creality CR-SCAN01 Portable 3D Scanner 3D Modeling Scanner High Precision Support OBJ/STL Output for 3D Printing Industrial Design Modeling

Detail Original Creality CR-SCAN01 Portable 3D Scanner 3D Modeling Scanner High Precision Support OBJ/STL Output for 3D Printing Industrial Design Modeling

CR-SCAN01 3D scanner, high precision and large scanning area, is a bridge between reality and virtual reality, take you into the Cyberspace.

Features:
Easy to Use: Creality CR-SCAN01 3D modeling scanner, automatic matching, power on and scan, no need to calibrate and mark, easy to use. USB plug and play, support Windows 10 and above system.(Note: it doesn't support MAC and Android system.)
More Professional: High precision scanning, accuracy up to 0.1 mm, even scanning large objects can also ensure high-precision details. Scanning width is 1.5 times of the traditional scanner, and the scanning is faster and smoother.

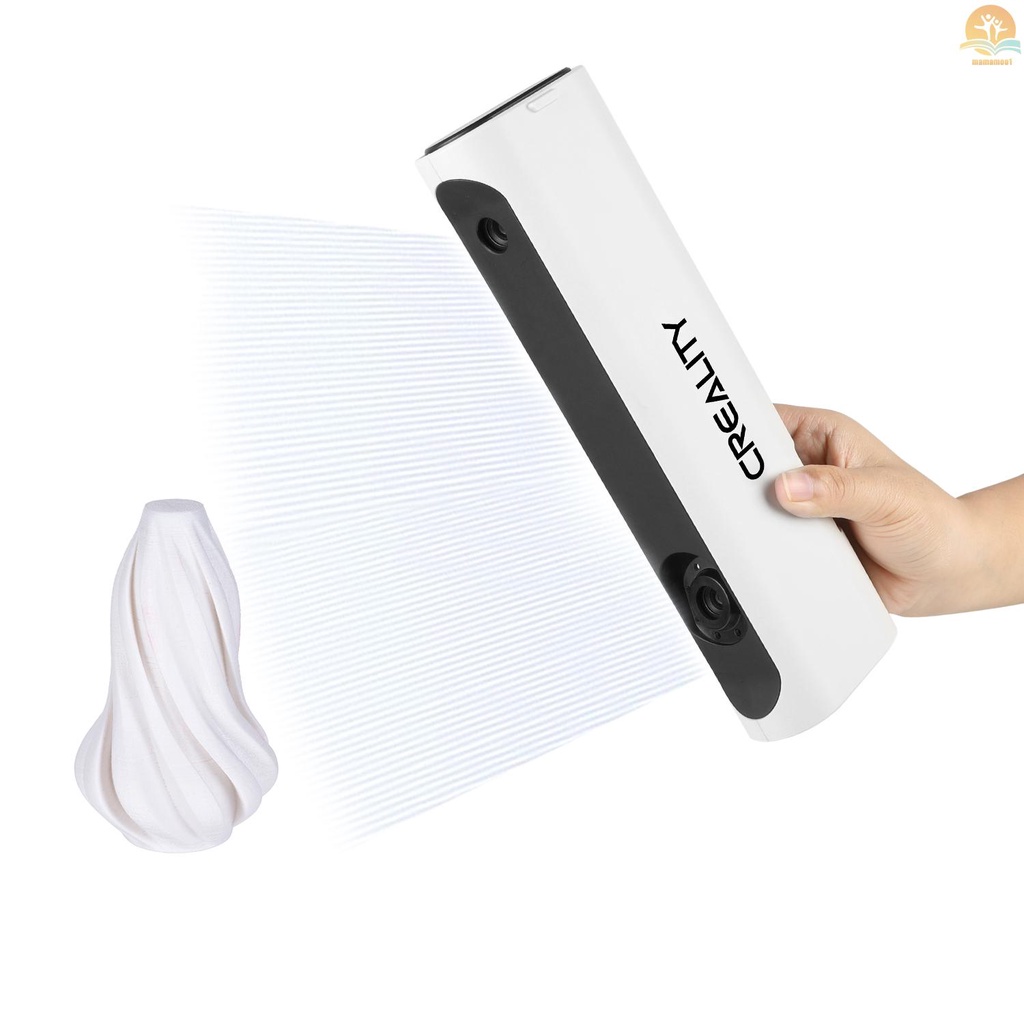

Handheld Mode: Handheld scanning is more flexible, supports scanning objects of different sizes without marking points and easily achieve outdoor scanning.
Powerful Model Processing Method: Model editing, automatic filling repair, automatic color repair, automatic substrate recognition, non-destructive mesh simplification, automatic smooth denoising, give you a great scanning experience.
Automatic Multi-Pose Alignment: High-precision matching algorithm based on color and structure
Features, realizing multiple scan automatic synthesis function.
Wide Application: Capture life in a three-dimensional way and turn abstract into concrete. It is widely used in 3D printing, animation design, industrial design, modeling and so on.

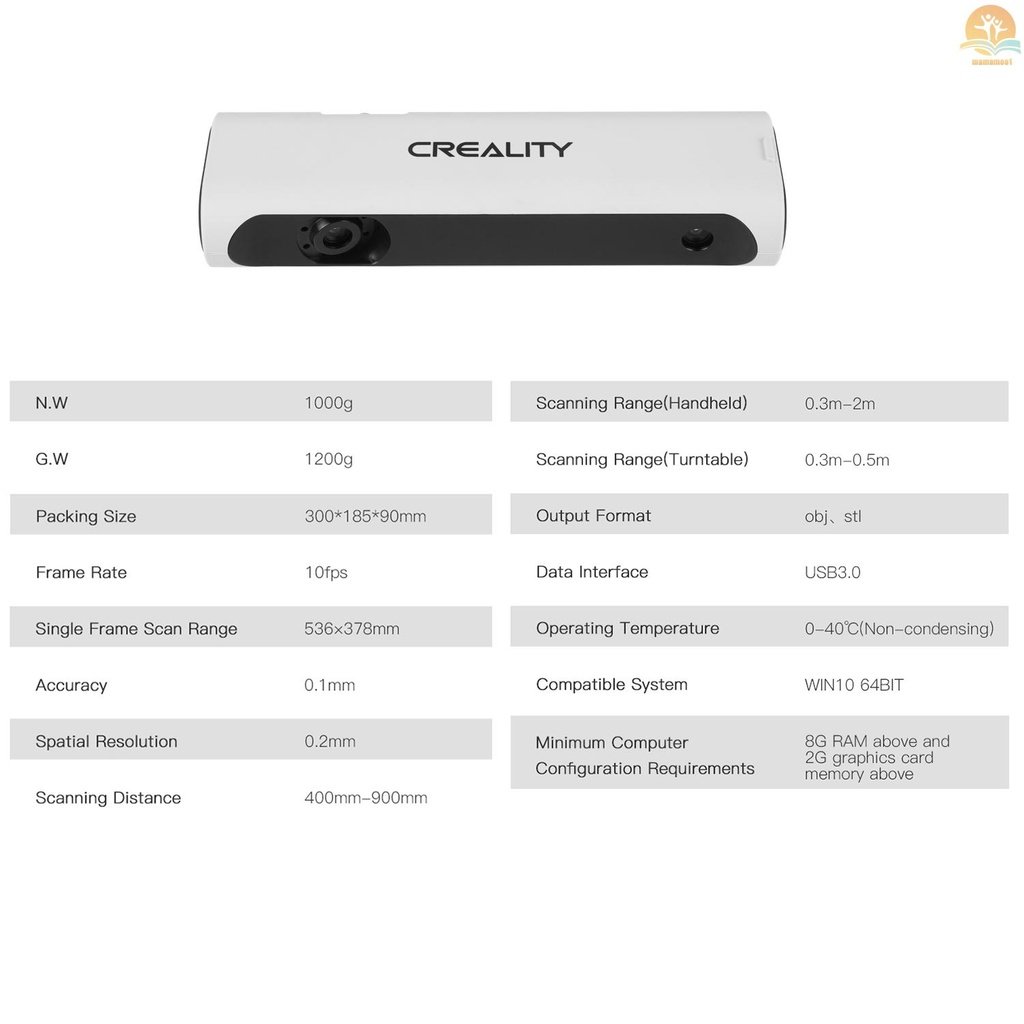

Specifications:
Brand: Creality
Model: CR-SCAN01
Type(optional): Standard Version/Upgrade Version (With Turntable and Tripod)
Material: ABS
Input: 100-240V
Frame Rate: 10fps
Scanning Area: 536 * 378mm
Accuracy: 0.1mm
Spatial Resolution: 0.2mm
Scanning Distance: 400-900mm (Distance from the scanned object to the scanning lens)
Scanning Range(Handheld): 0.3m-2m (Distance from the scanned object to the scanning lens)
Scanning Range(Turntable): 0.3m-0.5m (Distance from the scanned object to the scanning lens)
Output Format: obj, stl
Date Interface: USB 3.0
Operating Temperature: 0-40℃(Non-condensing)
Scanner Size: 28 * 12 * 5.5cm / 11 * 4.7 * 2.2in
Scanner Weight: 1000g / 35.3oz
Package Size: 30.0 * 18.5 * 9.0cm / 11.8 * 7.3 * 3.5in
Package Weight: 1200g / 42.3oz
Note:
Standard version does not contain turntable and tripod.
Computer configuration requires windows10 above and 8G of running memory. It is not recommended to use lower than this configuration.

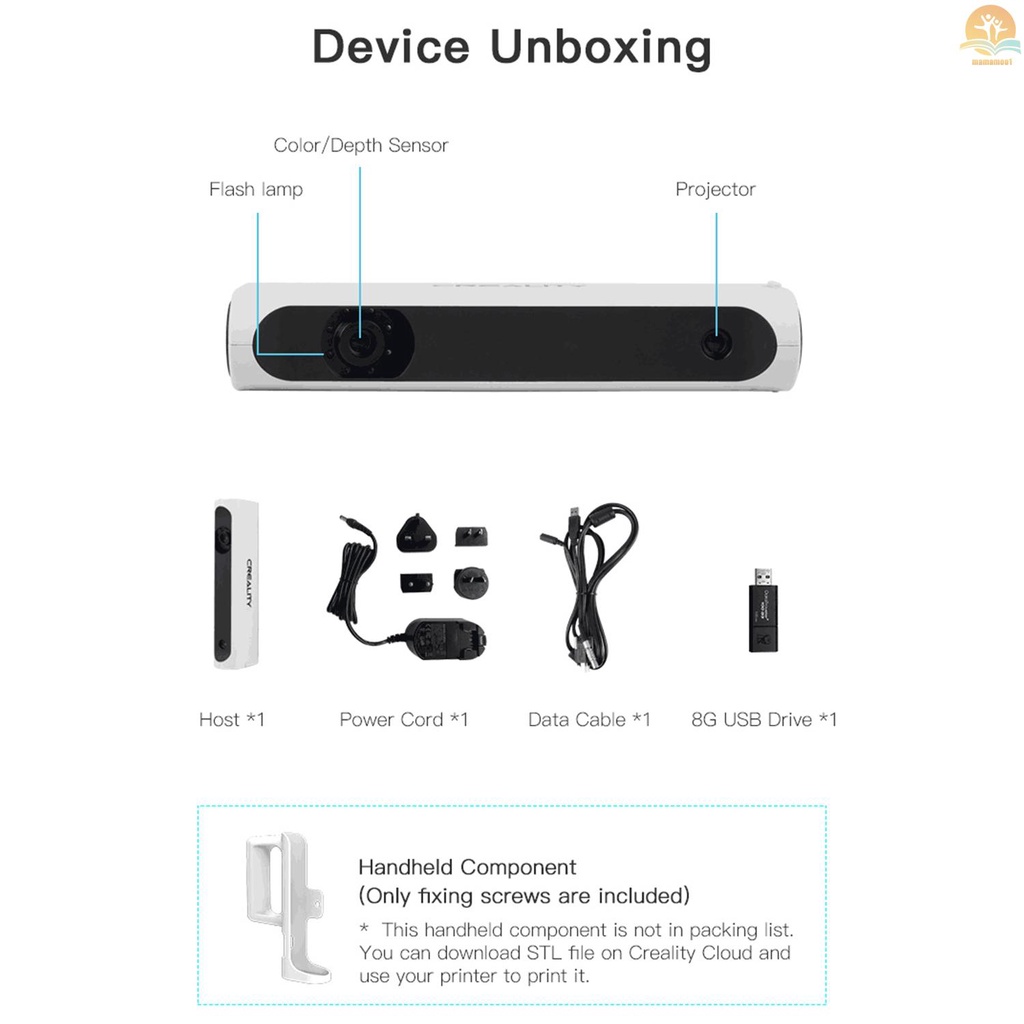

Packing List:
1 * 3D Scanner
1 * 8G USB Drive
1 * Data Cable
1 * Power Adapter
