original compact Charger Imax B3 imaxb3 20W New Version high quality

Detail original compact Charger Imax B3 imaxb3 20W New Version high quality

GOOD QUALITY VERSION

Deskripsi Produk
Warning, this charger can only use for 1500mah lipo or above.

SPECIFICATION:

Power Input Voltage: AC 100 to 240V

Power Output: 20 Watts

Charge current: 1.6A

Battery Type: LiPo 2S- 3S (Series)

Size: 100mm*60mm*35mm

Weight: 180g


Includes:

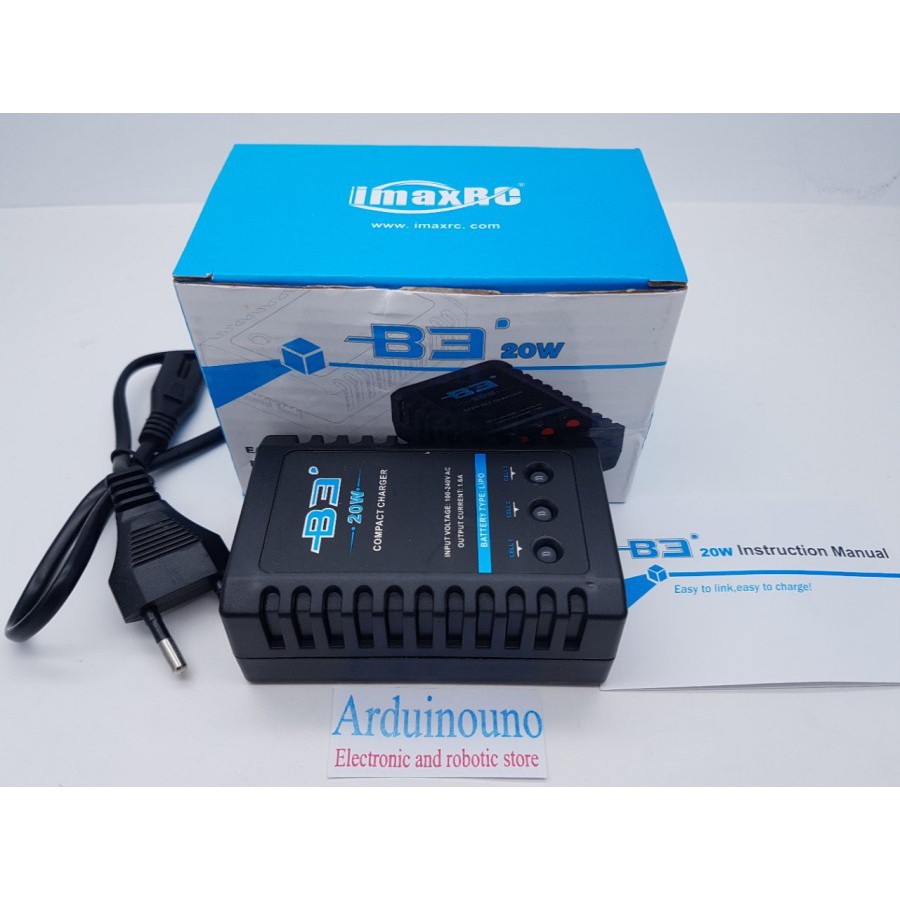

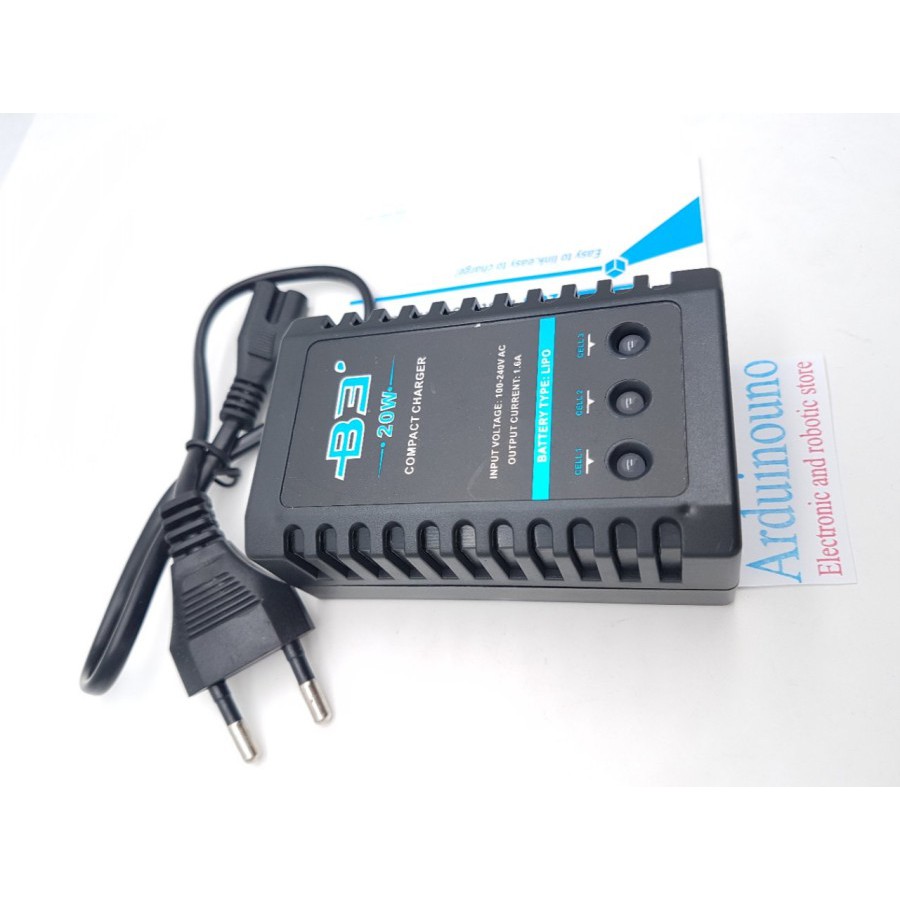

Imax B3 20W Compact Charger

AC Input Cord

Instruction manual


Imax B3 20w Compact Instructions:

1. Firstly, please connect the B3 with the power supply, and then the three LED lights will become green, which indicates the charger works in good order.

2. Secondly, please connect the 2S or 3S Lipo battery to the balance port, and then the LED lights will become red and it begins to charge the battery. Please note that if one cell battery is fully charged, the corresponding LED light will become green.

3. After all the LED lights all become green, the charging process is finished. Pls terminate the charge process.


RCTecnic Review: Imax B3 20w Compact Balance Charger (2-3 Cells)

B3 20W compact charger is the best solution for 2S and 3S Lipo battery, because it is light and exquisite, 20W Max power, 1.6A charge current, AC function, especially there is separated corresponding balance port for each battery pack. It is Very suitable for RC cars and helicopters.
