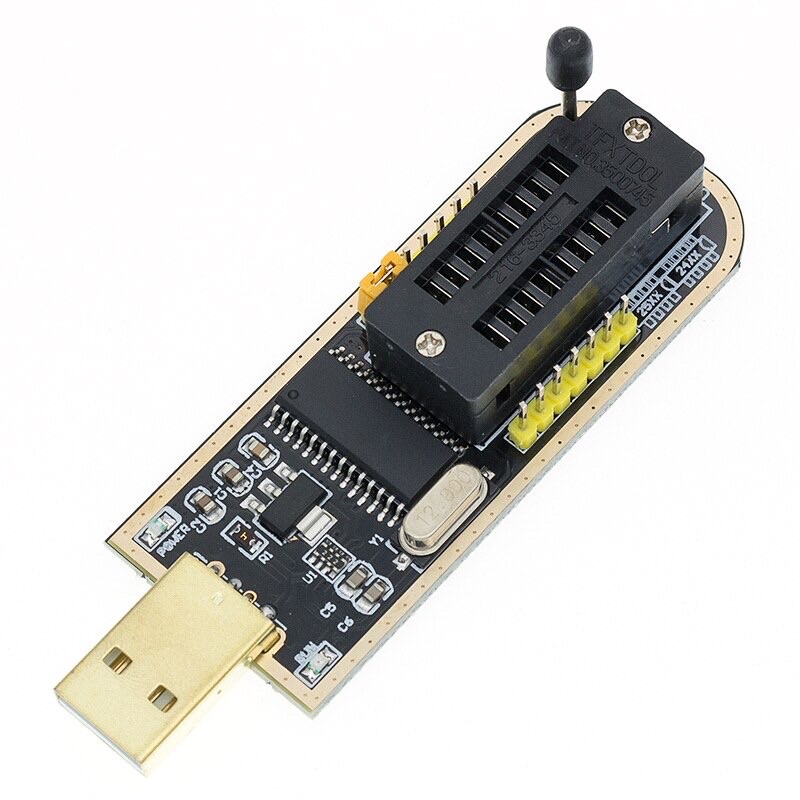

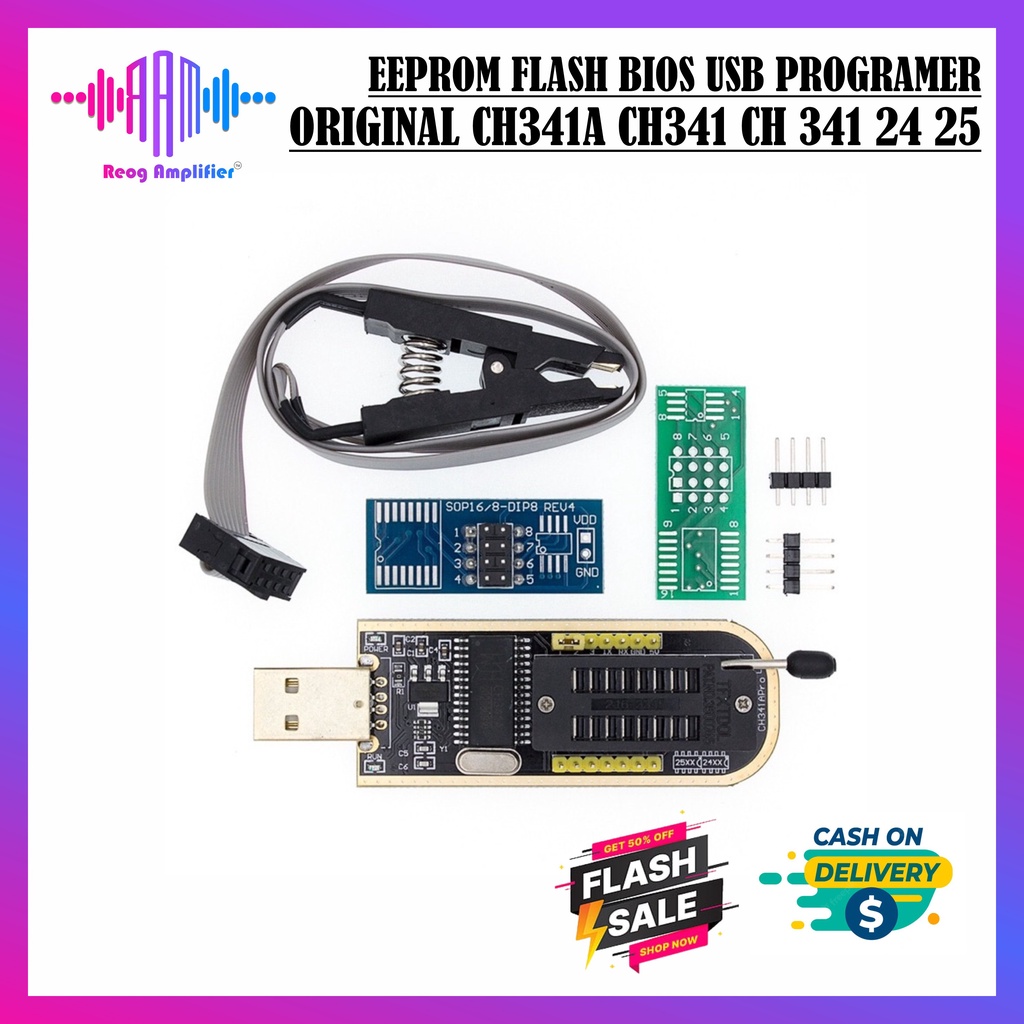

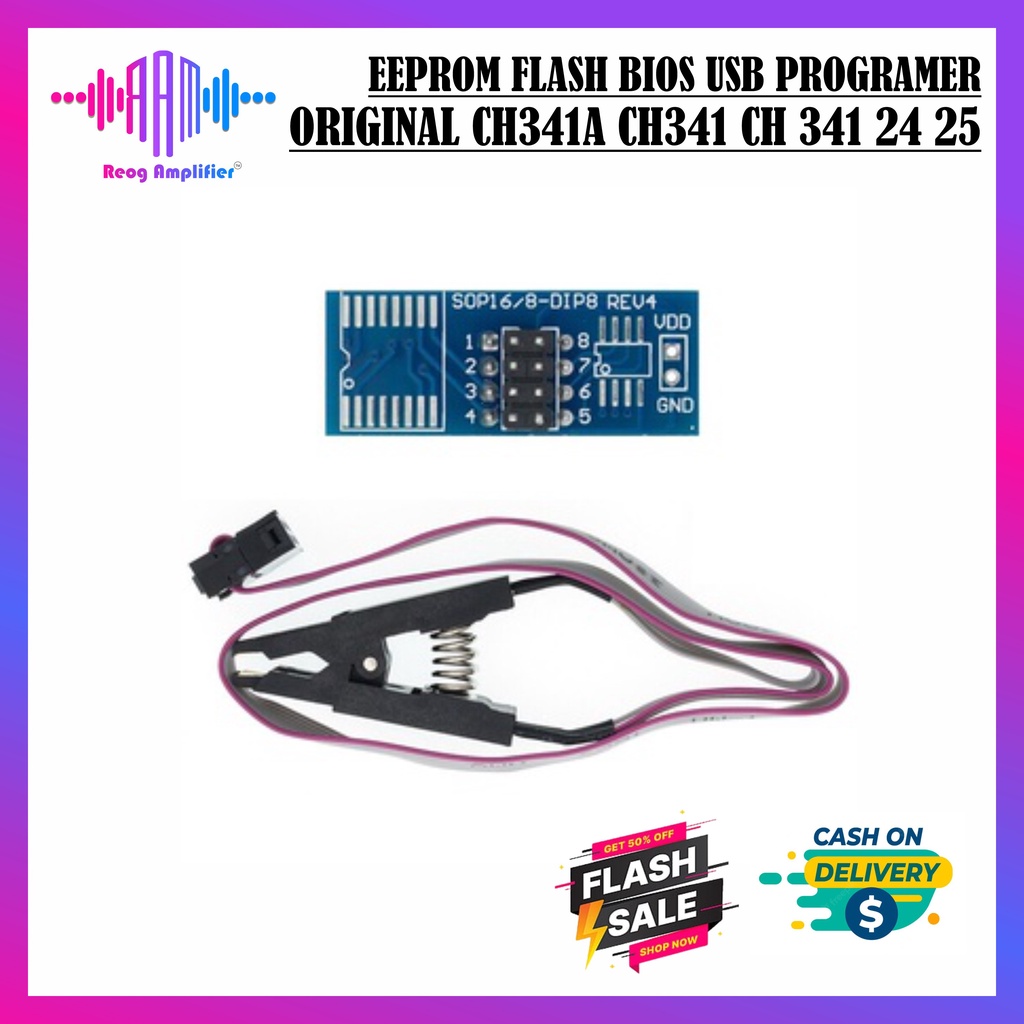

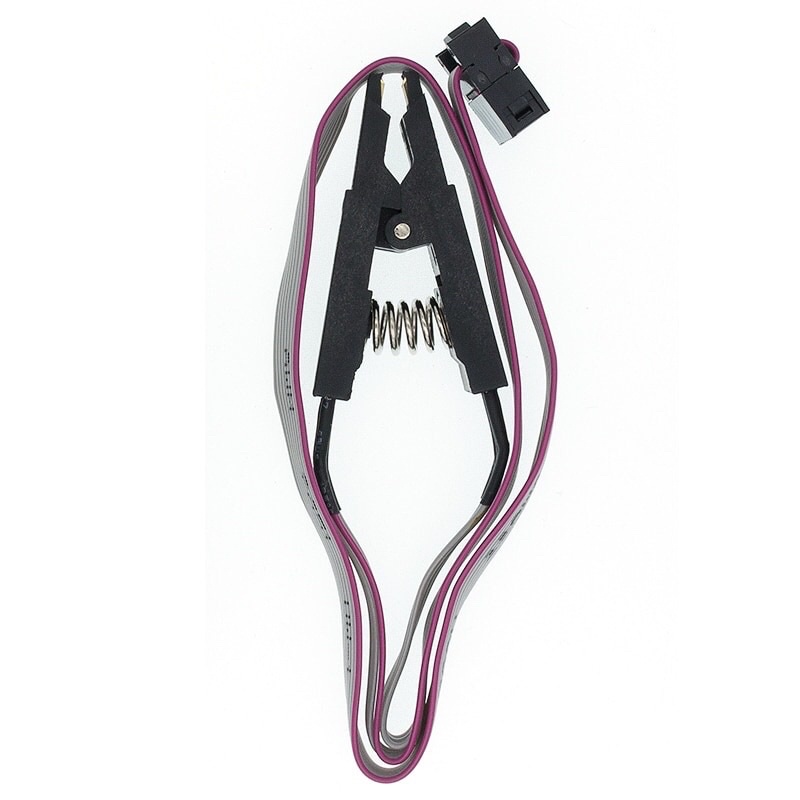

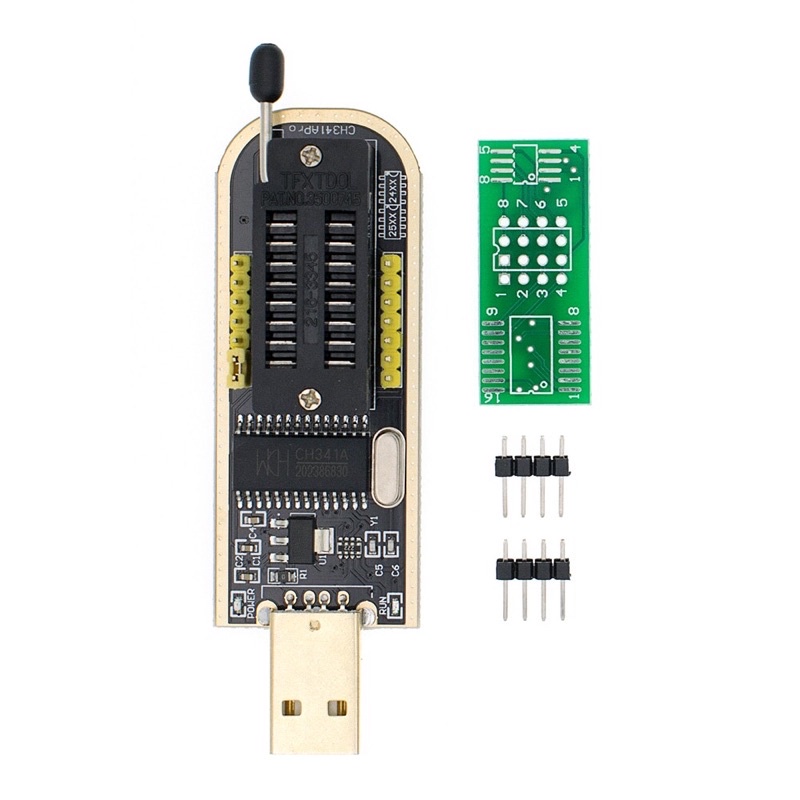

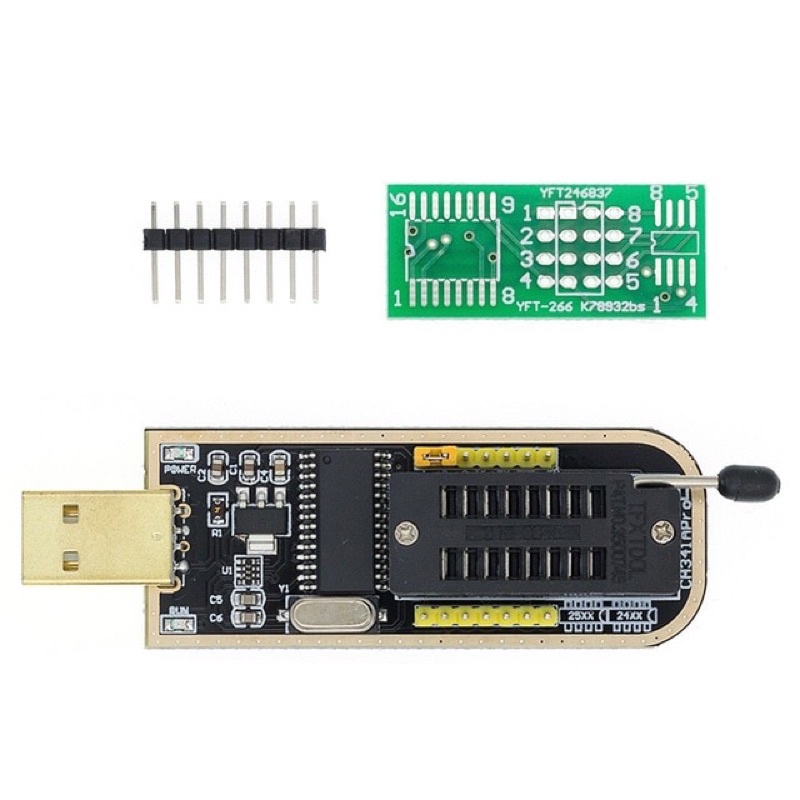

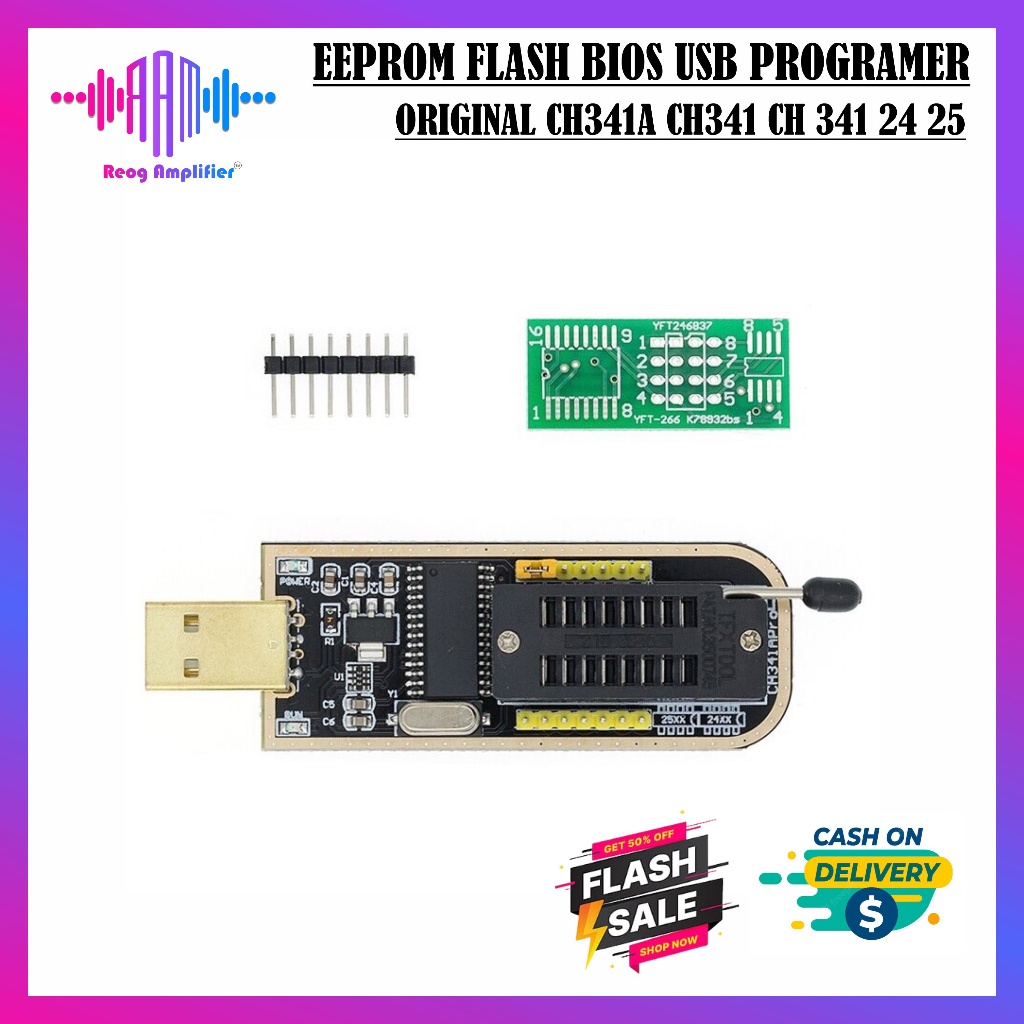

ORIGINAL CH341 CH341 CH 341 24 25 SERIES EEPROM FLASH BIOS USB PROGRAMER Dengan Klip Uji Untuk Eeprom 93cxx/25cxx/24cxx

Detail ORIGINAL CH341 CH341 CH 341 24 25 SERIES EEPROM FLASH BIOS USB PROGRAMER Dengan Klip Uji Untuk Eeprom 93cxx/25cxx/24cxx

Link Driver https://erawanarifnugroho.com/wp-content/uploads/2018/09/CH341A_driver_win10.zip

Link Aplikasi Flasher
https://erawanarifnugroho.com/wp-content/uploads/2018/09/CH341A_pogrammer.zip


Alat ini berguna untuk melakukan flashing bios pada motherboard komputer Anda. Dengan alat ini Anda dapat menggunakan program EEPROM untuk type 24 dan 25 EEPROM (8-pin dan 16-pin) menggunakan software CH341A.

Support chips list:

AMIC:
A25L05P,A25L10P,A25L20P,A25L40P,A25L80P,A25L16P

ATMEL:
AT,AT25DF321,AT25F004,AT25F512A,AT25F2048,AT25F4096, AT,AT25FS010,AT25FS040,AT,AT, AT26DF321,AT26F004

EON:
EN25B05,EN25P05,EN25B10,EN25P10,EN25BF20,EN25P20, EN25F20,EN25B40,EN25P40,EN25F40,EN25B80,EN25P80, EN25F80, EN25T80,EN25B16,EN25P16,EN25B32,EN25P32, EN25B64,EN25P64

Excel Semiconductor Inc.
ES25P10,ES25P20,ES25P40,ES25P80,ES25P16,ES25P32

ST:
M25P05A,M25P10A,M25P20,M25P40,M25P80,M25P16, M25P32,M25P64,M25PE10,M25PE20,M25PE40,M25PE80, M25PE16,M25PE32,M45PE10,M45PE20,M45PE4 it0,M45PE80, M45PE16,M45PE32

MXIC:
MX25L512,MX25L1005,MX25L2005,MX25L4005,MX25L8005,MX25L1605, MX25L3205,MX25L6405

NexFlash:
NX25P80,NX25P16,NX25P32

Chingis Technology Corporation
Pm25LV512,Pm25LV010,Pm25LV020,Pm25LV040,Pm25LV080,Pm25LV016, Pm25LV032,Pm25LV064

Saifun Semiconductors
SA25F005,SA25F010,SA25F020,SA25F040,SA25F080,SA25F160,SA25F320,

Silicon Storage Technology SST
SST25VF512A,SST25LF010A,SST25VF010A,SST25LF020A,SST25VF020, SST25LF040A,SST25VF040B,SST25LF080A,SST25VF080B,SST25VF016B,SST25VF032B

WINBOND
W25P10,W25X10,W25Q10,W25P20,W25X20,W25Q20,W25P40,W25X40, W25Q40,W25P80,W25X80,W25Q80,W25P16,W25X16 24CXX 24LCXX 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024. 24LC

Gambar produk
