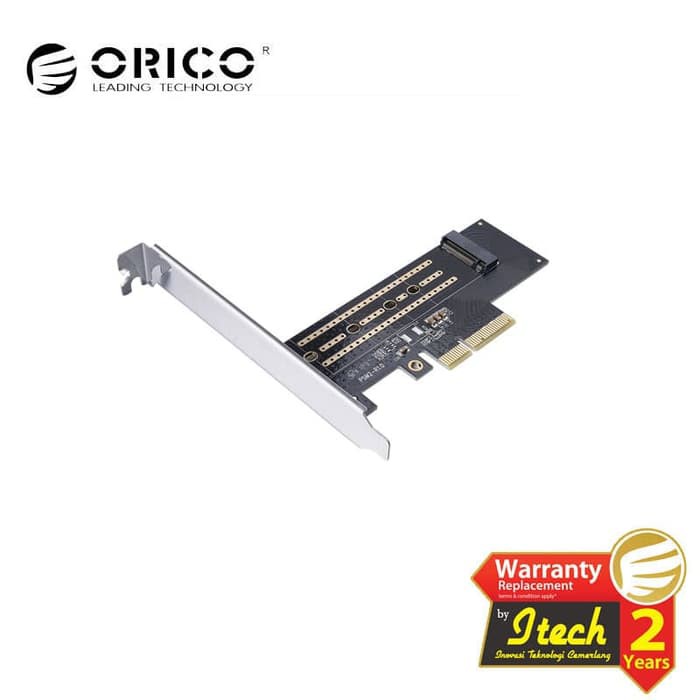

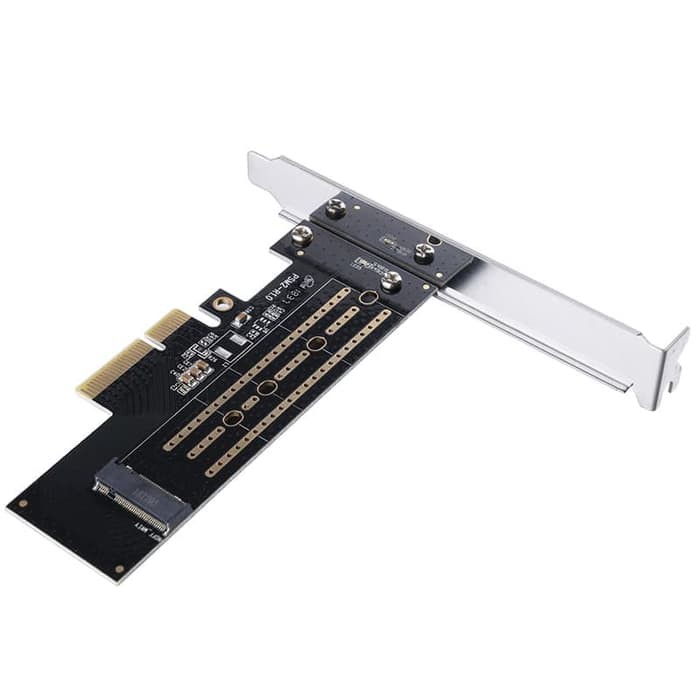

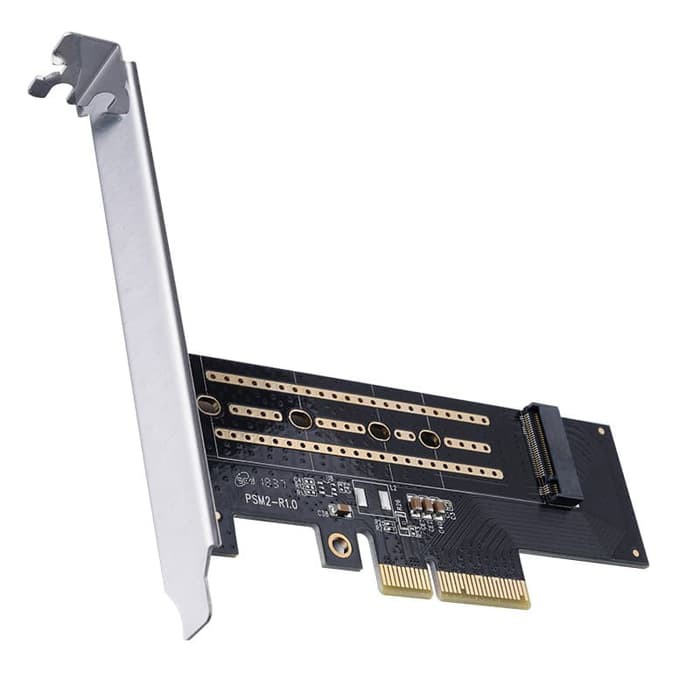

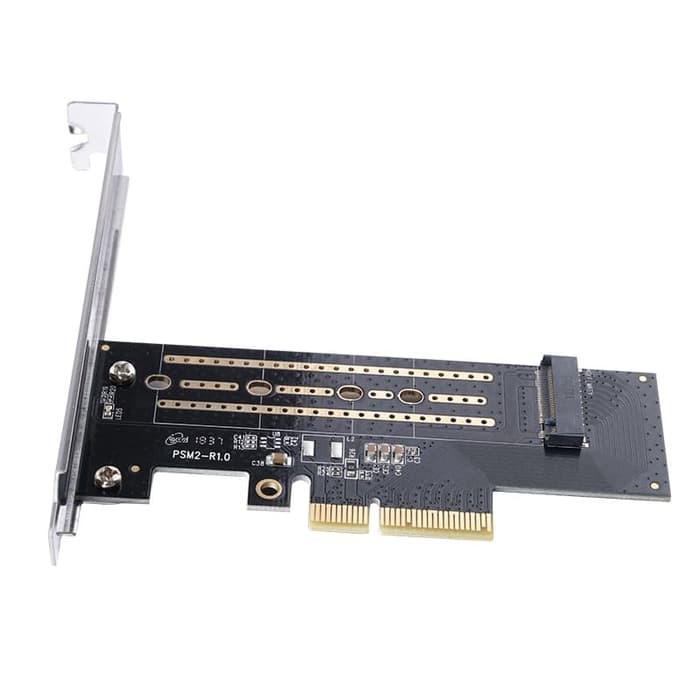

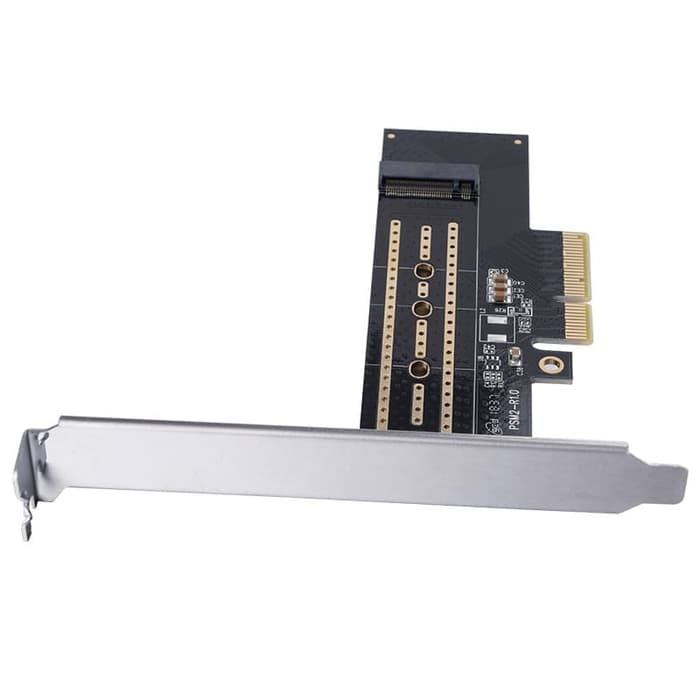

ORICO PSM2 M.2 NVME to PCI-E 3.0 X4 Expansion Card

Merek: Orico | Lihat selengkapnya produk Komputer & Aksesoris dari Orico
Komputer & Aksesoris > Aksesoris Desktop & Laptop > Aksesoris Desktop & Laptop Lainnya > ORICO PSM2 M.2 NVME to PCI-E 3.0 X4 Expansion Card
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail ORICO PSM2 M.2 NVME to PCI-E 3.0 X4 Expansion Card

1.) Internal Interface : M.2 M-key Interface
2.) Supported Slots : PCI-e 3.0 Gen3 X4 (compatible with mainboard X4/X8/X16 slots)
3.) Supported SSD : 2230/2242/2260/2280, PCI-E Channel NVME Protocol M.2 SSD M-KEY
4.) Supported System : IOS, Windows7/8/10, Linux
5.) Transmission speed : 32Gbps (theoretical speed)(NVME protocol)
6.) Supported Capacity : 2TB Single Disk
7.) Include Low-Profile Breaket ( Besi penutup yang pendek agar bisa di pasang di mini PC, Slim Case )

Note : M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system.
Note : If your operating system is incompatible with the expansion cards, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.

If you wish to boot off using M.2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M.2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function.

M.2 SSD Size
- Type 2230 = P: 30mm x L: 22mm
- Type 2242 = P: 42mm x L: 22mm
- Type 2260 = P: 60mm x L: 22mm
- Type 2280 = P: 80mm x L: 22mm

( NOT SUPPORT FOR SSD M.2 B-KEY SATA / NGFF )

Tidak support Samsung Evo 970

GARANSI RESMI 2 TAHUN ORICO INDONESIA
