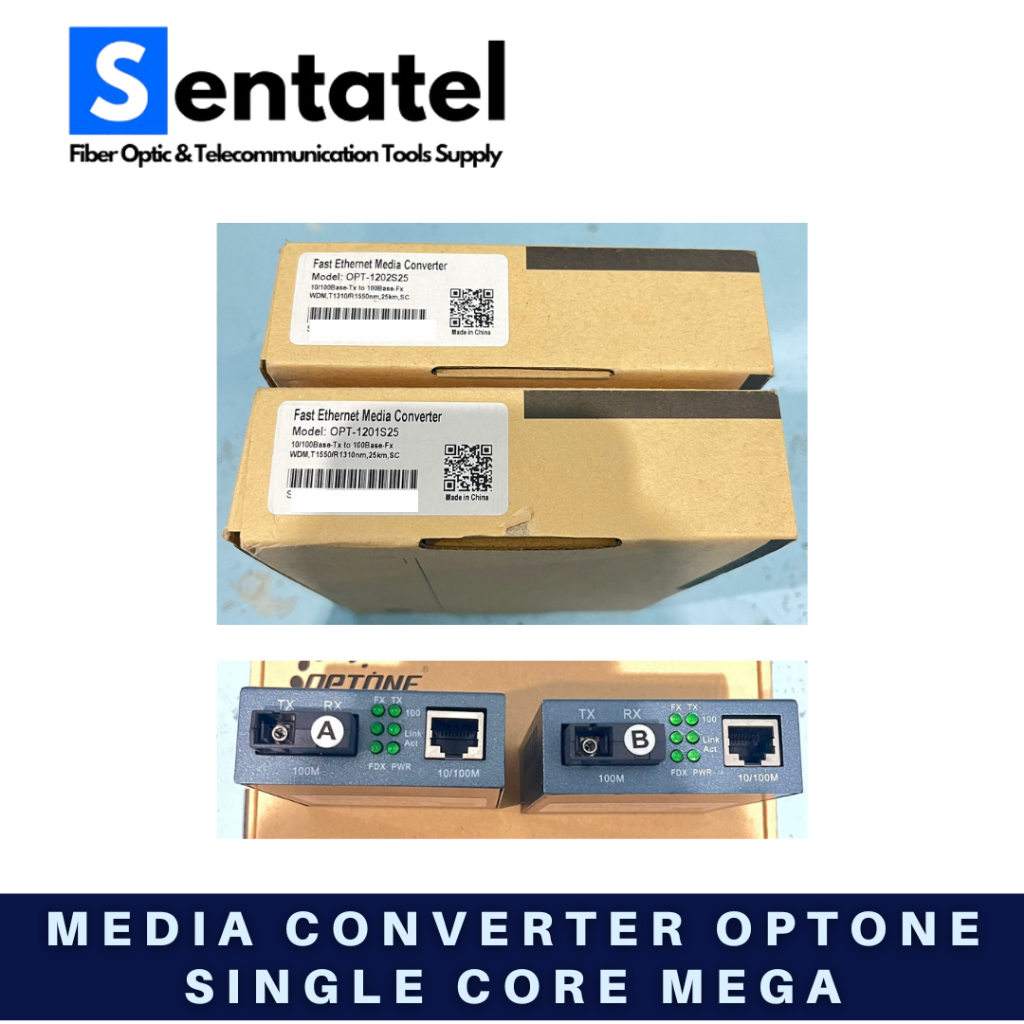

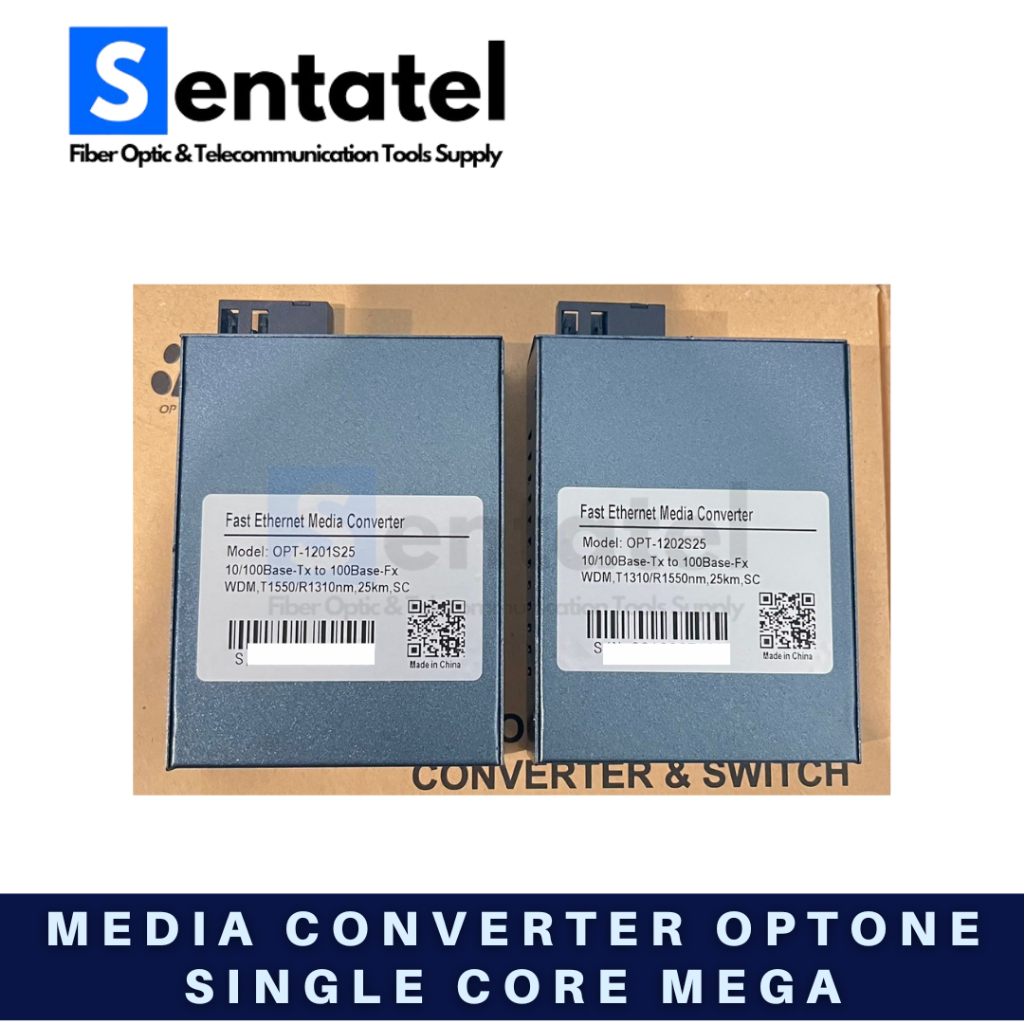

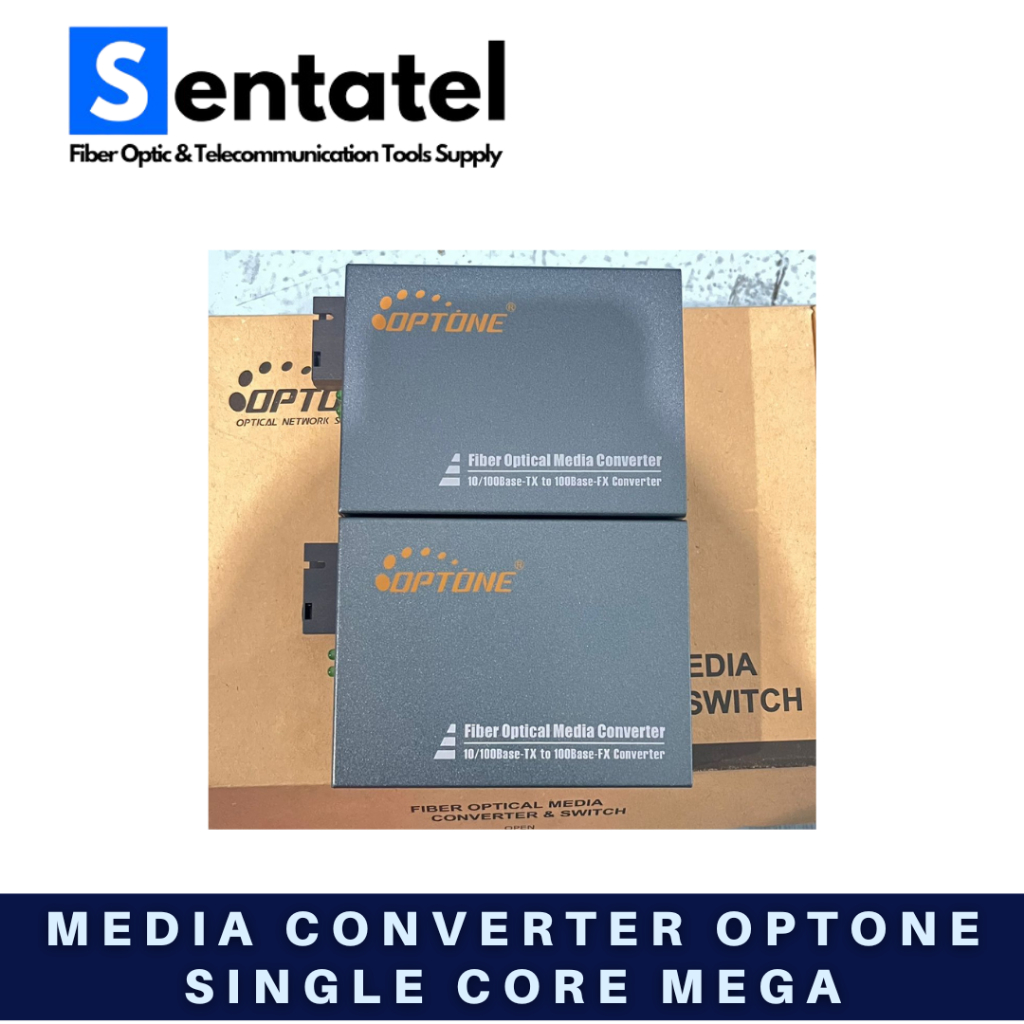

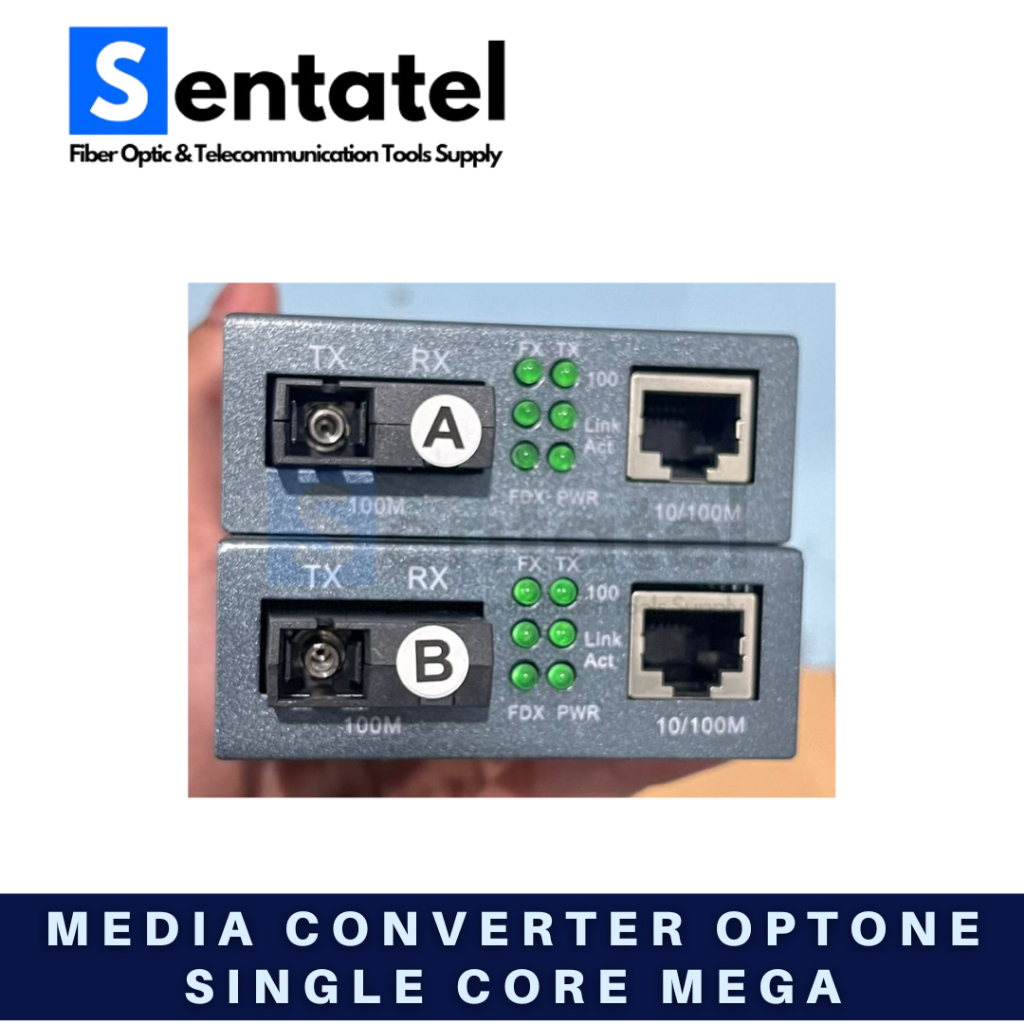

OPTONE MEDIA CONVERTER (MC) 10/100 SINGLE CORE MEGA

Detail OPTONE MEDIA CONVERTER (MC) 10/100 SINGLE CORE MEGA

OPTONE MEDIA CONVERTER (MC) SINGLE CORE 10/100 MB MEGA

Harga 1 set (2 buah)

Main Features
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation
-Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode
-Extends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
-Supports auto MDI/MDIX function
-Status LED for easy monitoring of device status
-Supports jumbo frame size 2K bytes
-External power supply
-Wall-Mountable, pluggable in universal chassis, or desktop
-FCC Class A & CE approved

Interface
-1 x Ethernet port (RJ45) 10/100/1000Base-Tx
-1 x Optical port (1x9) 1000Base-Fx

Optical Port
-Available for 1310nm and 1550nm Single mode, and 850nmMulti mode;
-Transfer Distance: up to 120km;
-Connectors: SC/PC, ST/PC, FC/PC optional
-Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um on multi-mode fiber

Ethernet Port
-Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x
-Available speed: force 10Mbps, force 100Mbps, force 1000Mbpsand auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
-Connectors: RJ-45 Connector; MDI/MDI-X connectionauto-sensing

LEDIndicators
-Power, FDX, Status, Speed, FX Link/Act, TX Link/Act

PowerRequirement
-Input: 5VDC 2A

PhysicalCharacteristics
-Housing: Metal enclosure
-Dimensions: 105 x 82 x 26mm (D x W x H)
-Weight: 0.32kg

EnvironmentalLimits
-Operating Temperature: 0C to 50C
-Storage Temperature: -20C to 70C
-Operating Humidity: 10% to 90% RH
-Storage Humidity: 5% to 90% RH
