OPTONE MEDIA CONVERTER 10/100/1000 SINGLE CORE GIGA

Detail OPTONE MEDIA CONVERTER 10/100/1000 SINGLE CORE GIGA

1 Set / Sepasang = 2 Unit
Harga di atas adalah harga sepasang.

Main Features
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation
-Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode
-Extends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
-Supports auto MDI/MDIX function
-Status LED for easy monitoring of device status
-Supports jumbo frame size 2K bytes
-External power supply
-Wall-Mountable, pluggable in universal chassis, or desktop
-FCC Class A & CE approved

Interface

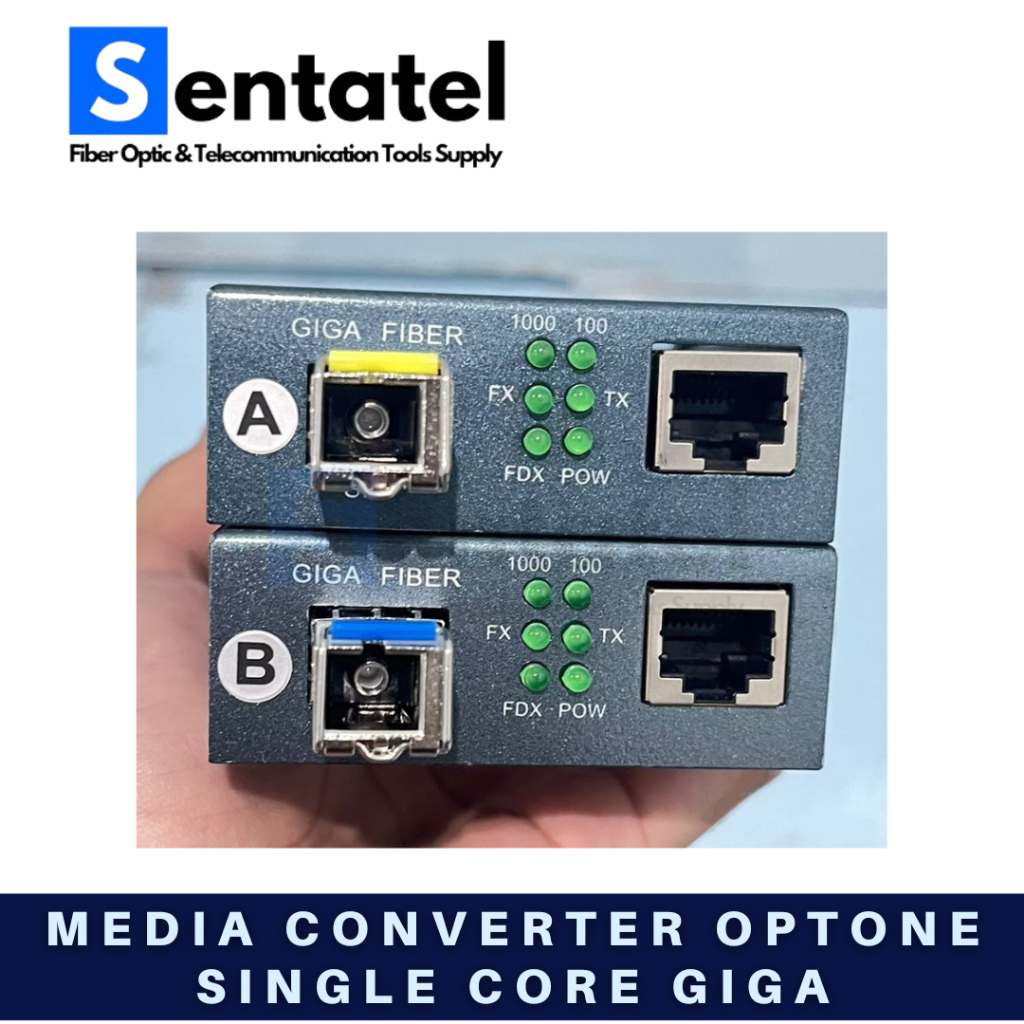

-1 x Ethernet port (RJ45) 10/100/1000Base-Tx
-1 x Optical port (1x9) 1000Base-Fx

Optical Port
-Available for 1310nm and 1550nm Single mode, and 850nmMulti mode;
-Transfer Distance: up to 120km;
-Connectors: SC/PC, ST/PC, FC/PC optional
-Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um on multi-mode fiber

Ethernet Port
-Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x
-Available speed: force 10Mbps, force 100Mbps, force 1000Mbpsand auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
-Connectors: RJ-45 Connector; MDI/MDI-X connectionauto-sensing

Gambar produk
