OPTONE MEDIA CONVERTER 10/100/1000 DUAL CORE GIGA

Detail OPTONE MEDIA CONVERTER 10/100/1000 DUAL CORE GIGA

1 Set / Sepasang = 2 UnitHarga di atas adalah harga sepasang.Info Stock & Pemesanan Hub: WA/SMS/CALL : Main Features-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation-Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode-Extends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)-Supports auto MDI/MDIX function-Status LED for easy monitoring of device status-Supports jumbo frame size 2K bytes-External power supply-Wall-Mountable, pluggable in universal chassis, or desktop-FCC Class A & CE approvedInterface-1 x Ethernet port (RJ45) 10/100/1000Base-Tx-1 x Optical port (1x9) 1000Base-FxOptical Port-Available for 1310nm and 1550nm Single mode, and 850nmMulti mode;-Transfer Distance: up to 120km;-Connectors: SC/PC, ST/PC, FC/PC optional-Fiber core: 8.3um, 8.7um, 9um and10um on single mode fiber,50, 62.5 and 100um on multi-mode fiberEthernet Port-Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x-Available speed: force 10Mbps, force 100Mbps, force 1000Mbpsand auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation-Connectors: RJ-45 Connector; MDI/MDI-X connectionauto-sensingLEDIndicators-Power, FDX, Status, Speed, FX Link/Act, TX Link/ActPowerRequirement-Input: 5VDC 2APhysicalCharacteristics-Housing: Metal enclosure-Dimensions: 105 x 82 x 26mm (D x W x H)-Weight: 0.32kgEnvironmentalLimits-Operating Temperature: 0C to 50C-Storage Temperature: -20C to 70C-Operating Humidity: 10% to 90% RH-Storage Humidity: 5% to 90% RHAgencyApprovals-FCC Part 15 of Class A & CE approved

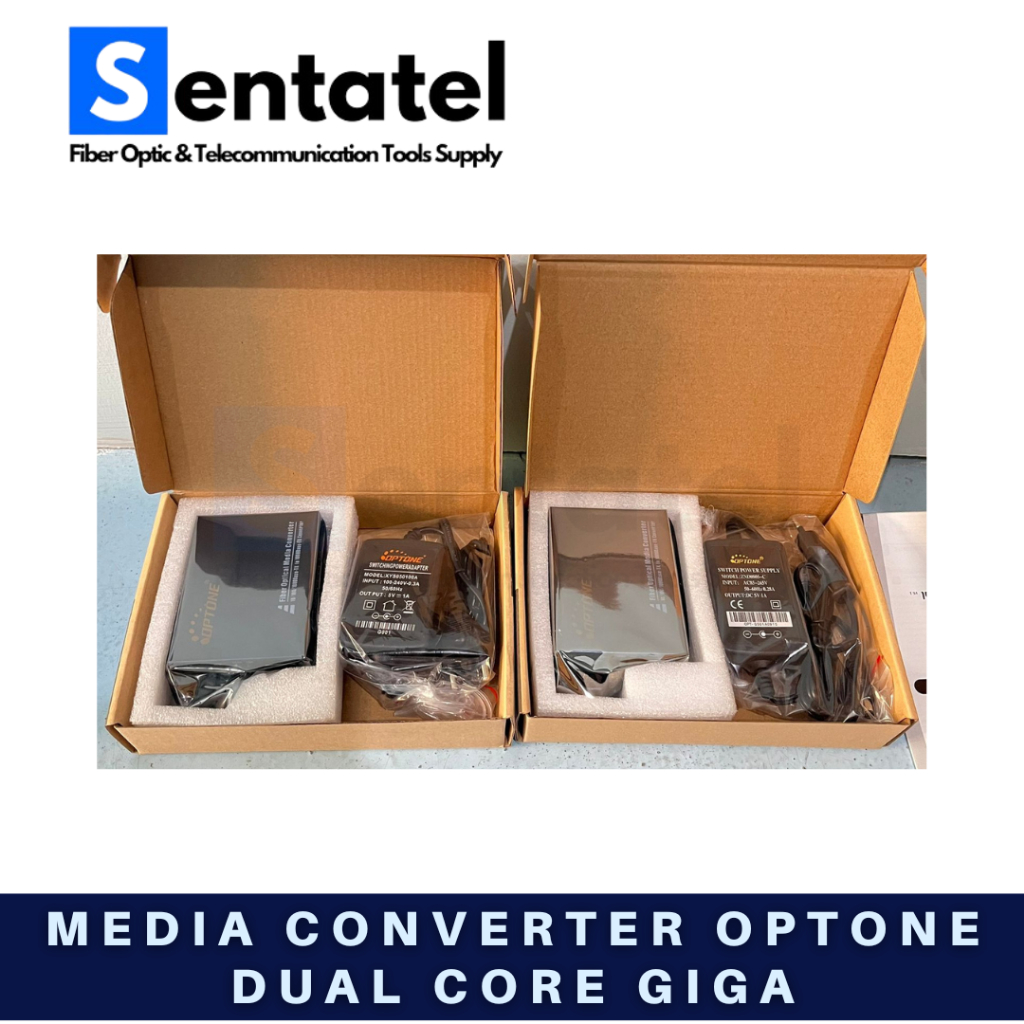

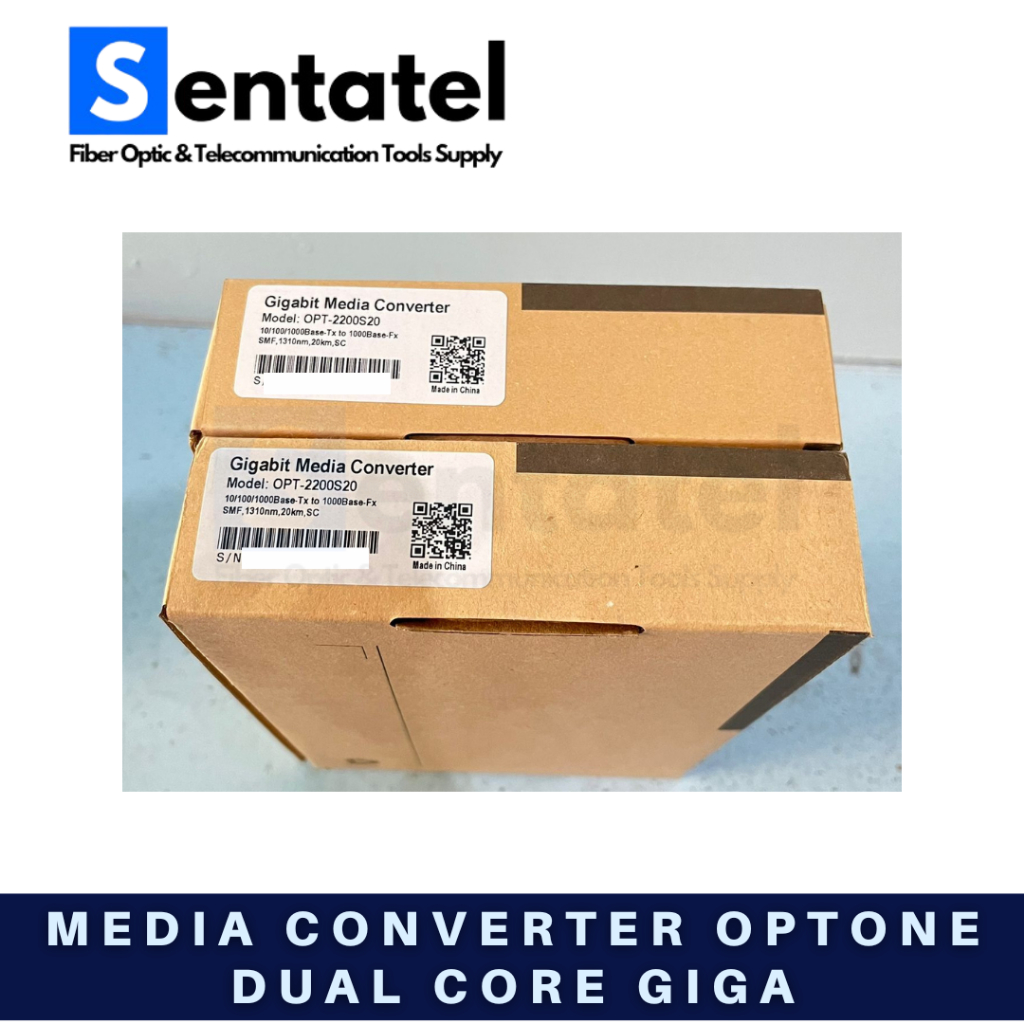

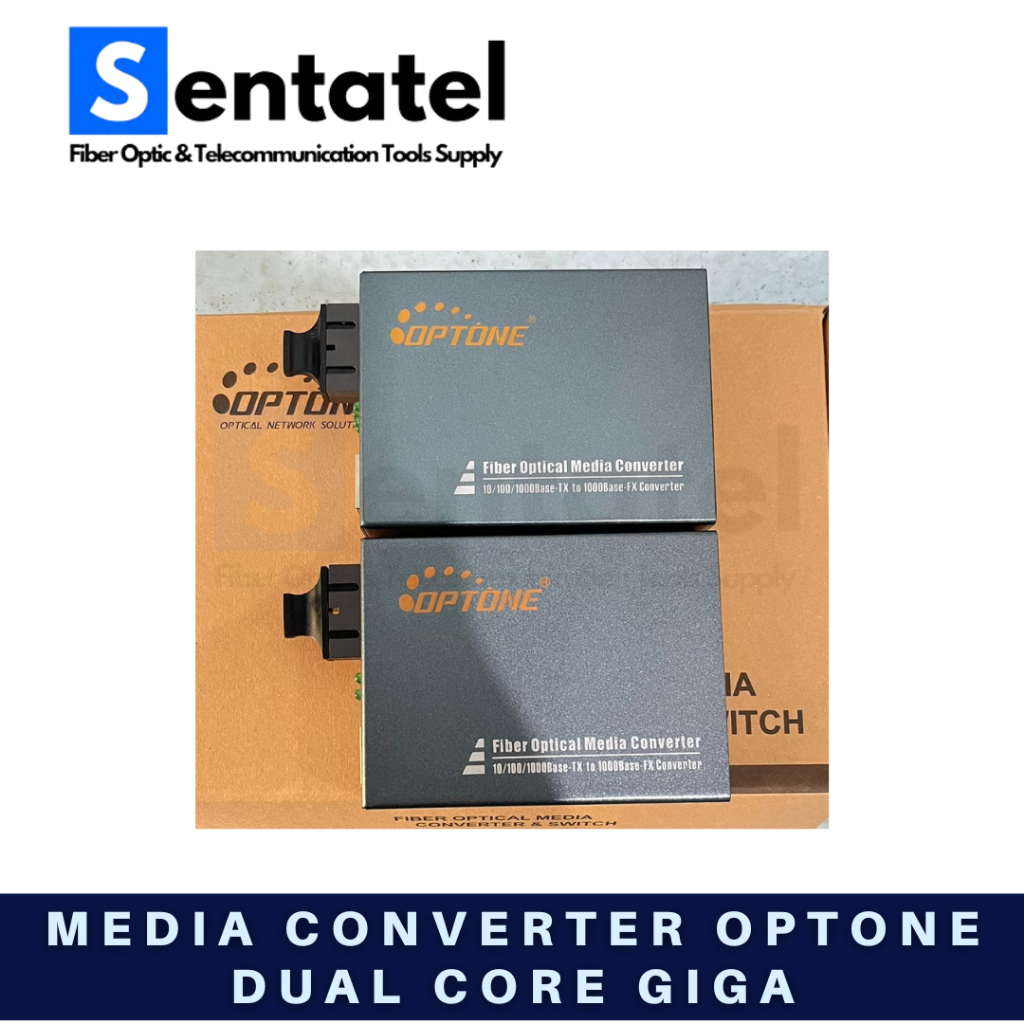

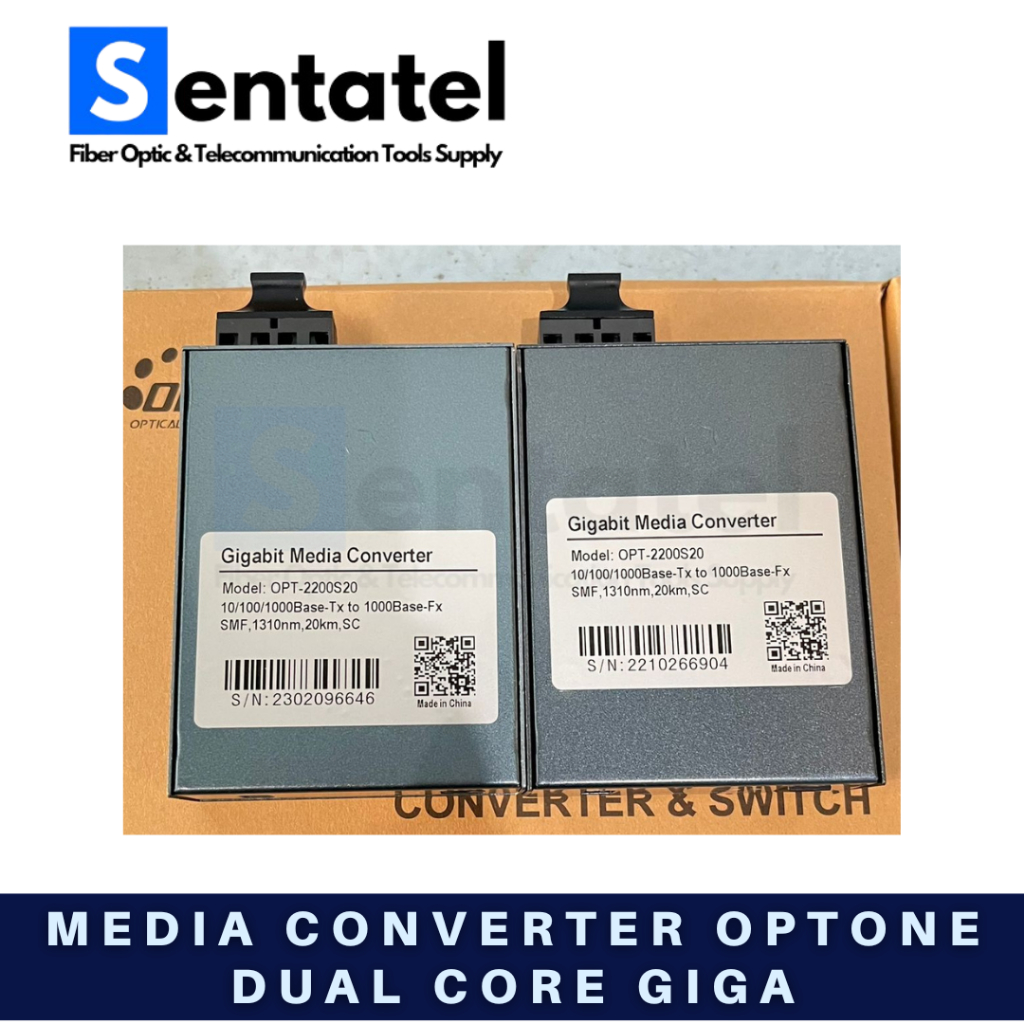

Gambar produk
