Optical Power Meter With VFL RJ45 Mini Tester 3 in 1 Fiber Optic

Detail Optical Power Meter With VFL RJ45 Mini Tester 3 in 1 Fiber Optic

Optical Power Meter With VFL RJ45 Mini Tester 3 in 1 Fiber Optic
Optical Power Meter + Visual Fault Locator + Network Cable Test
Fitur :
- Cable test function / Operation method: Long press UNIT key for 3 seconds to open RJ45 test mode, then press to close RJ45 test mode
- High quality imported laser head, penetrating farther, longer life.
- New LED lighting features for dark work environment
- Can choose 7 kinds of wavelength: 850nm.980nm,1300nm.1310nm.1490nm.1550nm.1625nm.
- Support three kinds of interface: FC interface .SC interface, ST interface
- Outgoing maintenance only one machine
Spesifikasi :
Model: Normal-05
Wavelength range: 800-1700
Connector: FC / SC / ST
Detector type: InGaAs
Measuring range: -70 to +6
Uncertainty: 5%
Standard Wavelength (nm): 850 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm,
Display resolution: linear display, 0.1% logarithmic display: 0.01dBm
Red working wavelength: 650nm
Red power:> 5mW
Operating temperature: -10 ~ +60 '"
Storage temperature: -25 ~ +70 '"
Automatic shutdown time: 10min
Battery continuous working hours (h): '48
Product Size: 130 * 77 * 60mm
Power: 2x baterai A3 (BELUM TERMASUK BATERAI / Micro USB 5v
Weight: 0.14KG
Isi Paket :
1 x Optical Power Meter 3 in 1
1 x Network Test Remote
1 x User Manual

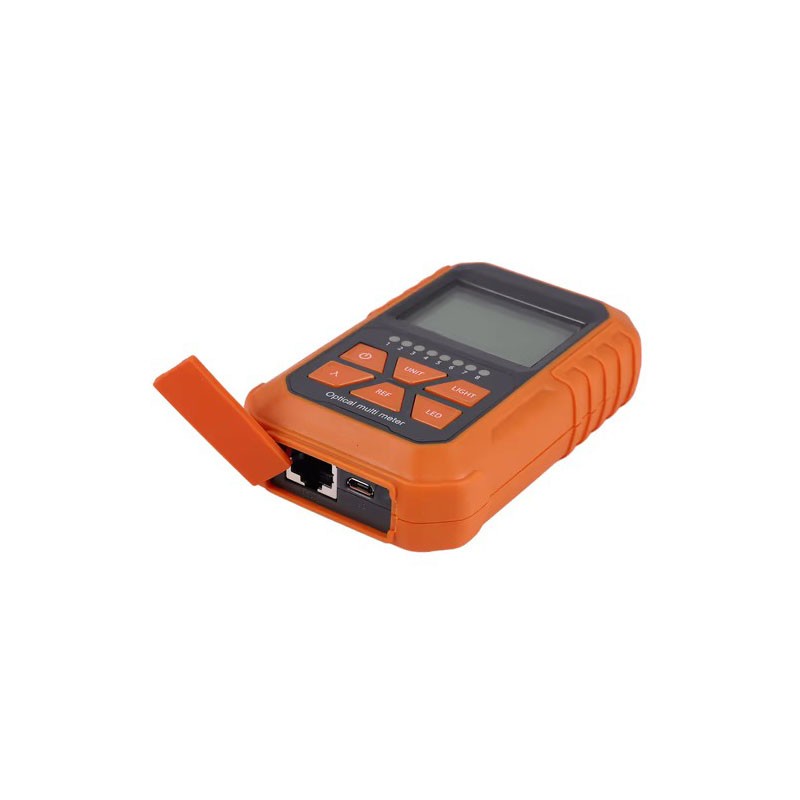

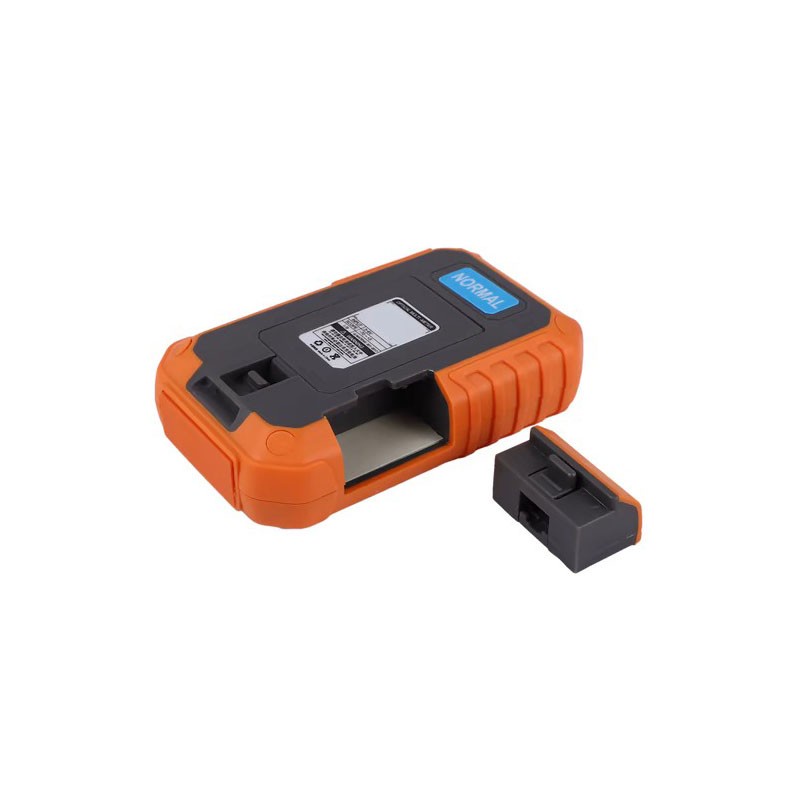

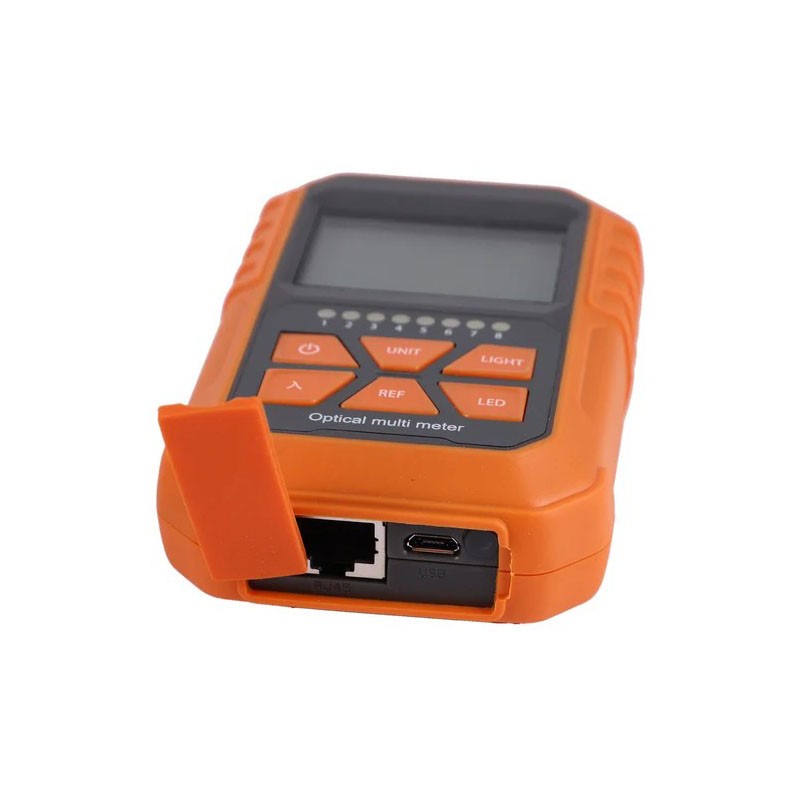

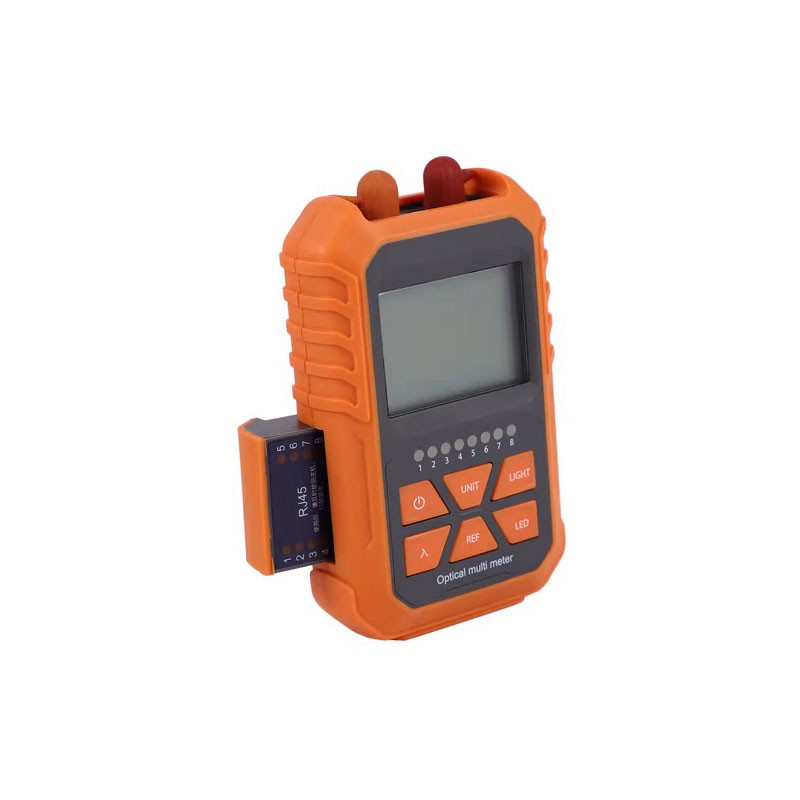

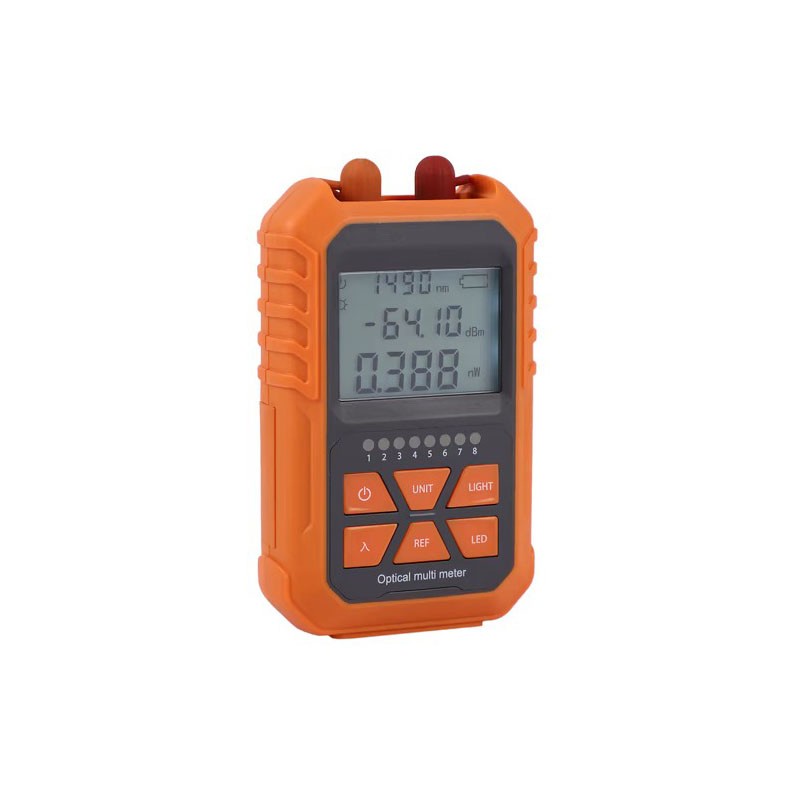

Gambar produk
