Optical Fiber Ranger Breakpoint Simple OTDR

Detail Optical Fiber Ranger Breakpoint Simple OTDR

Optical Fiber Ranger Breakpoint
----------------------------------------------------

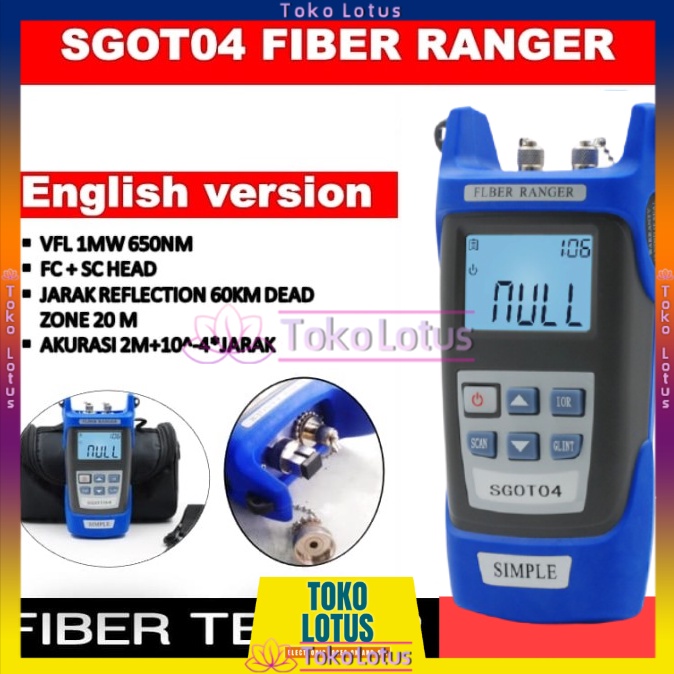

* ENGLISH VERSION
* SGOT04

----------------------------------------------------

WL 1310/1550 nm, konektor fc. sc. st
Sensor ingaas
Jarak reflection 60km (>=1db)
Non-reflektive 20km(>=2.5db)
Reflektion time dead zone 15m
Vfl 1mw 650nm
tanpa grafik

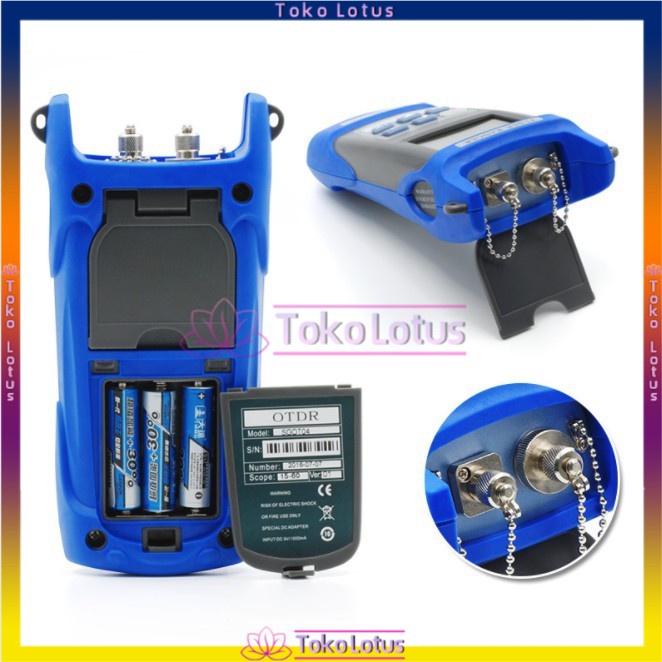

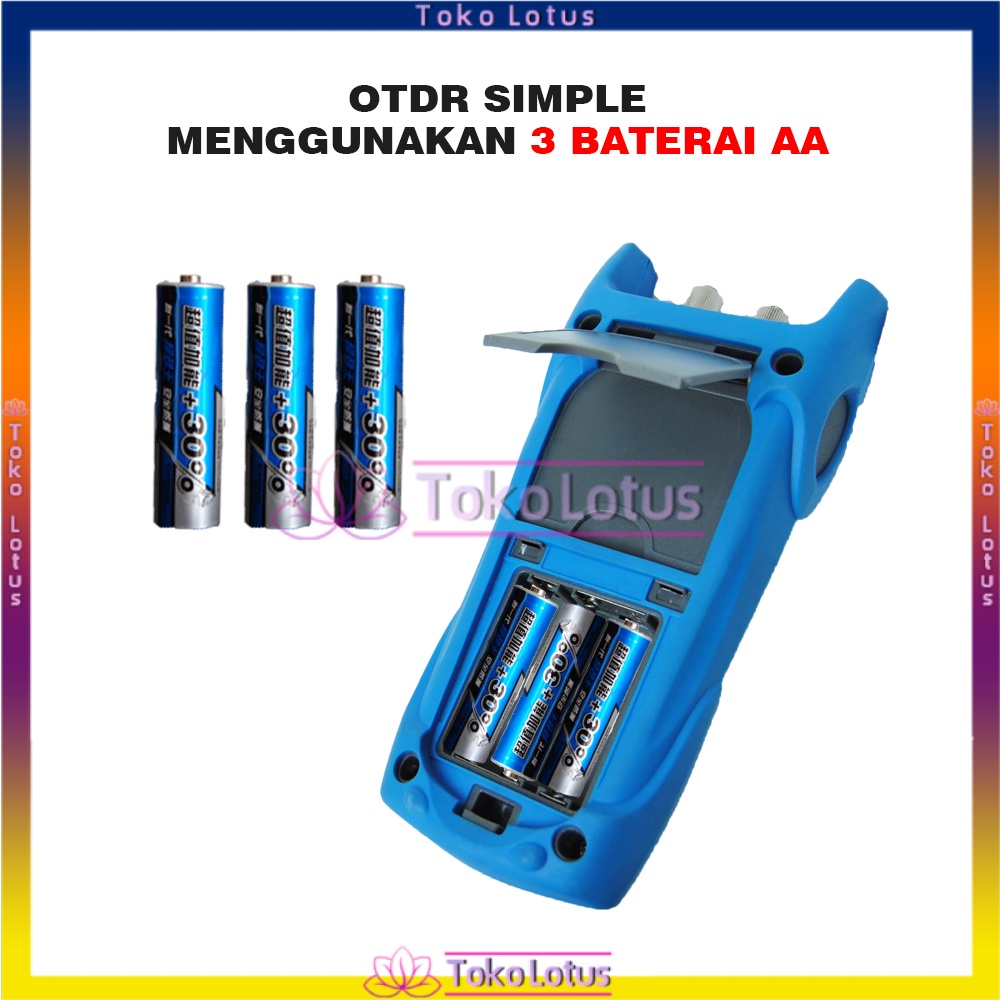

Baterai 3*.5v aa (tdk disertakan)
Berat tanpa baterai 350 g
* GARANSI 30 Hari

* Akurasi +- 2m+10^-4*Jarak
contoh jarak hasil scan 10.000 (10km) = 2+10^-4*10000 = 4
breakpoint antara 9.996m sd 10.004m

======
the lightest in the industry to find a fiber-optic instrument barrier, using OTDR principle, integrated powerful analysis software, it can quickly and accurately detect the location and type of fiber optic cable fault points.

main feature:
Thin, light and small size, light weight, easy to carry.
uses a lithium-ion battery, long standby time.
With a memory function, and can store 1000 data, you can import the data into a computer.

Reliable and repeatable.
One-button operation, without complex settings, test results at a glance.
You can easily test a fiber link node length and fault location.
Integrated visual fault locator system, can be easily detected in the blind spot fiber fault location.

With rubber keys, dust-proof, waterproof, shockproof performance, suitable for field maintenance operations.
The use of large-capacity lithium-ion battery, long working hours, suitable for long field operations.
The instrument is suitable for FTTx and access networks based on the construction and maintenance of the fault location.

The main function of the instrument:
Test fiber length, determine fault location
Testing Fibers distance between two nodes
Fiber repair status detection
Operating wavelength: 1550nm (1310nm optional)
Fiber Type: 9 / 125um single-mode fiber

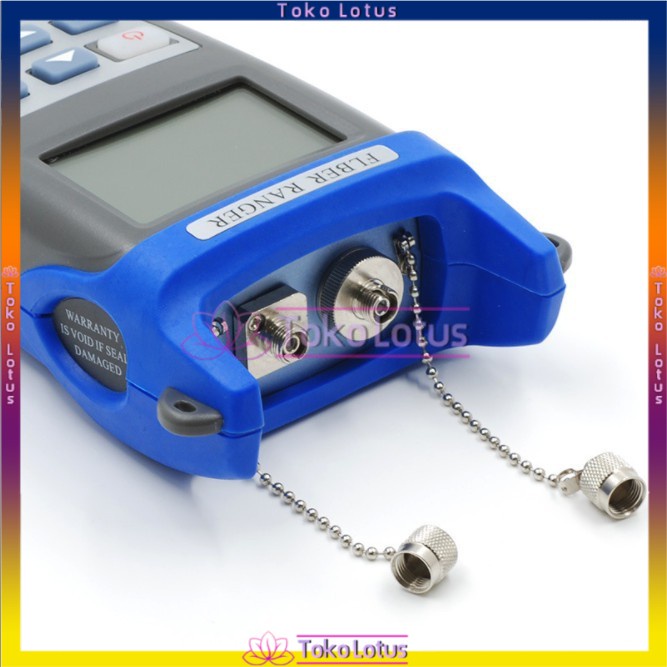

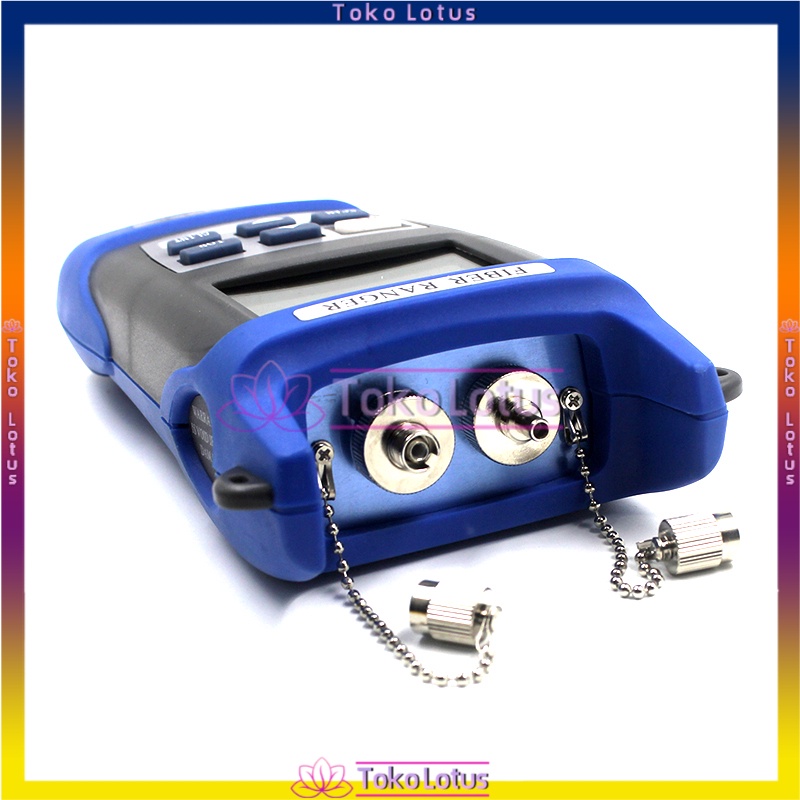

Connector type: FC, SC / PC

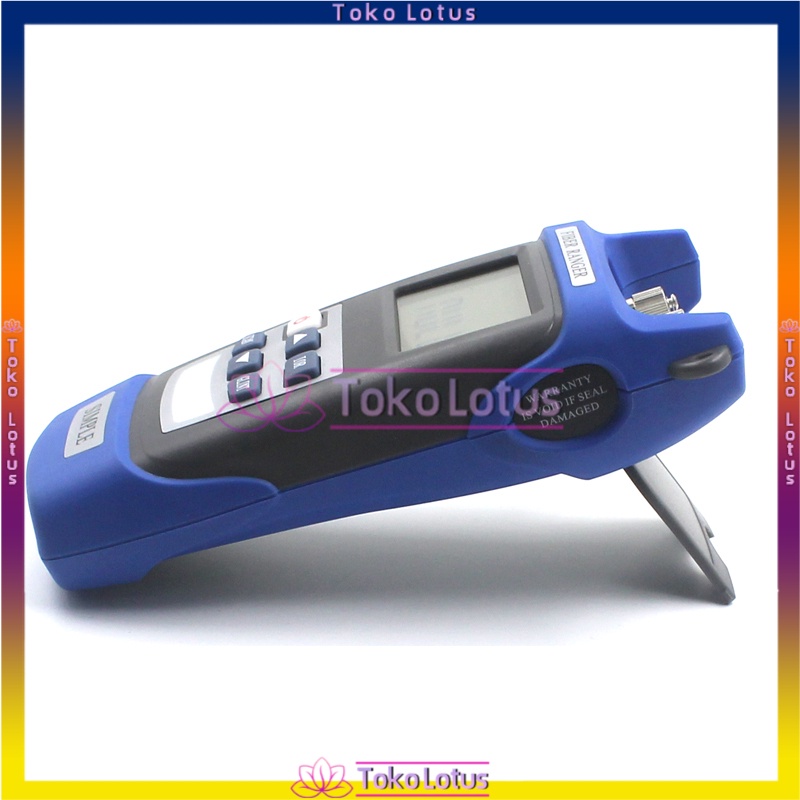

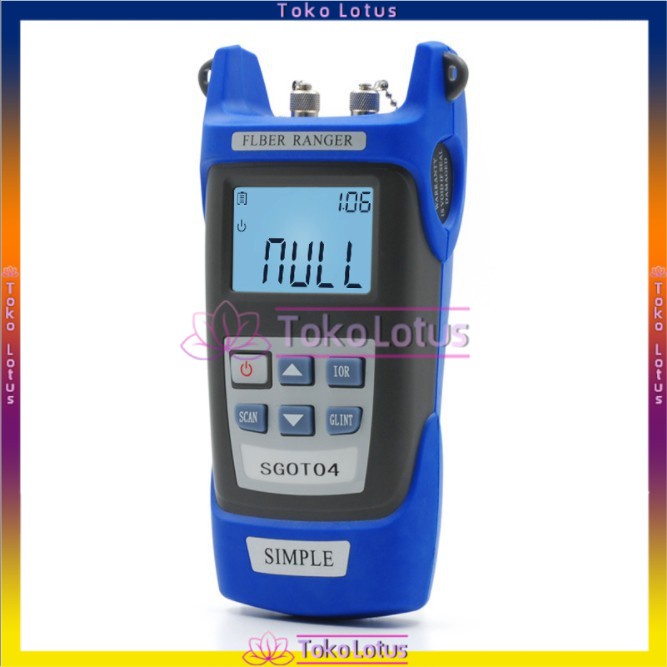

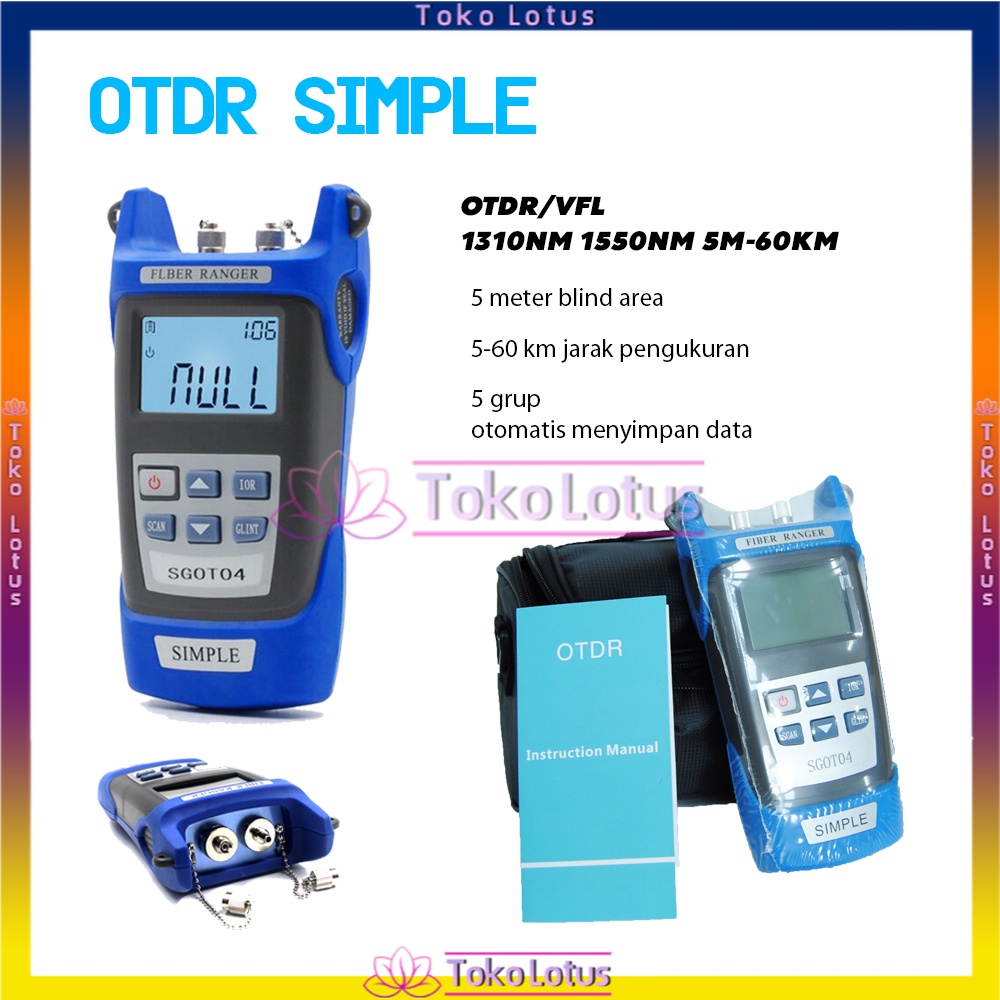

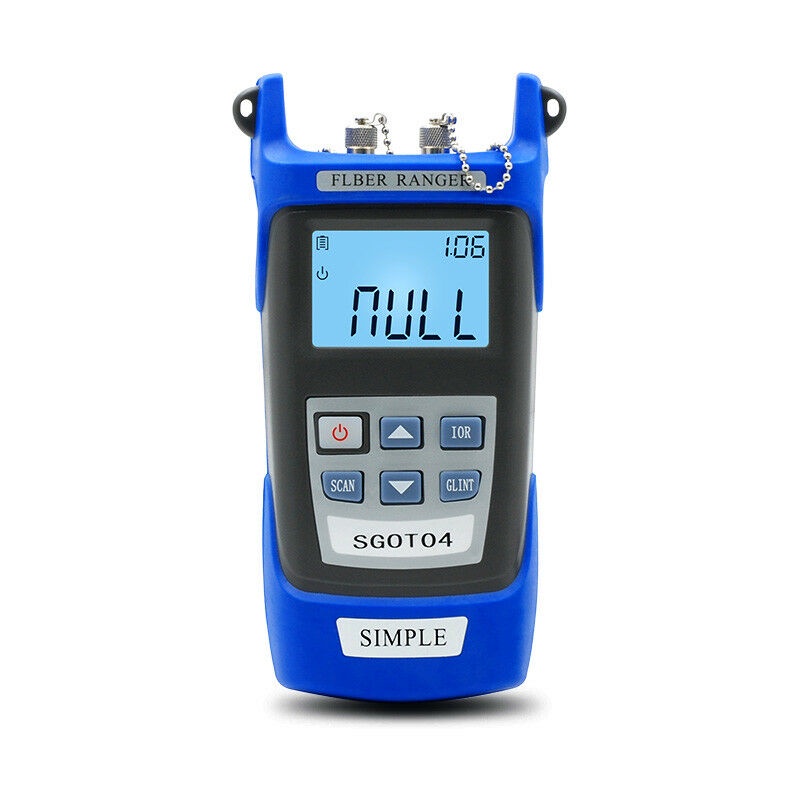

Gambar produk
