Opamp 5532 NJM5532 Original JRc

Elektronik > Kelistrikan > Kelistrikan Lainnya > Opamp 5532 NJM5532 Original JRc
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:bietronikLihat semua produk Elektronik oleh bietronik
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Opamp 5532 NJM5532 Original JRc

Harga per pcs...
Manufacturer: JRC
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: Through Hole
Package/Case: DIP-8
Output Current per Channel: 38 mA
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 10 MHz
SR - Slew Rate: 8 V/us
CMRR - Common Mode Rejection Ratio: 70 dB
Ib - Input Bias Current: 800 nA
Vos - Input Offset Voltage: 4 mV
Operating Supply Current: 16 mA
Minimum Operating Temperature: - 20 C
Maximum Operating Temperature: + 75 C
Shutdown: No Shutdown
Series: NJM5532
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Height: 3.4 mm
Length: 8.8 mm
Product: Operational Amplifiers
Supply Type: Dual
Technology: Bipolar
Width: 6.4 mm
Brand: NJR
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V
en - Input Voltage Noise Density: 8 nV/sqrt Hz
In - Input Noise Current Density: 2.7 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 20 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: +/- 3 V to +/- 22 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product Type: Op Amps - Operational Amplifiers
Subcategory: Amplifier ICs
Tradename: NJM5532
Voltage Gain dB: 100 dB

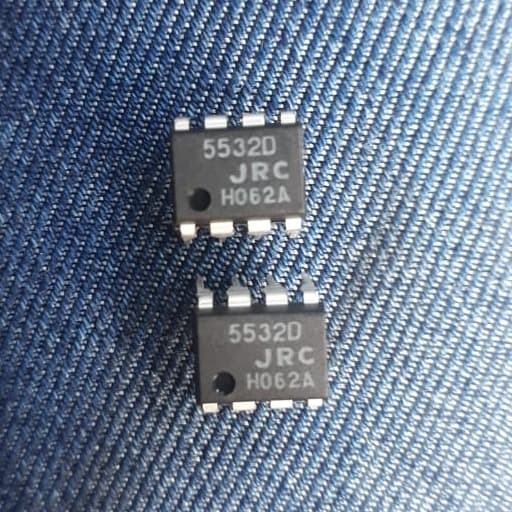

Gambar produk

Opamp 5532 NJM5532 Original JRc
Opamp 5532 NJM5532 Original JRc
Lihat lebih banyak informasi produk
