ONU EPON ZTE F460 V6 (Bekas)

Detail ONU EPON ZTE F460 V6 (Bekas)

Modem ZTE F460 V6 + adaptor ( support Bridge,DCHP,Static,PPoE)

Bekas - Used

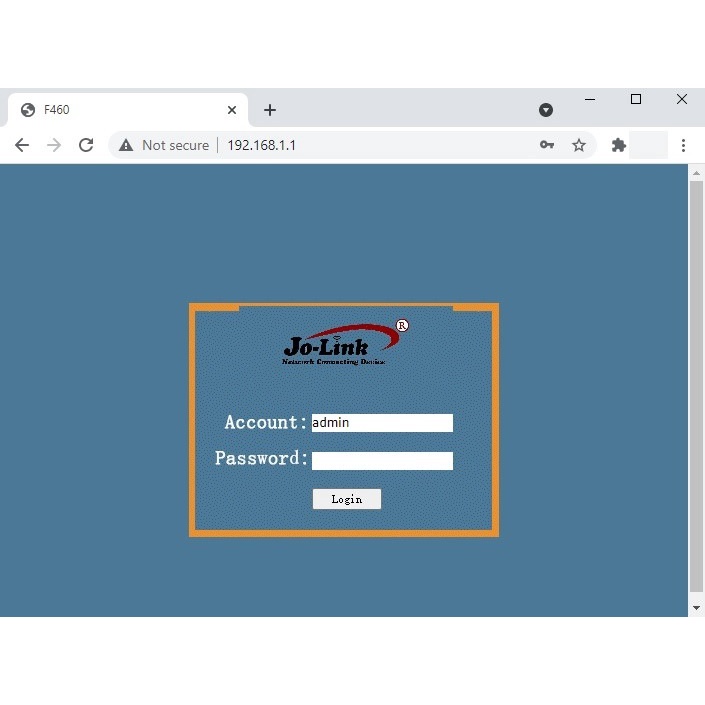

username: superadmin
password: suportadmin

Basic technical data
Manufacturer : ZTE
Model : ZXHN F460 V6
Type : ONT

EPON features
1 x EPON interface (SC/PC)
Transmission speed:
- download: 1.25 Gbps
- upload: 1.25 Gb/s

User network interface :
1 x 10/100/1000 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation
3 x 10/100 Base-T, half/full duplex, auto MDI/MDIX, auto negotiation
1 x POTS interface
1 x Wi-Fi interface: IEEE 802.11b/g/n 2.4 GHz
1 x USB 2.0 host interface

Optical module :
Reception: 1480-1500 nm
Transmitting: 1290-1330 nm
Receiver sensitivity: -28 dBm
Transmitter optical power: 0.5 to 5 dBm

Main features :
Supported services: VoIP, internet, IPTV
GPON: 8 x T-CONT, 32 x GEM port
VLAN: 802.1Q, 802.1P, 802.1ad
MC address table: 1K
L3 Features: DHCP server/client, DNS client, NAT
IPv6: dual stack, DS-Lite
VoIP: SIP/H.248, G.711/G.722/G.279, T.30/T.38
Wi-Fi: 4 x SSID, 2x2 MIMO, WPS
Wi-Fi Authentication: Common Key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA2-Enterprise
Multicast: IGMP v1/v2/snooping/Proxy, MLD v1 snooping
Multicast group per user port: 256
QoS: flow classification for services based on physical ports, MAC address, VLAN ID, VLAN priority level, IP address, SP/WRR/SP WRR
Management: local Web, OMCI, TR069
USB: DLNA DMS, USB backup, 3G/LTE adapter

Power supply : 12V 500 mA
Weight : 430 g

Gambar produk
