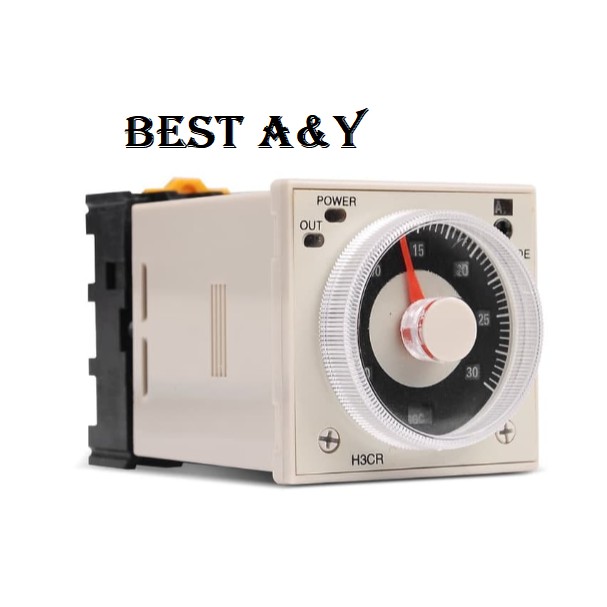

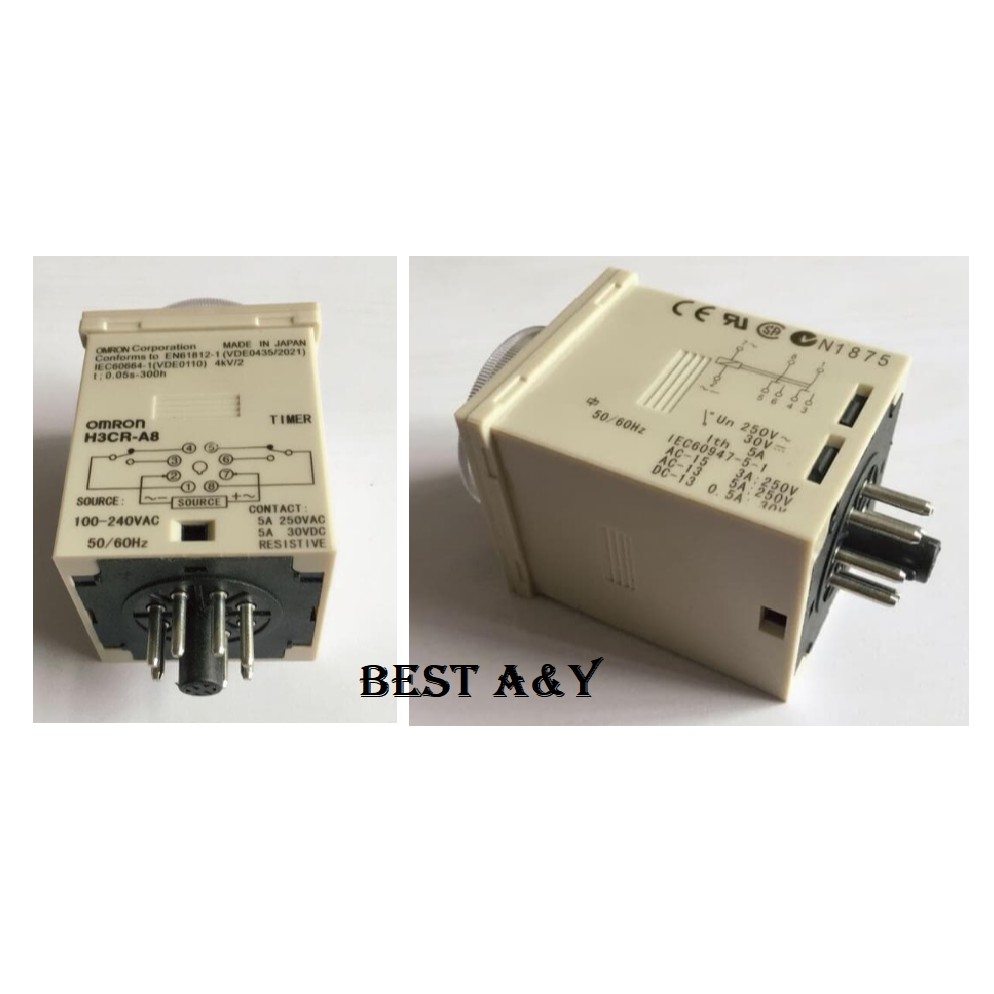

Detail Omron Timer H3CR Include Socket A8 220V 8Kaki 220V

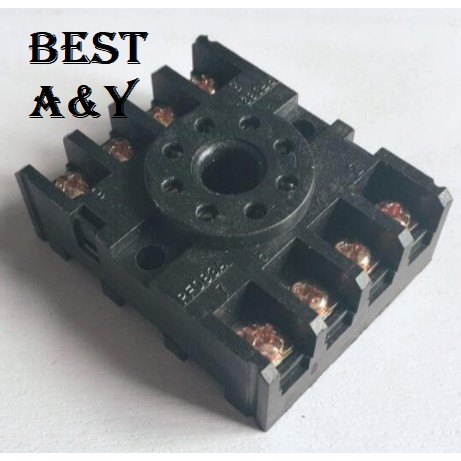

Model number H3CR Include Socket Base Supply voltage 100-240VAC Tolerance -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage Power consumption 1.6W max Setting method Knob Indication method LED External dimensions 48x48x81.6 mm Contact rating 5A@250Vac, 5A@28Vdc Repeat accuracy 0.3%, 0.05 sec Setting error 0.5%, 0.05 sec Mounting Panel, din rail Matched socket H3CR-A: PF113A, H3CR-A8/H3CR-A8E: PF083A Matched mounting accessories FTRF03 Mounting buckle Mechanical life 1x106 Electrical life 1x105 Operating temperature -10 to 50 C Operating humidity 38-95% RH, non-condensing
Gambar produk
Omron Timer H3CR Include Socket A8 220V 8Kaki 220VOmron Timer H3CR Include Socket A8 220V 8Kaki 220VOmron Timer H3CR Include Socket A8 220V 8Kaki 220V
