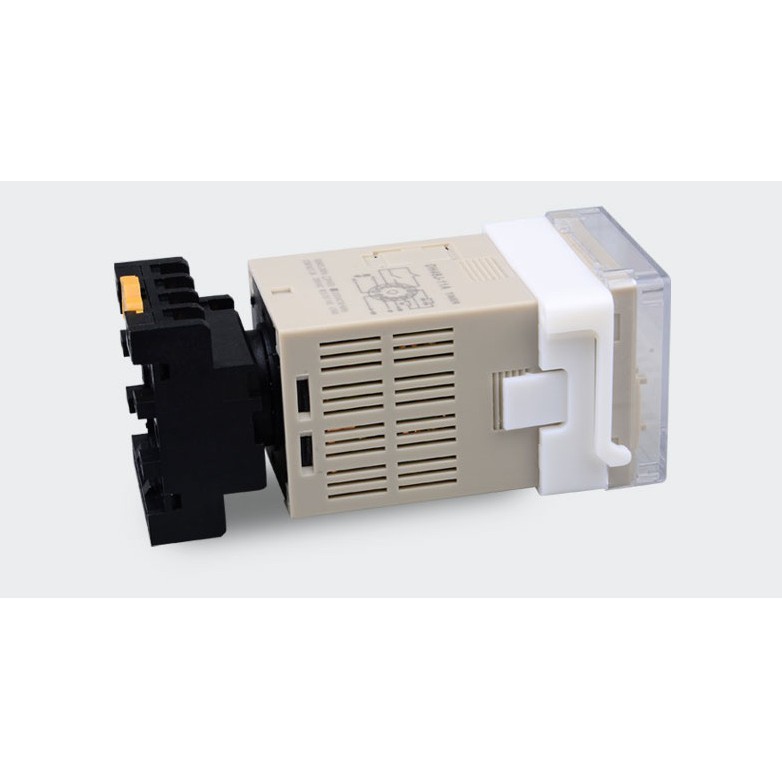

Detail OMRON DH48J digital counter relay Dual signal input DH48J-11A 220V

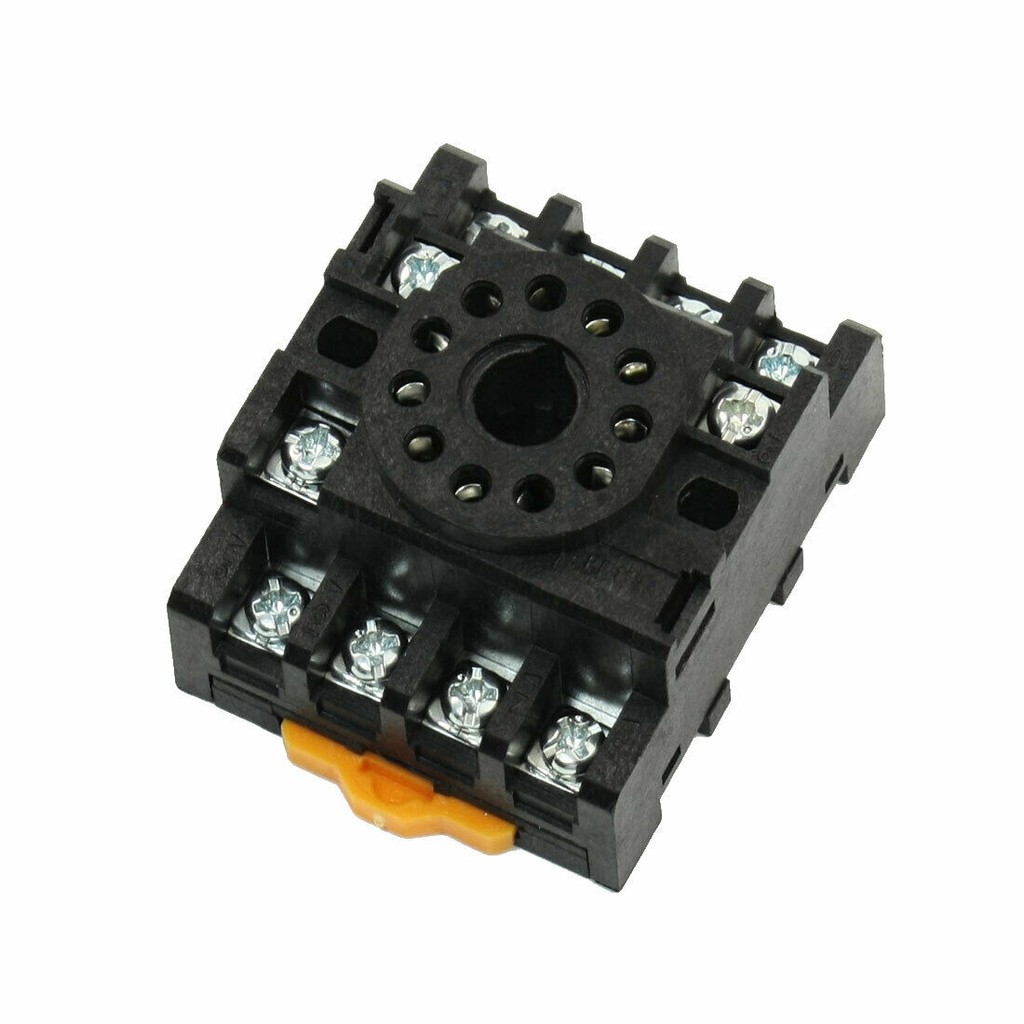

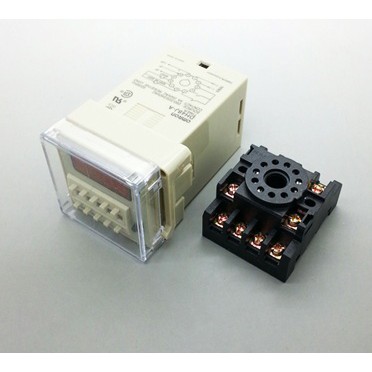

Kelengkapan:1 unit OMRON Counter digital + Socket 11 PIn (jadi tinggal langsung pakai)
Note Tidak ada marking OMRON

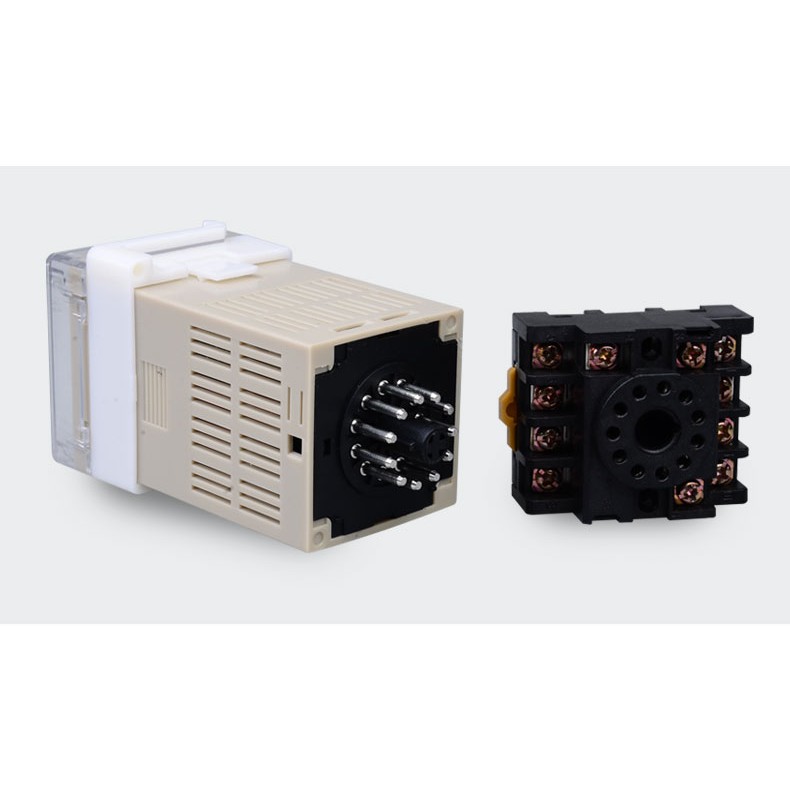

DH48j-11A memiliki kaki 11 pin dan input trigger counter dapat berupa kontak atau sensor proxmity.
sehingga input signal lebih bervariasi dan lengkap.
Features:
1. High quality plastic case, waterproof and dustproof.
2. 4-bit LED display shows count clearly.
3. With transparent protection cover to protect the display panel from damage.
4. High precision, large contact capacity, long service life.
5. It is used as counting control in automatic control system.
Specification:
Model:DH48J-11A

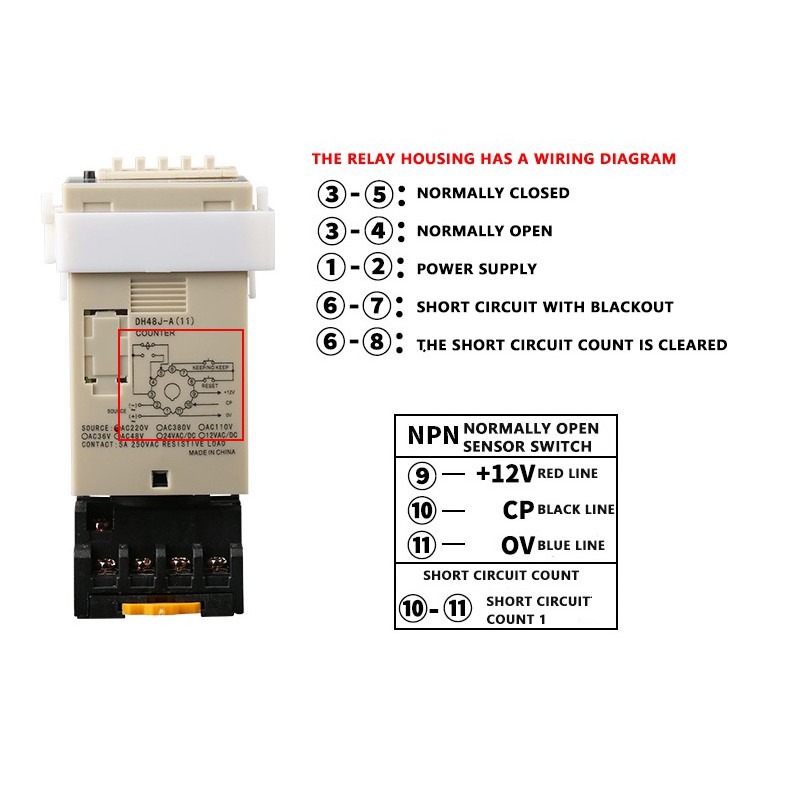

Input signal Contact,level, sensor (NPN type)
Current: 5A
Power consumption: ≤3W
Counting range: 1-999900
Coil power supply: 220VAC
Contact switching voltage: 220VAC
Rated frequency: 50/60Hz
Ambient temperature: -10~50℃
Dimensions: 117*51*59mm / 4.6*2.0*2.3in
Gambar produk
