Omron D3D-2 - Saklar Push Button

Detail Omron D3D-2 - Saklar Push Button

Saklar Push Button Omron D3D-2

Made in Indonesia

Category : Switches Snap Action, Limit Switches
Series : D3D
Circuit : SPDT
Contact : 1NO, 1NC, 1COM
Switch Function : On-Mom
Current Rating (Amps) : 1A (AC) 125VAC, 0.5A (AC) 250VAC
Actuator Type : Overtravel Plunger
Mounting Type : Panel Mount, Snap-In
Termination Style : Connector
Ingress Protection : IP00
Features : White Actuator
Operating Force : 204gf
Operating Temperature : -30°C ~ 60°C
Operating Position : 0.512" (13.0mm)
Electrical Life : 50,000 Cycles
Mechanical Life : 300,000 Cycles
Voltage Rating - AC : 125 V , 250 V

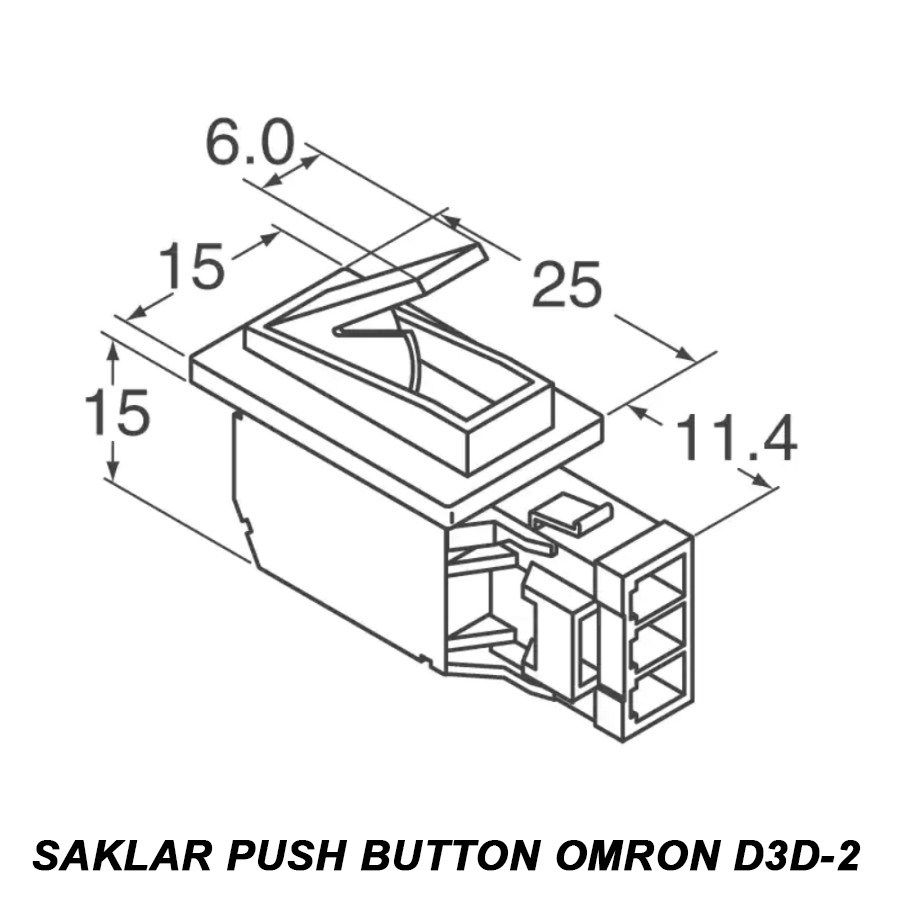

Dimension on picture.

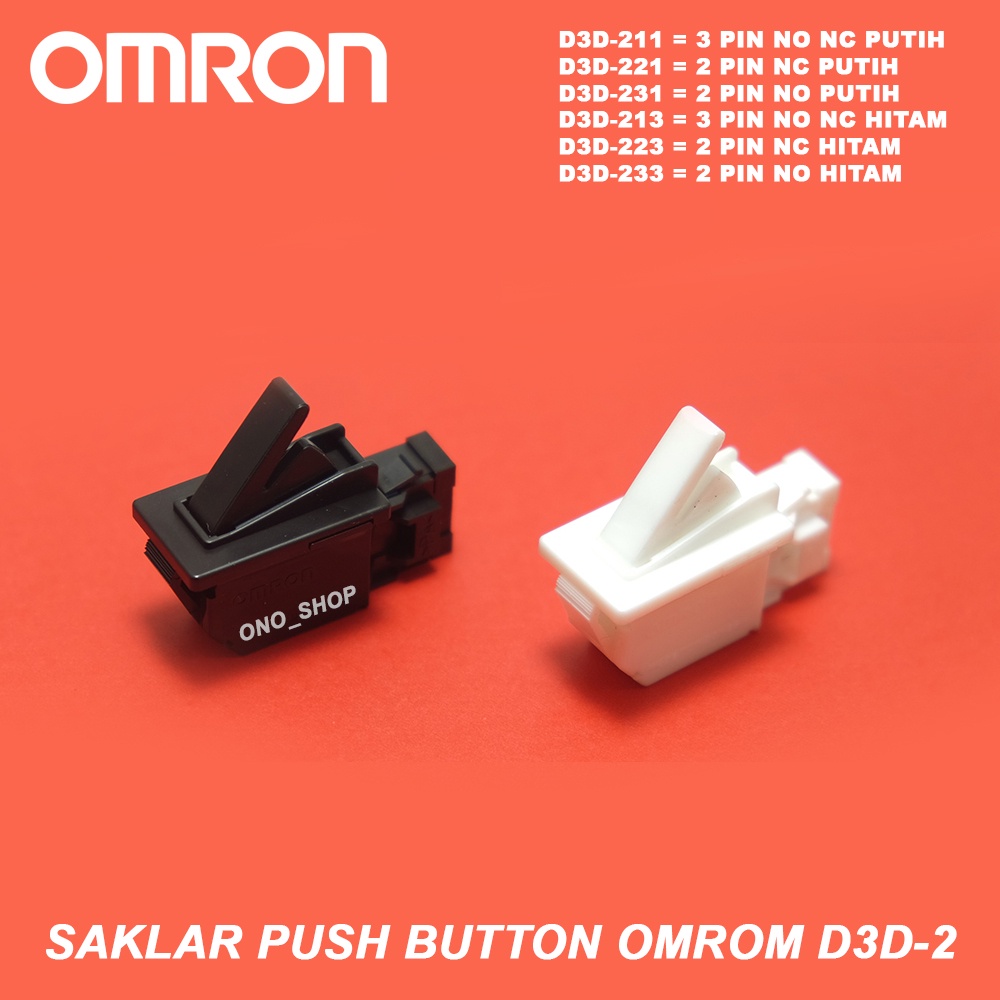

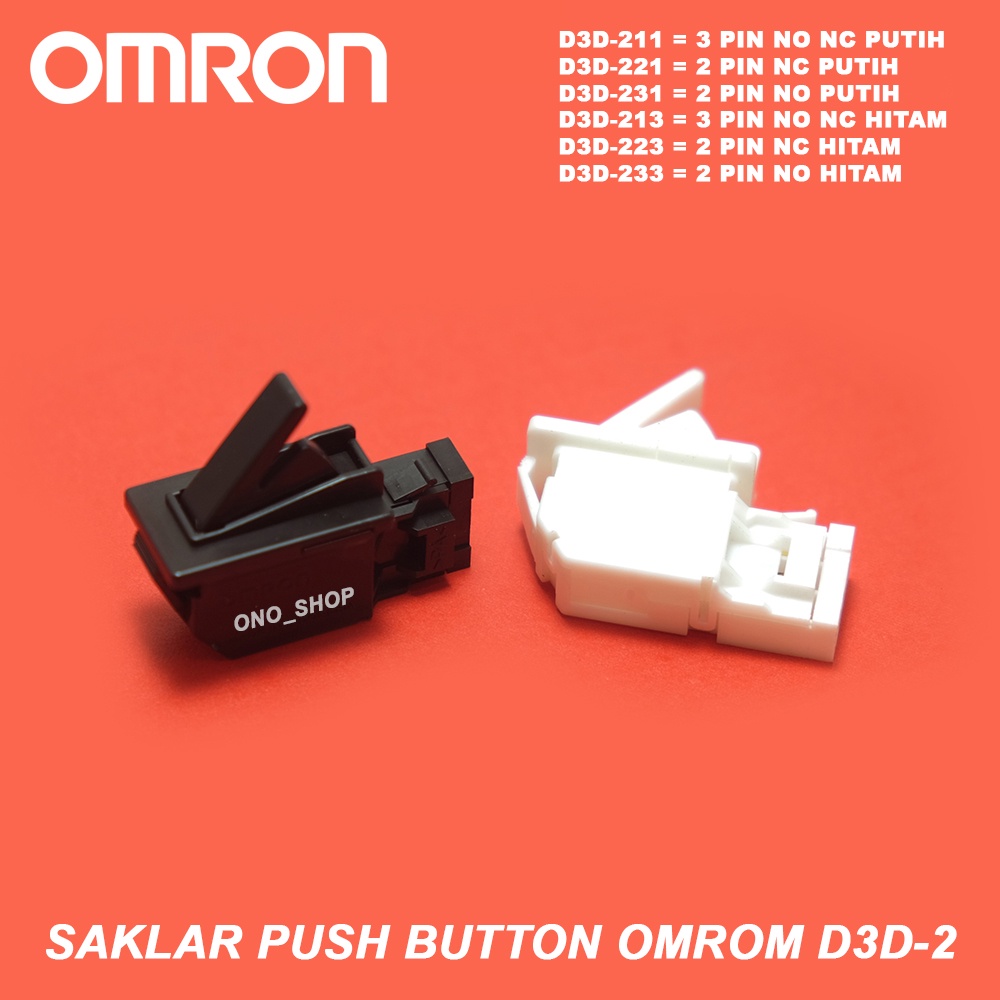

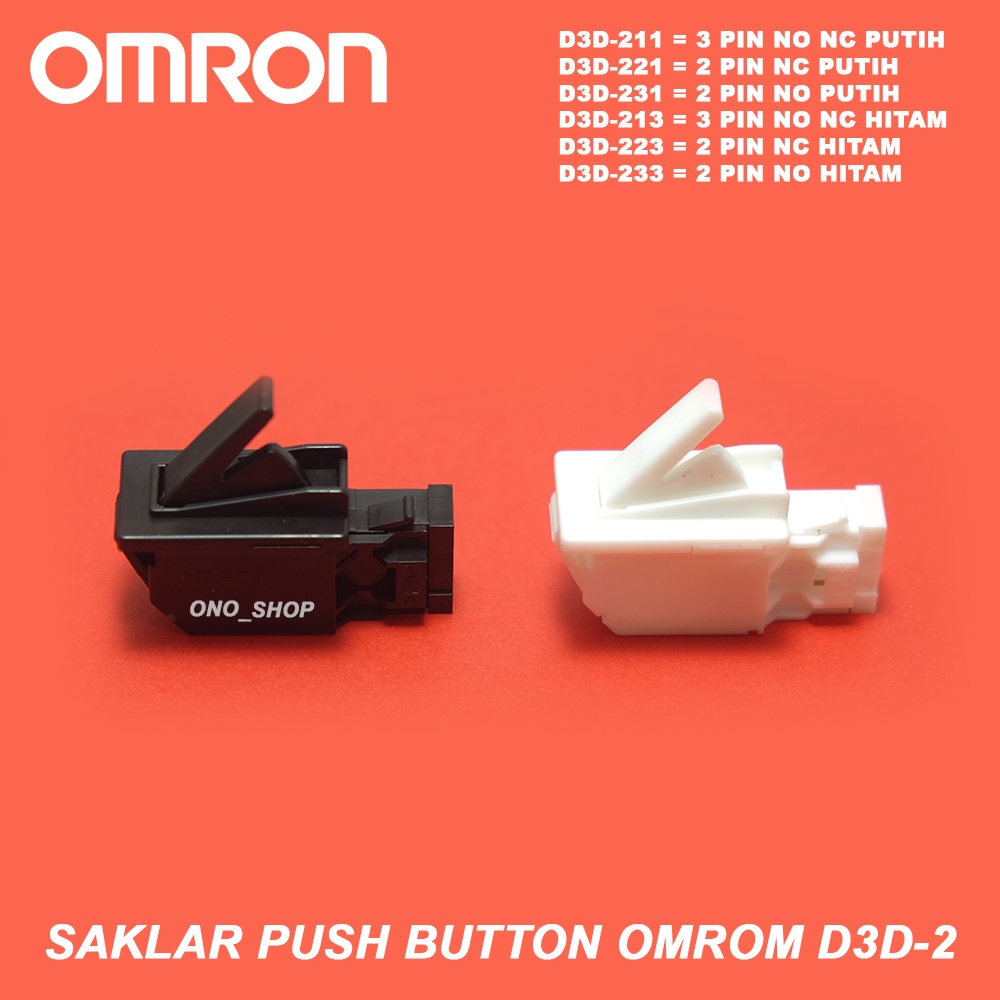

Varian :

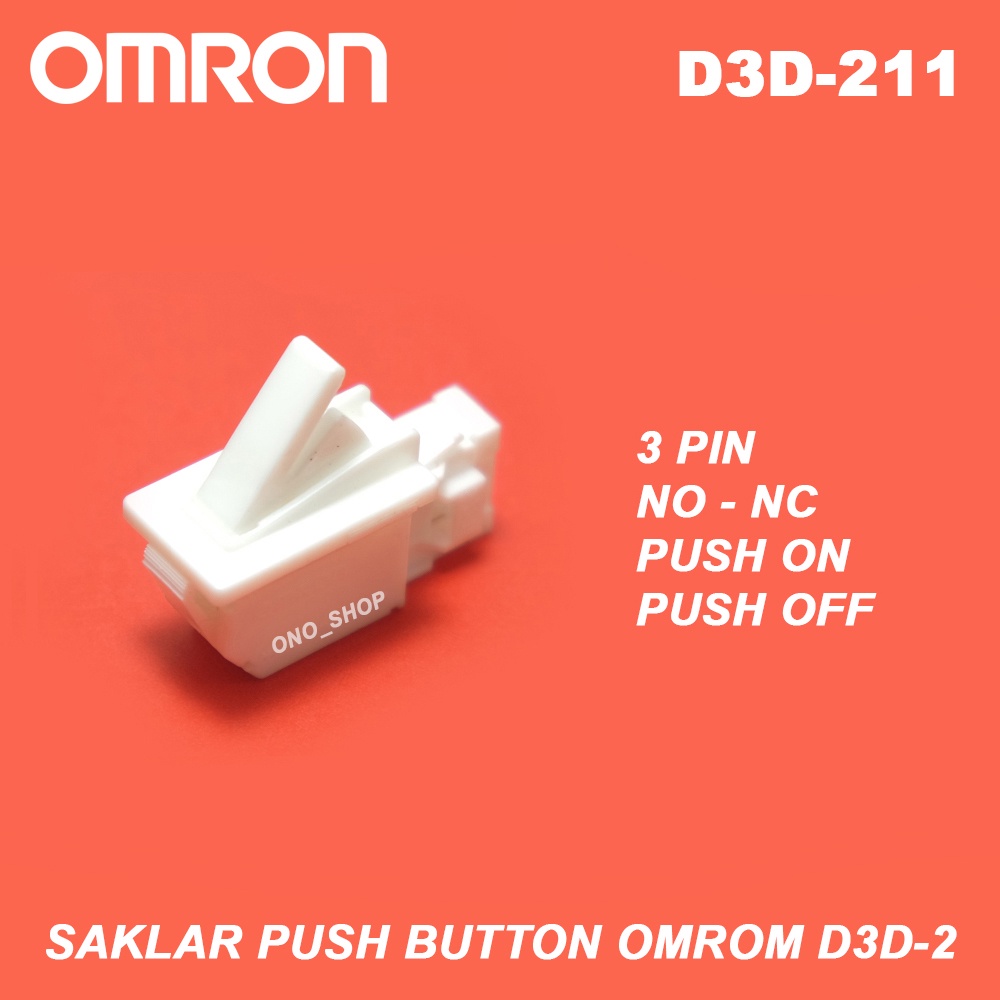

D3D-211 = Putih = 3 Pin = NO & NC = Push On & Push Off

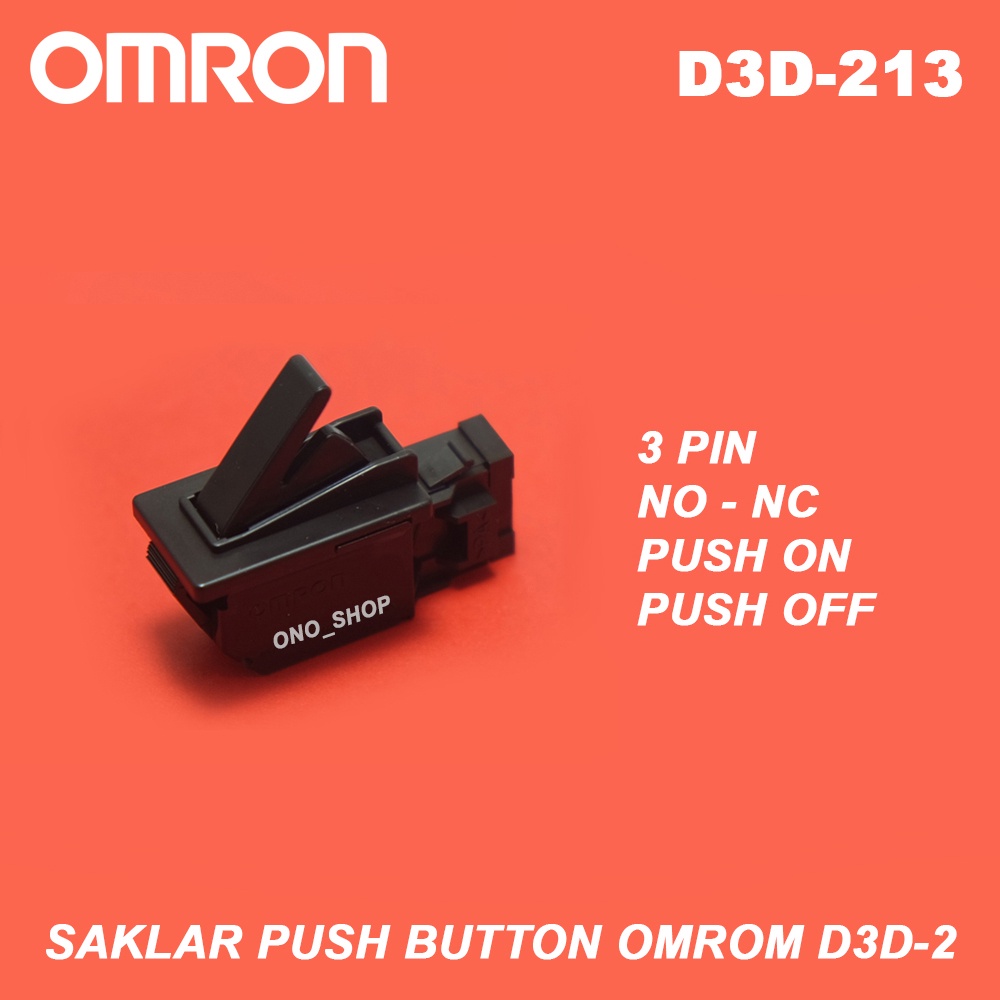

D3D-213 = Hitam = 3 Pin = NO & NC = Push On & Push Off

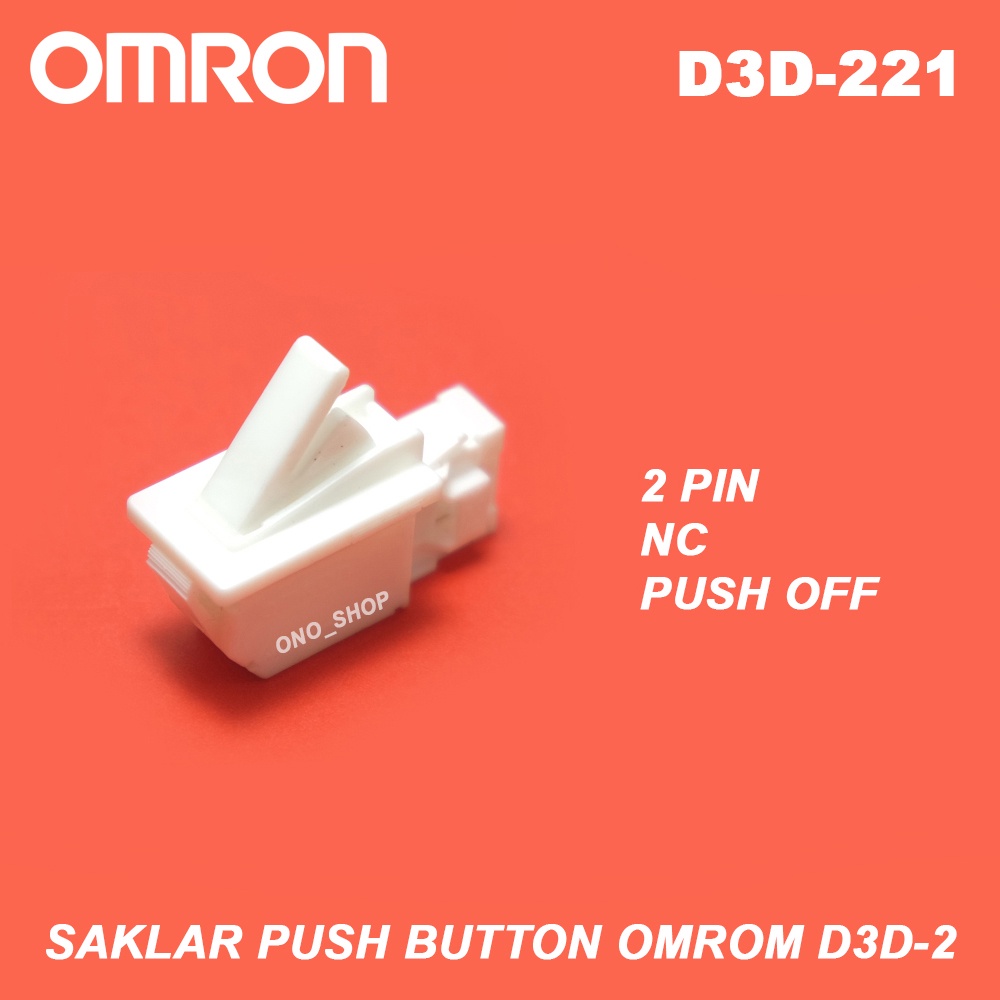

D3D-221 = Putih = 2 Pin = NC = Push Off

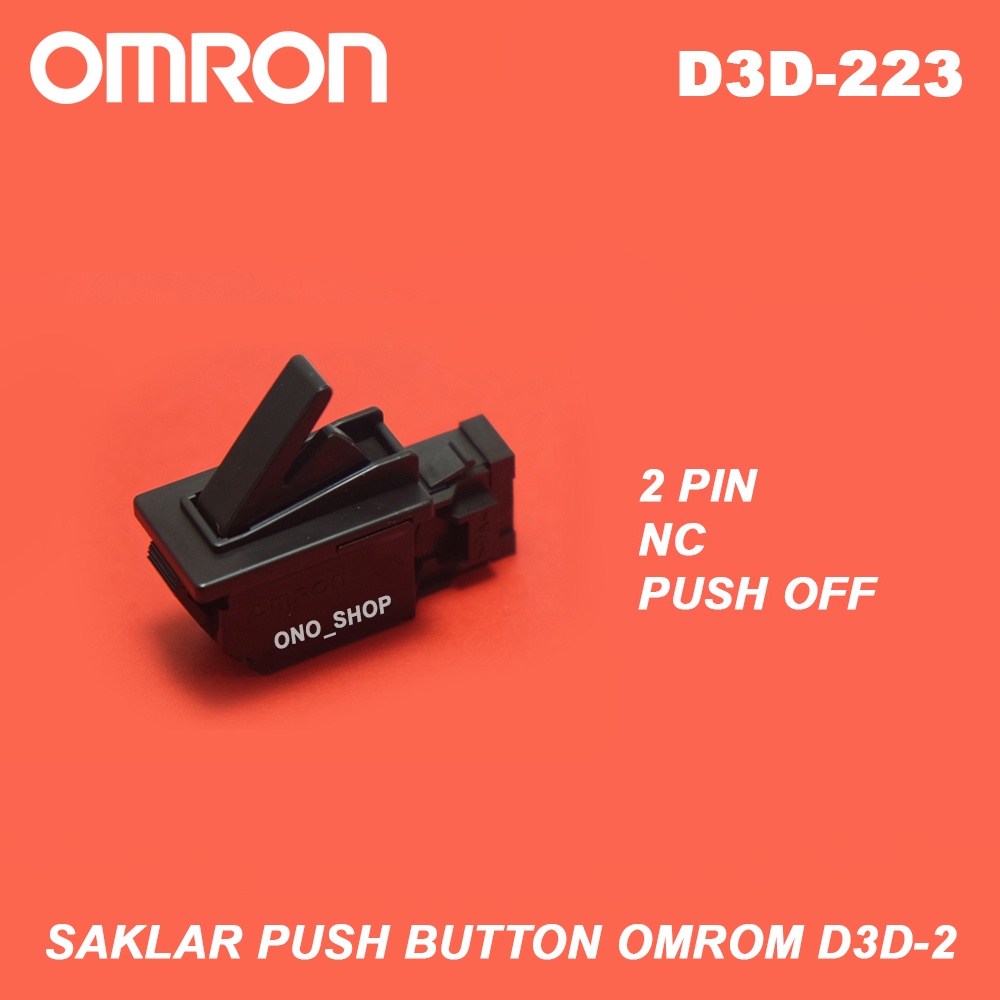

D3D-223 = Hitam = 2 Pin = NC = Push Off

D3D-231 = Putih = 2 Pin = NO = Push On

D3D-233 = Hitam = 2 Pin = NO = Push On

Gambar produk
