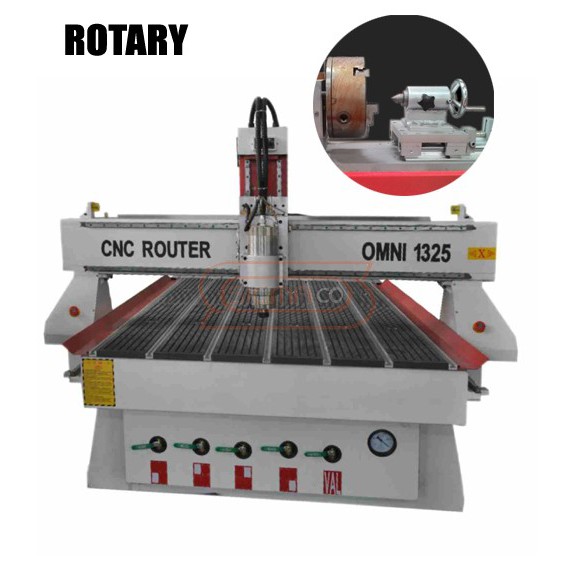

OMNI CNC Router 1325 with 6 KW HSD Spindle and Rotary 20 cm Diameter

Detail OMNI CNC Router 1325 with 6 KW HSD Spindle and Rotary 20 cm Diameter

3D Zaiku Indonesia

OMNI CNC Router 1325 with 6 KW HSD Spindle and Rotary 20 cm Diameter


SKU : ZaikuOMNI-1325HSD-RTR
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku


FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin cnc
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
4. FREE Training di lokasi customer buat area Jakarta dan Tangerang, luar kota ada biaya tambahan jika training di lokasi



Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi Baja keras


TECHNICAL SPECIFICATION
Cutting Area : 1300 x 2500 x 400 mm
Spindle : 6KW Italy HSD Aircooling spindle
Rotary : 200mm diameter rotary deivce
Inverter : FULING frequency inverter
Dust collector device : 3.0kw Dust collector hood and Dust collector with dual bags
Vacuum pump : 5.5kw Dry Vacuum pump
Motor and driver : Yako driver and Stepper motor
Machine table : Bakelite table combined Aluminum T -slot extrusion, vacuum table
X, Y, Z Travelling Potioning Accuracy : ±0.05/300mm
X, Y, Z Travelling Repositioning Accuracy : ±0.05mm
Frame : Big thickened Steel Square Tubes
X, Y structure : Helical Rack and pinion drive, Hiwin square rail linear bearing 20mm
Z axis structure : Taiwan TBI ballscrew and Hiwin square linear rail 20mm
Max Rapid Travel Rate : 32,000mm/min
Max working speed : 20,000mm/min
Working voltage : AC220V / 50hz / 3 phase or 380v / 50hz /3 phase
Command languages : G code
Control system : RichAuto DSP A18 control system
Software :JDSoft English version
Limit stop Extra-travel limit stop and hard limit stop
Emergency stop and Switch : Japan Omron emergency stop and SCHNEIDER switch
Package:3200*2100*1900MM
Gross weight (wooden box weight):1750kg


Garansi Full Sparepart 1 Tahun



Barang READY STOK



Harga : Rp 195.000.000

Gambar produk
