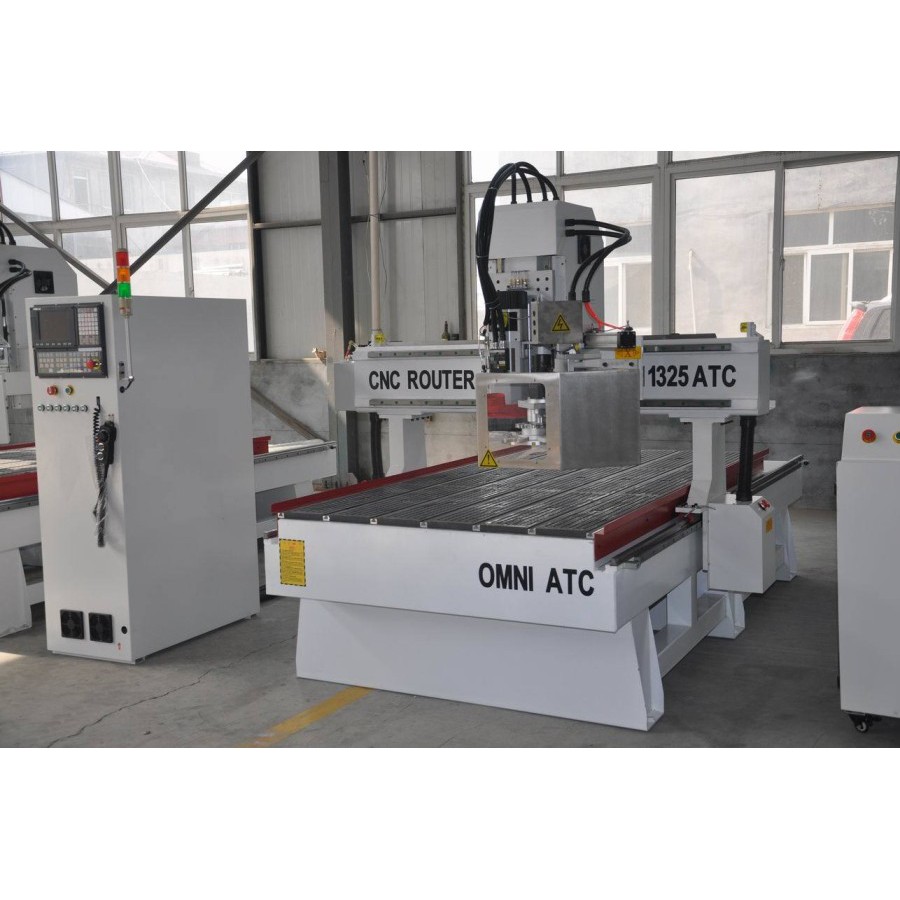

OMNI CNC Router 1325 ATC Automatic Tool Change 130x250 cm Hiwin Linear

Detail OMNI CNC Router 1325 ATC Automatic Tool Change 130x250 cm Hiwin Linear

3D Zaiku Indonesia


SKU : ZaikuOMNI-1325ATC
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku


FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin cnc
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
4. FREE Training di lokasi customer buat area Jakarta dan Tangerang, luar kota ada biaya tambahan jika training di lokasi



Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi Baja keras


TECHNICAL SPECIFICATION
Cutting Area : 1300 x 2500 x 200 mm

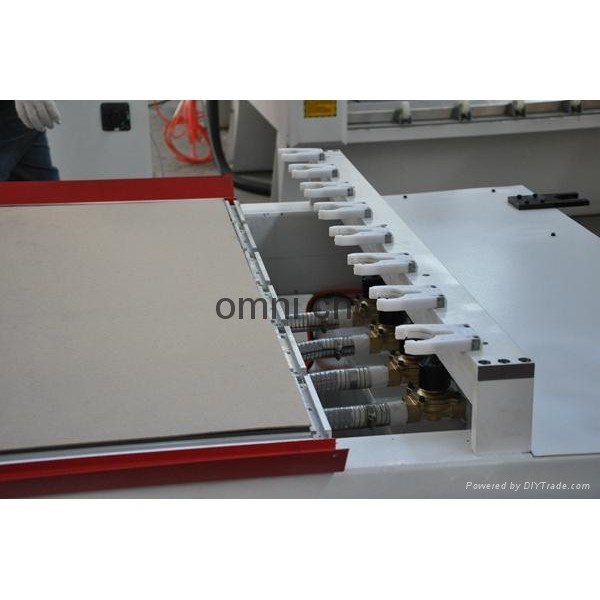

Spindle : Italy HSD Air Cooling spindle with 8 Tool Magazines (with 8 pcs ISO ER32 Tool Holders)
Inverter : FULING frequency inverter
Motor and driver : Japan YASKAWA Servo driver and motor 850W
Pump : 5.5 KW Dry Vacuum Pump
Dust Collector : 3 KW Collector with 2 bags
Machine table : Bakelite table combined Aluminum T -slot extrusion
X, Y, Z Travelling Potioning Accuracy : ±0.05/300mm
X, Y, Z Travelling Repositioning Accuracy : ±0.05mm
Frame : Big thickened Steel Square Tubes 8 mm
X, Y structure : Helical Rack and pinion drive, Hiwin rail linear bearing 30mm HGR030
Z axis structure : Taiwan TBI ballscrew 25 mm and Hiwin linear rail 30mm HGR30
Max Rapid Travel Rate : 50,000mm/min
Max working speed : 36,000mm/min
Working voltage : AC220V / 50hz / 3 phase or 380v / 50hz /3 phase
Command languages : G code
Control system : Syntec 6MB Taiwan control system
Software : Alphacam English version
Limit stop Extra-travel limit stop and hard limit stop
Emergency stop and Switch : Japan Omron emergency stop and SCHNEIDER switch
Auto tool Change time : 8 Seconds
Package:3200*2100*1900MM
Gross weight (wooden box weight):1750kg


Sistem Catch atau Latch
Garansi Full Sparepart 1 Tahun




Harga LATC :
3 KW harga Rp 320.000.000
4.5 KW harga Rp 345.000.000
6 KW harga Rp 370.000.000
(CATC lebih mahal 15 jt)

Gambar produk
