OMNI 1325 CNC Router 130x250 cm with Ballscrew and Hiwin Linear Rail

Elektronik > Elektronik Lainnya > OMNI 1325 CNC Router 130x250 cm with Ballscrew and Hiwin Linear Rail
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail OMNI 1325 CNC Router 130x250 cm with Ballscrew and Hiwin Linear Rail

3D ZAIKU INDONESIA

SKU : ZaikuOMNI-1325
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku


FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin cnc
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
4. FREE Training di lokasi customer buat area Jakarta dan Tangerang, luar kota ada biaya tambahan jika training di lokasi


Alamat Toko Kita :

Jakarta : DUTA INDAH Blok C/16 Jl. MH. Thamrin No.KM. 2, RT.003/RW.002, Panunggangan Utara, Kec. Pinang, Kota Tangerang, Banten 15143


Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi Baja keras


TECHNICAL SPECIFICATION
- Cutting Area : 1300 x 2500 x 400 mm
- Spindle : Hanqi Water Cooling spindle
- Inverter : FULING frequency inverter

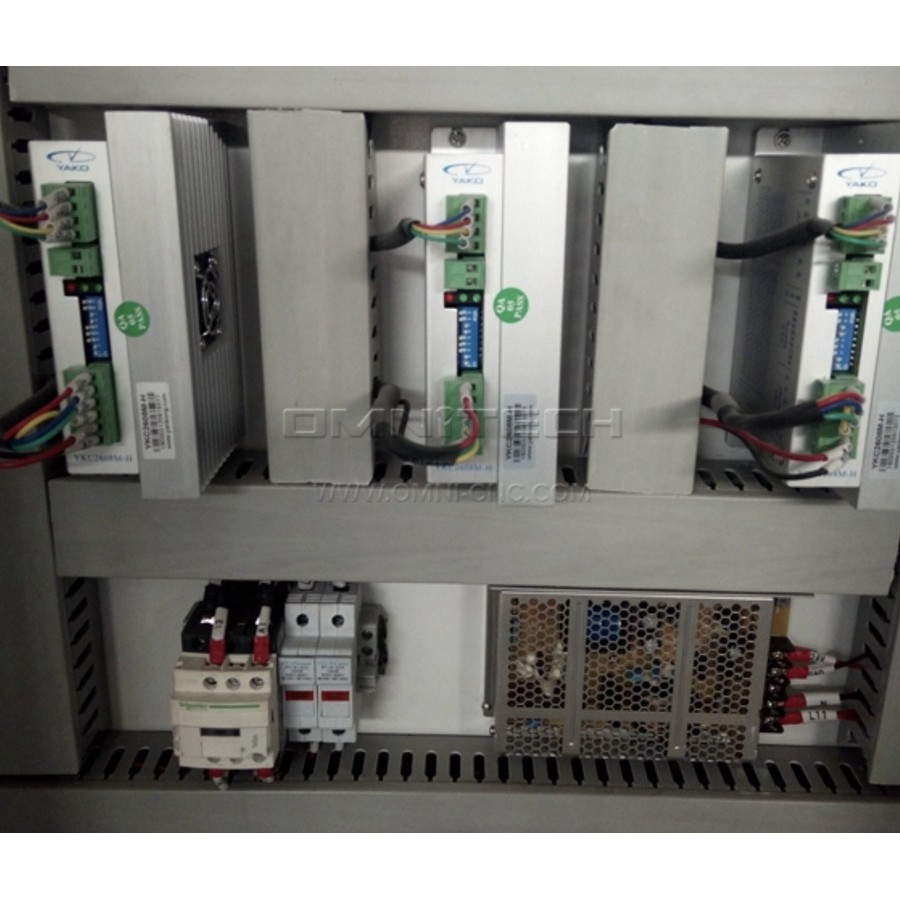

- Motor and driver : Yako driver and Stepper motor
- Machine table : Bakelite table combined Aluminum T -slot extrusion
- X, Y, Z Travelling Potioning Accuracy : ±0.05/300mm
- X, Y, Z Travelling Repositioning Accuracy : ±0.05mm
- Frame : Big thickened Steel Square Tubes
- X, Y structure : Helical Rack and pinion drive, Hiwin square rail linear bearing 20mm
- Z axis structure : Taiwan TBI ballscrew and Hiwin square linear rail 20mm
- Max Rapid Travel Rate : 32,000mm/min
- Max working speed : 20,000mm/min
- Working voltage : AC220V / 50hz / 3 phase or 380v / 50hz /3 phase
- Command languages : G code

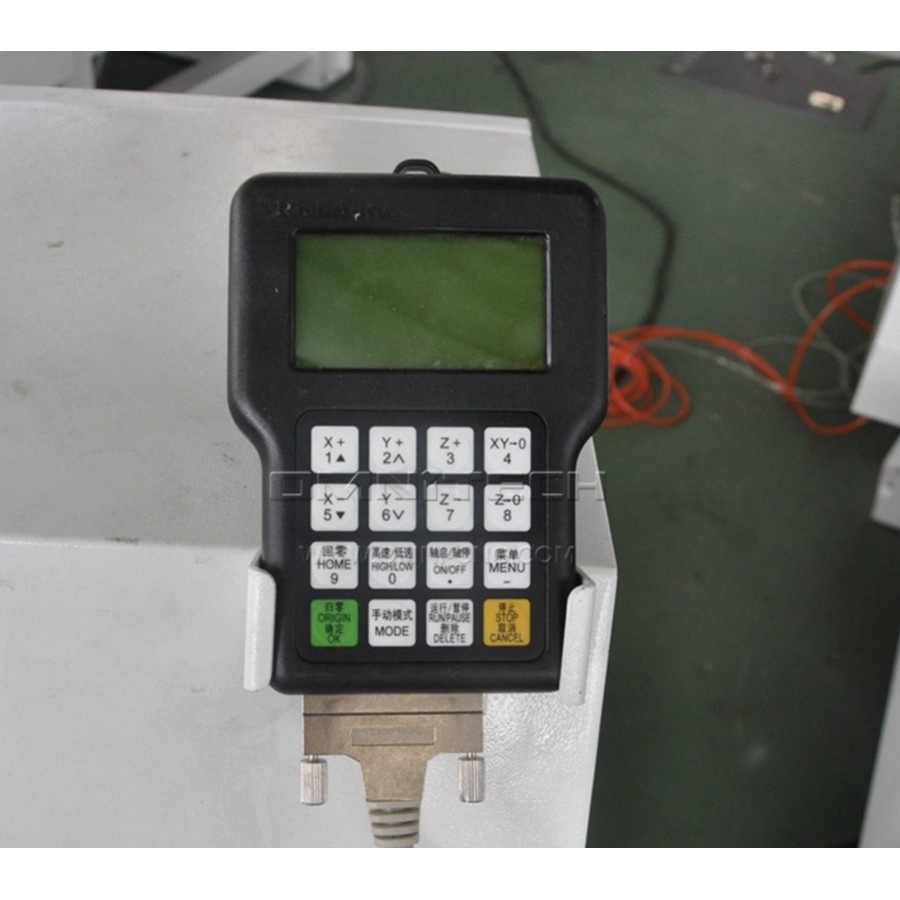

- Control system : DSP A18 control system
- Software :JDSoft English version
- Limit stop Extra-travel limit stop and hard limit stop
- Emergency stop and Switch : Japan Omron emergency stop and SCHNEIDER switch
- Package:3200x2100x1900MM
- Gross weight (wooden box weight):1750kg


Garansi Full Sparepart 1 Tahun



Barang READY STOK



Harga :
3 KW harga Rp 125.000.000
4.5 KW harga Rp 135.000.000
6 KW harga Rp 145.000.000
