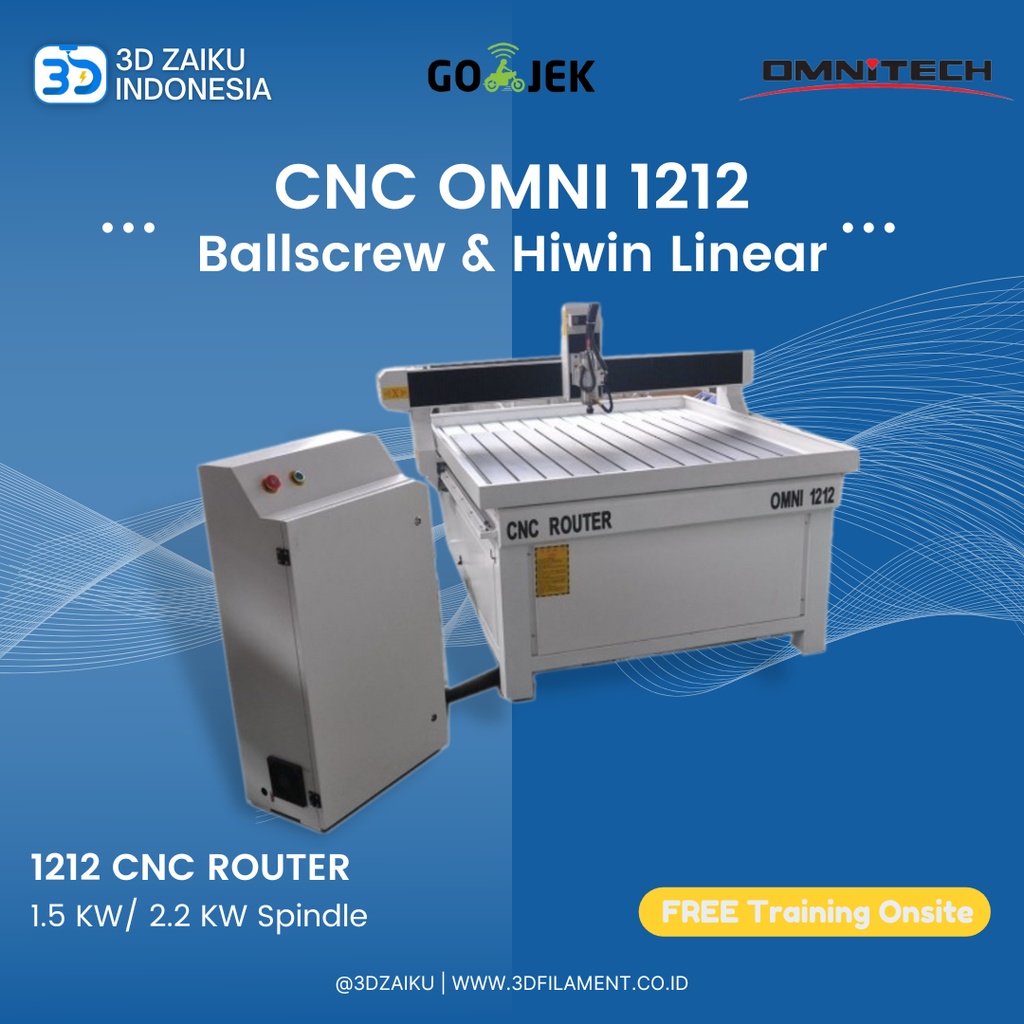

OMNI 1212 Industry CNC Router 120x120 cm with Ballscrew Hiwin Linear

Detail OMNI 1212 Industry CNC Router 120x120 cm with Ballscrew Hiwin Linear

3D ZAIKU INDONESIA

OMNI Industry CNC Router 120x120 cm with Ballscrew Hiwin Linear Rail

SKU : ZaikuOMNI-1212
Garansi Full Sparepart 1 Tahun untuk semua merek Zaiku

FREE TRAINING ONSITE area Jakarta, Tangerang, Surabaya
untuk luar kota ada biaya tambahan transport dan akomodasi


Kenapa beli di 3D Zaiku :
1. Garansi sparepart mesin 1 tahun
2. FREE Briefing cara pemakaian mesin untuk pemula di toko kita yang khusus mesin cnc
3. FREE Konsultasi kebutuhan mesin dan upgrade mesin, ada mesin demo ditoko
4. FREE Training di lokasi customer buat area Jakarta dan Tangerang, luar kota ada biaya tambahan jika training di lokasi


Alamat Toko Kita :

Jakarta : DUTA INDAH Blok C/16 Jl. MH. Thamrin No.KM. 2, RT.003/RW.002, Panunggangan Utara, Kec. Pinang, Kota Tangerang, Banten 15143


Mesin bisa motong dan ukir triplek, akrilik, kulit, sampai bahan besi Baja keras


TECHNICAL SPECIFICATION
- Cutting Area : 1200 x 1200 x 160 mm
- Spindle : 1.5 KW / 2.2 KW Water Cooling spindle

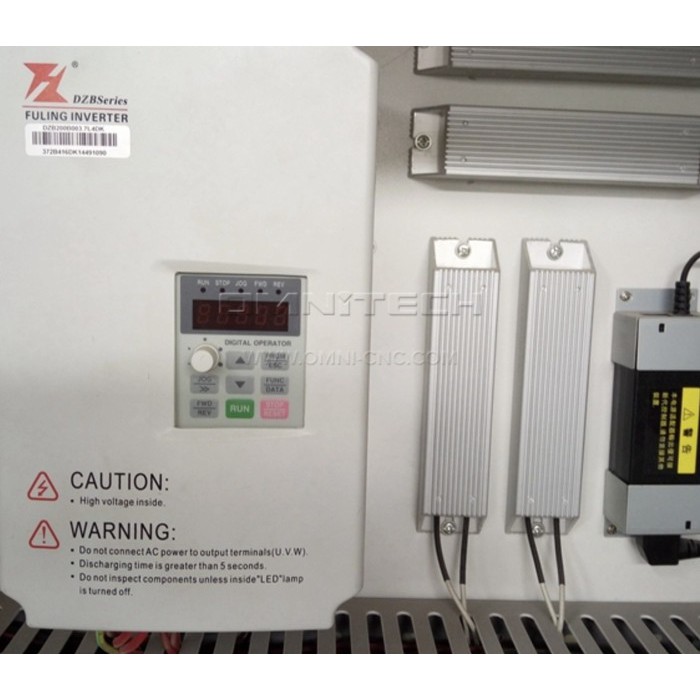

- Inverter : FULING frequency inverter

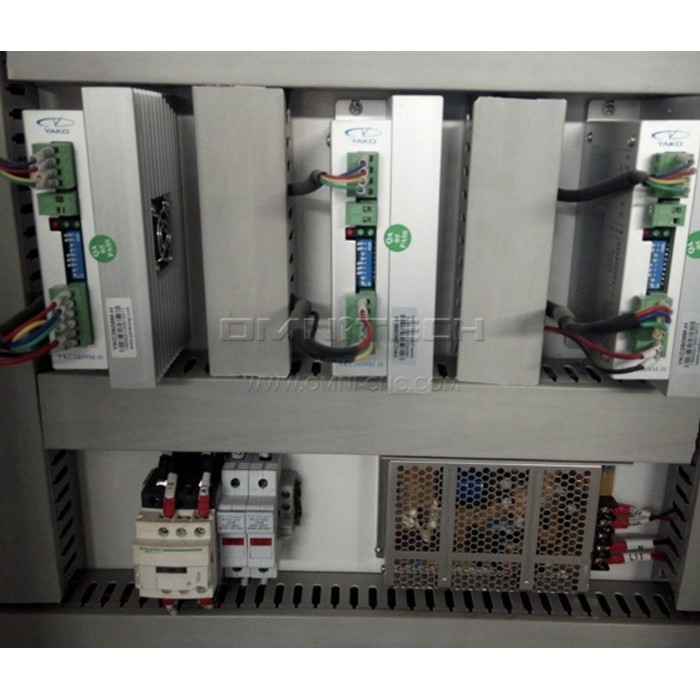

- Motor and driver : Yako driver and Stepper motor
- Machine table : PVC, Aluminum T -slot extrusion
- X, Y, Z Travelling Potioning Accuracy : ±0.05/300mm
- X, Y, Z Travelling Repositioning Accuracy : ±0.02mm
- Frame : Big thickened Steel Square Tubes
- X, Y structure : Helical Rack and pinion drive, Hiwin square rail linear bearing 20mm
- Z axis structure : Taiwan TBI ballscrew and Hiwin square linear rail 20mm
- Max Rapid Travel Rate : 8,000mm/min
- Max working speed : 5,000mm/min
- Working voltage : AC220V / 50hz / 3 phase or 380v / 50hz /3 phase
- Command languages : G code

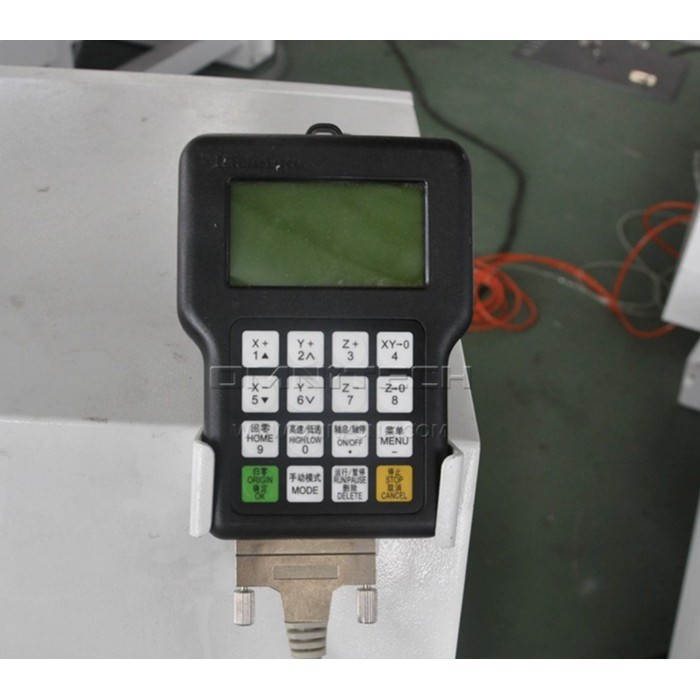

- Control system : DSP A18 control system
- Software : UCANCAM English version
- Limit stop Extra-travel limit stop and hard limit stop
- Temperature Monitor for Water Cooling Spindle
- Package: 1900x1900x1700MM
- Gross weight (wooden box weight): 600kg


Garansi Full Sparepart 1 Tahun


Barang READY STOK


Harga :
1.5 KW harga Rp 105.000.000
2.2 KW harga Rp 115.000.000

Gambar produk
